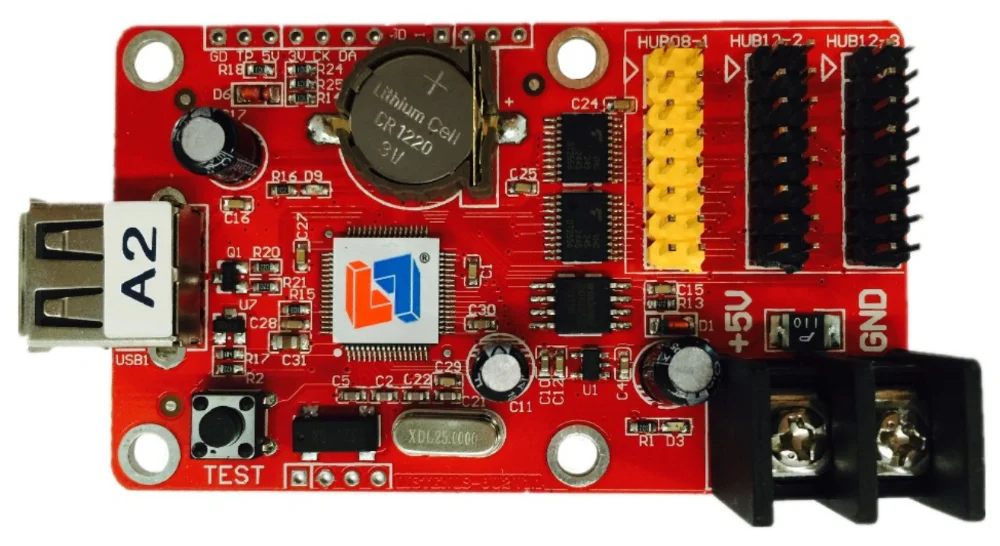

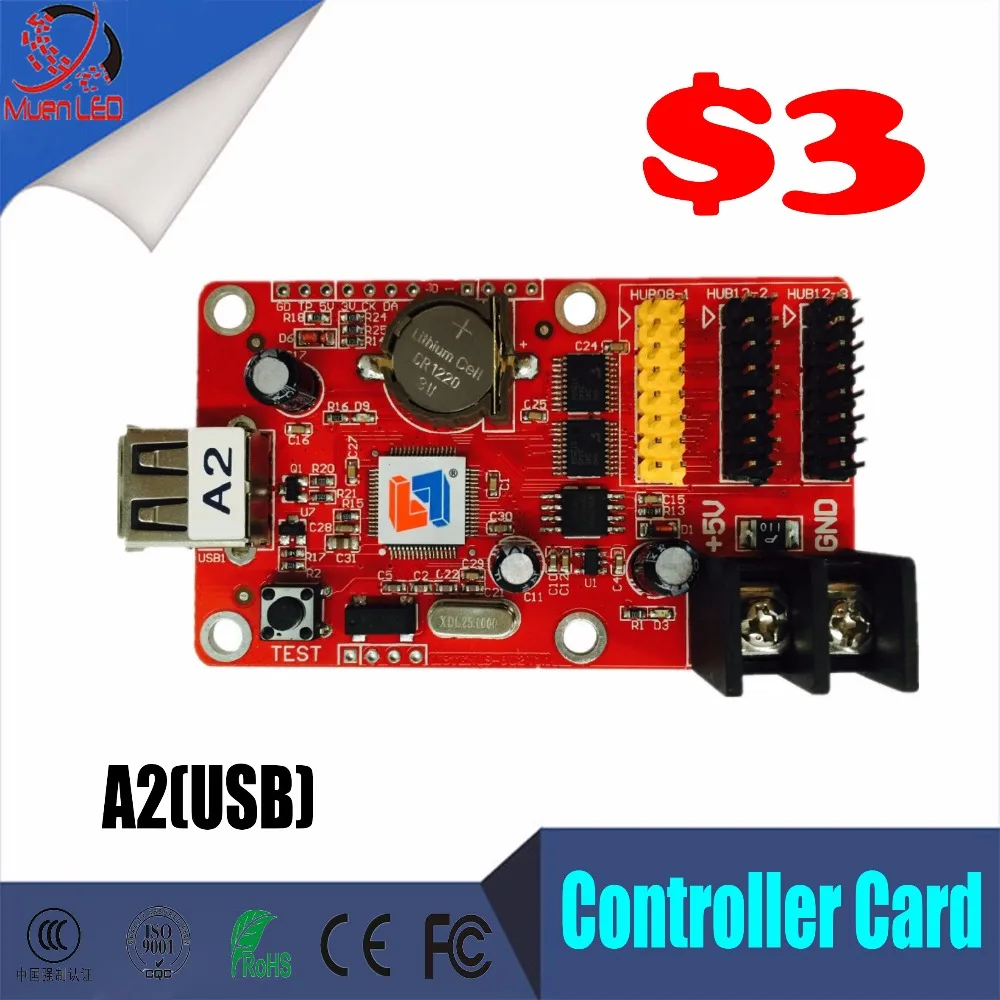

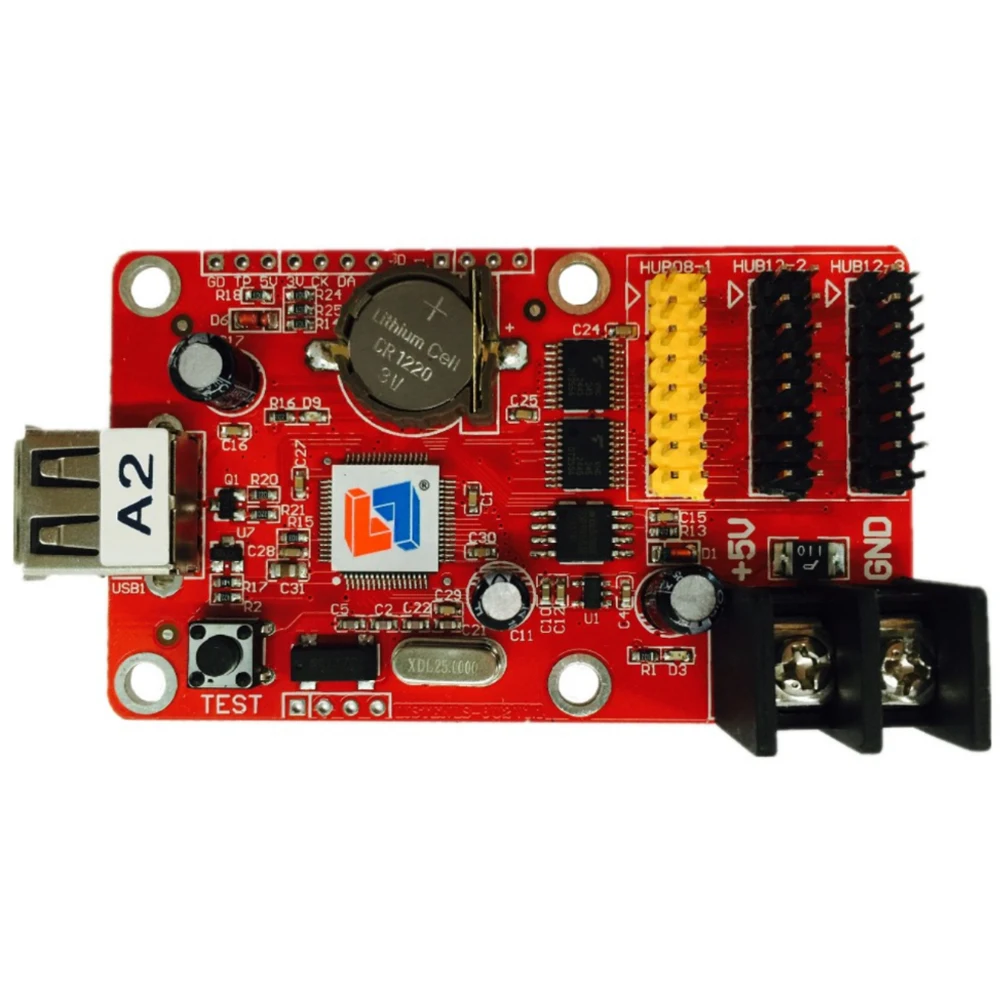

Muen Led Display Controller Card A2 USB
- Category: >>>
- Supplier: Shenzhen Muenled Co. Ltd.
Share on (60709592126):
Product Overview
Description
Hot product recommendation
Product Description

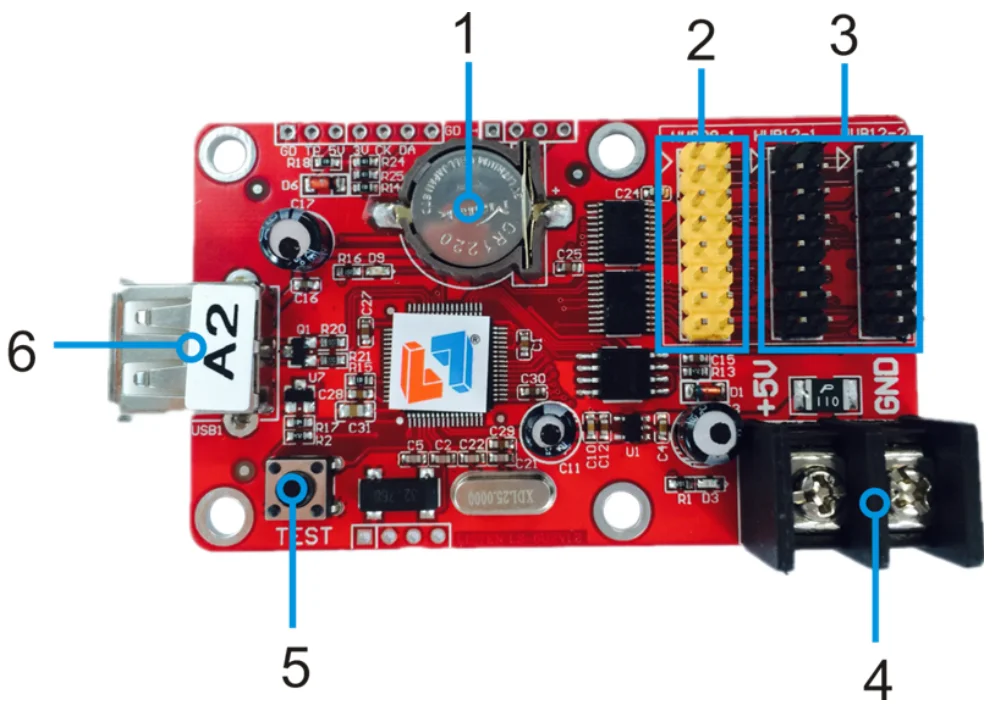

Item | Interface Name | Description |
1 | RTC Button battery | RTC battery,Voltage 3V |
2 | HUB08 Port | Connect to modules with HUB08 port |
3 | HUB12 Port | Connect to modules with HUB012 port |
4 | 5V Power supply | Voltage range support 3.5V-6V |
5 | Multi-function button | 1.Test LED panel; 2.Reset to defaults |
6 | USB Port | USB Port |
Memory | 2MByte |
Suitable for | All kinds of single/double color led modules |
Pixels | Single color 16K;Double color 8K |
Support Range | Single color:1024*16 512*32 /Double color:512*16 256*32 |
Software Function | Multi-area display/More language |
Program number | 128 programs, 16 area for each program |
Area type | Text,Graphic,Animation,Time, Clock,Timer,Temperature |
Frame display | Program Water frame/Area Water frame |
Clock display | Digital clock,Analog clock,Positive timing,Negative timing |
Communication port | USB port |
Display Port | 1XHUB08 2XHUB12 |
Sensor | Temperature Sensor |
Brightness Adjustment | 16 grade, auto brightness adjustment/ adjust by software |
Remote Switch | Support timing turn on/off , Turn on/off by software |
Working Voltage | 3.5V~6V |
Max Power | <1W |
Working Temperature | -40℃-85℃ |
Secondary Development | Offer DLL |
Software | LED Player 6.0 |
Certifications

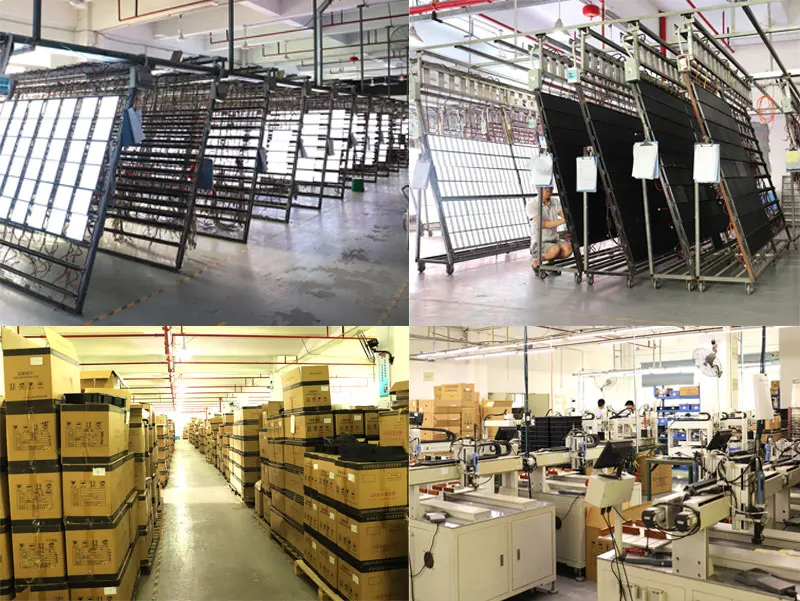

Our Company

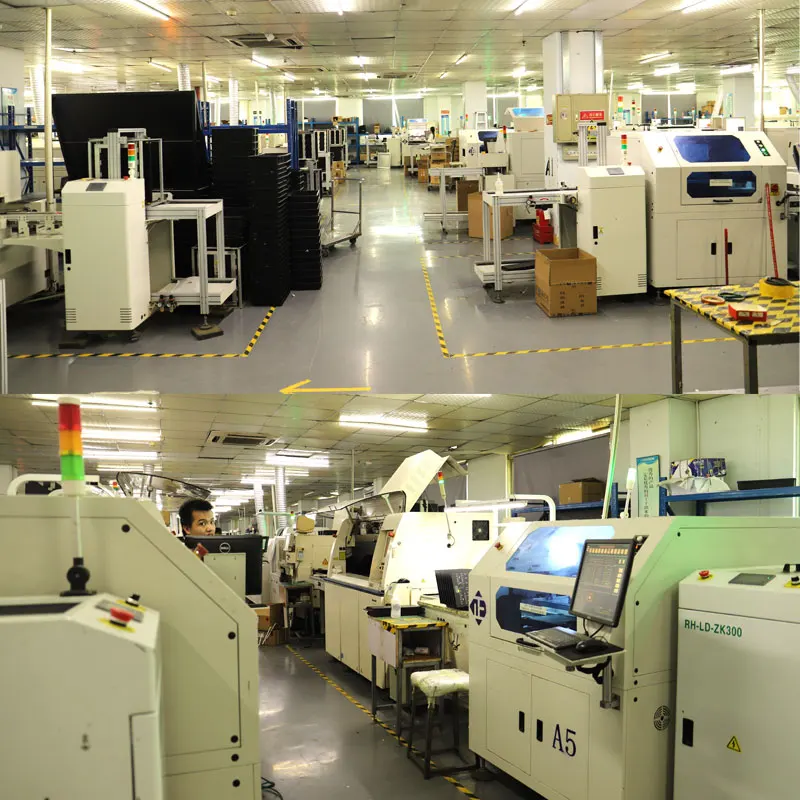

MUENLED Co.,Ltd in Shenzhen China is a real factory who making LED sign /display /billboard
with high quality and competitive price.
Products:
From P1.9- P31.25 / Taxi Roof Advertising / Rental Cabinets / LED truck/ Strip screen,etc.
Service:
We are supplier of LED screens with excellent quality, and 3-year warranty for the products.
Use Epistar chips for our products, sold to 20+ countries all over the world.Average lead time is less than 15 days.
A 12 years experience technical team to solve problems for you anytime!
If you do not hesitate to send us any of your inquiries,it`s will get prompt attention.
Looking forward to hearing from you.
