Product Overview

Description

               Hollow core wall panel



    fiber cement eps sandwich panel for interior & exterior partition

Application of light weight hollow core slab wall panel:

1. Commercial projects: office buildings, shopping malls, KTV, hotels, residentials etc.

2. Industrial projects:factorys, logistics parks....

3. Public or Government projects: libary, prefab houses..

Suitable for precast concrete structue, steel structure and wood structure.



Characteristics:

1. Lightweight

Materials: Cement,Fly ash, Foaming agent, Fiber glass mesh

Density:38-45kg/m2(90mm thick)

2. Fast installation

Fast installation: 50m2/two men/day

3. Green

Non-asbestos, non-toxics, non-formaldehyde

4. Good building performance

Compressive strength:4.4-6.2MPA

Hanging force: ≥1000N

Fire resistance: 4 hours

Thermal insulation: thermal conductivity is 0.12 which is 1/10 of the concrete.

Sound insulation: 45dB----transmission loss

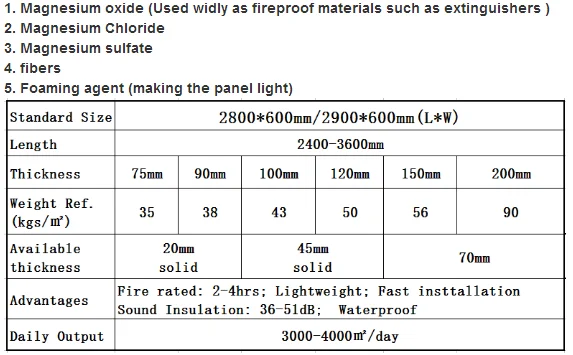

Raw material and specifications:



Packing:
