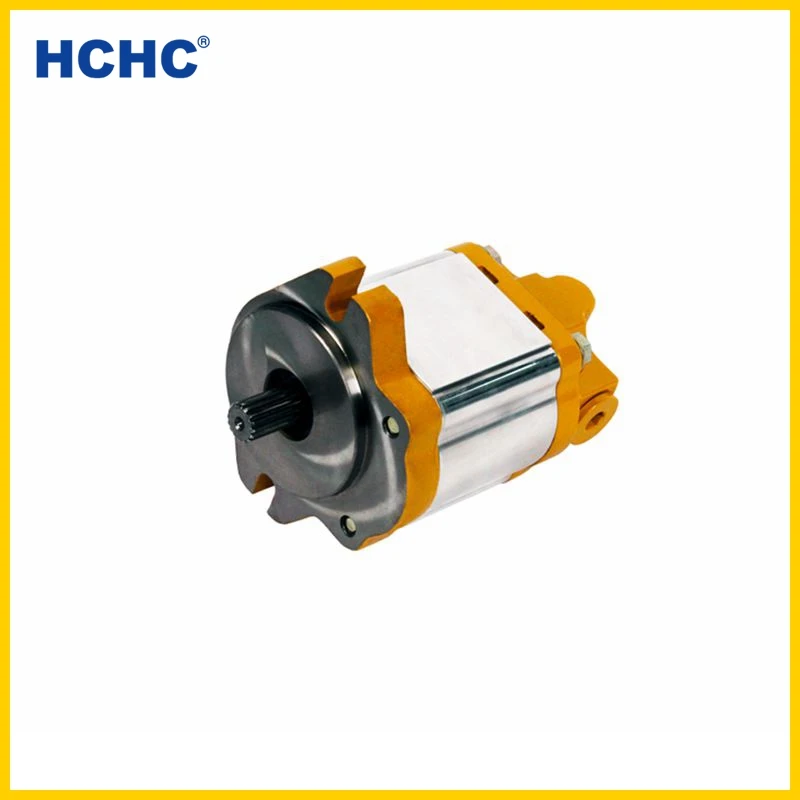

supply hydraulic gear pump with hydraulic control valve CBWFB
- Category: >>>
- Supplier: Hefei Changyuan Hydraulic Co. Ltd.
Share on (60709614082):
Product Overview
Description
product supply tractor hydraulic gear pump with hydraulic control valve CBW/FB-E3
Performance character:
1.The pump and valve joint together with compact structure and small volume.
2.Constant flow output, wide speed range.
3.The type of shaft extension: SAE spline, metric involute spline.
Specification
CBW/FB - E 3 ** - A T * *
① ②③④ ⑤ ⑥ ⑦ ⑧
Model Code
CBW/FB - E 3 ** - A T * *
① ②③④ ⑤ ⑥ ⑦ ⑧
①Product model
②Pressure: E=160 bar
③Gear modulus: 3
④Nominal displacement
⑤Mounting type: A=oval flange
⑥Joining port type: T=special type
⑦Shaft extension type
X=involute spline, Φ=SAE spline
⑧Rotation direction
L=counterclockwise, R=clockwise (omitted)
Model | Nominal Displacement (mL/r) | Pressure (MPa) | Speed (r/min) | Constant Flow (L/min) | Weight (kg) | ||||||
Rated | Max. | Min. | Rated | Max. | |||||||
CBW/FB-E306-AT** | 6 | 16 | 20 | 1350 | 2000 | 2500 | 6.7~8.6 | 4.3 | |||
CBW/FB-E308-AT** | 8 | 9~11.5 | 4.4 | ||||||||
CBW/FB-E310-AT** | 10 | 11.7~15 | 4.5 | ||||||||
CBW/FB-E314-AT** | 14 | 16.2~20.7 | 4.7 | ||||||||
CBW/FB-E316-AT** | 16 | 18.9~24.2 | 4.8 | ||||||||
CBW/FB-E320-AT** | 20 | 23.4~29.9 | 5.0 | ||||||||

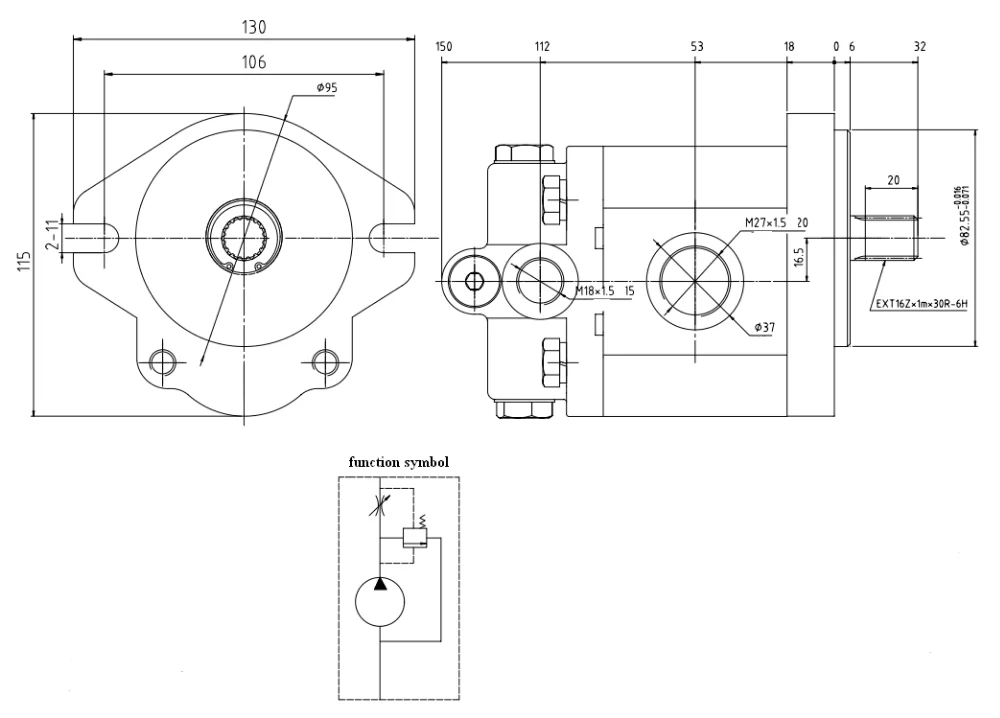

Outline Dimension
