JN500 planetary concrete mixer

1. Steady Driving.
The power transmission is realized by a hard surface gearbox
2. High Mixing Efficiency.
The gear box drives the mixing arms to move with complex track, and the mixing is turbulent, then the mixer works more effectively.
3. Homogeneous Mixing.

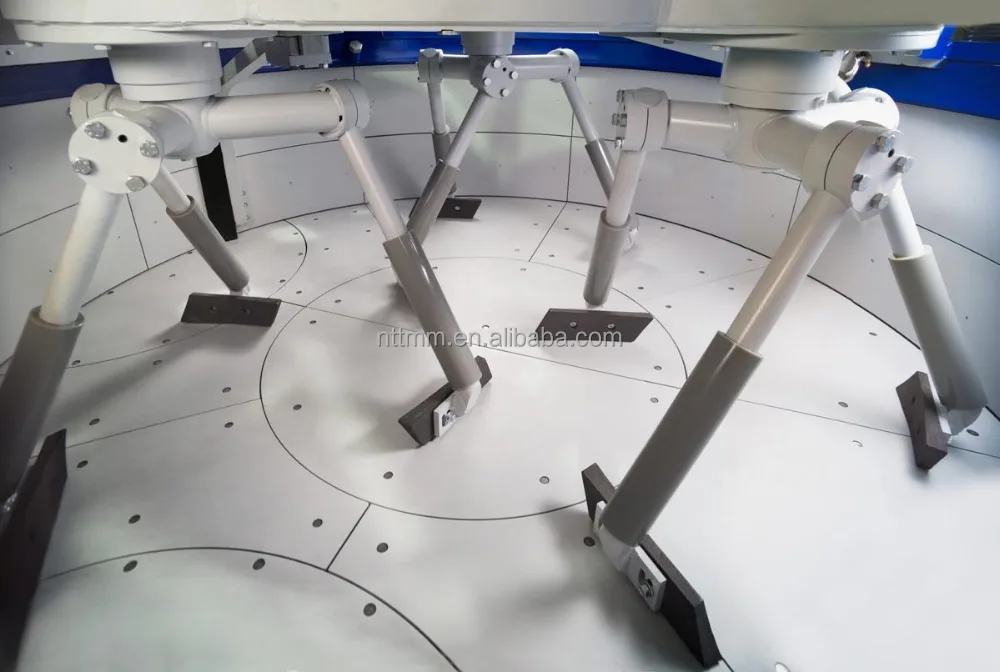

Mixing blades are composed of several groups of mixing arms, which covers the entire mixing region. Both revolution and rotation of mixing blades ensure the homogeneity of the material. As the picture shows, mixing blades’ motion track covers the whole drum after a cycle.
4. Multiple Discharging Method.
According to various demands of customers, the discharging door can be operated hydraulically, pneumatically or manually.
5. Special Designed Water Sprayer
Special designed sprayer makes the water cloud cover more area and ensure the even distribution of the materials.
6. Easy to maintain and no leakage problem. Transmission system (including motor) is located at the top of mixing drum, completely separated from the concrete. It’s convenient for maintenance and there is no leakage problem at the shaft end.
Main parameters 2016 Hotsale plantery cement mixer JN500 concrete mixer high quality


Model-------- JN500

Charging Volume(L)-------- 750

Discharging Volume(L)-------- 500

Discharging Volume(kg) --------1200

Diameter of Mixing Drum(mm) --------1900

Mixing Power(kw)-------- 18.5

Discharging Power(kw) --------2.2

Mixing Blades(nr)-------- 1/2

Side Scraper --------1

Weight(kg)-------- 2000

Dimension(L*W*H)(mm)-------- 2220x2071x1880

Lifting Power(kw)-------- 4

Certifications

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

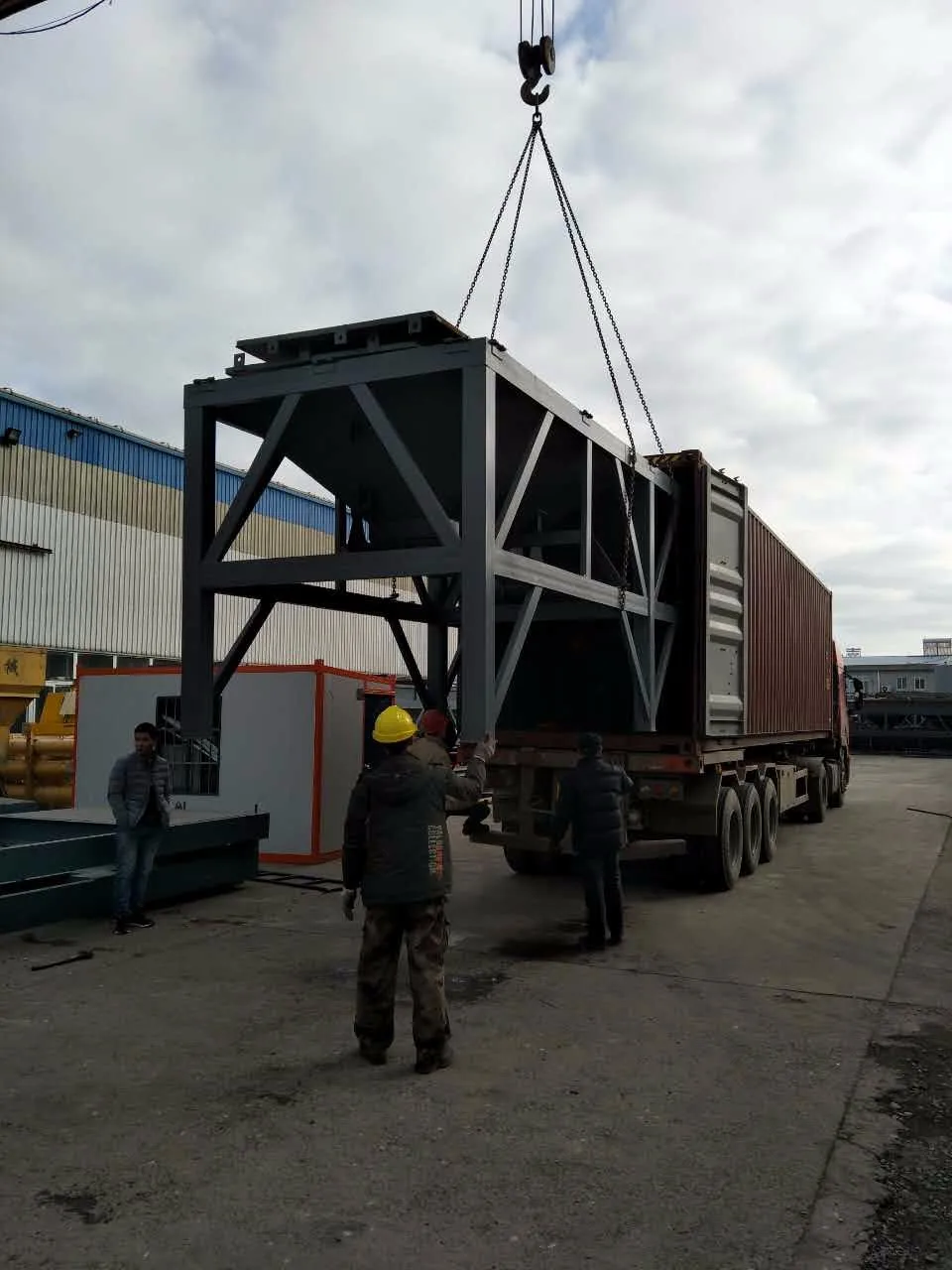

Packing & Delivery

Packaging
Size	International standards
Weight	International standards
Packaging Details	In terms of transport, we will follow international standards for concrete mixer concrete mixing machine

About us

Nantong Tongmen Machinery Co. Ltd

Nantong Tongmen Machinery Co. Ltd (TMM) is located in Nantong High-tech Developing ZoneJiangsuChina, enjoying convenient transportations. Qualified workers and technicians are gathered here. With a team of experienced engineers, It has been engaged in researching, developing and manufacturing construction machinery for over 20 years. Now It has become one of major batching plant makers inEast China. Batching plants of all kinds(HZS35、HZS60、HZS90、HZS120、HZS180) are offered in store. With competitive price and outstanding quality, products are popular home and abroad. Such traditional Concrete mixers as（JZM350 JZM500 JZM750 JS500 JS750 JS1000 JS1500 JS2000 JS3000）are mass produced. Working for a better environment, we have developed Environmentally-friendly Dry powder mortar production line and Wet mortar production line. Based on offering customers with reliable and trustworthy technology, products and services, our business is enlarging dramatically.

We chat /whats app : 0086 13962982550
