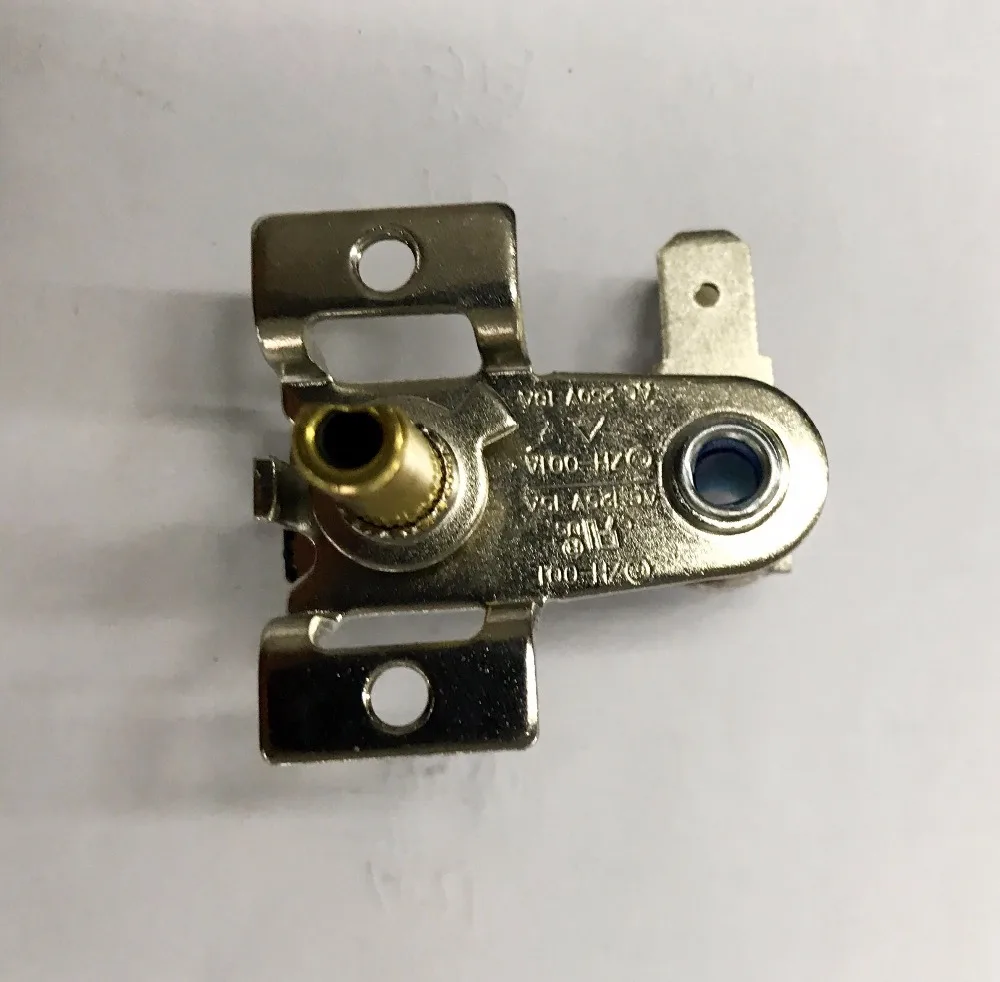

Chinese factory direct thermostat for oven

Product Overview

Description

Specification:

Electrical Ratings	AC 250V/10A 16A, AC125V/15A
Temperature Setting Range	0~300ºC
Max Service Temperature	300 ºC (Designed by user's requirements)
Temperature Tolerance	±5 ºC%
Reset Temperature	5 ºC -30 ºC
Life Cycle	No less than 100,000 times



Technical Drawing:

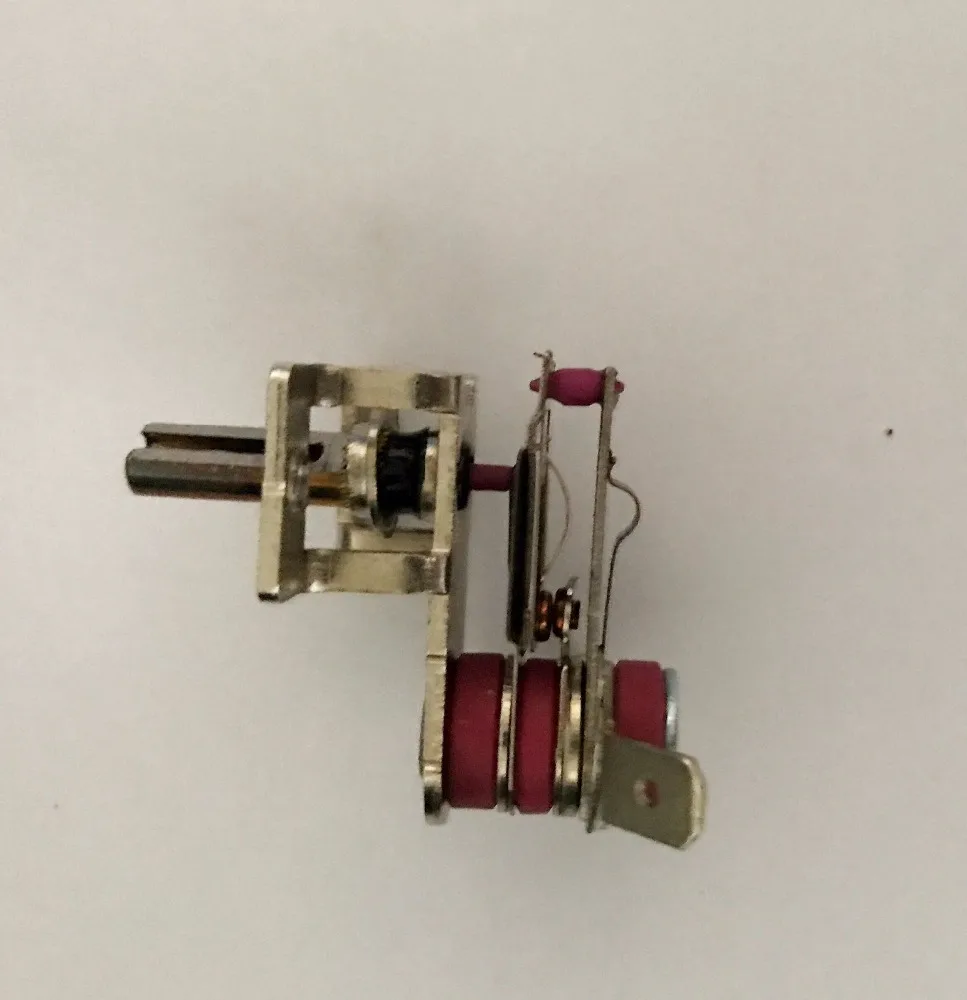

Working Principle:

Being used the bimetal as temperature response element. It can be deformed when the bimetal reach a definite temperature. Trip of bimetal can separate the contactor quickly and cuts off the power. The reset of bimetal can switch on the power when the temperature decreased to the original level. Adjusting the screw bolt to push the spring can adjust the different working temperature of appliances. ac thermostat, mechanical thermostat.
