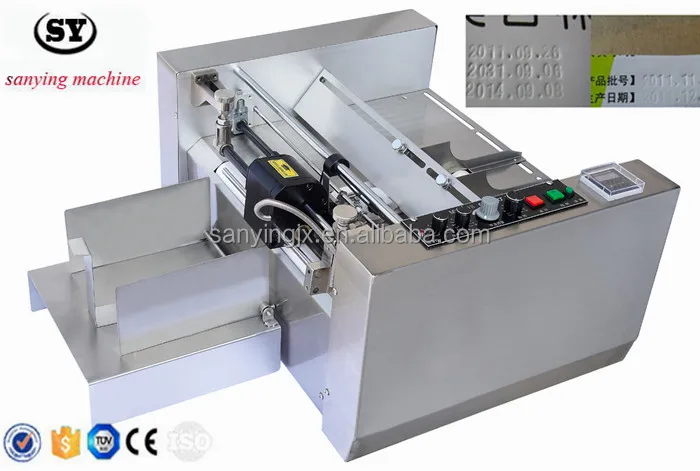

SY420 Carton box Steel Printing Machine

Product Overview

Description

SY420 Carton box Steel Printing Machine

Description:

1.This machine uses a variable speed motor,speed steples,fully mechanical transmission,control and less institutional,less failure.

2.With a transverse feed mechanism,making the correct position,easy to adjust,is the best carton printing equipment.

3.With steel word,concave indentation can be used for printing in free.

4.Widely used for carton, printing cardboard production date, expiry date, lot number and used to print concave letter.



Technical parameter:



Object to print	Carton, Cardboard
Object Size	40mm(W)x100mm(L) - 180mm(W)x350mm(L)
Printing Ink	Paste light ink
Type Wheel	80mm Round Type Wheel
Printing Line	Type T Max 5 Line, 12Characters every line
	Type R Max 3 Line, 15Characters every line
Weight	80kg
Speed	0-160pcs/min
Object thickness	0.6-4mm
Steel Word	Type T 3mm, 2.5mm, 2mm
	Type R 3mm, 2.5mm, 2mm
Space	3.5mm
Precision	±1mm
Power	AC 110/220V, 50/60Hz
Dimension	1150mm(L)×660mm(W)×530mm(H)



Printing effect display:
