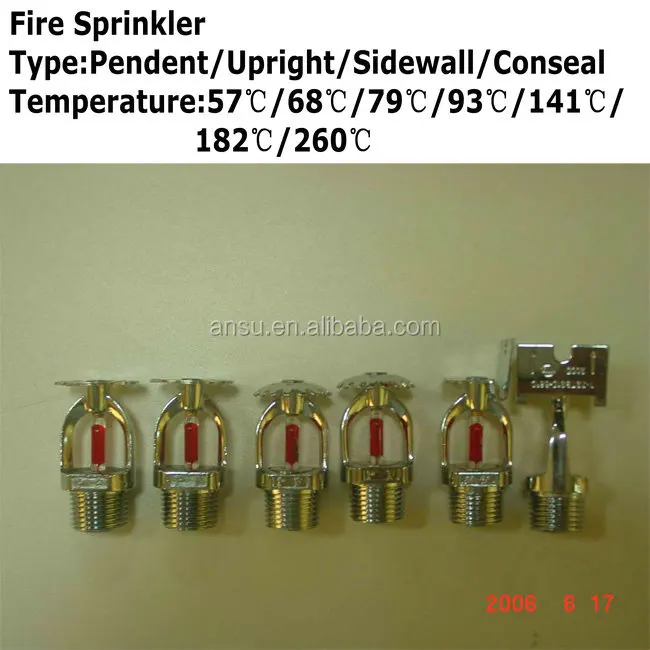

Fire Fighting Sprinkler Pendent/Upright/Side wall/Conseal fire fighting water sprinklers 68C 98C
Fire Fighting Sprinkler Pendent/Upright/Side wall/Conseal fire fighting water sprinklers 68C 98C
Fire Fighting Sprinkler Pendent/Upright/Side wall/Conseal fire fighting water sprinklers 68C 98C
Fire Fighting Sprinkler Pendent/Upright/Side wall/Conseal fire fighting water sprinklers 68C 98C
Fire Fighting Sprinkler Pendent/Upright/Side wall/Conseal fire fighting water sprinklers 68C 98C
Fire Fighting Sprinkler Pendent/Upright/Side wall/Conseal fire fighting water sprinklers 68C 98C
Fire Fighting Sprinkler Pendent/Upright/Side wall/Conseal fire fighting water sprinklers 68C 98C

Fire Fighting Sprinkler Pendent/Upright/Side wall/Conseal fire fighting water sprinklers 68C 98C

Share on (60709649171):


Price:$2.00

Quantity:


Product Overview

Description



Product Description

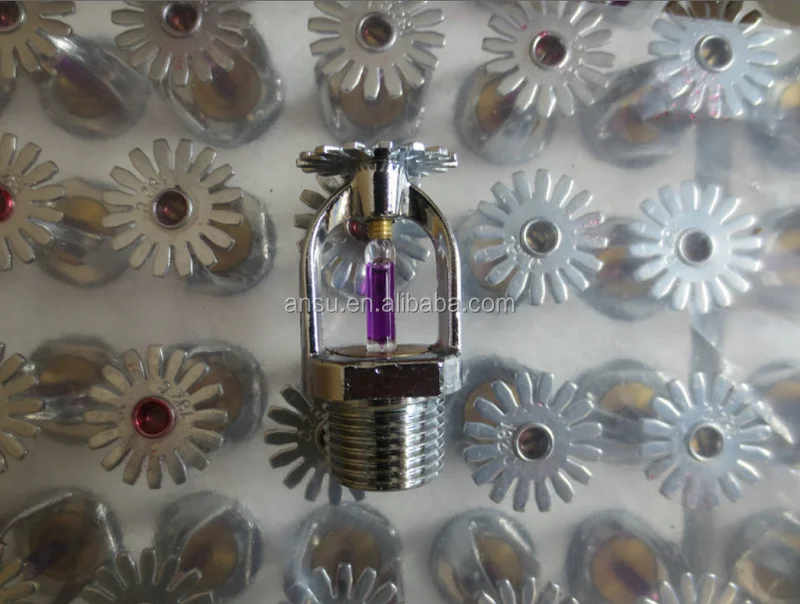

 Fire Sprinkler


Nominal diameter: 15mm, 20mm


Flow coefficient: 80±4, 115±6


Temp rating: 57C, 68C, 79C, 93C,141C, 182C


Glass bulb color: orange, red, yellow, green, blue, purple


fire sprinkler is key components in automatic sprinkler system. It plays detecting fire hazards


and extinguishing fire via automatic water spraying. It is widely used in various  civil buildings


 and high civil - industrial buildings what are sorted as low, medium or high fire hazard protected area.


It is applicable to the fire protection of many important places such as computer room, library, archives,


treasure house, power distribution room, and telecommunication center.
















































Characteristics and Functions
ModelFire sprinkler
MaterialBrass, chrome plating
Type brass color upright type ESFR fire sprinkler
Norminal diameter(mm)15DN or 20DN
Connecting threadR1/2 or R3/4
Glass bulb colorRed
Temperature rating68°C
Flow Rate80±4 or 115±6
Bulb3mm or 5mm
Responsequick response
















































































                    Basic Parameters of Fire Sprinkler
ModelNorminal DiameterThreadFlow RateStyle
T-ZSTPDN15R1/280±4Upright/Pendent
DN20R3/4115±6
T-ZSTXDN15R1/280±4Pendent
DN20R3/4115±6

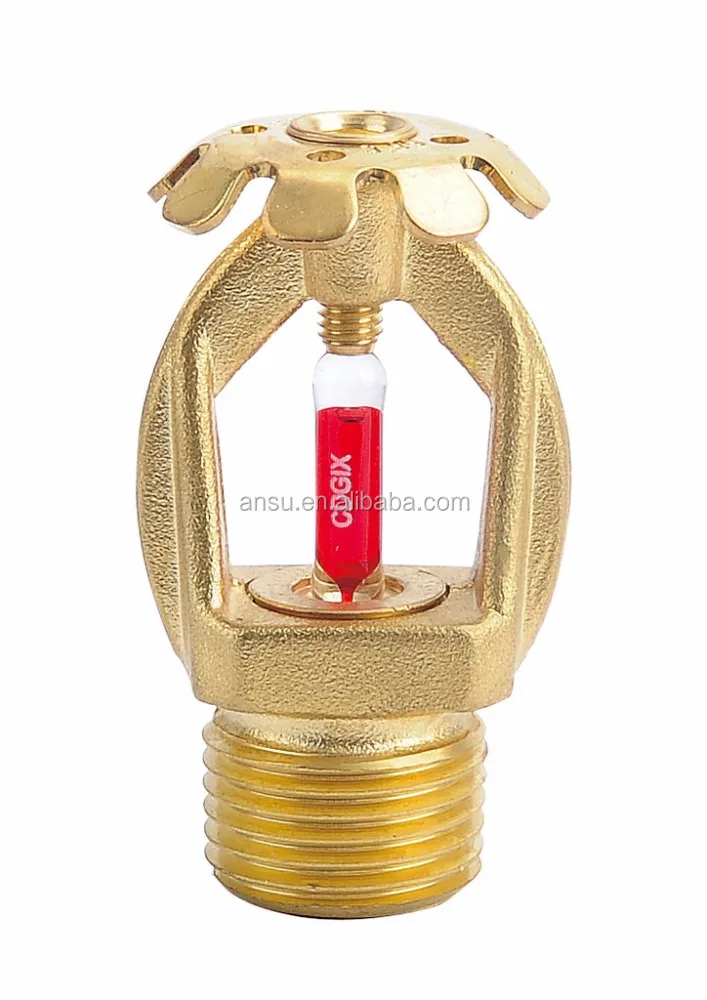

T-ZSTZDN15R1/280±4Upright
DN20R3/4115±6

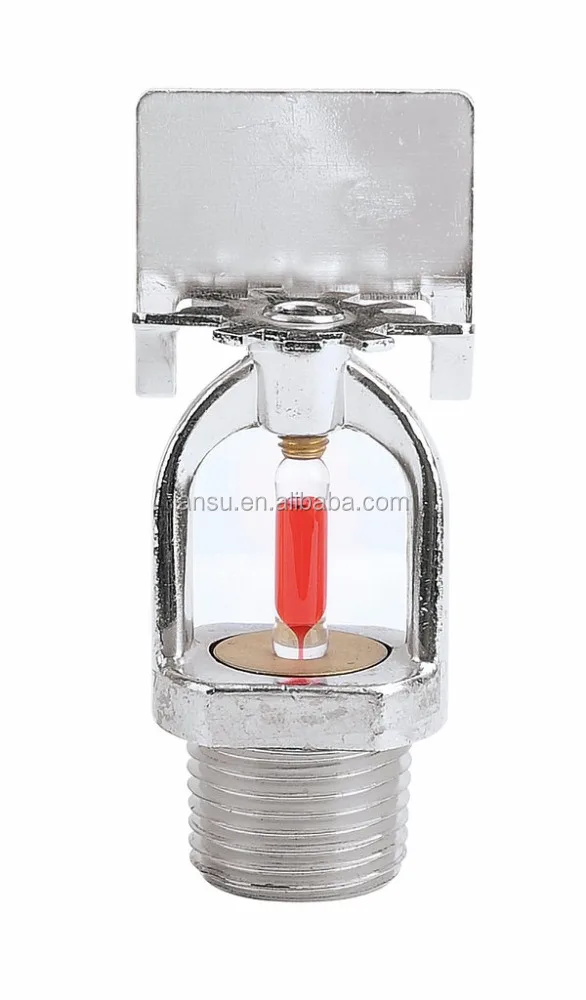

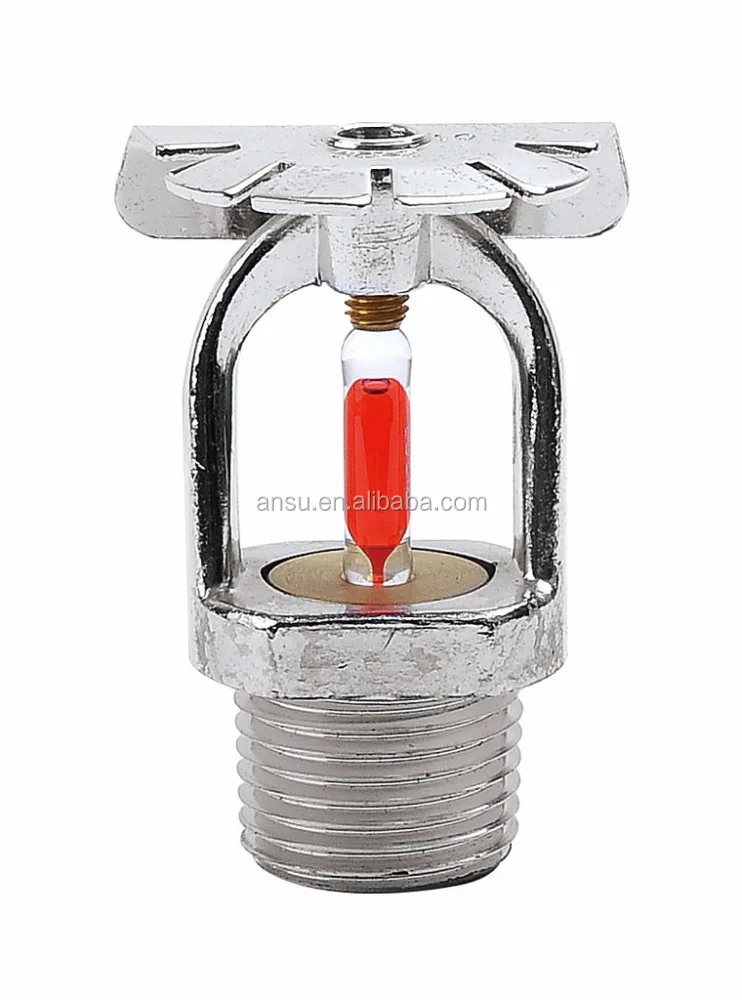

T-ZSTBSDN15R1/280±4Horizontal Sidewall
DN20R3/4115±6
ZSTDYDN15R1/280±4Pendent
DN20R3/4115±6

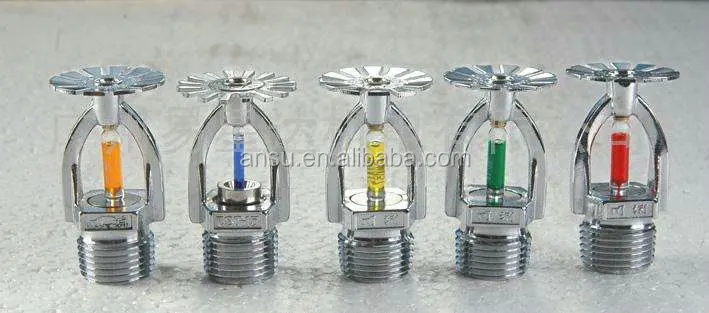

Nozzle Rated TempMax Ambient TempGlass Ball Color
57°C27°COrange
68°C38°CRed
79°C49°CYellow
93°C63°CGreen
141°C111°CBlue
182°C152°CPurple

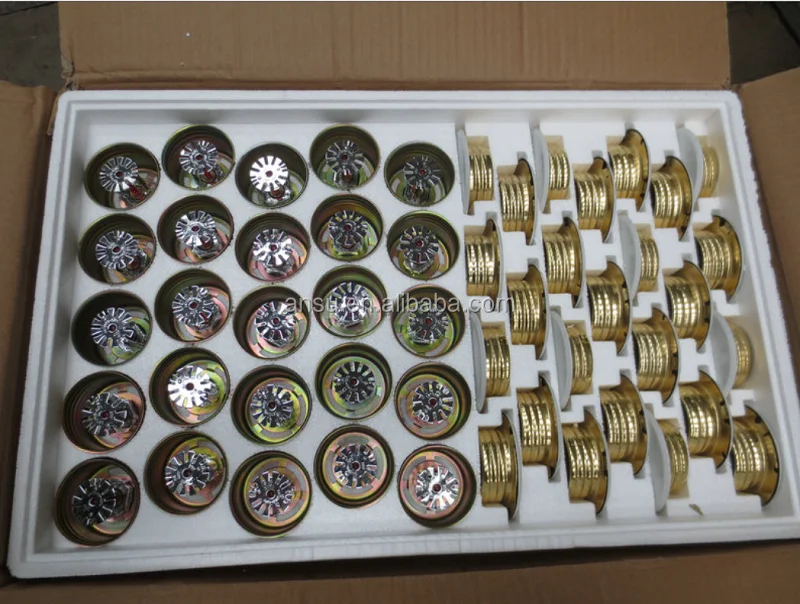

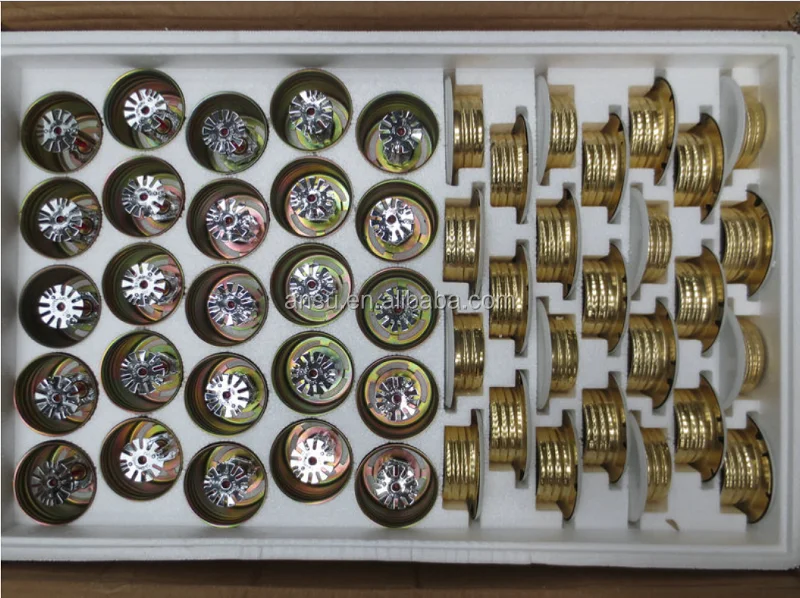

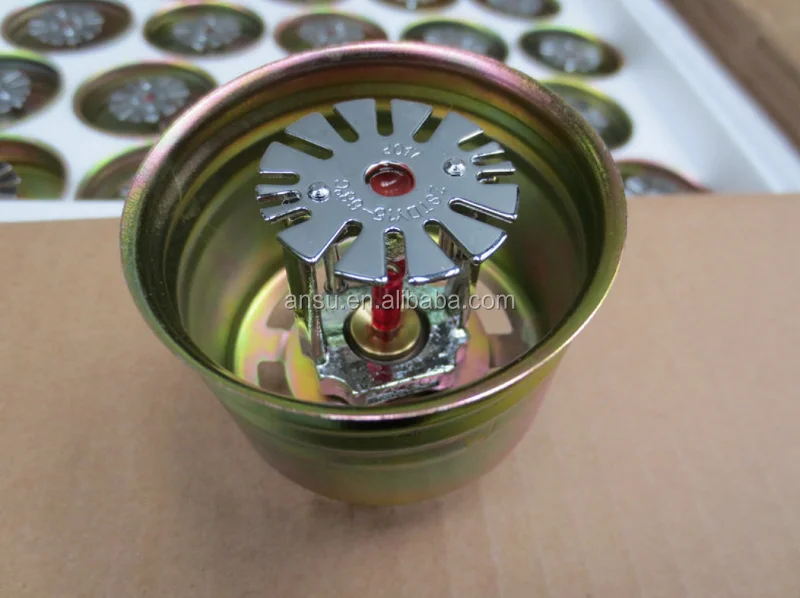

Packaging & Shipping







Company Information





Hangzhou AnSu Fire equipment specialized in fire fighting products:



EN3 Fire Extinguisher

Stainless steel fire extinguisher

CO2 fire extinguisher

Foam and Water fire extinguisher

Fire hose reel and cabinet

Fire hydrant and valve

Etc



Quality and Safety: We have ISO9001:2000,CE ,EN3,EN671,EN1869,EN14604 etc certificates for most of our products on fire fighting equipment. Mainly export to Europe , Latin America,Middle east,Africa and so on.We make sure the safety of our customers during use our products.



AnSu fire also supply OEM ODM products ,High Quality ,Professional Service,Honesty is our basic rules. We have very good after-service,one professional high efficient and warmly sales team service you at 24 hours.We promise that all feed backs from clients would be replied within 8 hours during working days.



AnSu fire rule is saving time and cost for clients ,Taking good profit and well development for clients.Growing space and training for each staff,Clients and staffs push AnSu fire safety company development.



Sincerely welcome to join us now.
