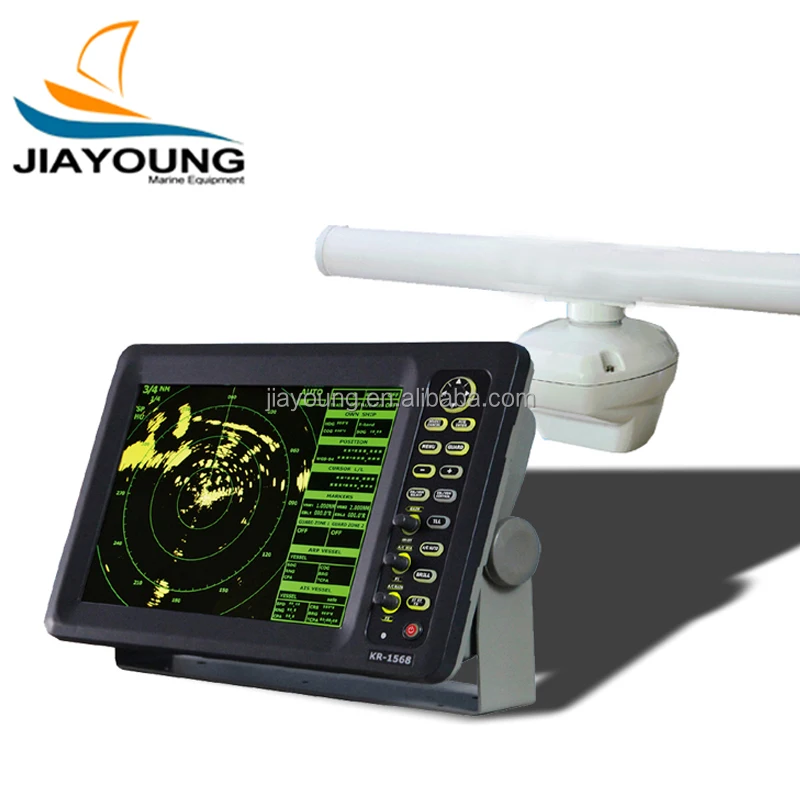

Open Array Antenna 64NM Radar For Boat
Product Description
Customizable Data Field, more flexible data display.
System Software can be upgraded via USB.
AIS display function.
Multiple-Color selection for target and background.
Rugged die-cast, waterproof housing.
“Target Tracking” (TT) function, can track and trace up to 20 targets.
User-programmable function keys.
Automatic optimization of radar picture.
Newly enhanced performance.
Head-up, Course-up and North-up representation mode.
Economy Mode, Guard Zone Alarm and Watch Mode.

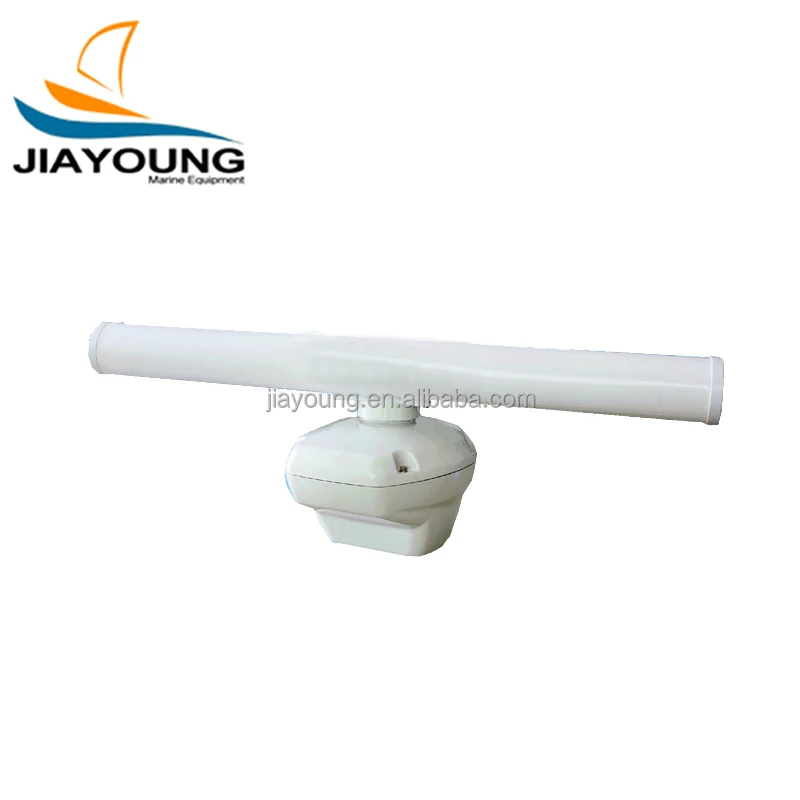

| ANTENNA RADIATOR | |
| Type | KR-1268: 120cm hybrid array |
| Length and Rotate speed | KR-1268: Open Array 120cm (KRA-2004) 24RPM |
| Wind load | Relative wind 100 knots |
| Beam width | KRA-2004: Hor: 1.9 Vert: 22 |
| RF TRANSCEIVER | |
| Frequency | 9410 +/-30MHz (X-band) |
| Pulse length PRR | 0.08 µ s/2100 Hz(0.125, 0.25, 0.5, 0.75, 1, 1.5* nm)
0.3µ s/1200 Hz(1.5*, 2, 3 nm) 0.8 µ s/600 Hz(3*, 4, 6, 8, 12, 24, 36, 48, 64nm) * Pulse length & PRR for 1.5 and 3nm ranges can be select in menu |
| Peak Output Power | 6KW nominal |
| Mixer and Local Oscillator | Microwave Inter grated Circuit |
| IF | 60MHz Bandwidth: 25MHz (0.08/0.3 µ s), 3MHz (0.8 µ s) |
| Noise Figure | 10dB nominal |
| ENVIRONMENT | Temperature: Display unit: -15 to +55 C (Display Unit) Antenna unit: -25 to +70 C (Antenna Unit) |
| POWER SUPPLY | 13.8 VDC, 24 VDC, 36 VDC; 60W (30W in economy mode) |
| DISPLAY UNIT | |
| Type | 12″ LED backlight, 32-bit TFT Color LCD Display 1024(V) x 768(H) dots |
| Display Modes | Head-up, Course-up*, North-up*, True Motion** * Heading input required ** Heading and speed inputs required |
| Range Scale (nm) | Range: 0.125, 0.25, 0.5, 0.75, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, 24, 36, 48, 64, 72 Ring:0.0625,0.125,0.125,0.25,0.25,0.5,0.5,1,1,2,2,3,4,6,12 |
| Echo Trail | Interval: 15s, 30s, 1min, 3min, 6min, 15min, 30min or continuous |
| Interface(NMEA 0183 format) | any talker (menu selection) Input: $–APB,$–BWC,$–BWR,$–DBK,$–DBS,$–DBT,$–DPT, $–GGA,$–GLC,$–GLL,$–GTD,$–HDG,$–HDW,$–HDT, $–MDA,$–MTW,$–RMA,$–RMB,$–RMC,$–VTG, $–VHW, $–XTE Output: $–OSD,$–RSD,$–TLB,$–TLL,$–TTD,$–TTM |
| AIS Display | Acquisition : AIS vessels or ATON Tracking : Auto Display : Vessel Name, MMSI, Call sign, Range/Bearing, L/L Speed/Course, ROT, CPA/TCPA (AIS data input required) |
| Target Tracking Function | Acquisition : 20 manual/10 auto + 10 manual Tracking : Auto Display : Speed, Course, Range/Bearing and CPA/TCPA |
| EQUIPMENT LIST | |
| Display unit (KRD-2004): 1 unit
Open Array Antenna unit: KR-1268: KRA-2004 1 unit Antenna Cable (KRC-005-10/15/20): 10/15/20/30m (Specify when ordering) Power Cable (KRP-002-0): 3m Standard Spare Parts and installation materials: 1 set | |
Related Products
Certifications

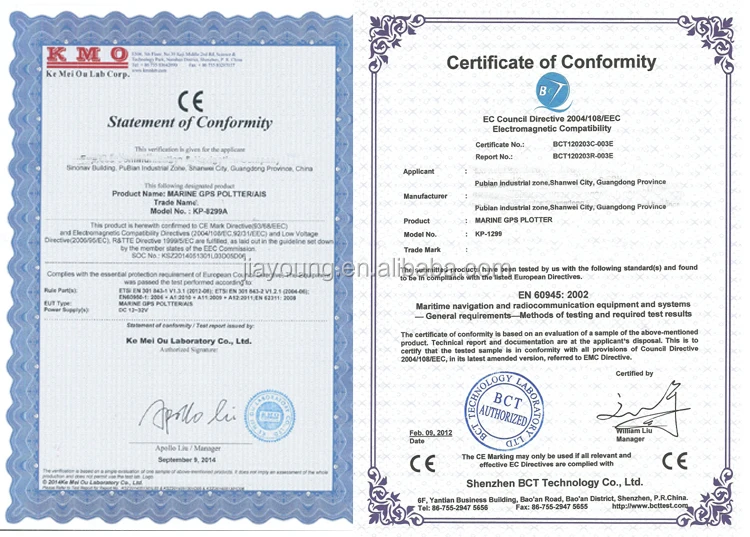

CE
