ISO9001 CE 10 лет гарантии, бесплатный сервис, бесплатные запасные части, ламинирование трансформатора crgo

Product Overview

Description

ISO9001 CE 10 years warranty free service free traing free spares crgo transformer lamination

Watching machine working video directly (Video link):

YouTube: https://youtu.be/PQqT6Qred7o

QQ video: https://v.qq.com/x/page/r3215wheevl.html

Baidu video: https://haokan.baidu.com/v?vid=3969103871759919533&bfe=1

Technology specification

Error of material rolling width	±0.1mm
Burr	≤0.02mm
S degree error	single direction≤0.2mm/2m
Shearing plate width	400 line 40-440mm/600 line 60-660mm
Shearing length	350-2000mm (short edge length)
Shearing thickness	0.23-0.35mm
Shearing length precision	±0.2mm/2m
Shearing burr	≤0.02mm
shearing knife life	1.2 million times/milling
Shearing angle precision	±0.025°
Highest material feeding speed	0-240m/min
Every shearing time	≤0.23s (electric)
Punching mold burr	≤0.02mm
Punching mold life	0.3-0.5 million times
Layer making steps	1,2,3,4,5,6,7,8
Largest layer making length	25mm
Largest material sorting height	450mm
Human-computer interface	touching screen/soft keyboard
Out installing size	15m x 5m x 2.2m (L x W x H)
Installing capacity	400 line 25kw/600 line 35kw

Equipment configuration

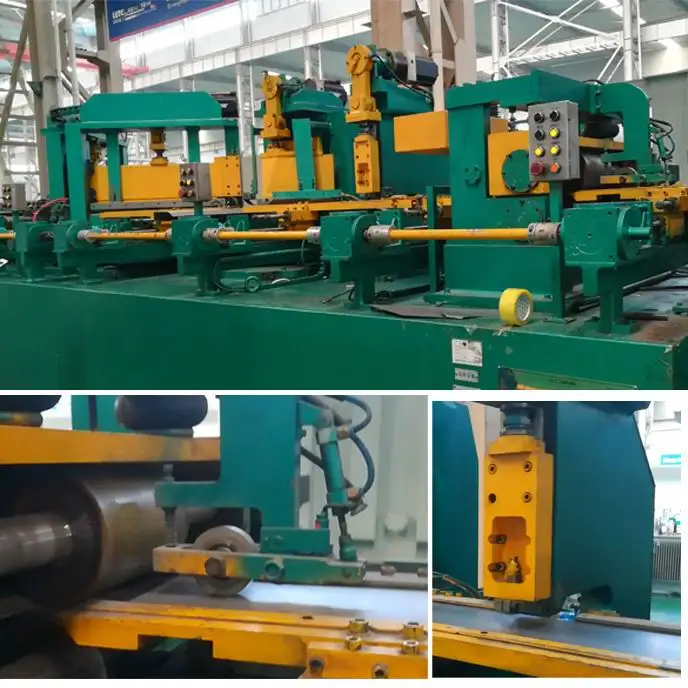

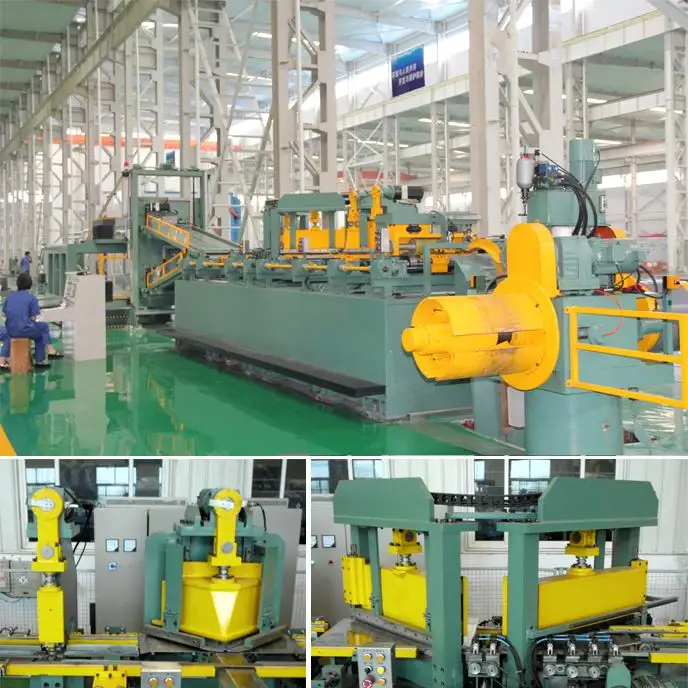

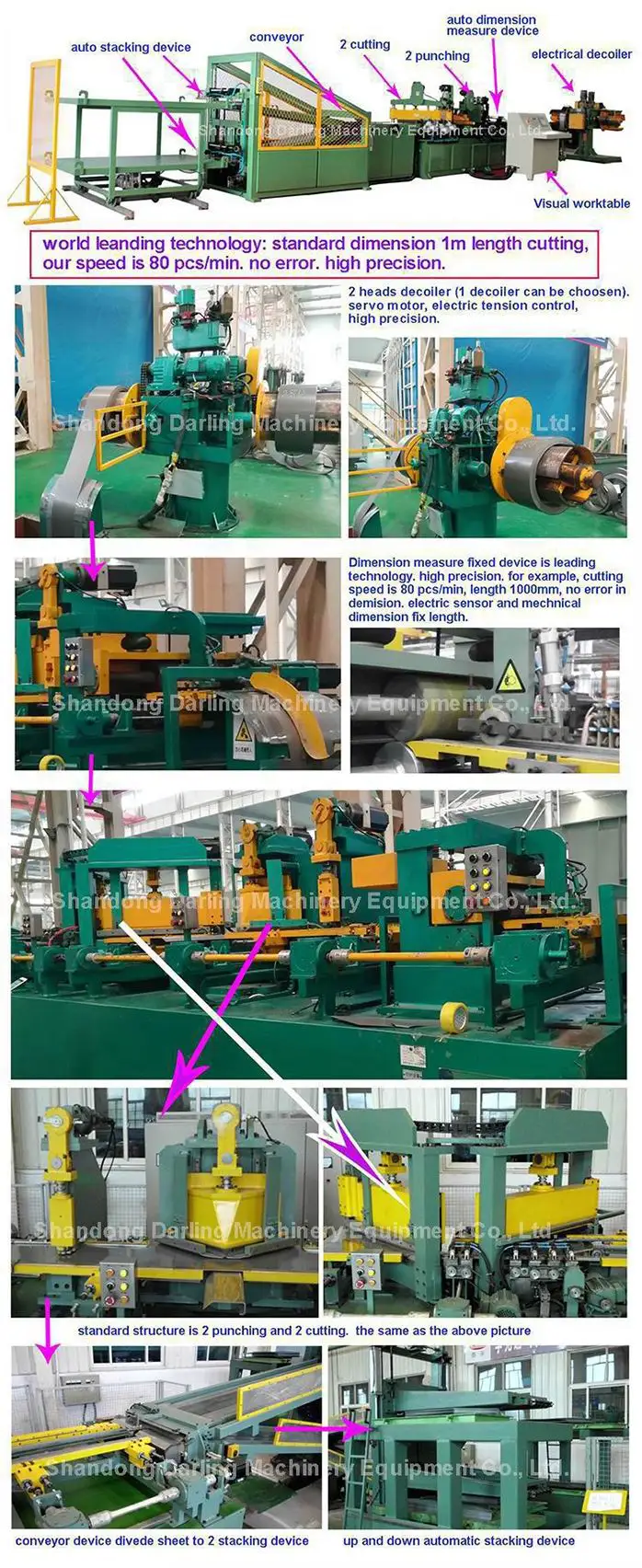

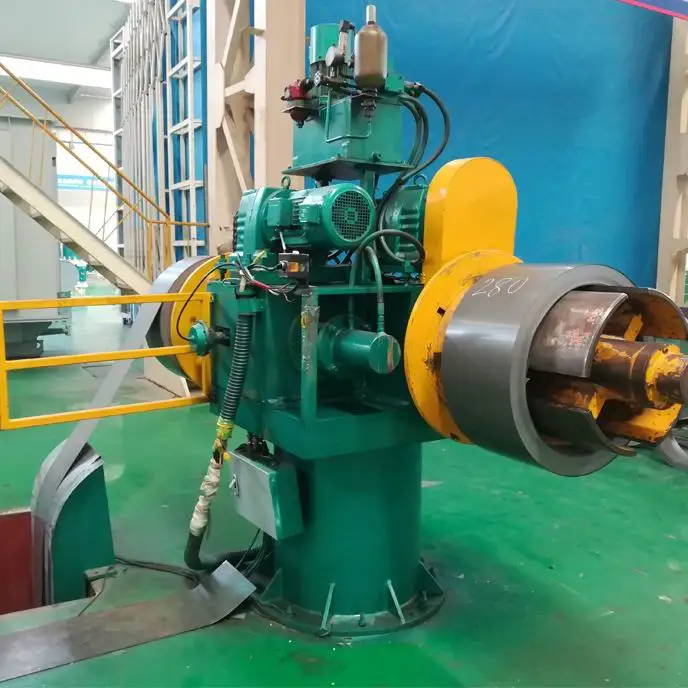

1, two head rolling machine system (pneumatic expansion, frequency control, full rolling automatically)   1 pc

2, no pit bumper device (multi-distance automatic control, adding or reducing speed working steadily)  1 pc

3, servo feeding system (full close control, high precision, long shape size, small error)  1 pc

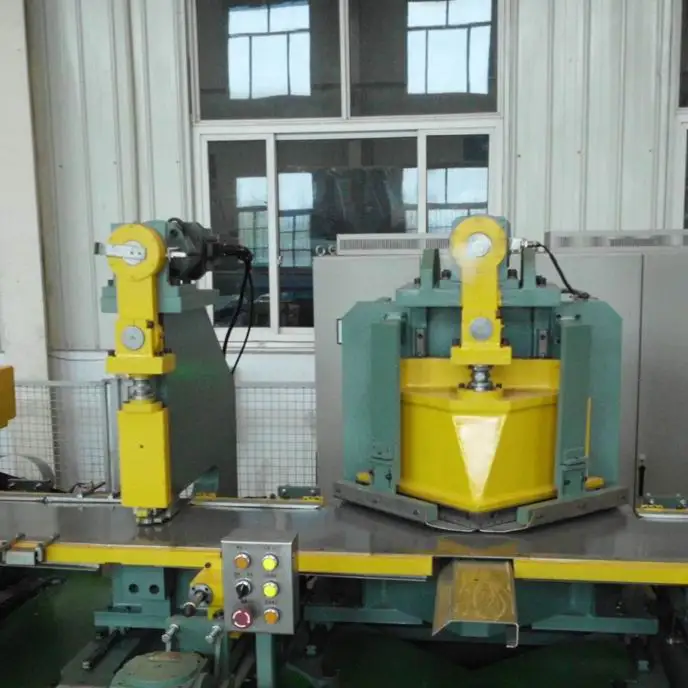

4, V type punching press (servo driving, horizontal feeding, stepping function in horizontal and vertical)  1 pc

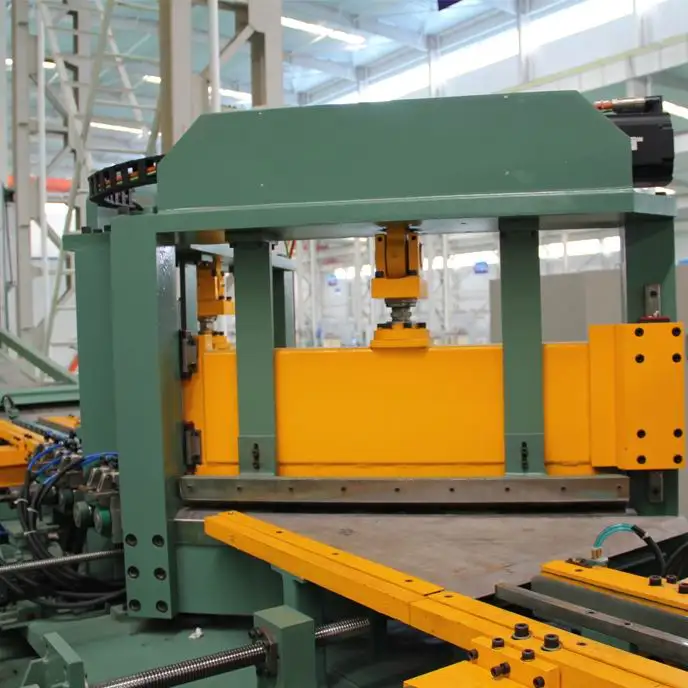

5, 45° shearing machine (electric servo)   1 pc

6, 135° shearing machine (servo driving)   1 pc

7, O type punch press (servo driving)     1 pc

8, material sorting system (magnetism sucking opposite type, front and back material sorting automatically)   1 pc

9, material unloading handbarrow/platform   1 pc

10, edge guide line system (center alignment, width adjusted automatically, inlaying hard alloy structure)   1 pc

11, control cabinet, operating worktable (Chinese/English touch screen display)  1 pc

12, pneumatic system (including cylinder, valve, line, without pneumatic source)  1 set

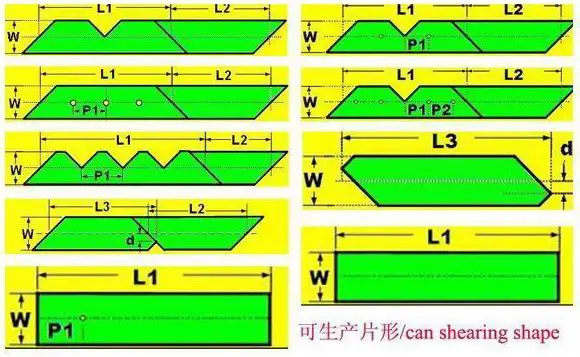

including the above cutting shape, this machine also can cut all shapes of transformer core. you only design in CNC system. very easy.

Main configuration

1, operating system is SIEMENS.

2, guide, ball screw is PMI of Taiwan, edge guide is hard alloy axis sleeve structure.

3, bearing is FAG of Germany.

4, button indicating light is Moeller of Germany.

5, pneumatic cement is SMC of Japan and AirTAC of Taiwan.

6, main component of control cabinet, circuit breaker, relay is Schneider.

7, power is MW of Taiwan.

8, knife is hard alloy knife.

9, other asynchronous electric motor is SIEMENS product, punching and shearing servo, frequency control device is DELTA or Inovance.

10, other structure components is our company non-standard design and manufacture.

Our service

1, before sales: we will give you professional instruction and help you to buy the suitable machine, after you choose our  machine, let you take the biggest profit through using our  machine.

2, in sales: we will give you feedback informations about your order through photos and video. let you put your heart into stomach.

3, after sales: we will go to your factory to give you a training and teach you how to use our machine, or we will give you a video training. if there is our local agent and office, we will let our local engineer to your factory and give you a training.

4, our quality assurance: all our  machine using life.

Getting Local office support, please contact with our company:

Shandong Darling Machinery Equipment Co., Ltd. Add: Shacun Industry Park, Licheng District, Jinan City, China. Contact person: Martin Hoo +86-15253156158 (WhatsApp) Skype/Wechat: martinhoo936 QQ: 613252158  Website: www.darlingmachinery.com

We will be the best partner



Although we live in different countries, our hearts are always together. We don’t only sell machine, we also sell service, technology and brand. One time cooperation, be friend forever!



Our cooperation is Double win results.



® Our aim is:

Through using our machine, you can make better product and earn more money !



FAQ:

1, are you manufacture or trading company?

we are manufacture more than 15 years, 3 branch factory, more than 10000 square meters.

2, how about your quality ?

we only sell high quality machine, we use the world famous brand component, like SIEMENS, MITSUBISHI, DELEM, PANASONIC, SCHNEIDER, ABB, etc. so there is no worry about our quality.

3, what about your after sales service ?

we go to your factory for site training or you can get local branch company traning, if there is no requirement, we can give you video training in other methods.

4, why  do we must choose you as our supplier ?

customer real voice is your best reference, 5 stars customer feedback reviews, 100% high praise. those voice can let  you to cooperate with us safely.
