ELP 1.3MP 960P USB2.0 dual lens usb camera module Synchronization camera for 3D depth detection of human eye effect
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd
Share on (60709845886):
Product Overview
Description
1.3MP 960P USB2.0 dual lens usb camera module Synchronization camera for 3D depth detection of human eye effect
Featutes:
* Dual camera synchronization
* 1/3" OV9750 Sensor

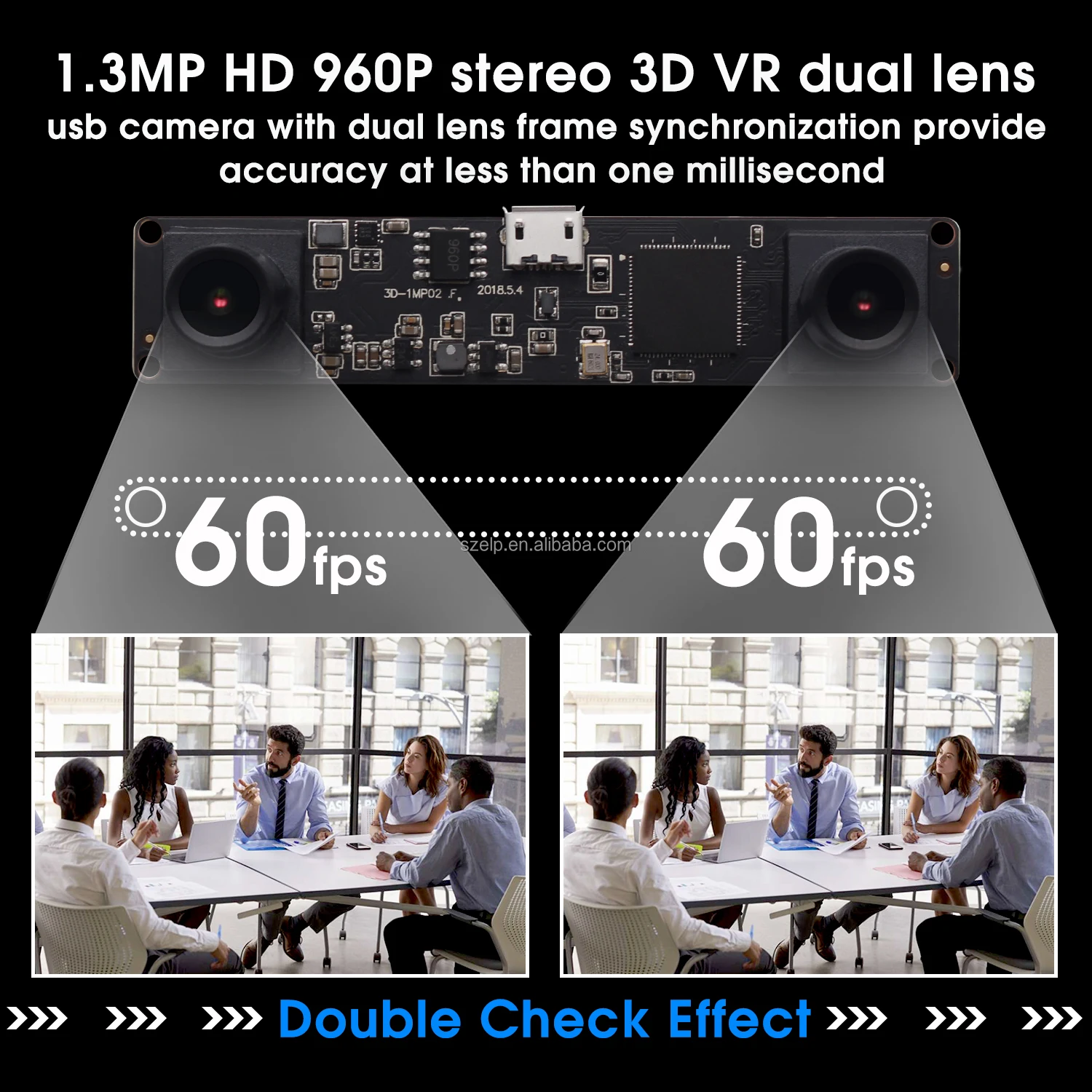

* 2560X960 @ 60fps
* Video compression format: MJPEG
* HOV 90 degree M9 Lens

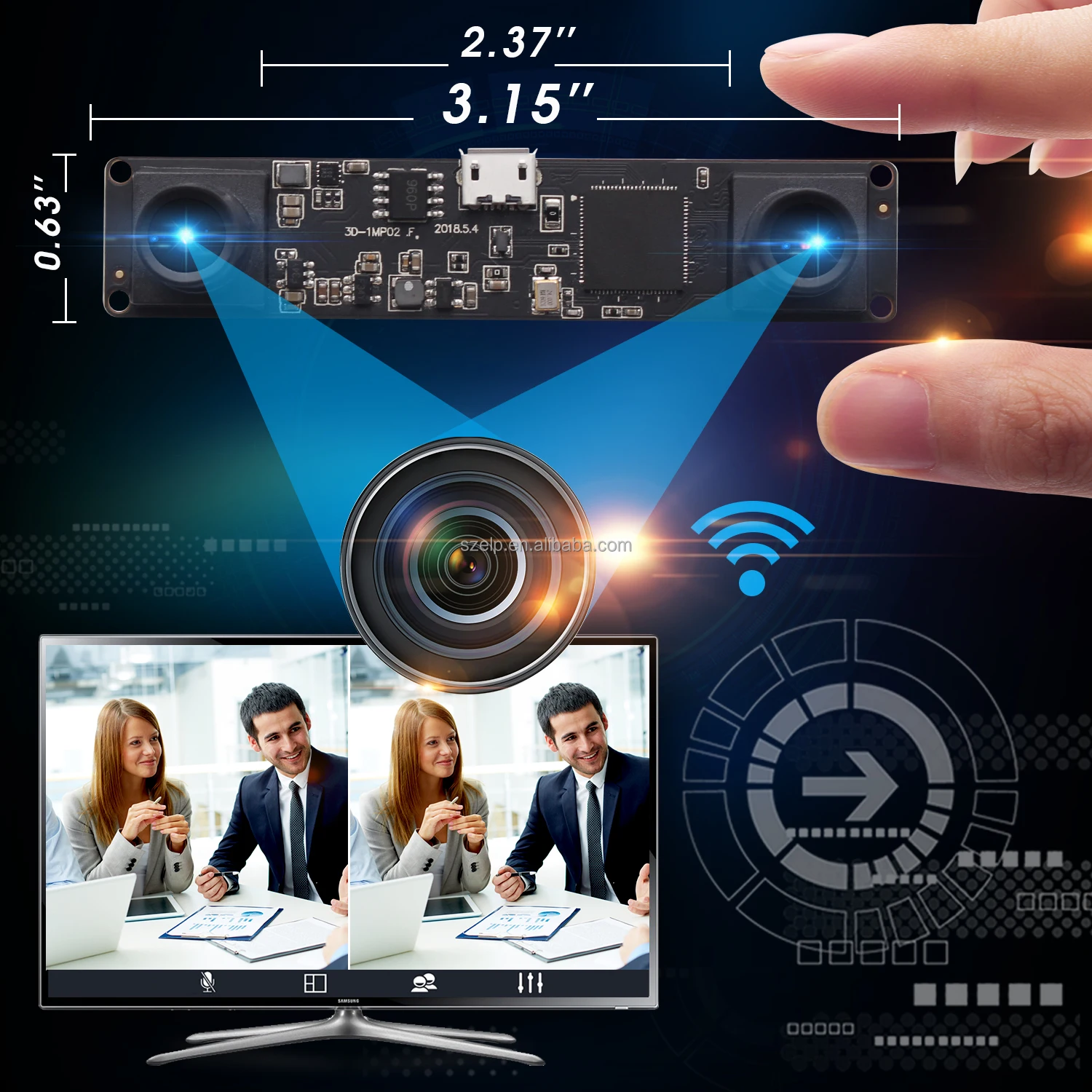

* Size:80X16.5mm
* Suitable for 3D camera & distance measuring device development & Biometric Retina etc.

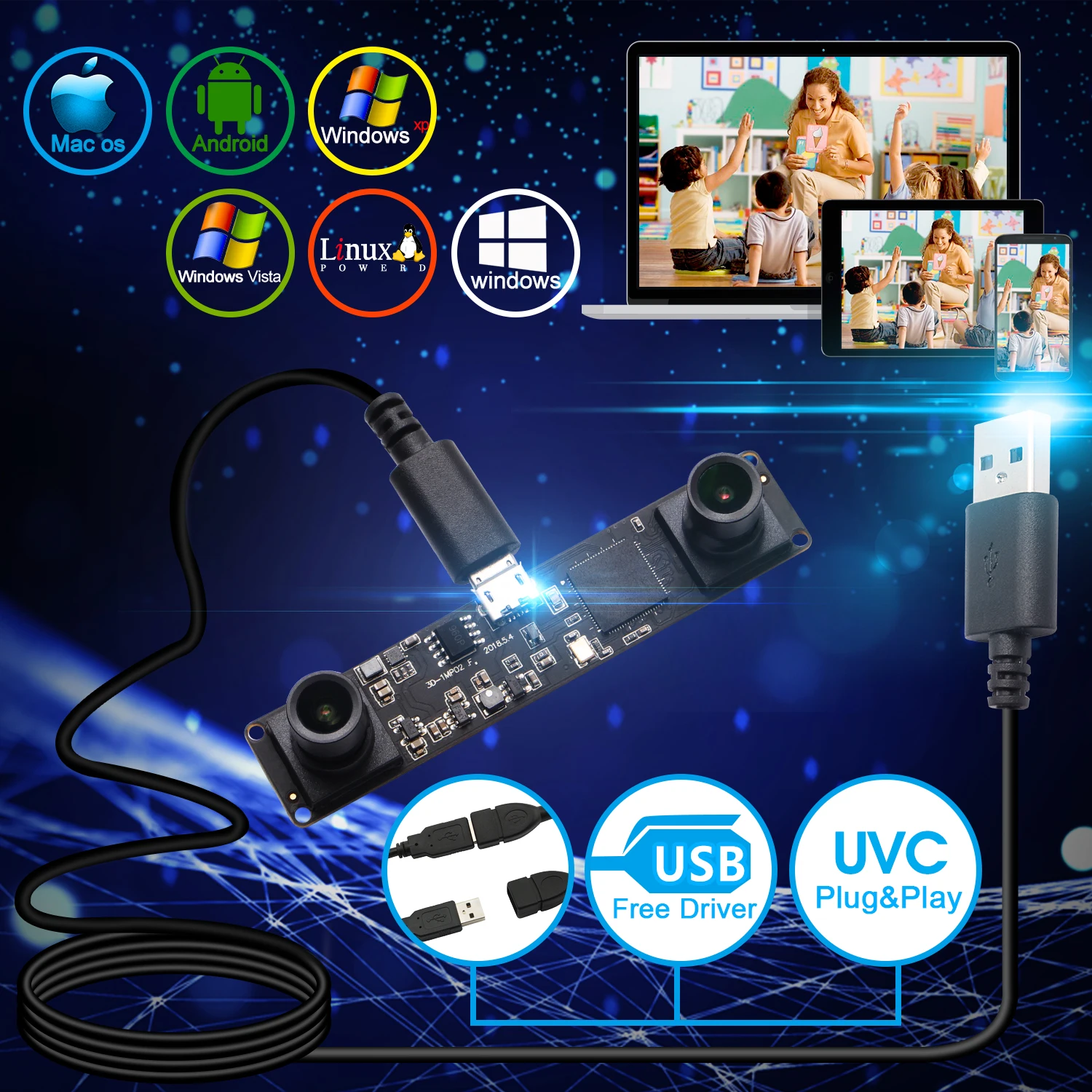

* Support windows, Linux, Android system with UVC
Specification:
Model | ELP-960P2CAM-V90 |
Sensor | OV9750 |
Lens Size | 1/3 inch |
Pixel Size | 4860µm x 3660 µm |
Max. Resolution | 2560(H)X960(V) |
Compression format | MJPEG |
Resolution & frame | MJPEG:2560X960@ 60fps/2560X720@60fps /1280X480@60fps /640X240@60fps |
Sensitivity | 3.7V/lux-sec@550nm |
Mini illumination | 0. 1lux |
Shutter Type | Electronic rolling shutter / Frame exposure |
Connecting Port type | USB2.0 High Speed |
Free Drive Protocol | USB Video Class(UVC) |
Support OTG Protocol | USB2.0 OTG |
AEC | Support |
AEB | Support |
Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, |
Lens Parameter | M9 Lens HOV 90 degree |
Power supply | USB BUS POWER Micro USB |
Power supply | DC5V |
Operating Voltage | 160mA~220mA |
Working current | -10~70℃ |
Working temperature | -20~85℃ |
Board size /Weight | 80X16.5 |
Cable | Standard 1M |
Operating system request | Win XP/Vista/Win7/Win8 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Product Display
Camera Effect shows:
Company Information
Related USB Cameras
Our USB Camera includes VGA 640X480,1MP,1.3MP,2MP,3MP,5MP and 8MP resolution.
Some features are showed as below. Just click and check !
FAQ
♦Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module for more than 12 years
♦Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
♦Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
♦What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
♦What operating system your cameras support?
Android, Windows and Linux System
♦What certificate your products have?
CE, FCC, partial have RoHS and UL
♦Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
♦Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
♦Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
