Turkey Hot Sale Complete Wood Pellet Line, Biomass Pellet Machine Made in China

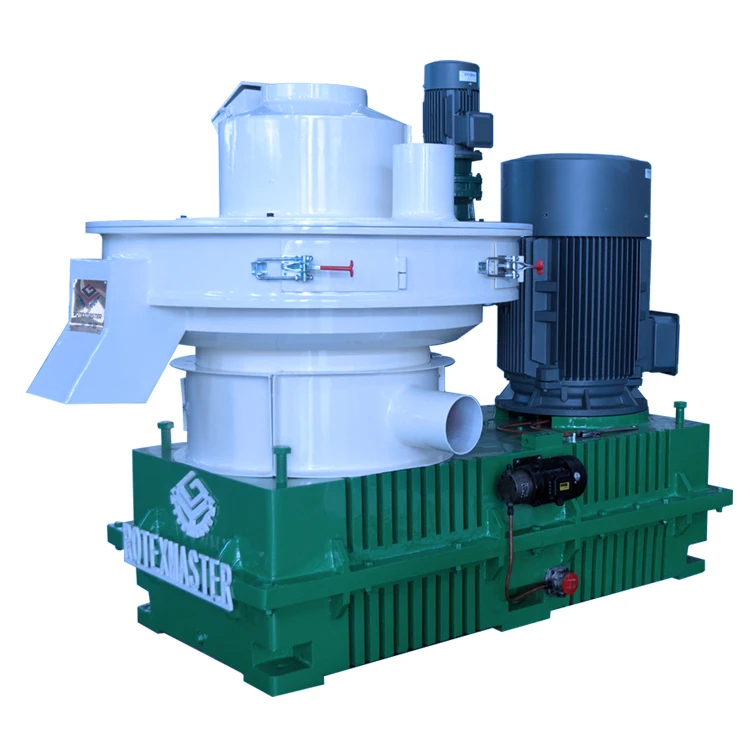

MODEL YGKJ450,560,680,850 WOOD PELLET MILL
Email:machine09@rotexmaster.com Skype:pelletindustry03 Tel/Wechat/Whatsapp:+8618615687600
>> INTRODUCTION OF WOOD PELLET MILL
Vertical Ring Die Wood Pellet Mill Machine is a new biomass fuel production machinery by using crushed sawdust and bran from eucalyptus, pine,birch, poplar, fruit and agricultural straw, bamboo. Compared with the old machine, it absorbed the essence of horizontal ring die and flat die pellet machine ,solved the insufficient pressure,die crack problems of horizontal ring die pellet machine, and overcame the small capacity ,high failure rate of flat die pellet machine.
The Features of Wood Pellet Mill Machine
(1) YGKJ series vertical ring die wood pellet mill machine is an ideal dense compression molding equipment;
(2) Vertical feeding, directly in pelletizing room;
(3) Die is static, rollers rotate; materials are evenly distributed around pelletizing room because of centrifugal force, no block ;
(4) Double-layer die. Two layers both can be used for reduce the cost. High efficiency and save energy;
(5) Ring die and vertical structure are good for cooling the pelletizing room;
(6) Independent and frequent conversion discharge device can ensure the formation rate of pellet.
>> SPECIFICATIONS OF WOOD PELLET MILL
| Model | Capacity(t/h) | Power(kw) | Pellet Size(mm) | Weight(t) | Dimension(mm) |
| YGKJ450 | 0.8-1 | 55 | 4-12 | 4.5 | 2384*1006*1916 |
| YGKJ560 | 1-1.5 | 90/110 | 4-12 | 5.5 | 2600*1300*2300 |
| YGKJ680 | 2-2.5 | 132/160 | 4-12 | 8.5 | 2900*1300*2400 |
| YGKJ850 | 3-3.5 | 220 | 49-12 | 15.5 | 3750*1650*3250 |

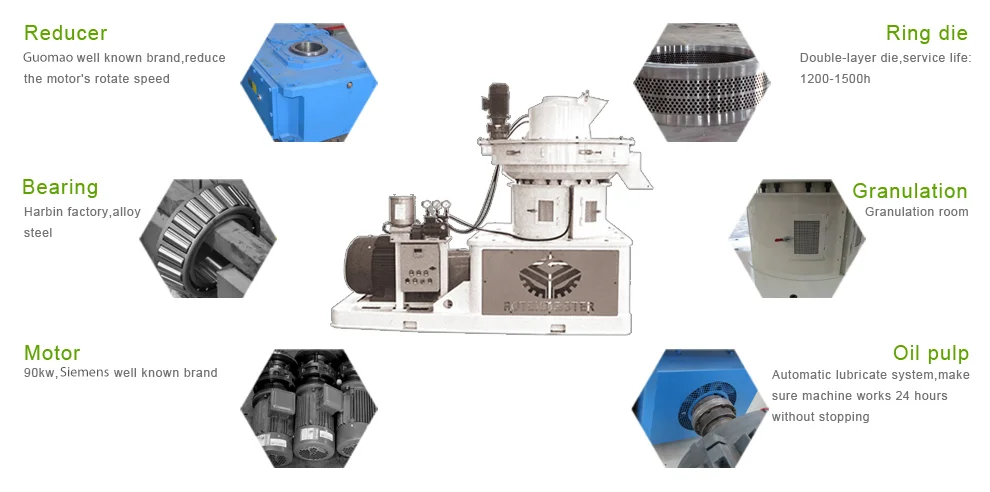

>> WHY CHOOSE ROTEXMASTER WOOD PELLET MILL
When customer choose the biomass wood pellet mill,maybe they dont know how to choose it among so many supplier,for our company vertical ring die wood pellet mill machine,we'd like to give you more details & advantages as follows:
1. Pellet mill machine type:vertical ring die wood pellet mil machine,this is the new type professional equipment to produce rice husk pellets,sawdust pellets and olive waste pellets etc.
2. Siemens beide motor or Huali motor as customer choice: usually we recommend the customer use the Siemens beide motor,this is the best famous brand motor,the motor just like " the heart of people ",if dont use the best famous brand motor,the machine easy to stop work.
3.Ring die:the mould/ring die of wood pellet mill machine is the spare parts of pellet machine,our company ring die use the stainless steel,it have been via heat treatment,the hardness HRC55-60,service life 1200-1500h.
4. Reducer: the wood pellet mill machine reducer mainly used for reduce the speed of higher speed of motor(1500r/min),we use the Guomao reducer or Boneng reducer for our pellet machine,this is the best brand in China,you could check it on Internet.
5. Automatic lubrication system: the automatic lubrication system make sure the pellet machine work 20 hours without stop,our engineer designed the oil pulp provide the grease for main shaft and bearing every 30 mins(oiling 2-3mins),no need people operate.
6. Bearing and electricity components brand: all of our company machine use the Harbin brand bearing,DELIXI electricity components.
>> PICTURE SHOW OF WOOD PELLET MILL

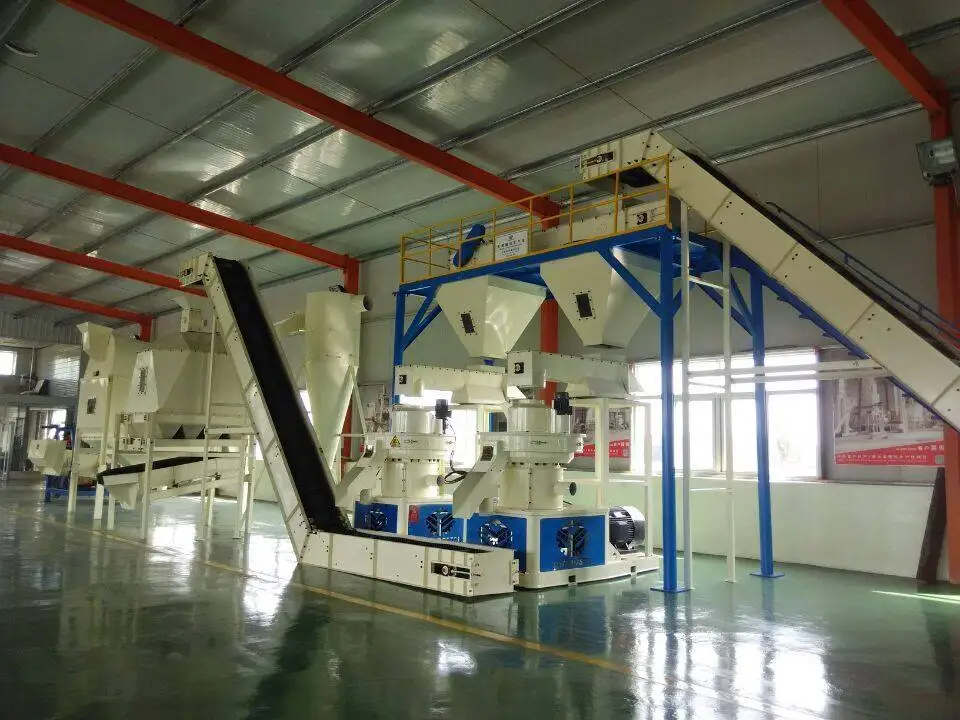

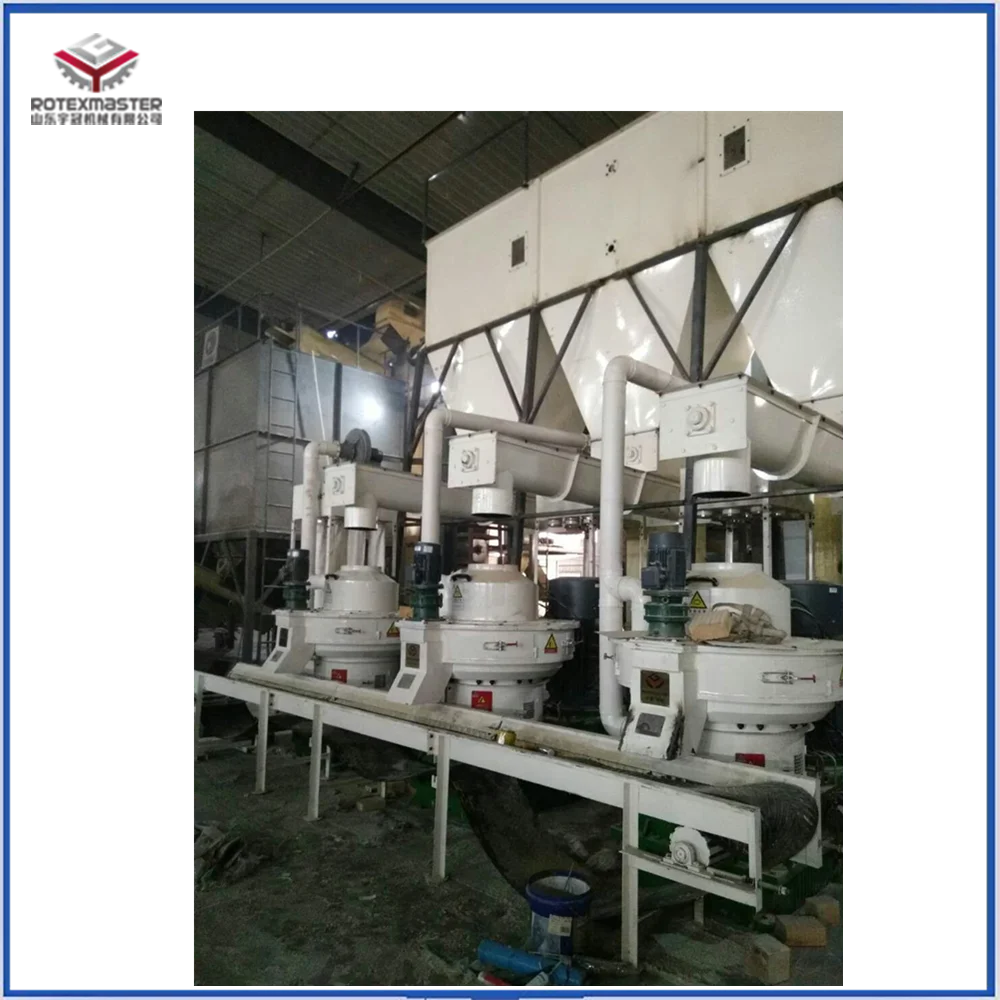

YGKJ560 Full Set Wood Pellet Mill Machine/ Wood Pellet Mill Line

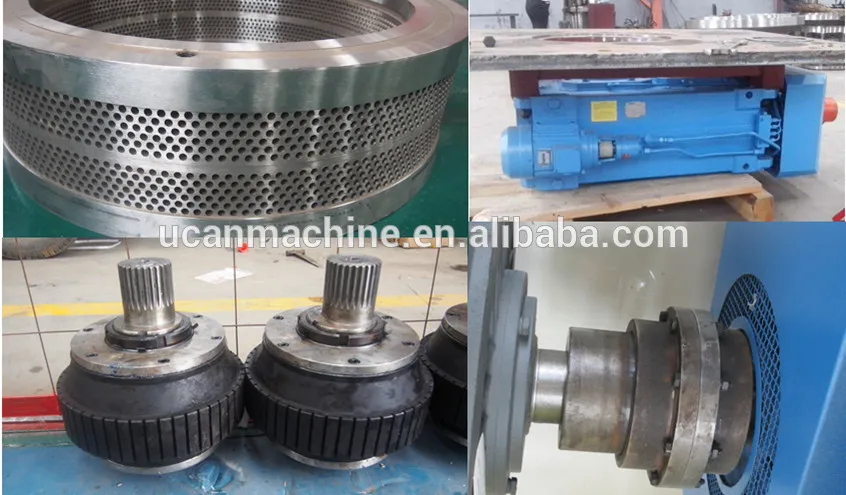

Spare Parts of Wood Pellet Mill Machine

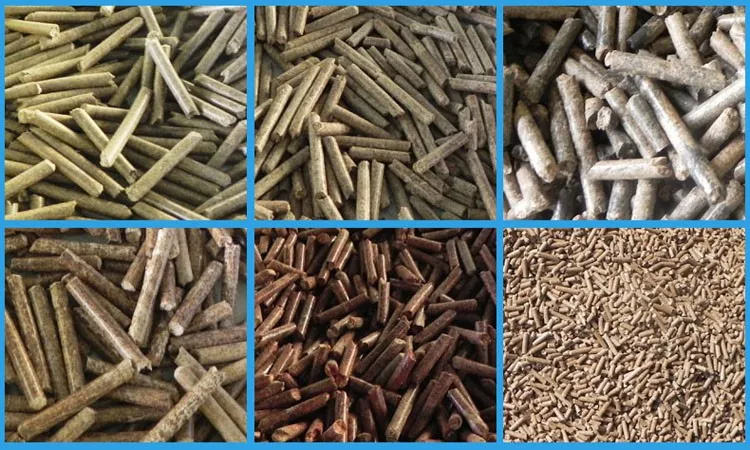

Different Biomass Fuel Pellets Made by Wood Pellet Mill

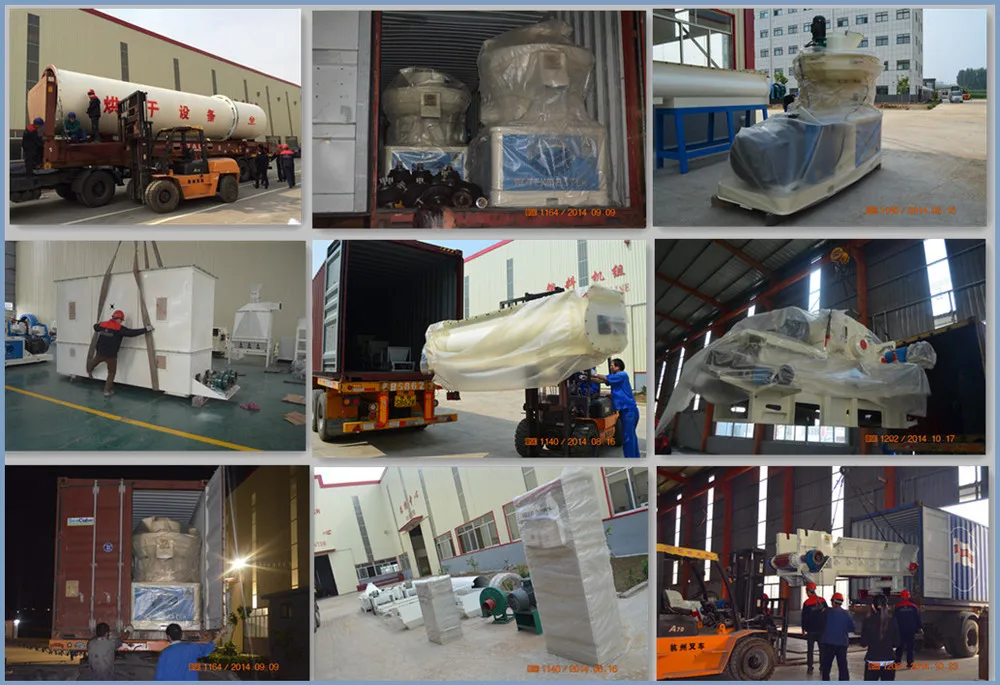

Loading Pictures of Wood Pellet Mill Machine Line

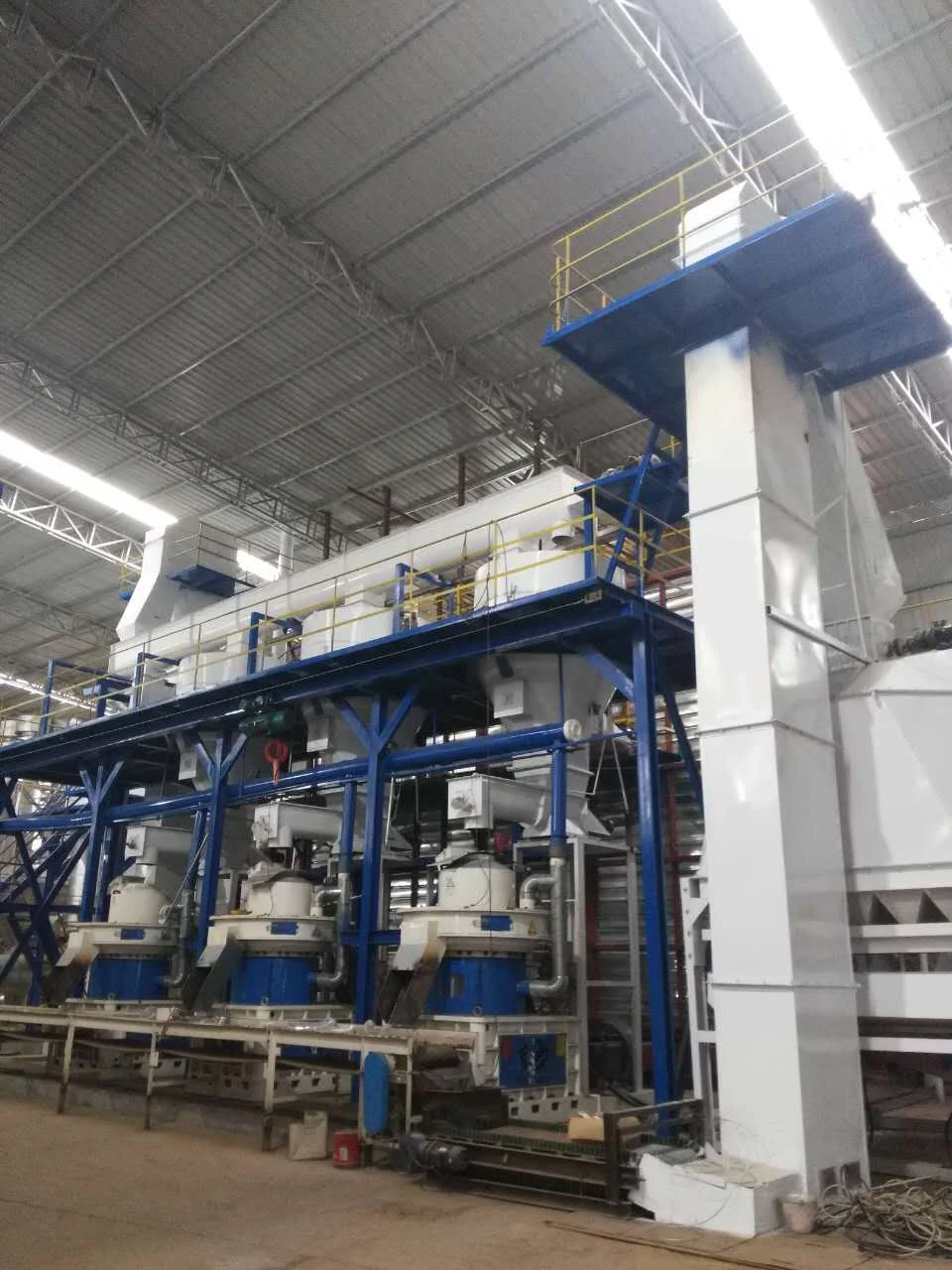

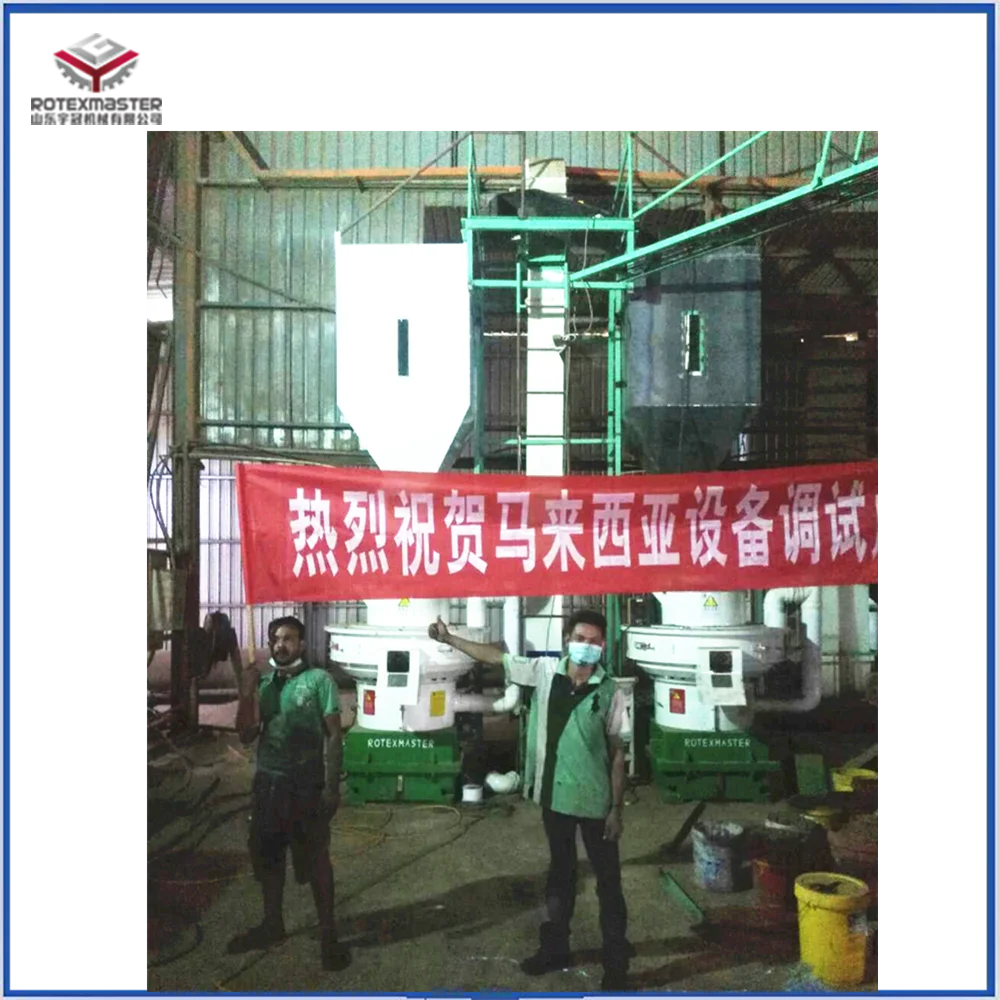

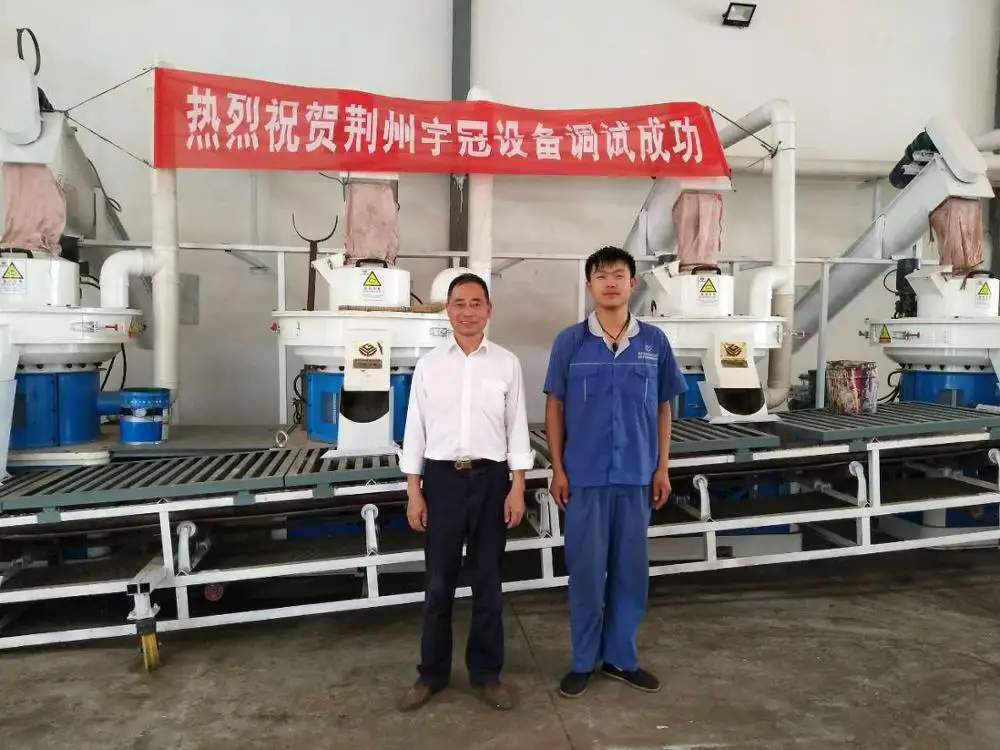

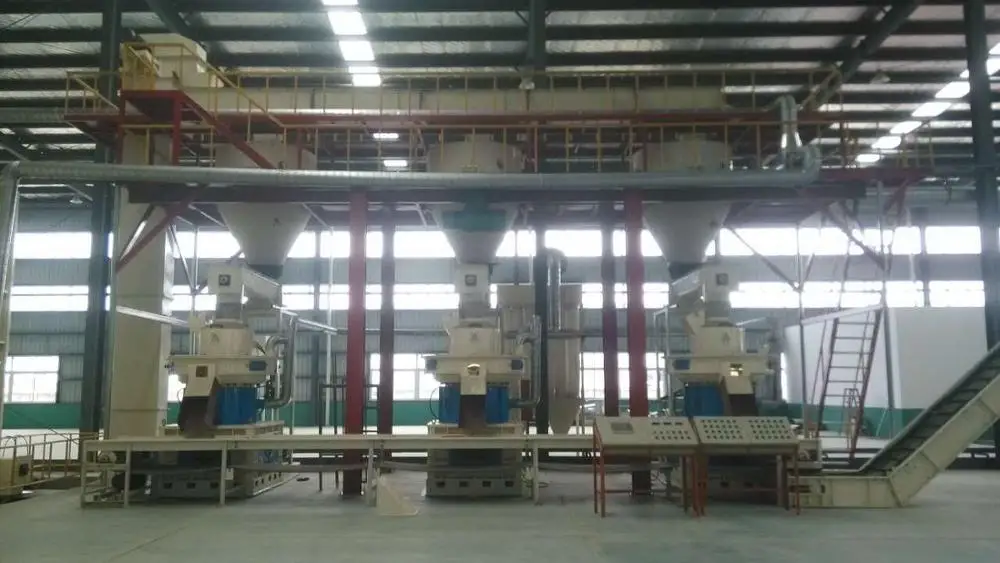

Successful Case of Biomass Wood Pellet Mill Machine Line
ROTEXMASTER People in Guangzhou Fair
