Небольшие машины для домашнего бизнеса ручная работа подарки искусства Ремесла 6090 1390 лазерная гравировальная машина небольшая гравировальная машина
- Category: Laser Engraving Machines >>>
- Supplier: Jinan Derek Laser Technology Co. Ltd.
Share on (60709878916):
Product Overview
Description
2020 Purchasing Festival event machine sales, hurry up to get the latest concessions by clicking here.
Up to 20% discount,the quota is limited to the top 30!

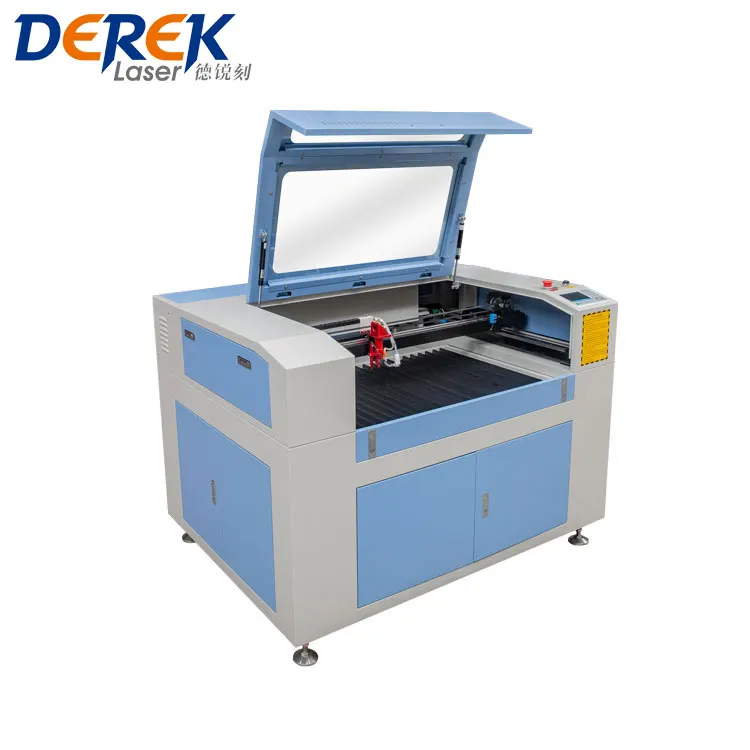

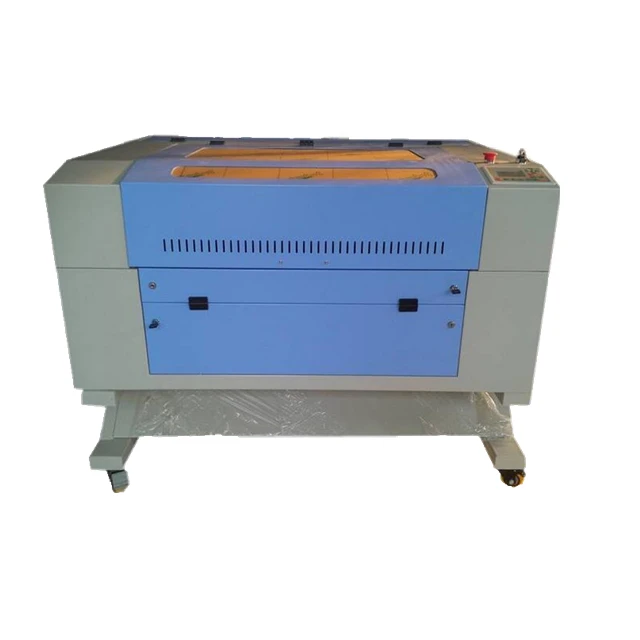

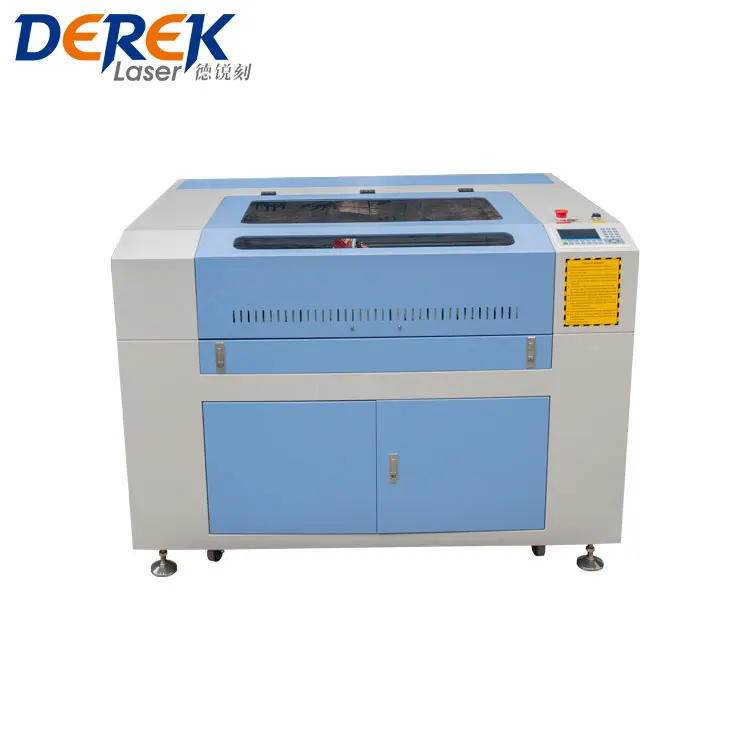

small machines for home business Handicraft gift arts crafts 6090 1390 Laser engraving Machine small engraving machine
Product Description

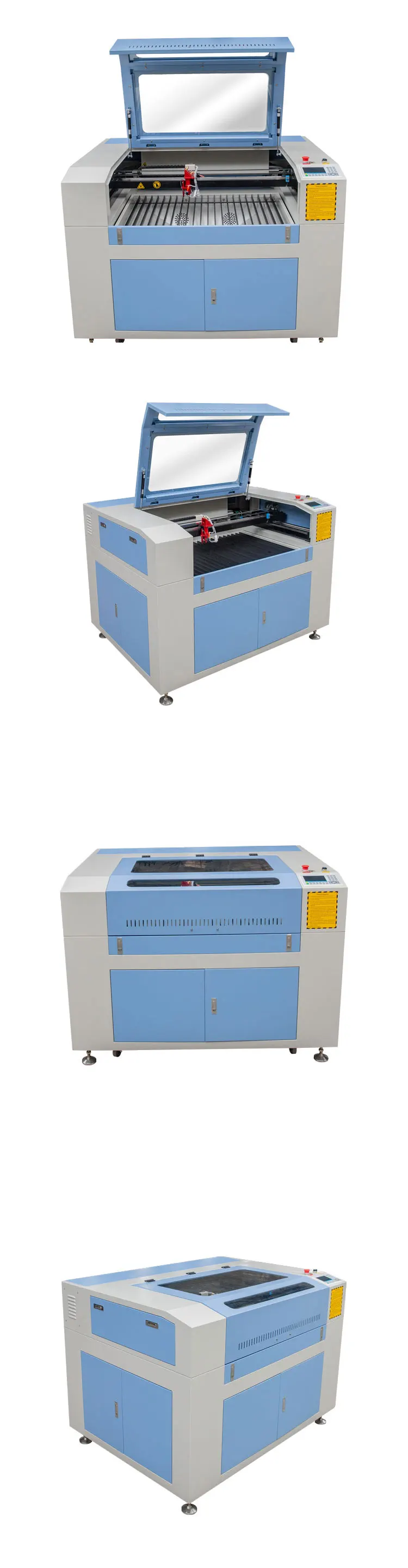

Bxed type CO2 Laser engraving cutting machine for non-metal material:

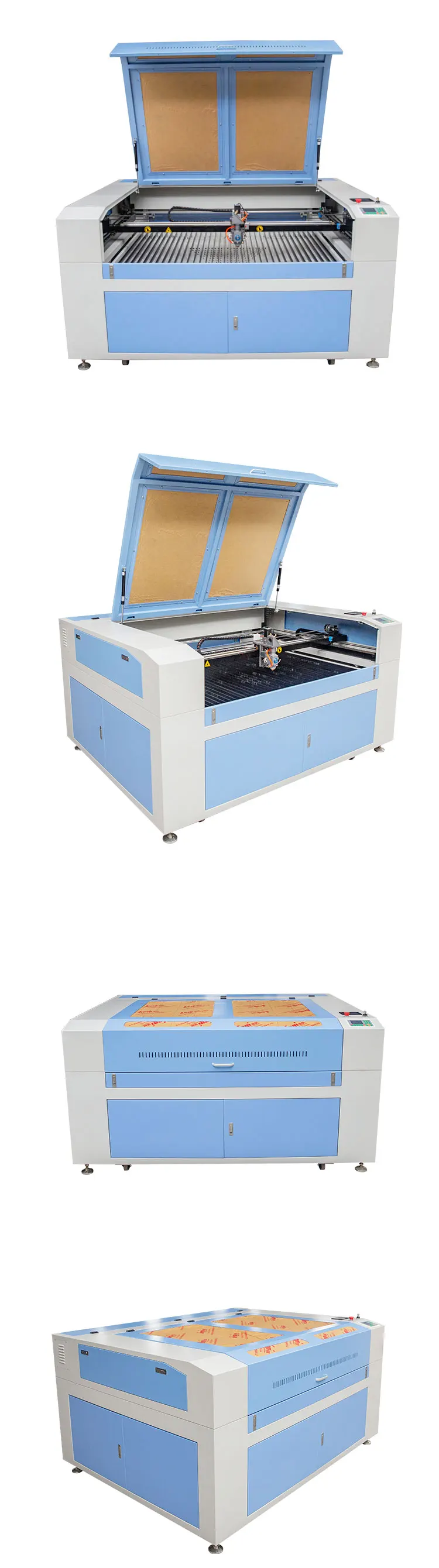

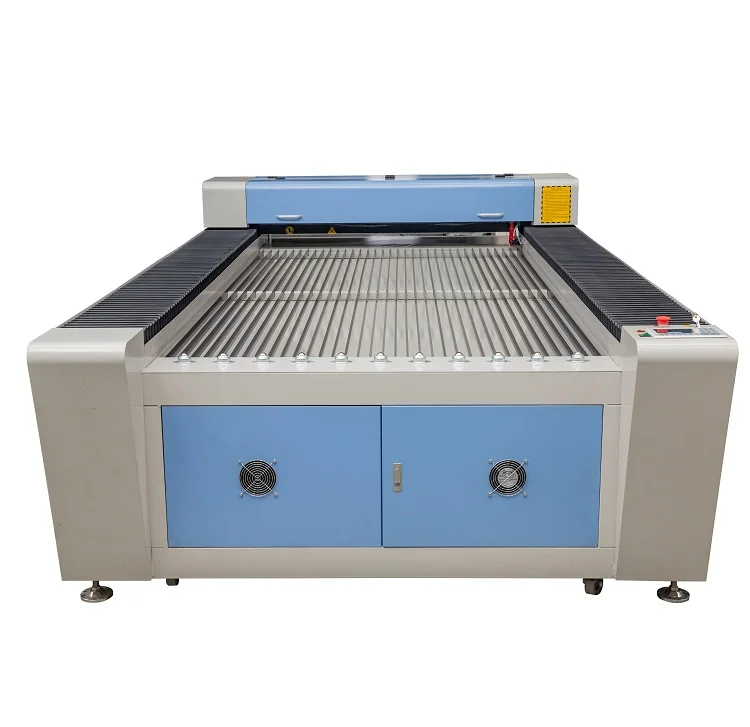

Mixed CO2 Laser cutting machine for metal and non-metal material:
Laser Cutting Machine Advantages
1. Adjustable Speed and Power, Smooth and Precise Engraving and Cutting
2. USB Interface or off USB , U-Flash Disk Supported, Can work without a PC.
3. Air Assist, Remove heat and combustible gases from the cutting surface.
4. Embedded Exhaust Fan, Easier intall, Safer transport.
5. Rotary Axis, Engrave any cylindrical object.
6. Cellular platform, Leave no chippings on working area.
7. Intuitive Control Panel, Set Speed, power and more controls directly from the laser.
8. Water Cooling and Protection System.
9. Lsser position.
10. Emergency Stop Button.
12. Lifting platform is electric control.
13. Drag - and - chain transmission line
Laser Cutting Machine Application
Application Industry: Advertisement, arts and crafts, toys, car, mechanism, electron, as well as in trademarks, embroidery, clothing and other industries.

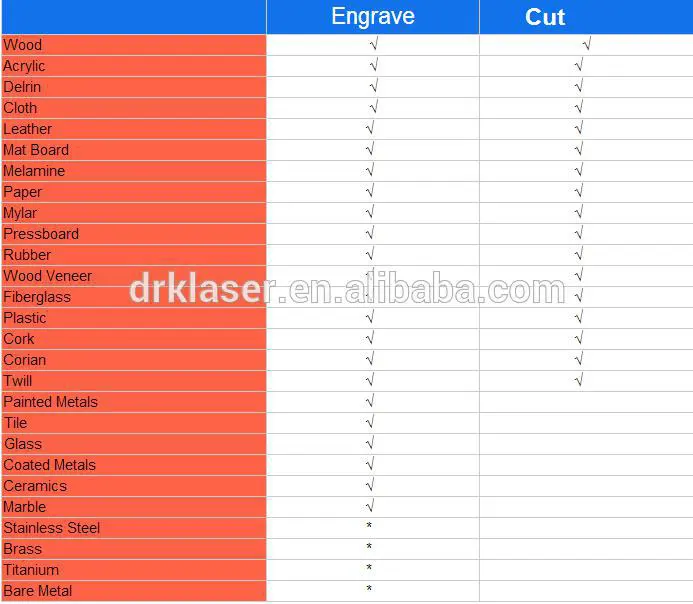

Available Materials:
Advertisement material: | Acrylic engraving and cutting, plastic engraving and cutting, PVC board engraving and cutting, rubber plate engraving, seal engraving, organic glass engraving,Plexiglas engraving, marble engraving, granite engraving, Gum engraving, EVA materials engraving, paper engraving and cutting. |
Wood material: | Wood engraving and cutting, MDF engraving, plywood cutting, bamboo engraving. |
Garment material: | Leather engraving and cutting, textile engraving, fabric engraving, cloth engraving, Shoes engraving, jeans engraving, carpet engraving and cutting, toy cutting,woolen cutting, denim engraving and cutting. |
Specification:
Model | DRK1390 |
X,Y Working Area | 1300x900mm |
Laser power | 80w (90/100/130/150w option) |
Laser type | CO2 |
Laser head NO. | One ( two heads option) |

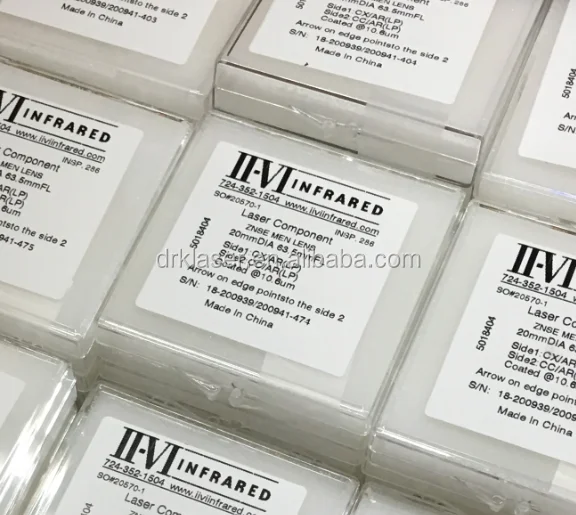

Reflector and focus mirrors | Imported |
Linear rail | Taiwan HIWIN square guide rail |
Table type | Knife ( Option: Honeycomb ) |
Cooling system | Water chiller 3000 |
Other accessories | Air pump, Exhausted fan |
Engraving Speed | 0-60000mm/min |
Cutting speed | 0-36000mm/min |
Resetting position accuracy | ±0. 01mm |
Control system | Leetro System /RD system |
Software | Laser cut / Laser work |
Graphic format supported | BMP, PLT, DST, DXF, AI, JPG, GIF, PGN, TIF |
Software supported | CorelDraw, PhotoShop, AutoCAD, TAJIMA,Artcut |
Laser Output | 1-100% Software Setting |
Operating temperature | 0 - 45℃ |
Operating humidity | 5 - 95% |
Working Mode | 3-phase Stepper |
Cooling Mode | Water cooling and protect system |
water supply cut-off protection | YES |
Dichroic Cutting | Up to 256 colors |
Gross power | <1200W |
Minimum shaping character | English 1 x 1mm |
Working Voltage | 220V/50HZ , 110V/60HZ |
Command G Code, | *uoo, *mmg, *plt |
Resolution rate | 4000DPI |
Focus | Auto focus system option |
Table | up and down table option |
Packing | Plywood case |
Machine Size | 1,750 x 2,900 x 800mm |
Packing Size | 3515x1930x1365mm |
keywords | 1390 Laser Engraving Machine |

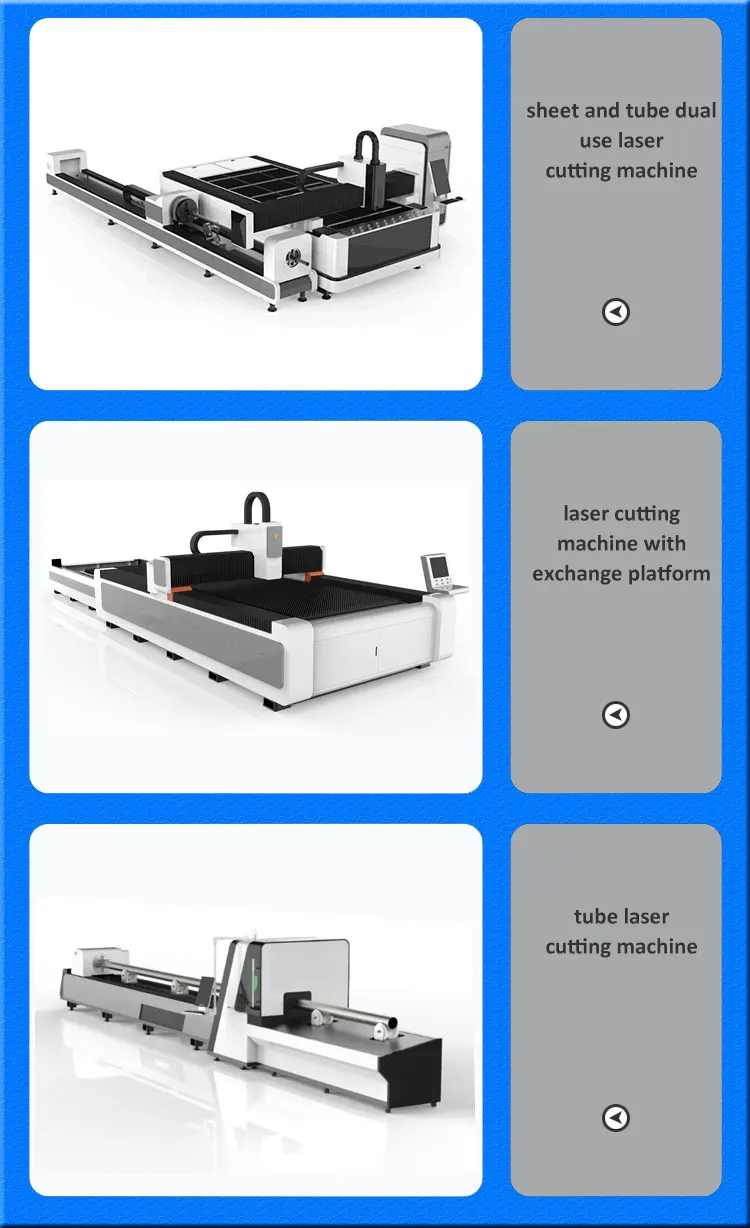

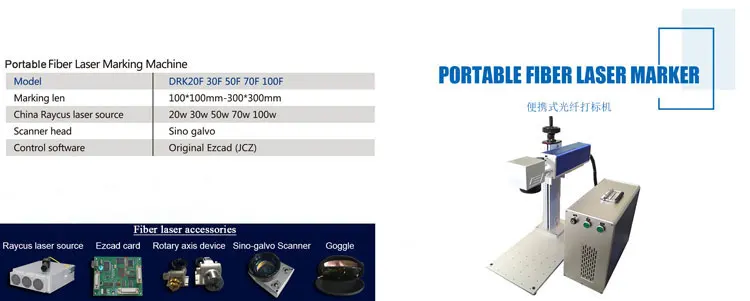

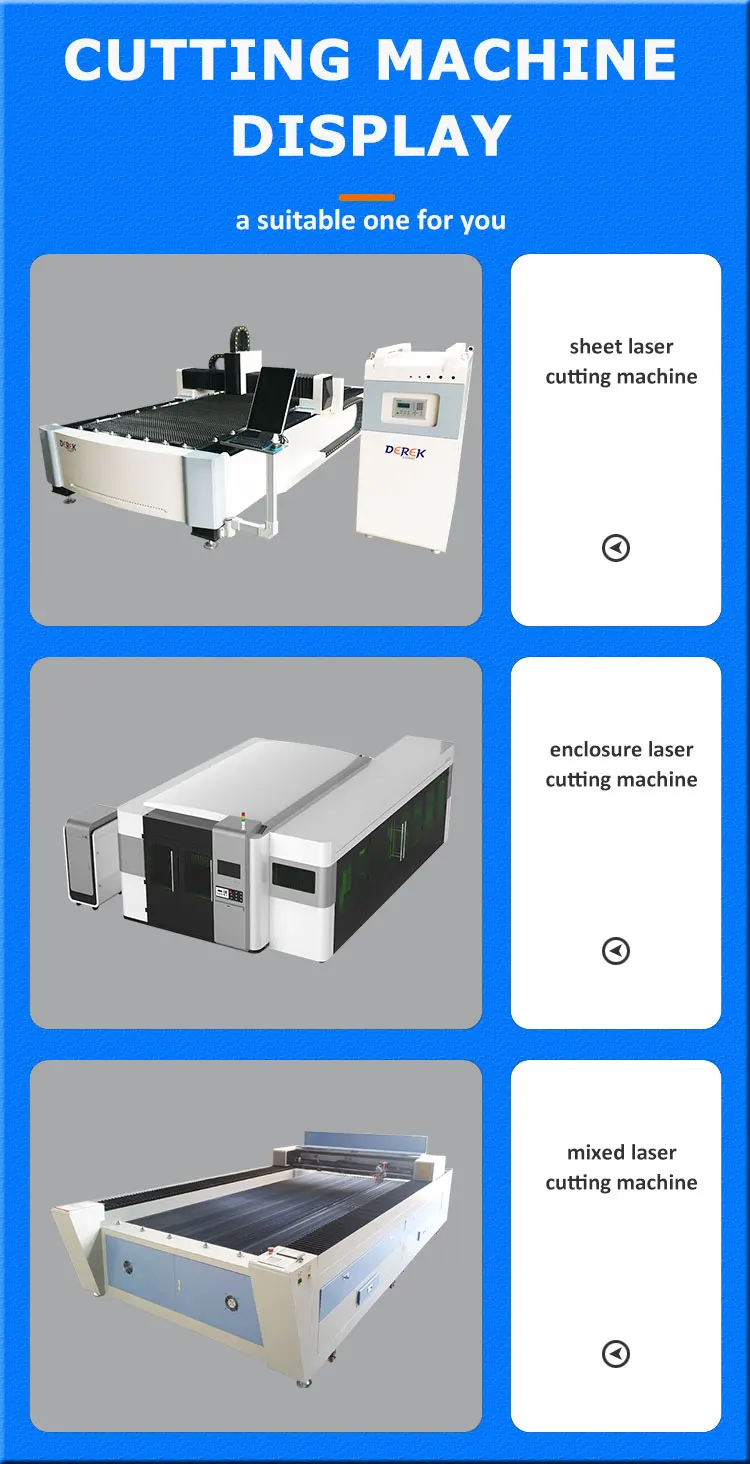

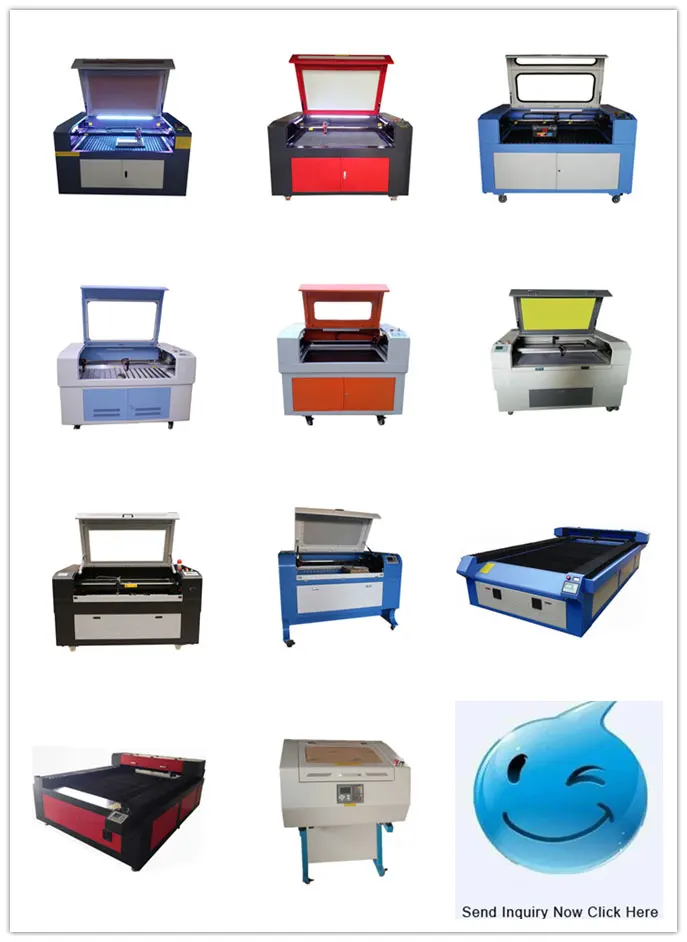

Related products(fiber laser marker and laser cutter):
1. Laser machine for bamboo:
2.Laser machine for wood:
3.Laser machine for Metal:
4.Laser machine for Acrylic:
5.Laser machine for Cloth:
6.Laser machine for Leather:
packing shipping
Standard plywood case of jewelry Laser Engraving Machine, its compressive strength and better bearing quality.
