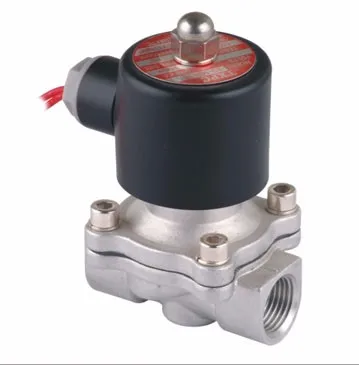

2 Way Stainless Steel Valves 3/8' Model 2S040 10

Title goes here.

Specs and Descriptions\t2S160-10 2S160-15\t2S200-20\t2WS250-25
Port Size\tG3/8''\tG1/2''\tG3/4''\tG1''
CV Value\t4.8\t4.8\t7.6\t12
Type\tNormal Closed
Way Position\t2/2 Way
Material of Body 2S:Stainless Steel
Motion Pattern\tDirect Drive
Working Temperature\t-5~+120'C(180'C)
Working Pressure\tWater/Oil:0~0.5Mpa  Air/Gas:0~0.7Mpa
Material of Seal\tVITON
Voltage \tAC110V,AC220V,DC12V,DC24V
Voltage Range\t±10%
Liquid \tWater Oil Gas Air

Specs and Descriptions\t2S350-35\t2S400-40\t2S500-50
Port Size\tG1-1/4''\tG1-1/2''\tG2''
Flow Bore Size\t35mm\t40mm\t50mm
CV Value\t24\t29\t4
Type\tNormal Closed
Way Position\t2/2 Way
Material of Body 2S:Stainless Steel
Motion Pattern\tDirect Drive
Working Temperature\t-5~+80'C(180'C)
Working Pressure\tWater/Oil:0~0.5Mpa Air/Gas:0~0.7Mpa
Material of Seal\tNBR,VITON,EPDM
Voltage\tAC110V,AC220V,DC12V,DC24V
Voltage Range\t±10%
Liquid\tWater Oil Gas Air
Coil\tConventional(Waterproof)
