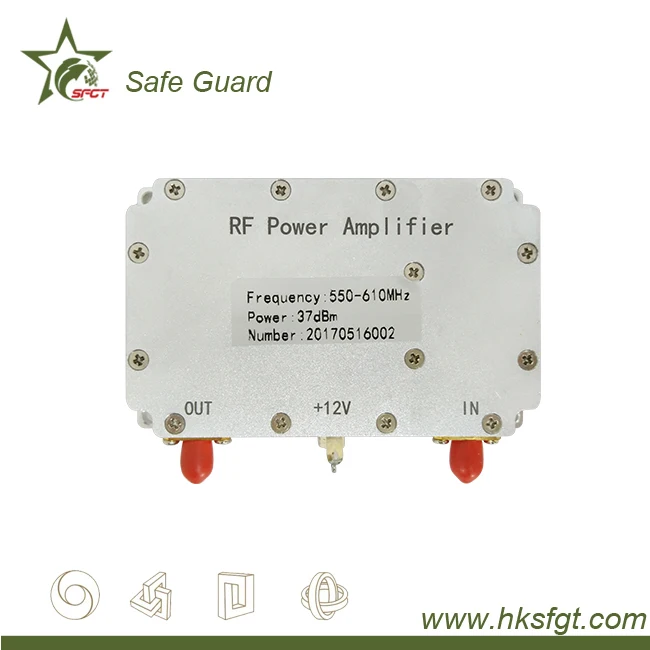

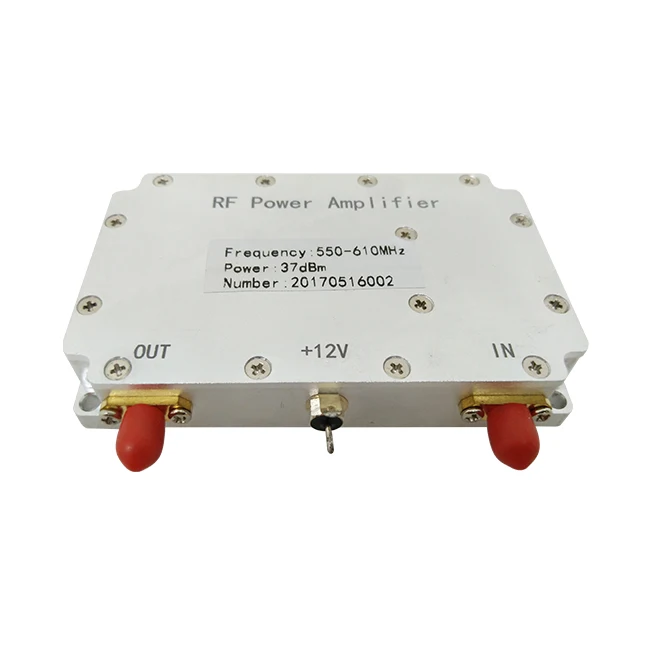

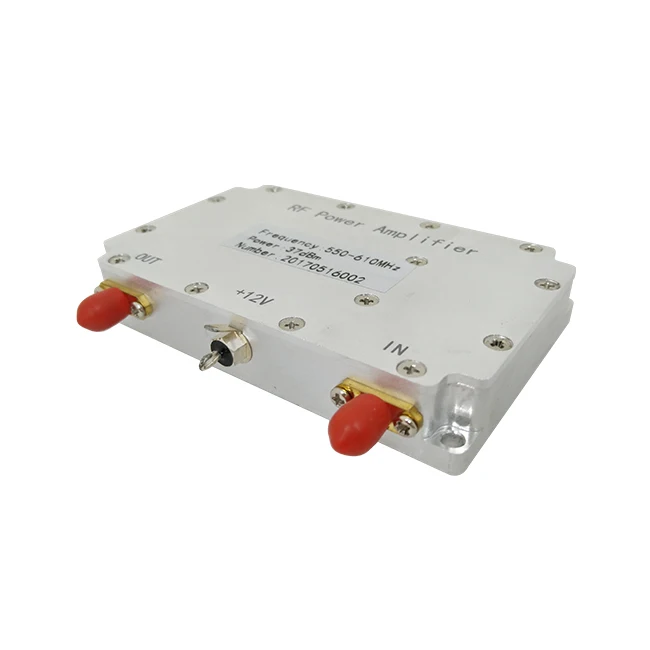

low frequency power amplifier cofdm 5watt video signal amplifier
- Category: >>>
- Supplier: Shenzhen Safe Guard Co. Ltd.
Share on (60709976552):
Product Overview
Description
low frequency power amplifier cofdm 5watt video signal amplfier
Product Description
1. RF indicator
Name | Indicator | Mark |
Frequency (MHz) | 900±25 | customizable |
Max RF output(W) | ≥5 | No ALC control |
Inband group delay(ns) | ≤50 |
|
Input level(dBm) | -8 |
|
Gain(dB) | 45±1.0 | customizable |
Passband Ripple | ≤1dB | (maximum) |
ACPR Shoulder ratio (dBc) | ≤-30@5W |
|
Power supply DC | +14.8V |
|
Operating current | ≤2.3A |
|
Operating temperature | -20~+70℃ |
|
Connector type | SMA-50KFD |
|
Dimension (mm) | 94*58*14mm | Exclude connector |

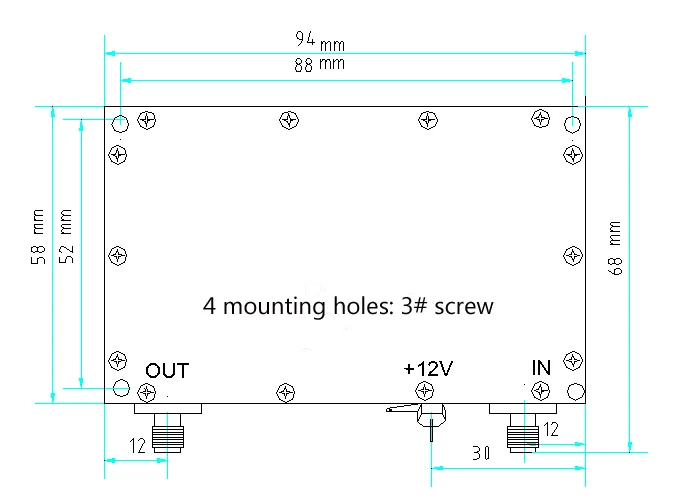

2. Dimension & Installation
1) Dimension: 94*58*14mm (Exclude connector)
2) Connector type:
Power supply: +12V~+17VCore capacitor
RF input: SMA-50KFD; RF output: SMA-50KFD
3) Mounting hole diameter: 4 mounting holes ( 4 Φ3.5 holes ) for installation
