Perfect Laser 20w Marker Name Sign Steel Utensils Marking Engraving Machine / Jewelry Fiber Laser Marking Machine
- Category: Laser Engraving Machines >>>
- Supplier: Perfect Laser (Wuhan) Co. Ltd.
Share on (60710001150):
Product Overview
Description

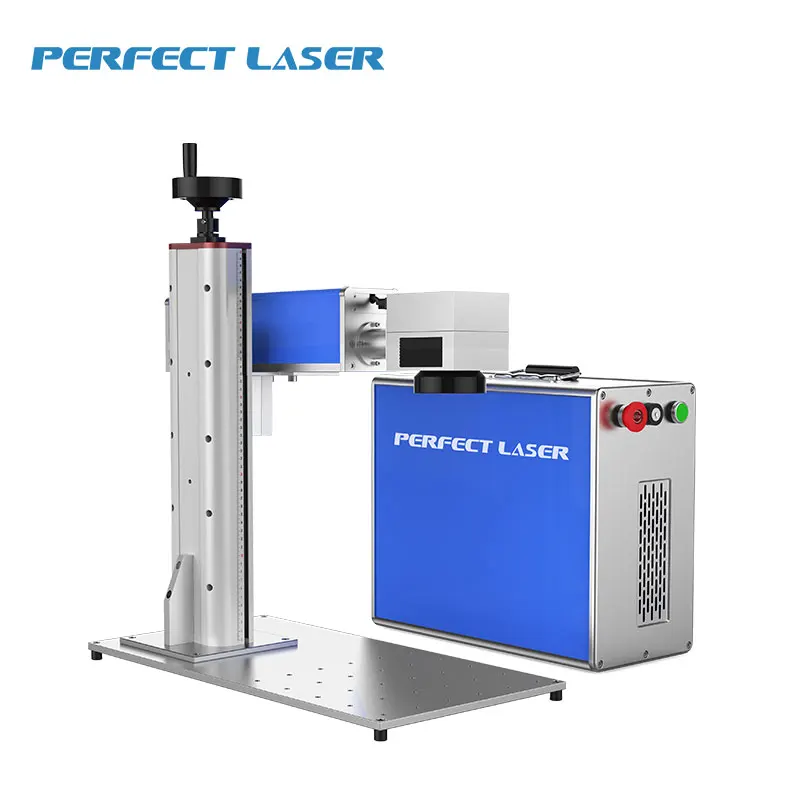

Perfect Laser 20w Marker Name Sign Steel Utensils Marking Engraving Machine / jewelry fiber laser marking machine
(MODEL:PEDB-400B)
Contact: Cindy Skype: perfectlaser010 Email: Cindy@perfectlaser dot net
Product Description
Steel utensils marking engraving machine Performance Features:
1.Compact: The high-tech product, which is combined of laser device, computer, auto controller and precision machinery. It is small design and the complete weight is 22kg.
2. High Precision: Re-position precision is 0.002mm
3.High Speed: Imported scanning system makes the scanning speed is up to 7000m/s
4.Easily Operating:Afford the specific marking software based on Windows, which is real-time adjust the laser power and pulse frequency. You can input and output by computer according to edit in the both of the specific marking software and the graphic software such as AutoCAD, CorelDRAW and Photoshop.
5.High Reliability: MTBF>100,000 hours
6. Energy Saving: The efficiency of optic-electrical converting is up to 30%
7.Low Running Cost: No wearing part. Free maintaining.

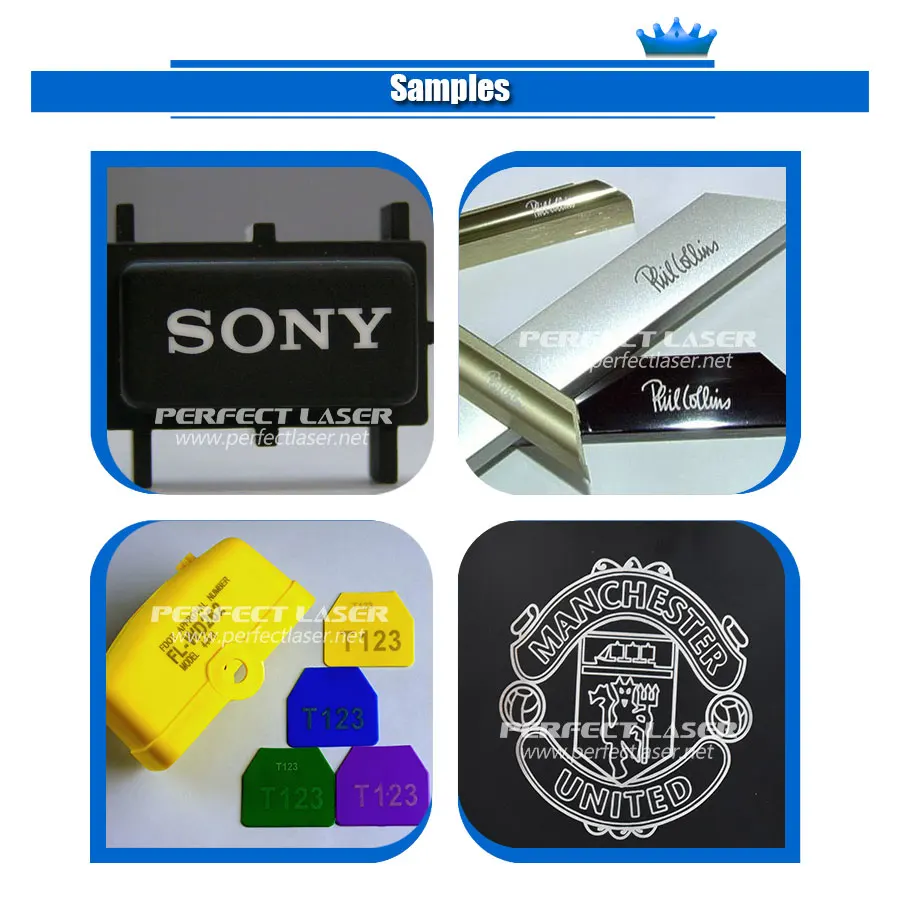

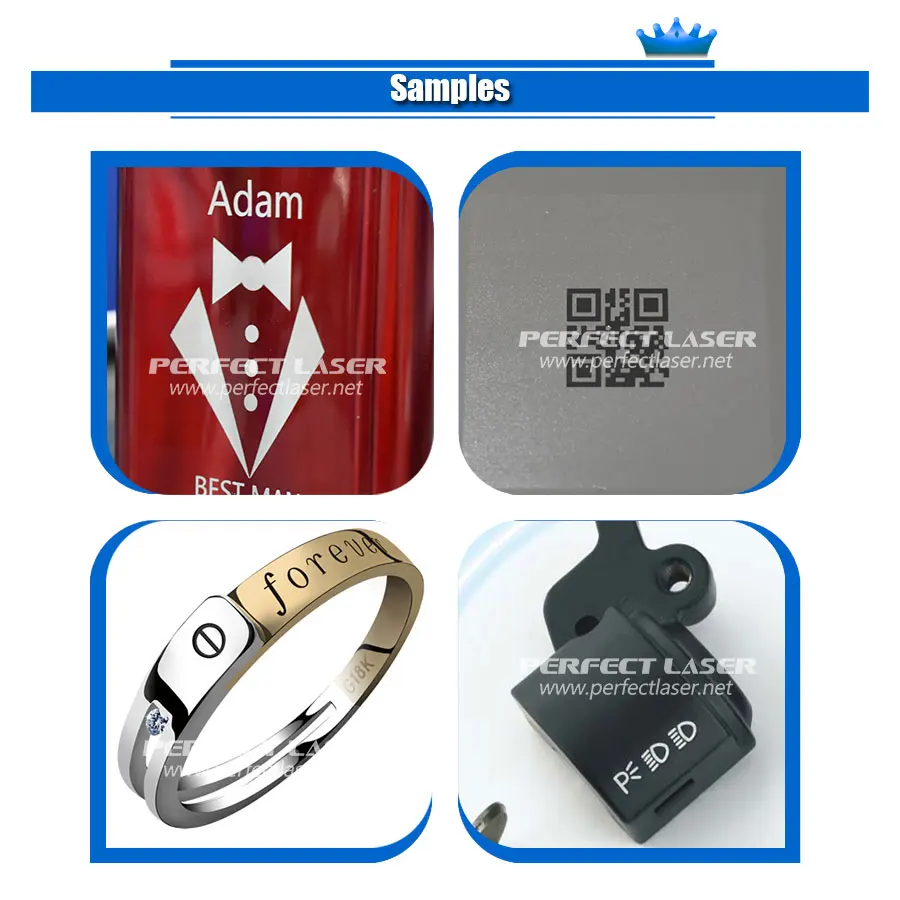

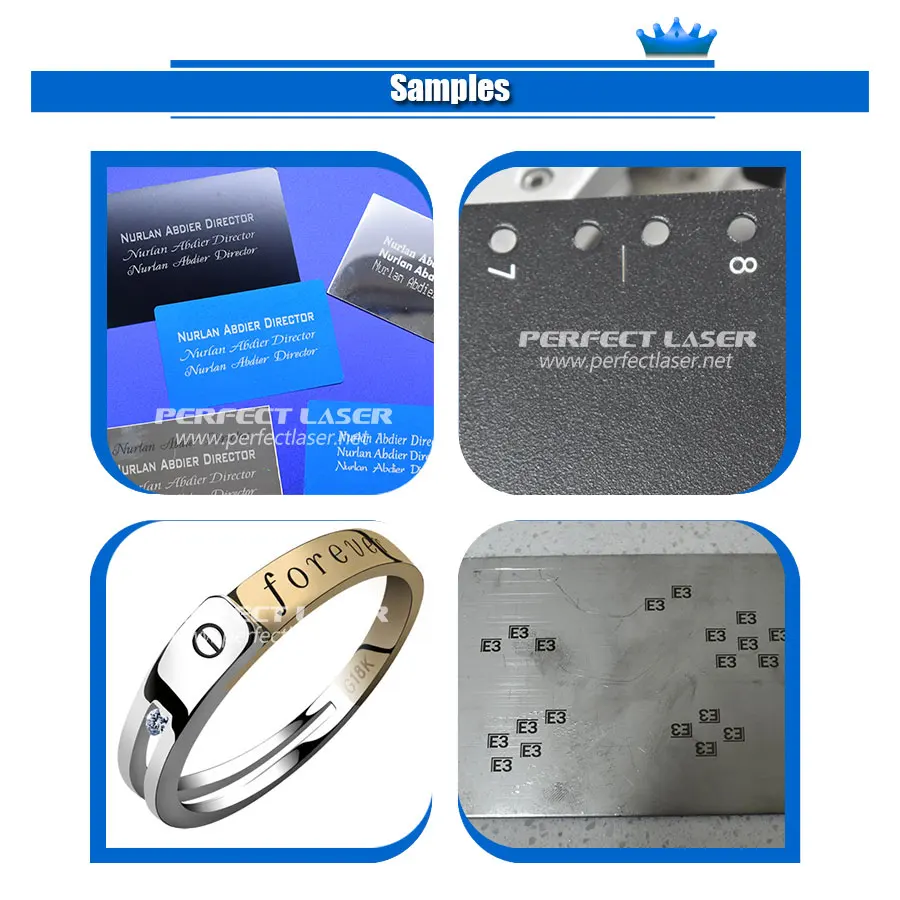

Application areas
Applications for steel utensils marking engraving machine :
1.Electronic and communication products, IC products, electric lines, cable computer components and electric appliance.
2.Every kind of precision parts,hardware tools,instrument appliance,aviation and spaceflight appliance.
Technical Data
Steel utensils marking engraving machine Techinical Parameter
Model No. | PEDB-400A | PEDB-400B | PEDB-400C | PEDB-400D | |
Type | Portable | Desktop | Colorful | Floor Stand | |
PC includes or not | Not includes PC | includes PC | |||
Laser Source | |||||
IPG Series: | Pulsed, High Energy Ytterbium Fiber Lasers | ||||
Mode of operation | Pulsed | ||||
Polarization: | random | ||||
Nominal average output power | 10W - 20W | ||||
Central emission wavelength: | 1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100% | ||||
Emission Bandwidth (FWHM) | <10 nm | ||||
Long-term average power instability | <5% | ||||
Pulse width, (FWHM) | 100 ns | ||||
Laser switching ON time | 180 μsec | ||||
Laser switching OFF time | 180 μsec | ||||
Pulse Repetition Rate* kHz | 20-80 kHz | ||||
Energy per pulse (PRR = 20 kHz) | 0.95 mJ | ||||
Typical beam quality, M2 | <1.8 | ||||
Output fiber delivery length | 3m | ||||
Operating voltage: | 220V | ||||
Max. Power consumption: | 600W | ||||
Net Dimensions: | 70*20*50cm | 58*22*50cm 80*38*72cm | 70*20*50cm | 143*62*101cm | |
Net Weight: | 44 kgs | 53 kgs | 44 kgs | 130 kgs | |
Gross Weight: | 60 kgs | 70 kgs | 60 kgs | 150 kgs | |
Laser system | |||||
Scanning Speed: | 0-7000mm/s | ||||
Marking Speed: | 0-5000mm/s | ||||
Marking size: | 110mm×110mm (F-theta 160) | ||||
Spot size: | ≤ 40 micron (F-theta 160) | ||||
Cooling unit: | Air cooled | ||||
Pilot laser: | 650nm diode laser, visible red light for marking guide | ||||
Continuous working time: | ≥16h | ||||
Humidity: | 45~85% (no condensation) | ||||
Operating temperature: | 0~40°C | ||||
Control units | CT-MARK (English Version) | ||||
Remark: 1> steel utensils marking engraving machine PEDB-400A / B / C type, it is very compact type, industry PC, Mouse and Monitor are not included in the quotation. Customer can use your own computer or laptop to control it. 2> steel utensils marking engraving machine PEDB-400D Floor type’s quotation includes industrial PC / Mouse / Monitor. | |||||
After-Sale Service
After-Sale Service:
1> All of our machine will be full-checked by our quality control department before the shipment. We make sure that customers
will be get good products from us. and all of our machine with a 12 months quality guarantee period.
2> We will enclose an "Instruction Book", "Operation Manual" and "Training Video" (in English version) to you, which is easily understood and handle by the
customer.
3> We will offer plenty of online supports, by email, video, telephone and fax.
4> Our engineer can make a door-to-door instruction training service.
Q: What’s the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Company Introduction
We, Perfect Laser, As a 21 years history industrial equipment manufacture in laser field, 10 year Golden Supplier in Alibaba, with TUV/ISO, we aims to make high quality products, and also our products have been exported to more than 180 different countries and areas.
