| TC-2000DC | Incoming CO Line | Local Station(Extension) | Expandable or not |
| Capacity | 4,8,12,16 | 32 to 128 | Yes |
intercom pabx call center equipment caller id transfered twin routes 3 section OGM
- Category: >>>
- Supplier: Foshan Ike Science & Technology Co. Ltd.
Share on (60710008301):
Product Overview
Description
| PRODUCT SPECIFICATION |

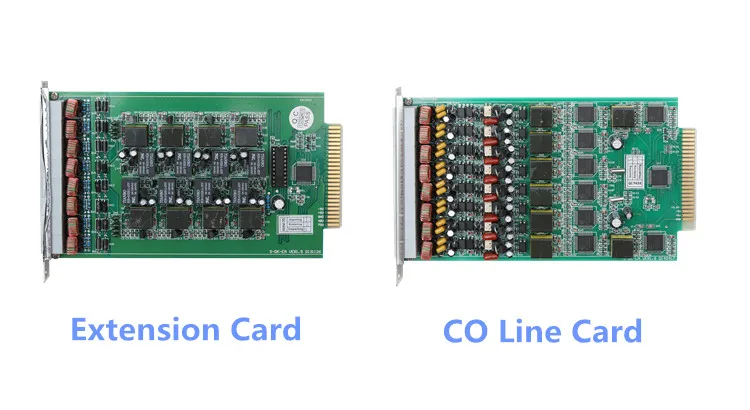

Variety of capacity to choose by adding Co line card and extension card.
| Item | Patameter |
| Power | AC110V or AC220V 50-60Hz |
| Feed Currency | DC48V; 25mA |
| Ringing Currency | AC65v/50Hz |
| DISA | 60second, 3-duration, 30s-15s-15s |
| Communication path | 15 |
| Extension number length | 2 to 4 digits |
| Caller ID | * Receive: Auto adapt DTMF, FSK (Bell.202) |
| * Send: FSK (Bell.202) | |
| Dial mode | DTMF |
| Degree of Unbalance about earth | * 300Hz~600Hz≤40dB |
| * 600Hz~3400Hz≤46dB | |
| Transmission Attributes | * Extension to extension ≤1.5dB |
| * Extension to extension ≤2.0dB |
| PRODUCT FEATURE |
| System Feature | Optional Feature |
| * Self-extension number confirmation | * UK/US/AU/EUR Power Plugs |
| * Pulse and tone mode setting | * 110V or 220V power supply |
| * Power failure transfer | |

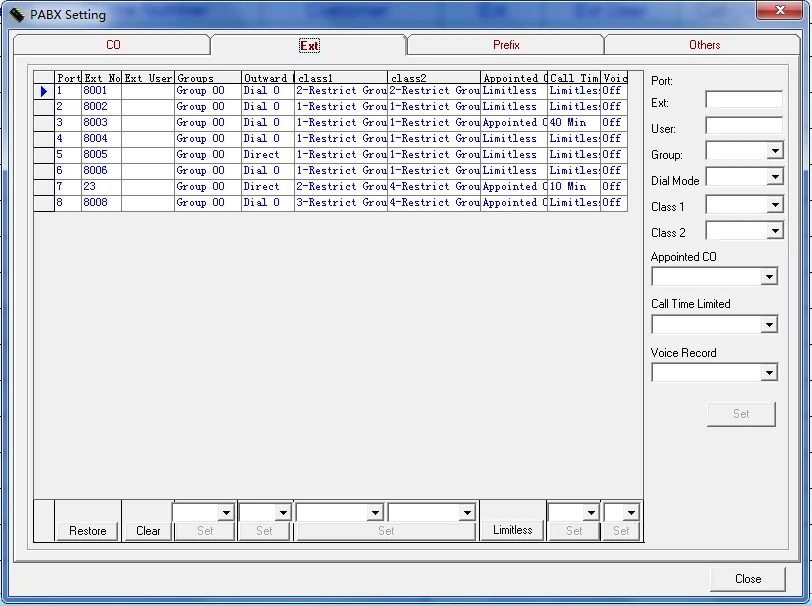

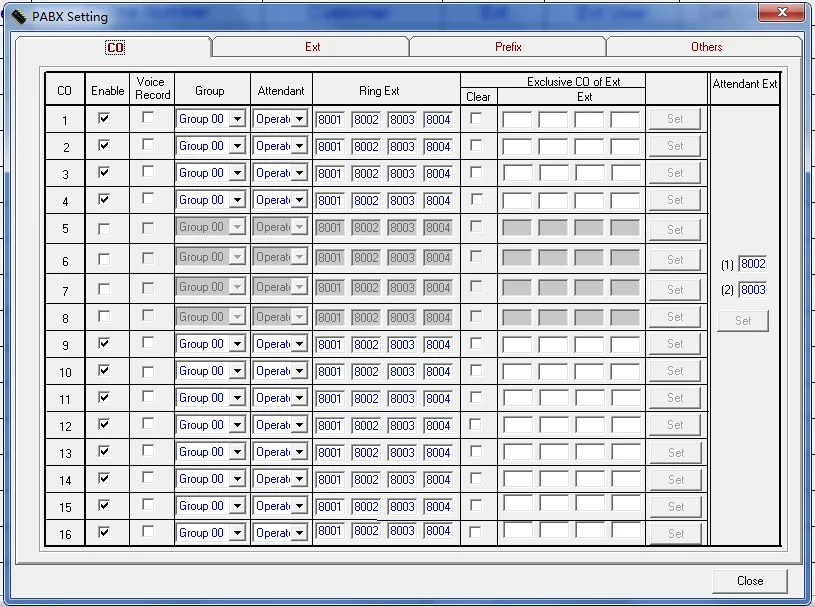

| * Bill, hotel software, function program by PC | |
| * Total 15s OGM | |
| * Remote Program | |
| * Executive busy override | |
| * Extension number assignable freewill | |
| * Polarity Reverse Detection (for billing) |
| Receiving Call Feature | Making call Feature |
| * DISA Auto-attendant | * Dial 0 or 9 for CO line |
| * Operator Attendant | * Select Desired CO line |
| * Call Transfer | * Least cost routing |
| * 3-party Conference Call | * IP code access automatically |
| * Busy Transfer | * Extension password |
| * Unconditional Transfer | * Extension Lock |
| * Call Transferred to Secretary | * Hot line ( call to operator without dialing) |
| * Call Pick up | * Ringback on busy ( when Ext.becomes free) |
| * External and extension caller ID | * Speed dialing |
| * Transferred caller ID | * Extension outgoing call class |
| * Do Not Disturb(DND) | * Outside ( CO ) Line Duration Time Limit |
| * Day/Night service | * Dial 9 or 0 to operator |
| * Extension ring by turns | * Exclusive Line |
| * Outside caller call extension by one touch | * Allow extension use appointed CO line |
| * External music on hold socket | * Personal account |
| * 128 extension ringing assignable | * Call on holding |

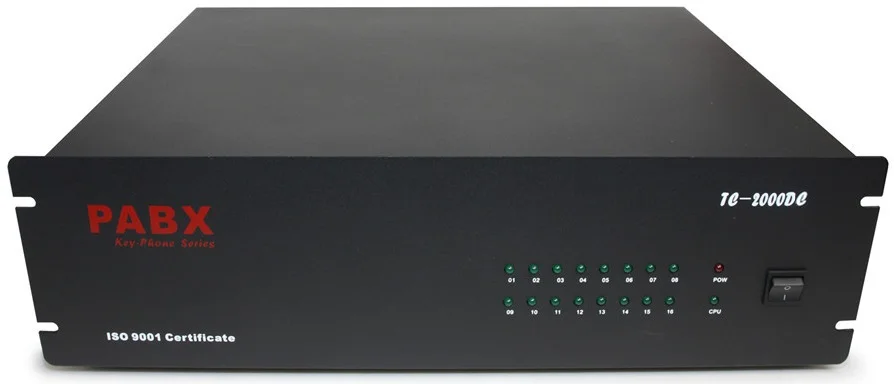

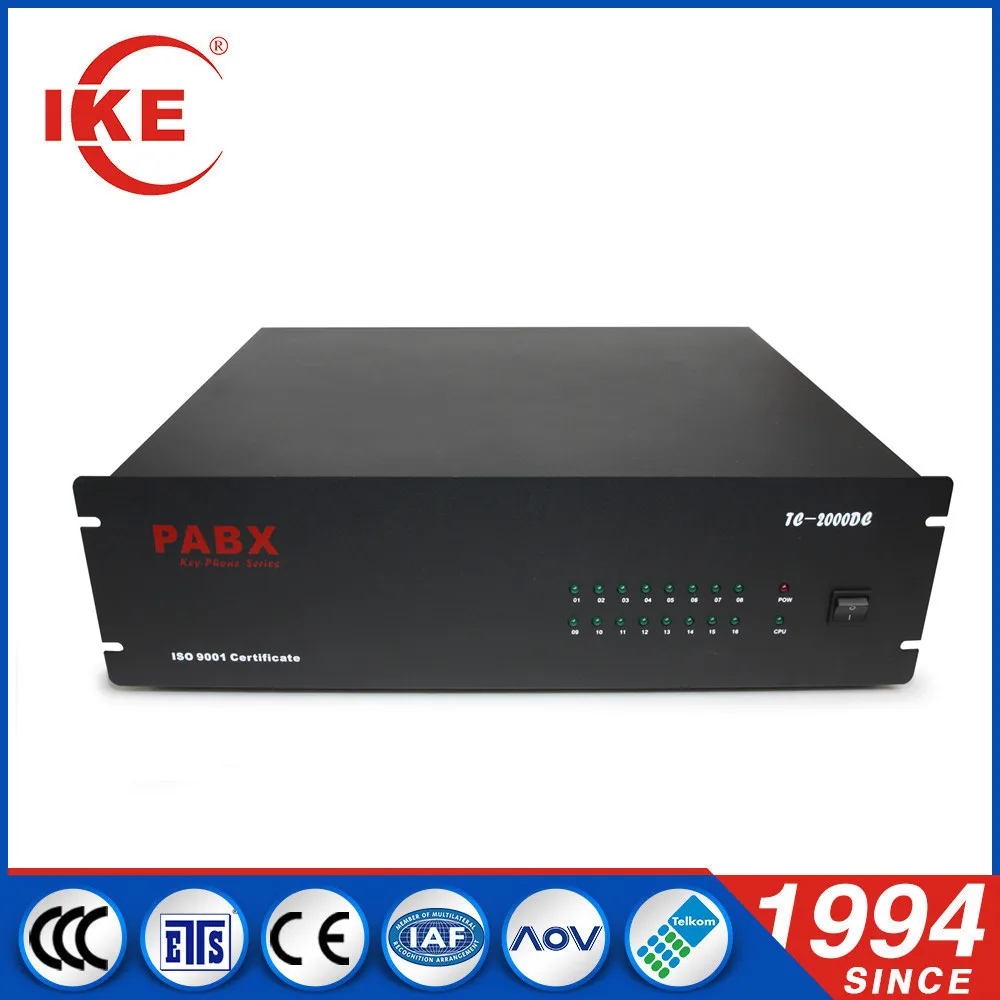

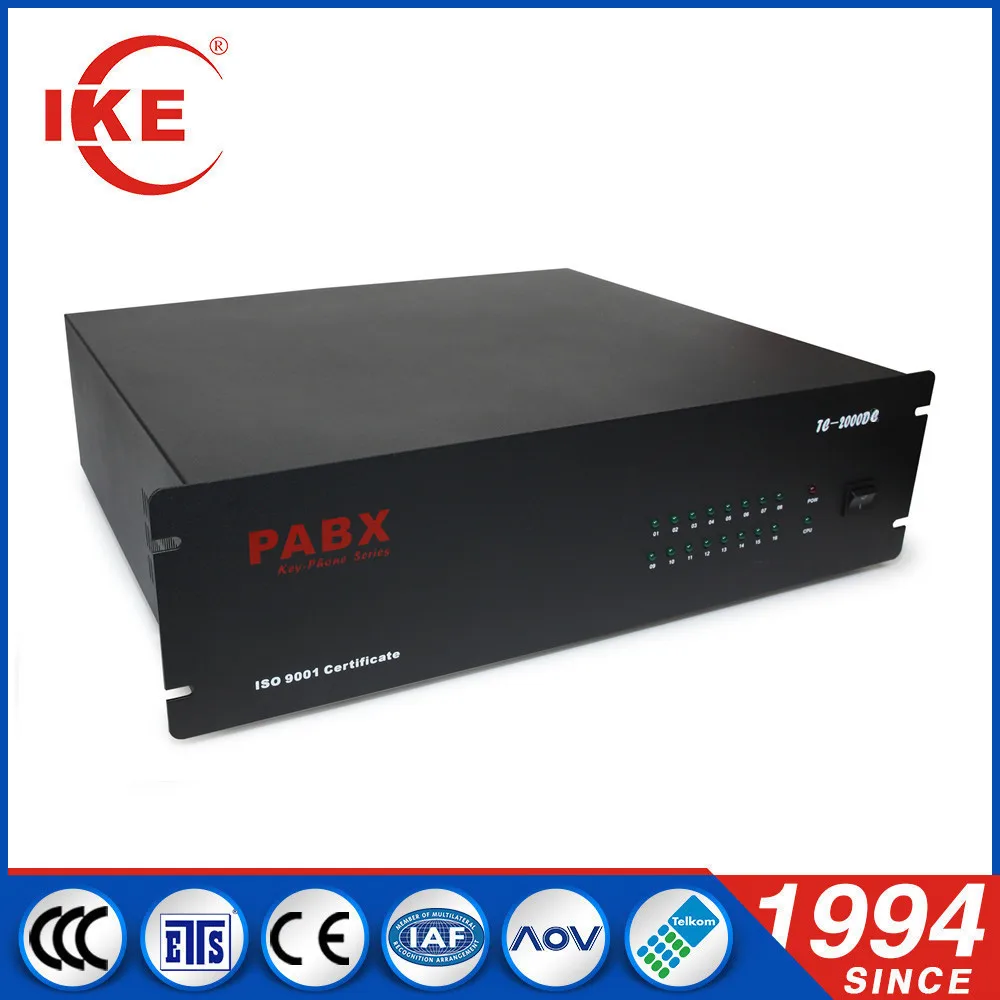

| PRODUCT DISPLAY |
 |
| PRODUCT ADVANTAGE |
 | ||
 | ||
| KP-07A | SOHO | TC-2000AC |
| ||
| TC-2000B | ||
| WORK FLOW |
| COMPANY OVERVIEW |
| GLOBAL COOPERATION |
| CONTACT US |
| Foshan IKE Science & Technology CO., Ltd | |
| Tel | +86 (757) 86693388-8130 |
| Phone | +86 18927513850 (this is also whatsapp&skype account) |
| Fax | +86 (757) 89914228 |
| sales1 (at) ike.cn | |
| Web | www.ike.cn |
| ADD | No. 2, Keyuan Road, Zone B, Shishan Scientific And Technological Park, Nanhai District, Foshan |
| FAQ |
Q1: How do I request for a quotation? A: Contact us simply by click on the "Contact Supplier" or "Send inquiry" button to reach us for a quotation. For quotation inquiry, remember to let us know the exact model, required function, quantity etc. |
Q2: Can I get a sample from you? A: Yes, we provide samples at request. You will need to pay for the sample cost and the delivery cost. |
Q3: Can I have my logo printed on the products and packing? A: Yes, OEM are welcome. |
Q4: What would the delivery time be? A: Normally within 3 days after get payment for sample. For formal order, lead time would be different according to different quantity. |
Q5: What is the warranty of your product? A: One year warranty, however, we will offer life after sale service to our customer. |
For more question pls kindly send email to sales1(at)ike.cn or contact me directly! Thanks a lot. |
