PY-950 High Quality paper die cutting machine / automatic die cutting machine





Product Show

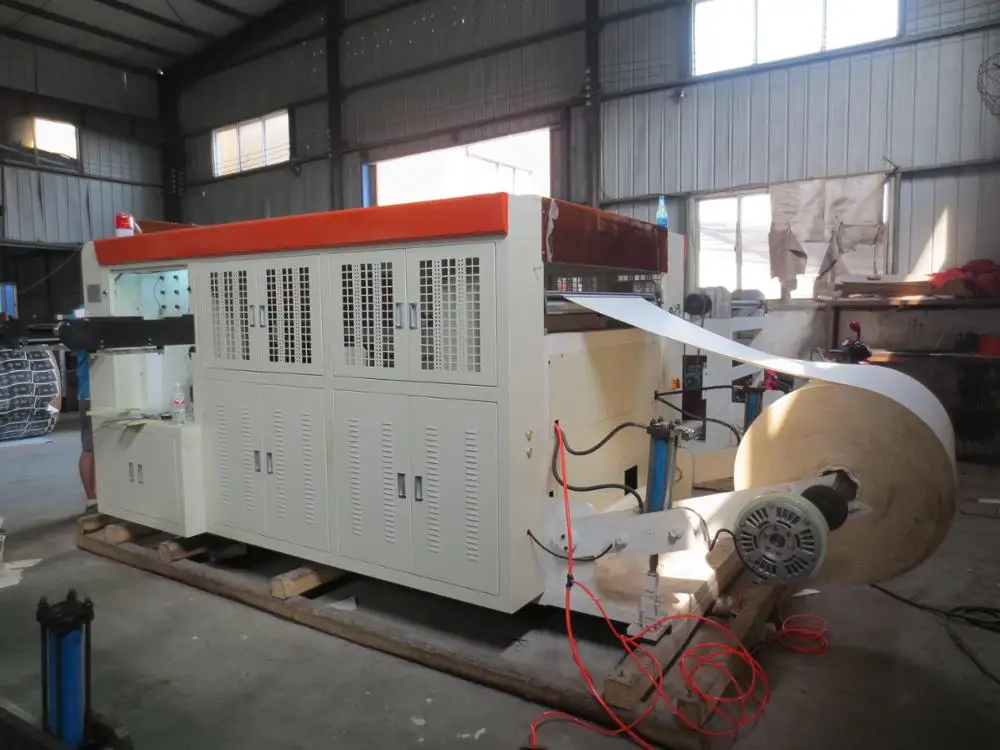

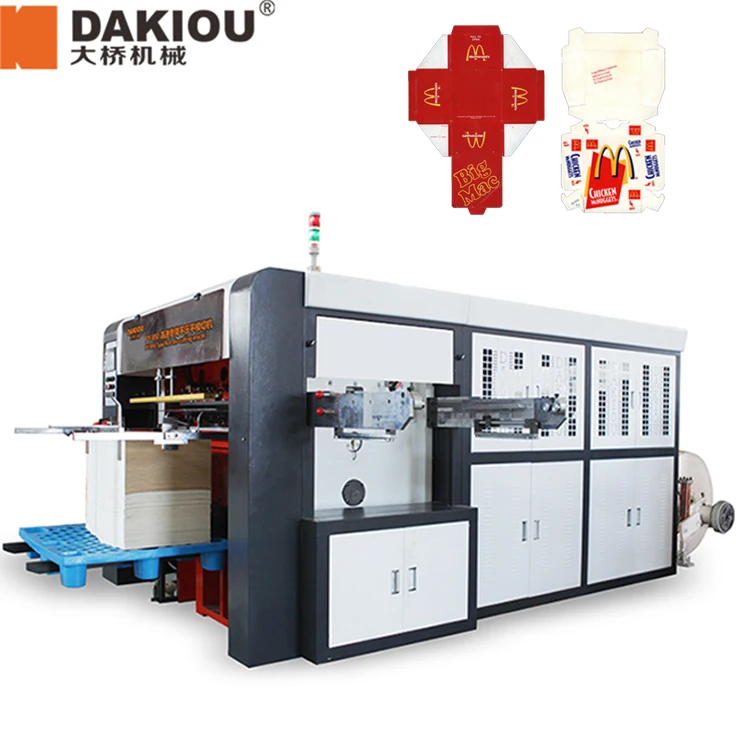

PY950(2).jpg20150414_104648.jpgPY950 (3).JPGPY950 (5).JPG





Product Parameters

PY-950 is an ideal and professional machine in die-cutting,creasing,embossing and full-stripping various PE coated paper, normal paper, corrugating paper and plastic material. It applies to paper cup,paper box,medical package,wine package,food package and other environmental protection products.It adopts micro-computer,HMI,servo positioning,alternating current frequency converter,automatic counting,photoelectric rectifying,pneumatic lock cutting plate,electromagnetic clutch,centralized oil lubrication,,overload protection and distinctive gearing.All of these is the guarantee of steady pressure,precise positioning,smooth running,safety and reliability operation.



Technical Specification


















































 Type:



 PY-950



 Cut Precision:



 ± 0.10mm



 Production capacity:



 90-140times/min



 Max Paper Convey Width:



 850mm



 Suitable Material:



 100-800g/m2 coated paper, white cardboard



 Total Power:



 11KW



 Total Weight:



 6500KGS



 Maximum cutting size:



 950 x540mm / 950 x640mm



 Maximum Pressure:



 250T



 Overall Dimension:


 4200 x 2100 x 1850 mm
 Working Air Source:  Air pressure 0.5-0.7Mpa (Need to buy compressor)




Product Process

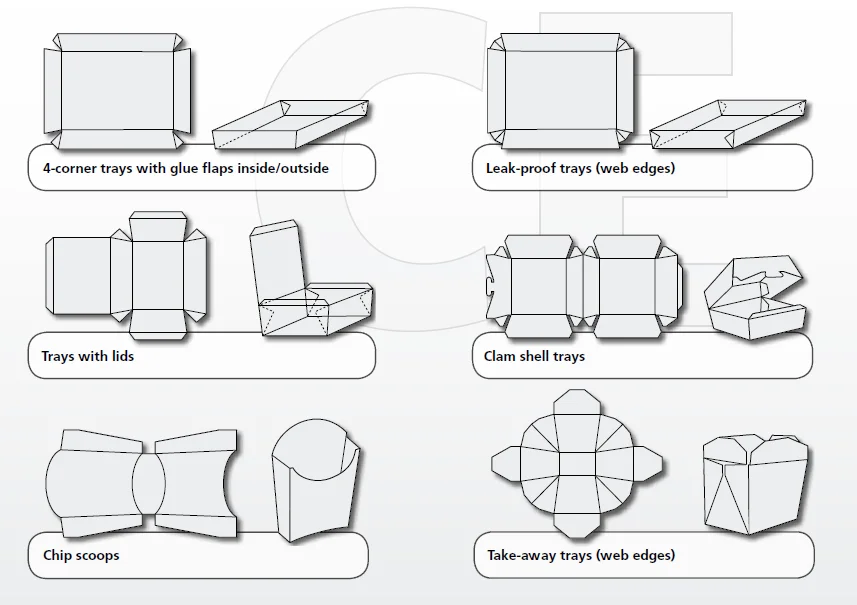

Product Application







Company Profile










FAQ


We are Manufacturer...


1.Q:Where is your factory? How can I get there?
   A: We are located in Ruian City Wenzhou, Zhejiang Province.
To Wenzhou Longwan airport by Air, from Shanghai is about 45mins, from Guangzhou is about 1hr 50mins and from Hongkong is about 2hrs. We will pick up you in the airport.

2.Q:Can your machine be customized?
   A: Your better improvement suggestions are highly appreciated. Almost all of our products can be customized, including the sizes, color, logo, package and so on.

3.Q :What's the OLD(order lead time)?
   A: For our standard model machines is about 30days after receiving your deposit.


4. Q: How about your package?
    A: Our machines are well wrapped by plastic film to be water proof first, then loading and fixing in a plywood case. If by FCL(full container loading) we might use the wooden pallet with plastic film wrapping, without plywood case.
