one Cavity Semi Automatic Blowing Mould Machine for 10L 12L 15L 20L water bottle PET Preform blowing
- Category: >>>
- Supplier: Cixi Best Imp&Exp Co. Ltd.
Share on (60710073810):
Product Overview
Description
Product Description
Specification

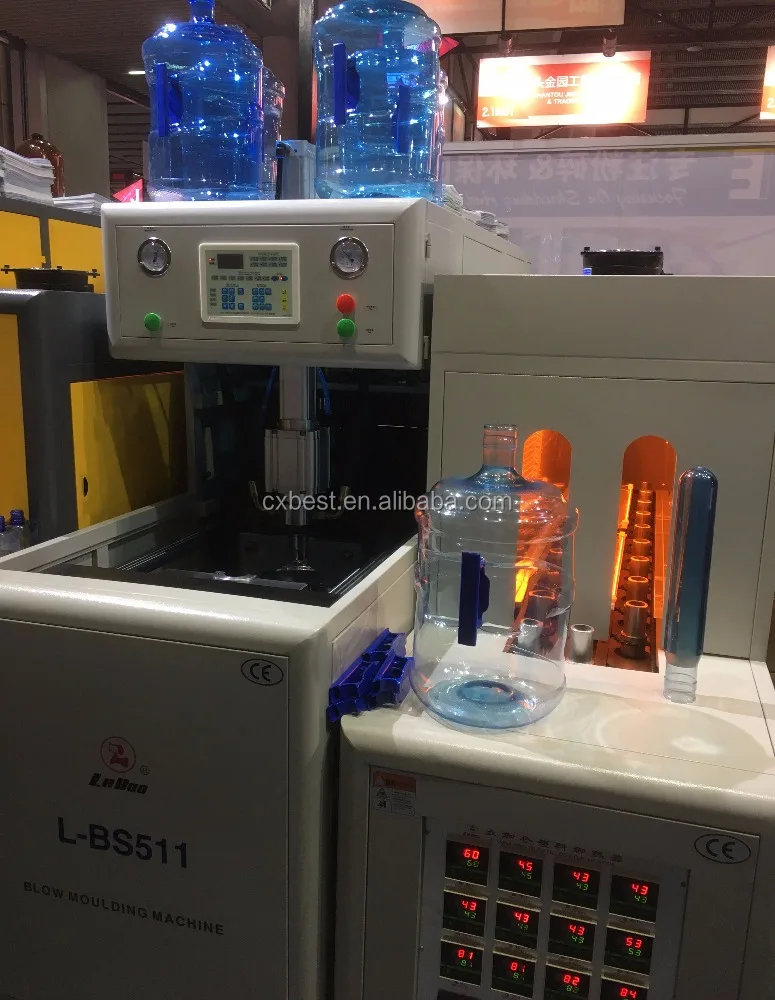

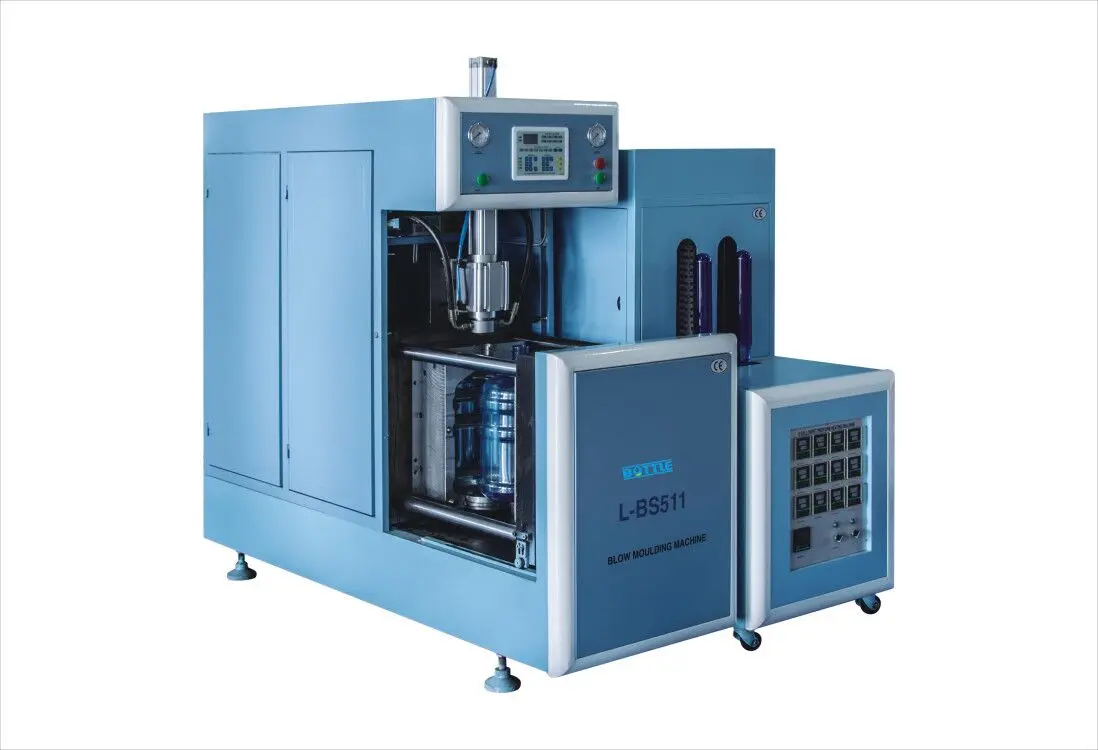

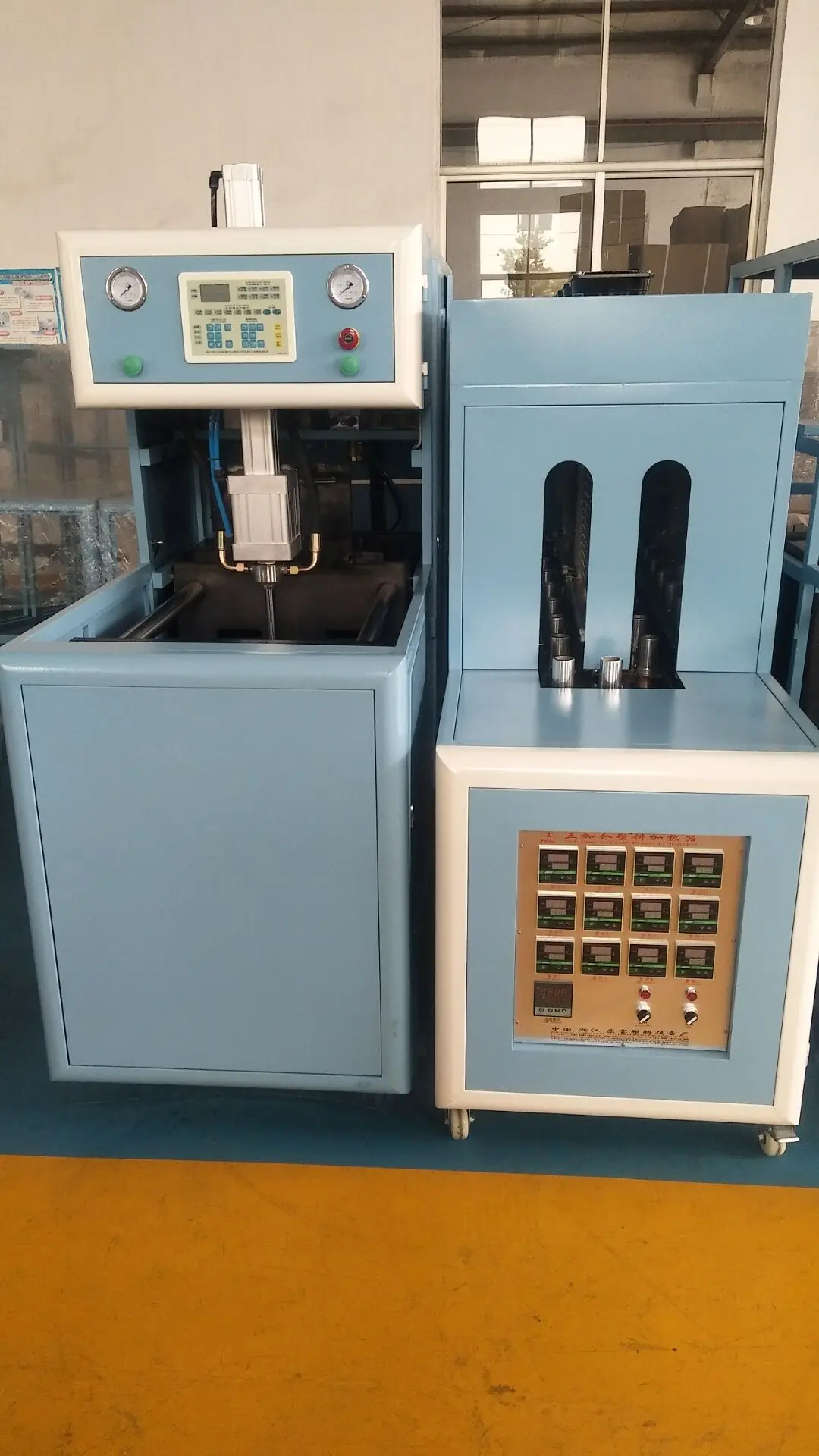

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
1. Specification: 1.1. Main frame dimension:2300(L)*740(W)*2000(H)mm; Heater dimension: 2660(L)*650(W)*1660(H)mm;
1. Specification: 1.1. Main frame dimension:2300(L)*740(W)*2000(H)mm; Heater dimension: 2660(L)*650(W)*1660(H)mm;
1.2. Theoretical output :80-100 pcs/H;
1.3, The main structure is welded by Q235B 200*70 channel steel and heater is made of 40*40*1.5 square

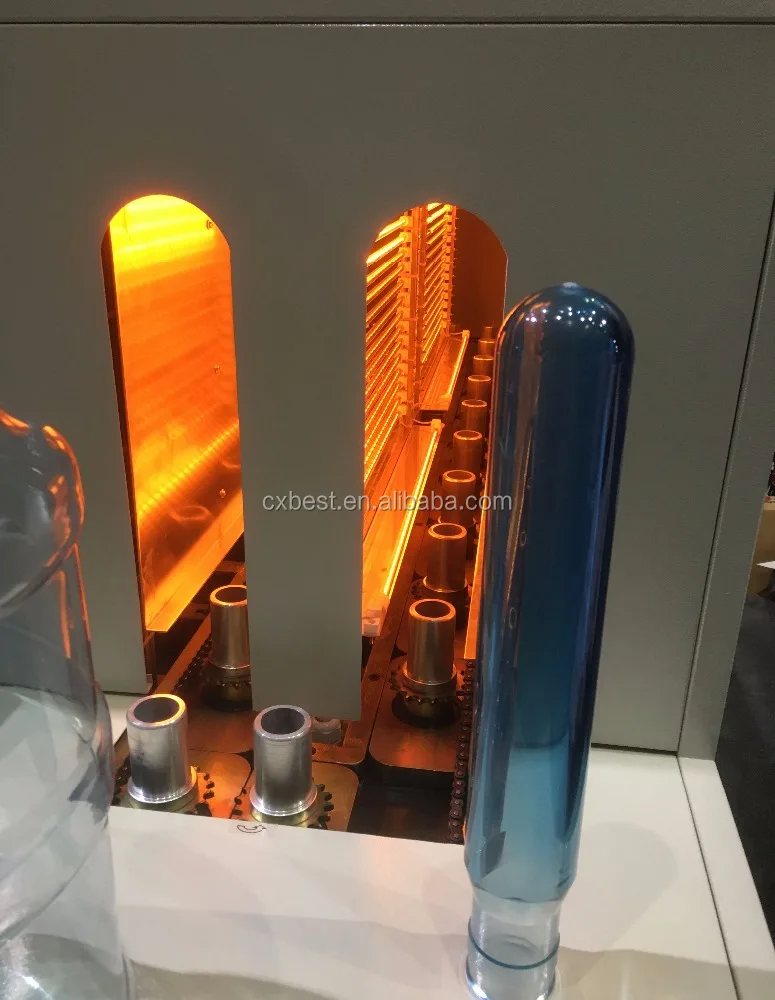

1.7, Preforms are transferred to the heater through rotating to ensure being heated evenly.
tube.the surface is treated with paint ejection. the whole structure is delicate and durable.

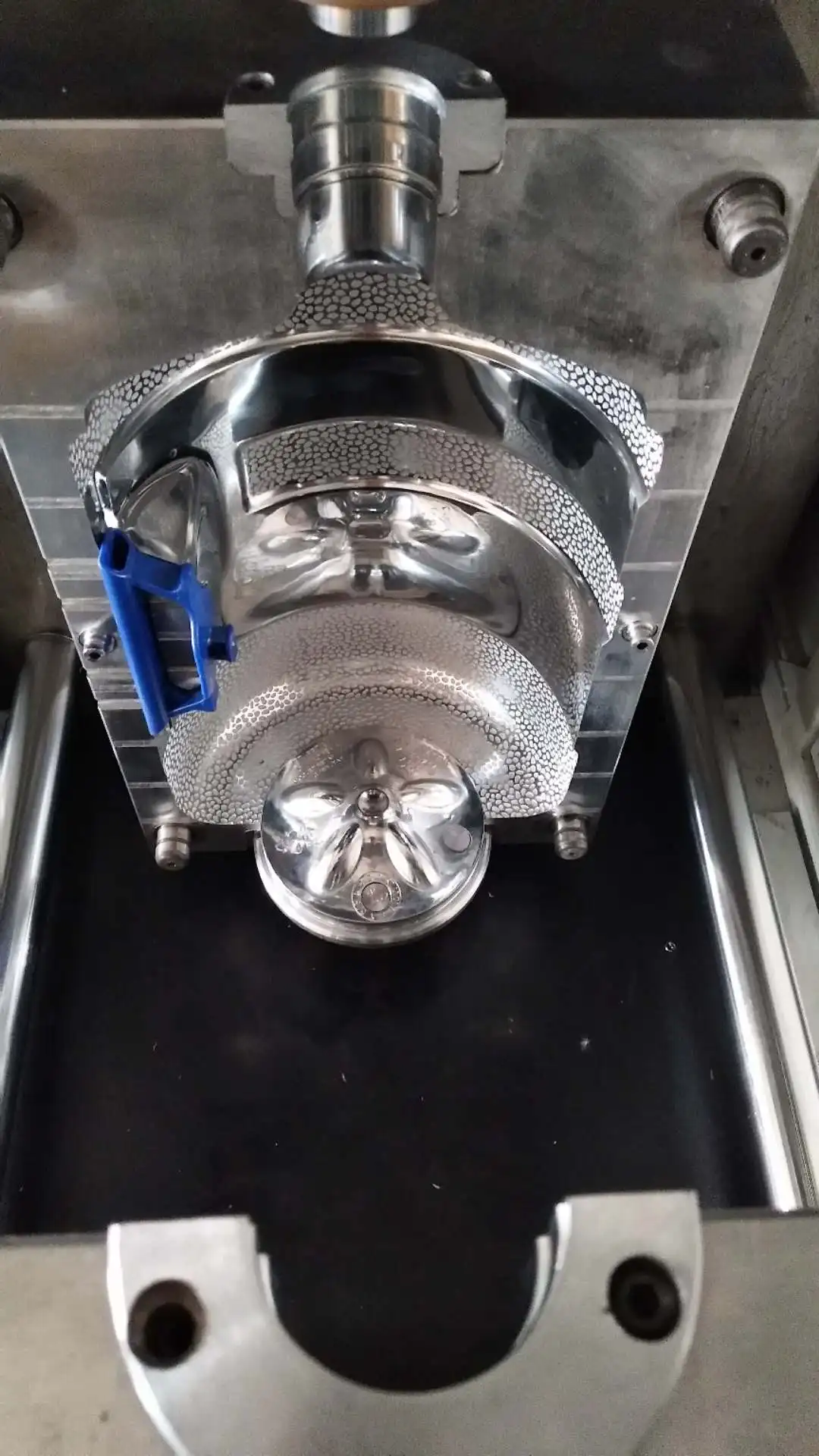

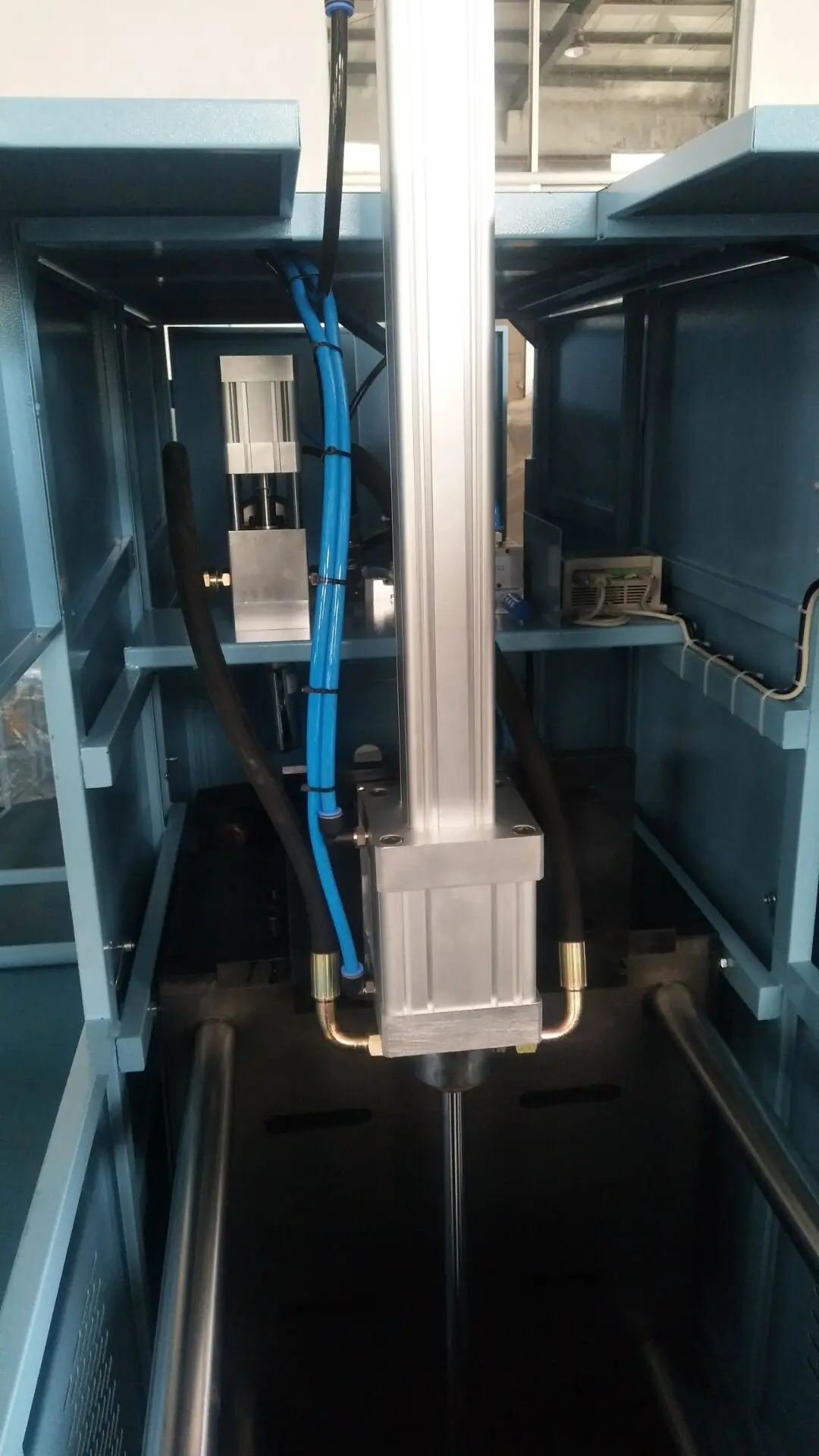

1.4 Mould clamping system is processed precisely to ensure the stability.

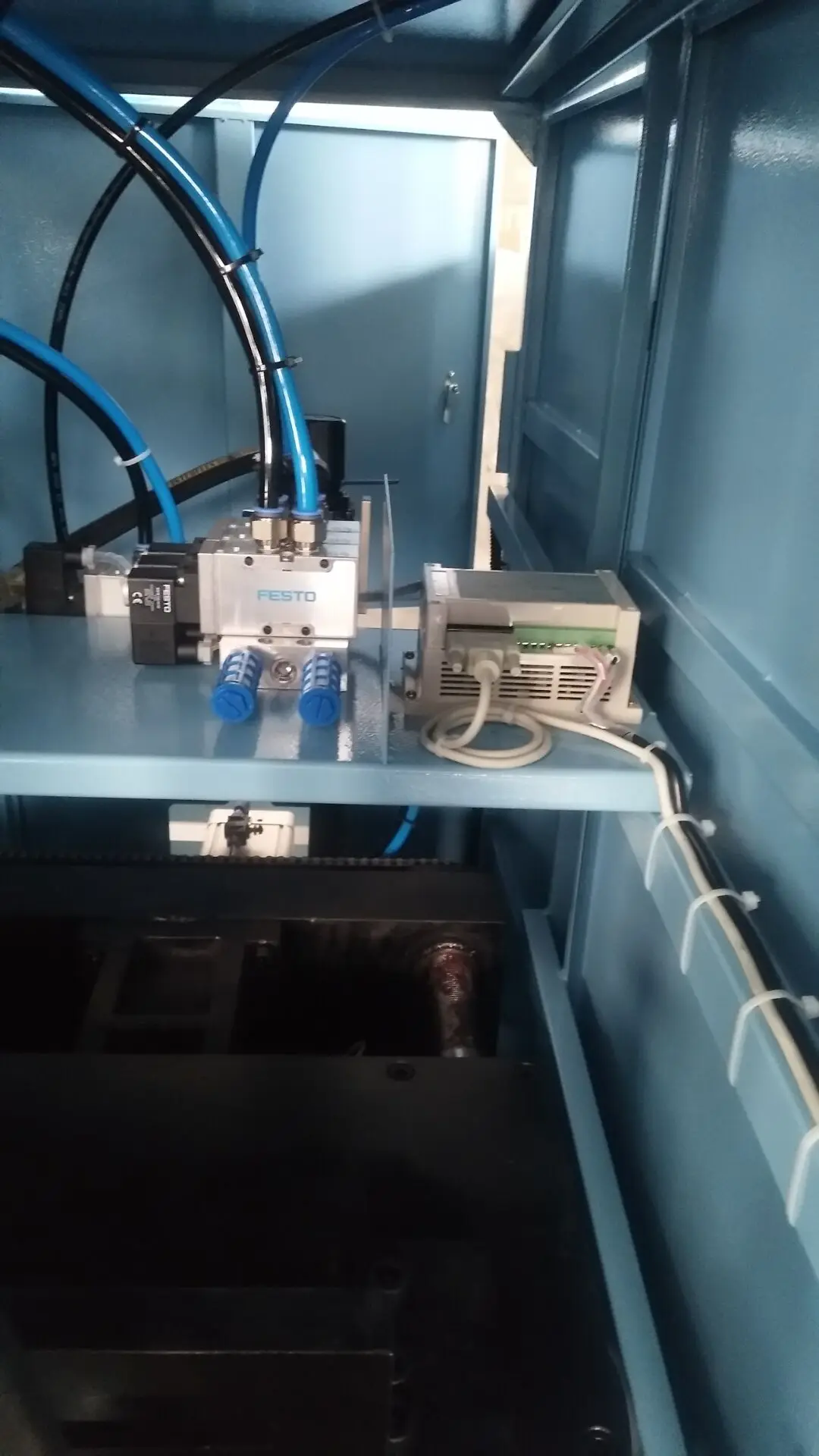

1.5, Main pneumatic components adopt Germany FESTO brand, others are from domestic.
1.7, Preforms are transferred to the heater through rotating to ensure being heated evenly.

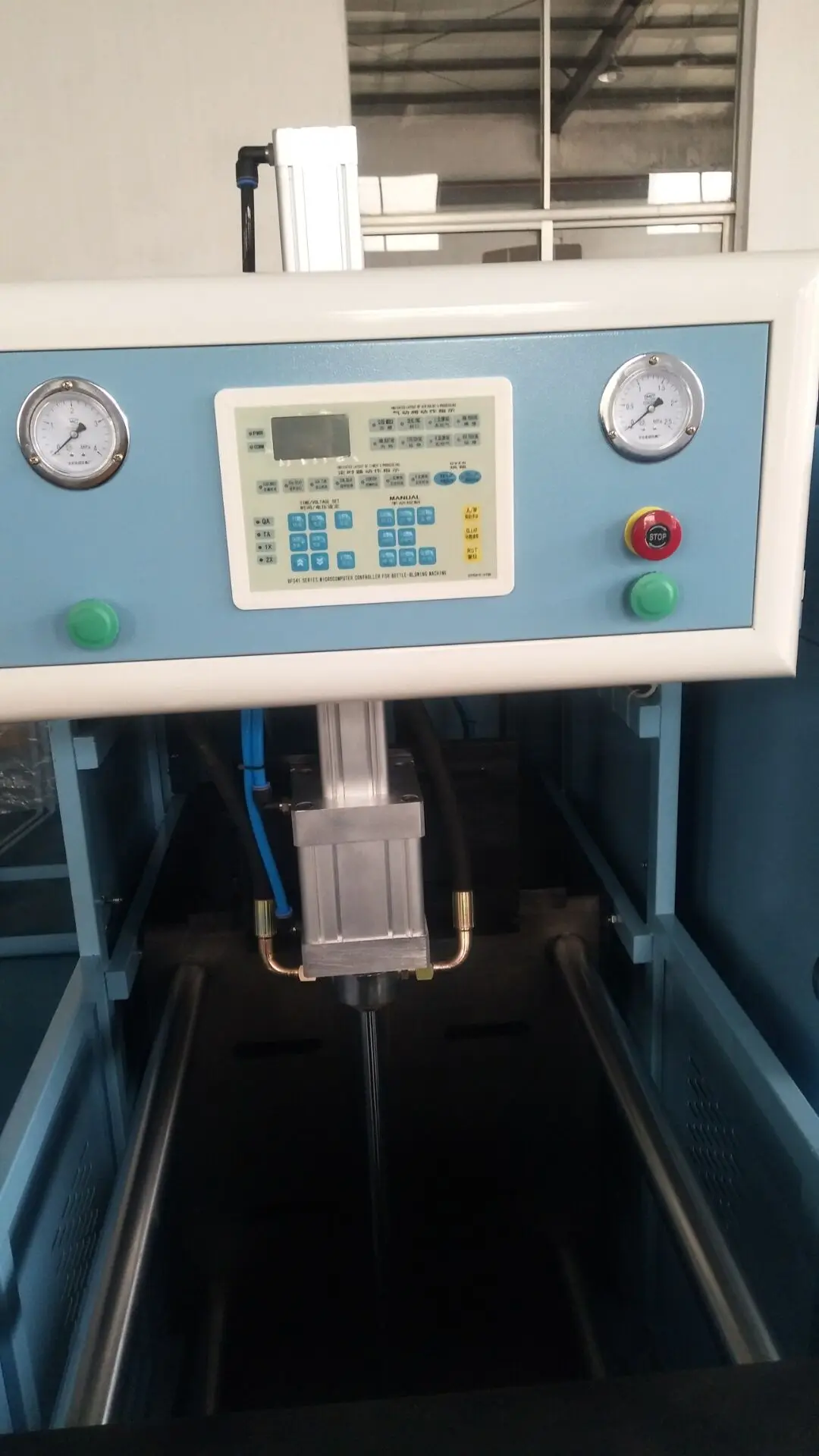

1.8, PLC panel adopts from domestic(Mitsubish is selectable) to make the machine stable and reliable.
2, technical data of the main frame:
2.1, voltage of the main blower: single phase220V/60HZ;
voltage of the heater:3P 380V/60HZ.(adjustable according to the needs of the client)
rate power:20KW; actual power: 10KW;
2.2,clamping force:220KN;
2.3, strech distance:300-450mm(adjustable)
2.4,max plate size: L450*W480mm
Packing & Delivery
Wooden packing: 2100x950x1730(mm)-Washing part
1400x680x1730(mm)-Filling part
Loading capacity: 3pcs/20'ft, 7pcs/40'ft
1400x680x1730(mm)-Filling part
Loading capacity: 3pcs/20'ft, 7pcs/40'ft

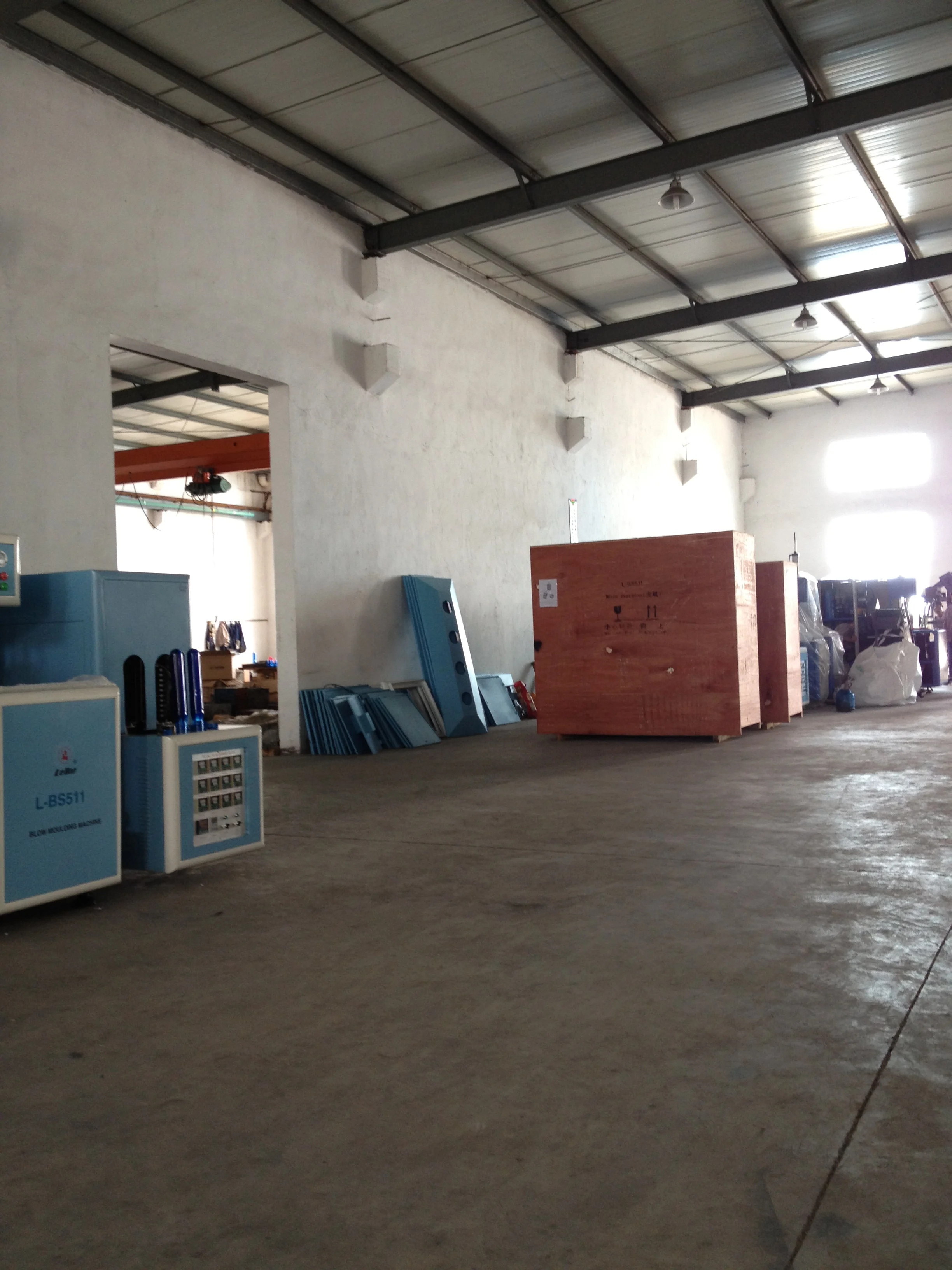

Company Profile
