Product Overview

Description

Product Description

plastic recycling granulator machine

This type of plastic recycling granulator machine combines usual pelletizing line with compactor (agglomerator) feeding, which highly improves efficiency. Film will be half-melted and become higher density, then be fed to heating screw. Productivity is highly increased if with compactor system compared with usual pelletizing line same screw size.
         Pellets quality is excellent with low moisture and no bubbles, because of special screw design,
vacuum degassing system and strict filtration system. The water-ring cutting system is our advantage,
which can cut both PE film and PP woven material.
         If you're interested, please contact us to know more.

Main Features

1)Compactor feeding.

2)Water-ring cutting.


Single stage series

Model
Extruder
Screw diameter
(mm)
L/D ratio
Power(kw)
Productivity(PE)
(kg/h)
Productivity(PP)
(kg/h)
RM70
70/33
φ70
33:1
110
110-150
100-130
RM85
85/33
φ85
33:1
155
180-250
150-200
RM100
100/33
φ100
33:1
210
280-350
250-300
RM130
130/33
φ130
33:1
300
480-550
400-480
RM160
160/33
φ160
33:1
370
650-750
550-650
RM180
180/33
φ180
33:1
460
800-1000
750-850

Double stage series

Model
RM100/120
RM130/130
RM160/160
RM180/200
First extruder parameter
Screw diameter(mm)
φ100
φ130
φ160
φ180
L/D ratio
33
33
30
30
Extruder motor(kw)
90
132
185
250
Heating power(kw)
45
55
70
70
Screw speed(RPM)
0-120
0-120
0-120
0-120
Second extruder parameter
Screw diameter(mm)
φ120
φ130
φ160
φ200
L/D ratio
10-15
10-15
10-15
10-15
Extruder motor(kw)
30
45
55
75
Heating power(kw)
30
35
45
60
Screw speed(RPM)
0-120
0-120
0-120
0-120
Productivity(kg/h)
250-350
400-550
500-700
800-1000
Detailed Images

Belt conveyor with MESUTRONIC

When metal is detected, belt will stop. Overcurrent of compactor or overload of screw will also stop belt till overload is finished.

Compactor (agglomerator)

Compactor has blades inside to cut big pieces of film or bags. High speed rotation will heat film and make film higher density. Efficiency and productivity are highly improved.

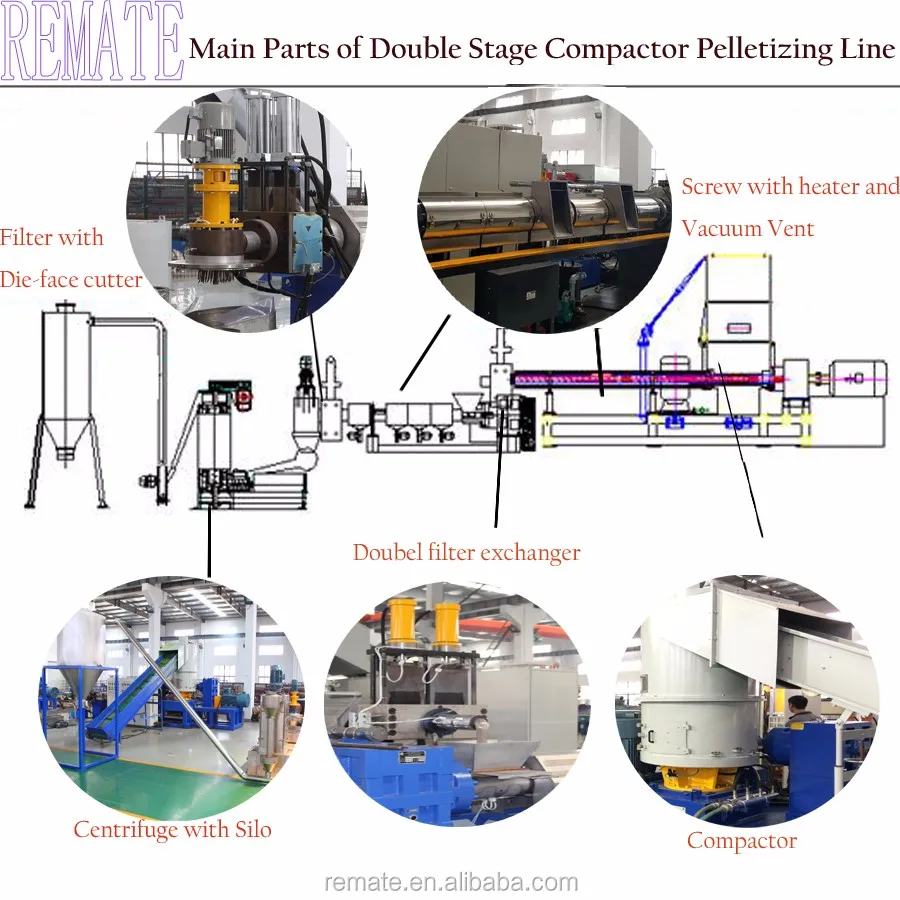

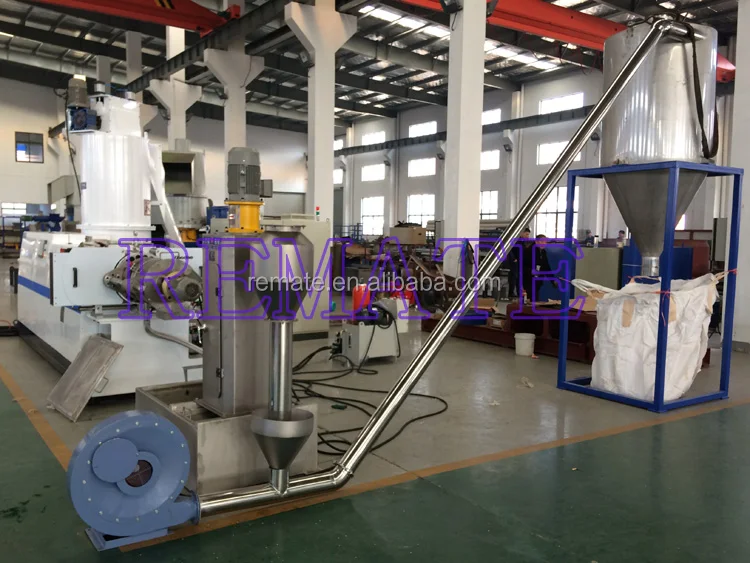

Main stages

Vacuum degassing is necessary if film is recycled and contain some moisture.

Double stage is also a good choice because double filtration will let final material cleaner.

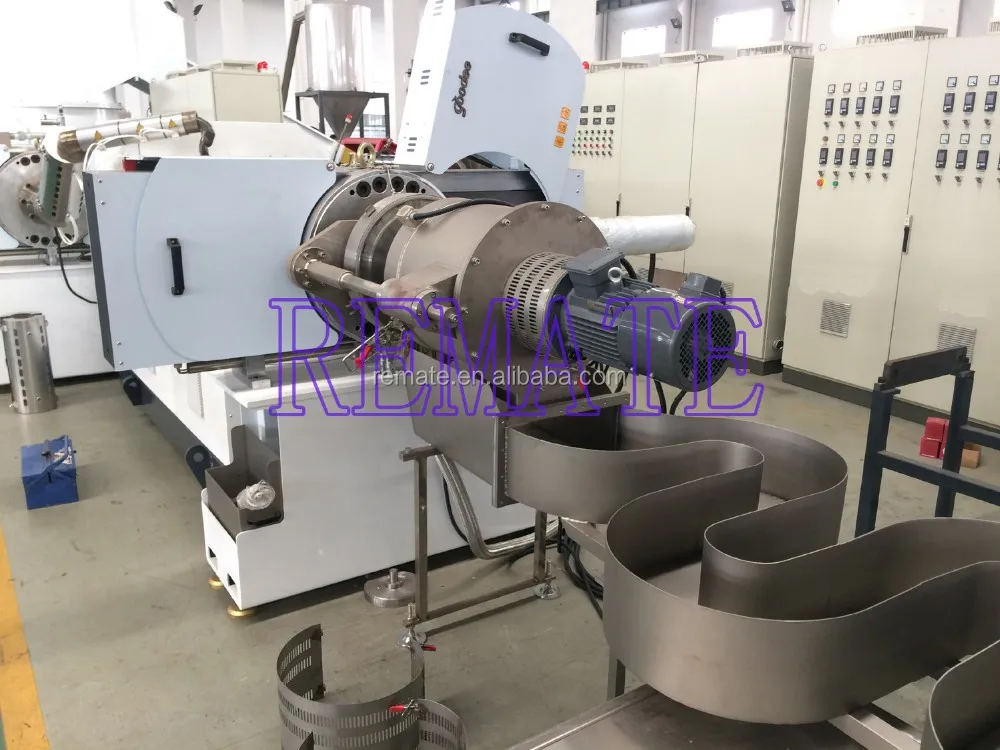

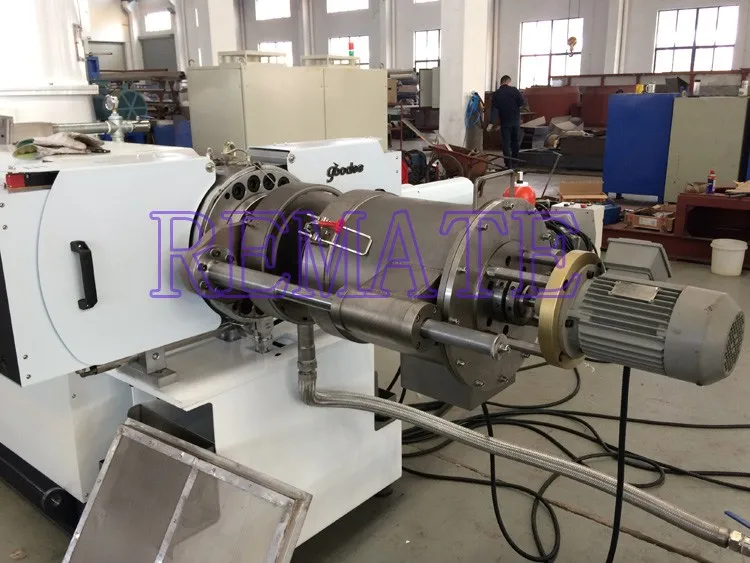

Water-ring cutting

Our cutting system is an advantage. Both PE film and PP woven&non-woven material can get into pellets with excellent quality.

Certifications

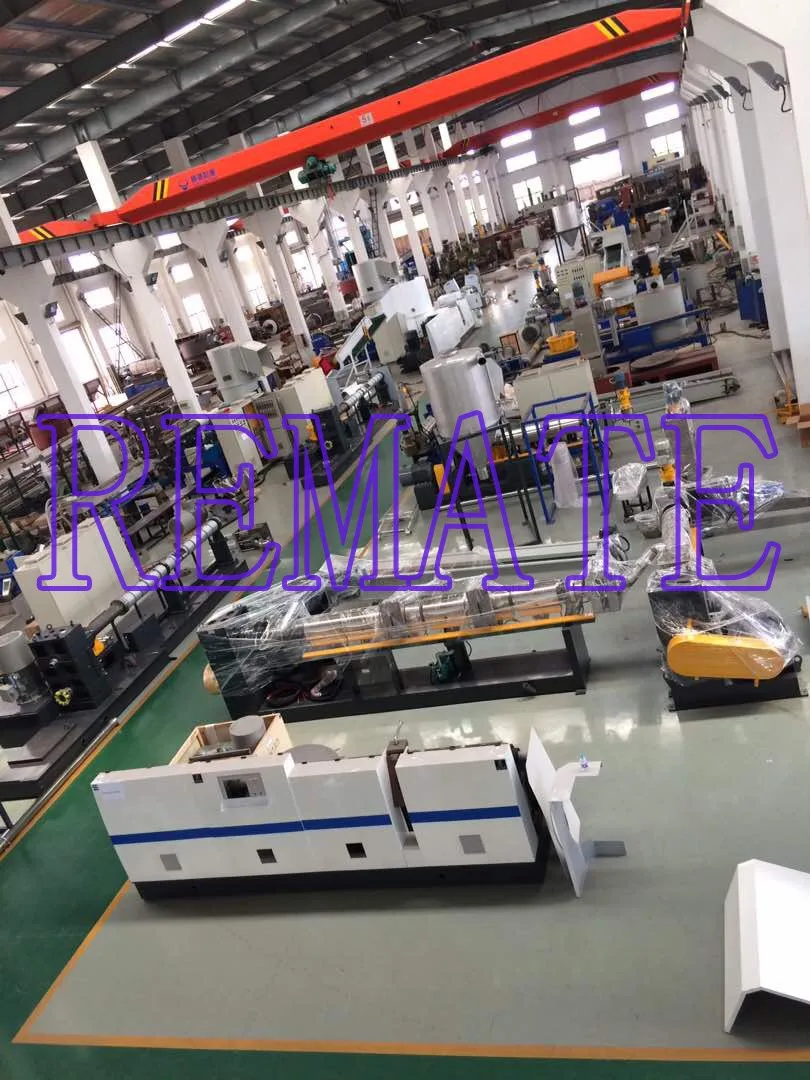

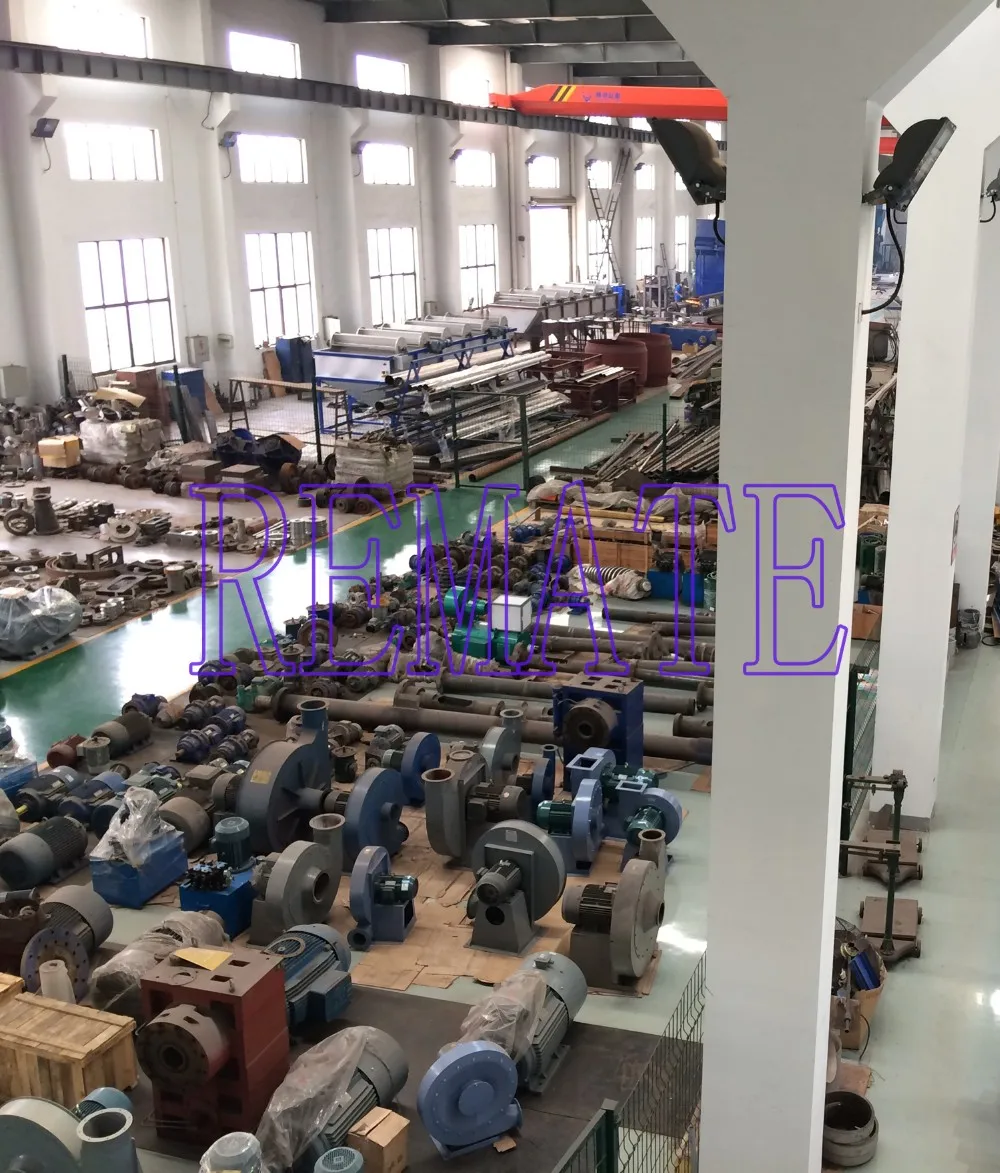

Our Company

Company Introduction

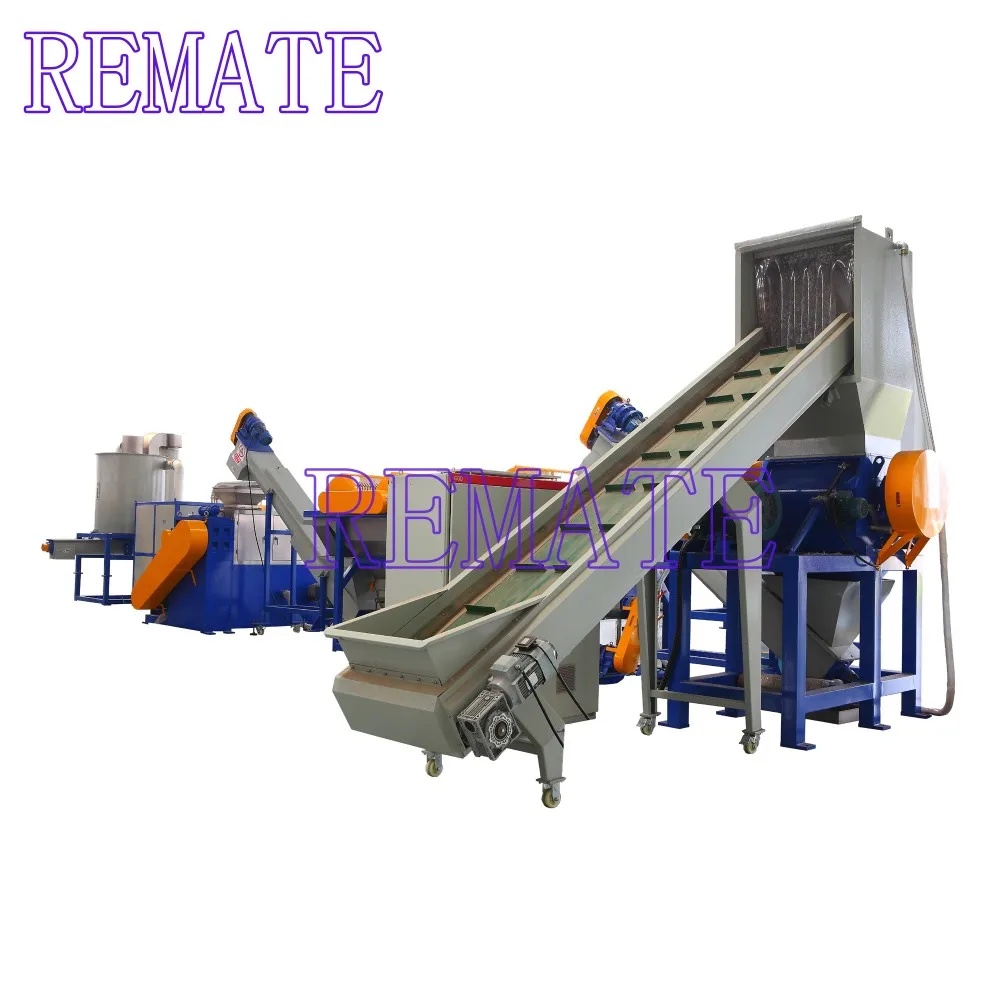

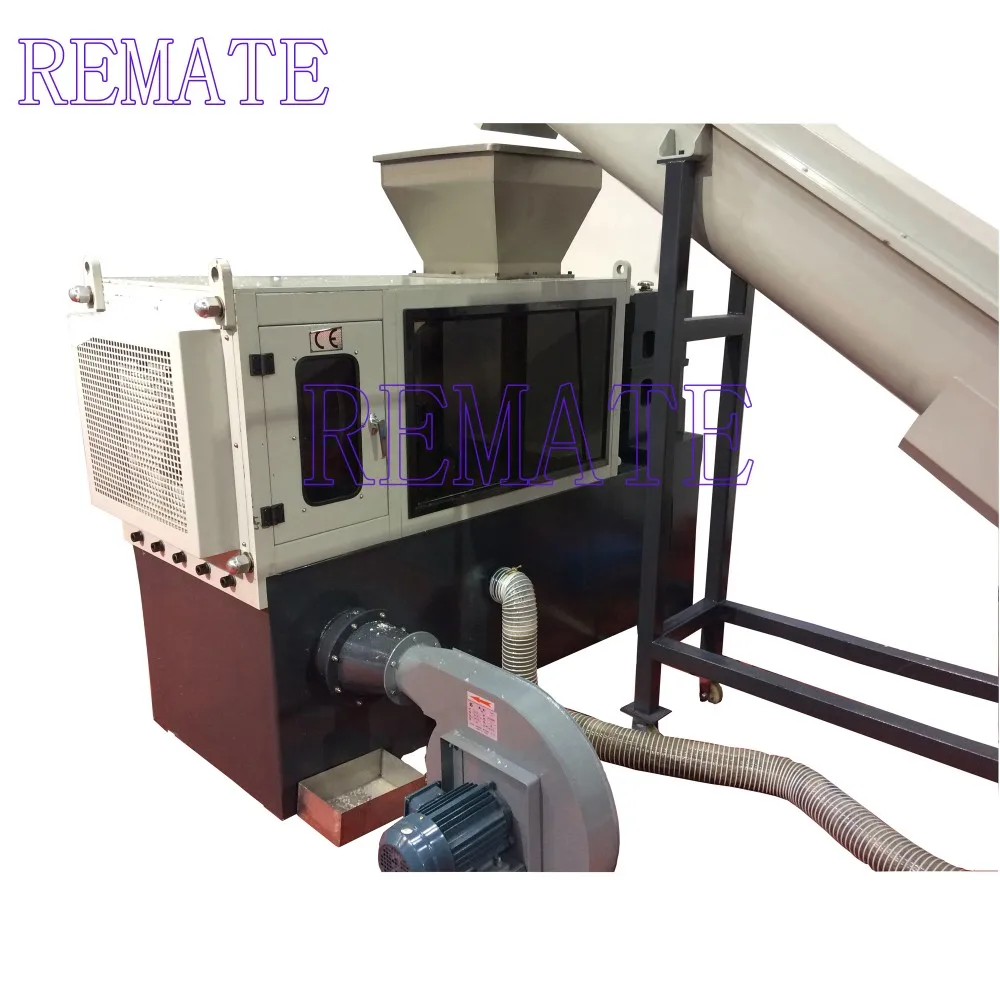

REMATE Machinery is a professional manufacturer for plastic recycling machines, which include categories like washing & pelletizing line especially for PE, PP, PET etc.,  and its auxiliary products like shredders, crushers, squeezing machine etc. Recently, REMATE’s derivative products like garbage sorting system, sewage treatment and tire recycling line are also increasingly popular.
       REMATE’s products, with top quality, aim at high-end customers. Since its excellent quality and reasonable price, our machines are accepted by worldwide market especially countries like Germany, Poland, Brazil, Mexico, etc., as well as Southeast Asia and African countries. REMATE’s target is to build international brand with leading technology in recycling field.
       Welcome to view our products and contact us.
Our service

Before-sale
1.Introduce product and application details
2.Recommend suitable solution and machine
3.Provide quotations with detailed information
4.Offer machine in our factory for test

During Manufacturing

1.Provide with layout and engineering conditions
2.Inform the project processing status
3.Offer other documents

4.Arrange testing and customer inspection before shipment

After-sale
1. Provide with installation, commissioning and training
2. Register and record customer information
3. Offer spare parts
4. Provide with necessary technical support for new application
5. Visit customer regularly and correct information
