  • Provide High Quality 1.6t/2.2t/1.2t Turret milling machine
Provide High Quality 1.6t/2.2t/1.2t Turret milling machine
Provide High Quality 1.6t/2.2t/1.2t Turret milling machine
Provide High Quality 1.6t/2.2t/1.2t Turret milling machine
Provide High Quality 1.6t/2.2t/1.2t Turret milling machine
Provide High Quality 1.6t/2.2t/1.2t Turret milling machine
Provide High Quality 1.6t/2.2t/1.2t Turret milling machine

Provide High Quality 1.6t/2.2t/1.2t Turret milling machine

Share on (60710189066):


Price:RUB 389,862.50

Quantity:


Product Overview

Description

Product Description

Product Application:Provide High Quality 1.6t/2.2t/1.2t Turret milling machine

Turret milling machine is a kind of light universal metal cutting machine. It has two kinds of functions, such as stand and bench milling, which can be used in milling, plane, bevel, groove and spline of small parts. It is widely used in machining, would, instrument and other industries.

Specification
Unit
6VMA
6VMB
4H
5H
Table Size
mm
1370*305
1500*330
1270*254
1370*305
T slots(N/W/D）
————
3/16/85
3/18/85
3/16/65
3/16/65
Longitudinal travel
mm
850
1000
750(850 manually)
750(850 manually)
Cross travel
mm
400
380
400
400
Vertical travel
mm
400
400
400
400
Quill travel
mm
127
127
127
127
Distance between spindle center and column
mm
155-600
155-700
170-520
170-520
Distance between spindle nose and table top
mm
0-500
160-560
0-460
0-460
Arm travel
mm
450
450
400
400
Milling head tilting
————
90°(Left&Right)
90°(Left&Right)
90°(Left&Right);
45(Front&Back）
90°(Left&Right);
45(Front&Back）
Spindle taper
————
NT40
NT40
R8
NT40
Spindle speed
r/min
66-4540(16 steps)
66-4540(16 steps)
66-4540(16 steps)
66-4540(16 steps)
Power of spindle motor
kw
3.7
3.7
2.2
3.7
Max.table safety load
kg
500
600
350
350
Machine Diamnsion
mm
1800*1800*2100
2150*1800*2250
1600*1700*2250
1750*1650*2100
Net.Weight
kg
1600
2200
1200
1500


Provide High Quality 1.6t/2.2t/1.2t Turret milling machine

Main Features

Provide High Quality 1.6t/2.2t/1.2t Turret milling machine

 Turret milling machine has compact structure, small volume, high flexibility, milling head can turn 90 degrees around, before and after turning 45 degrees, the rocker arm can not only scale before and after, and 360 degree rotating in a horizontal plane, greatly improving the effective working range of the machine tool.

Packing&Dellvery

Provide High Quality 1.6t/2.2t/1.2t Turret milling machine..

Packing Details High Quality 1.6t/2.2t/1.2t Turret milling machine : Wooden Case

Delivery Time : Shipped in 30 days after payment.

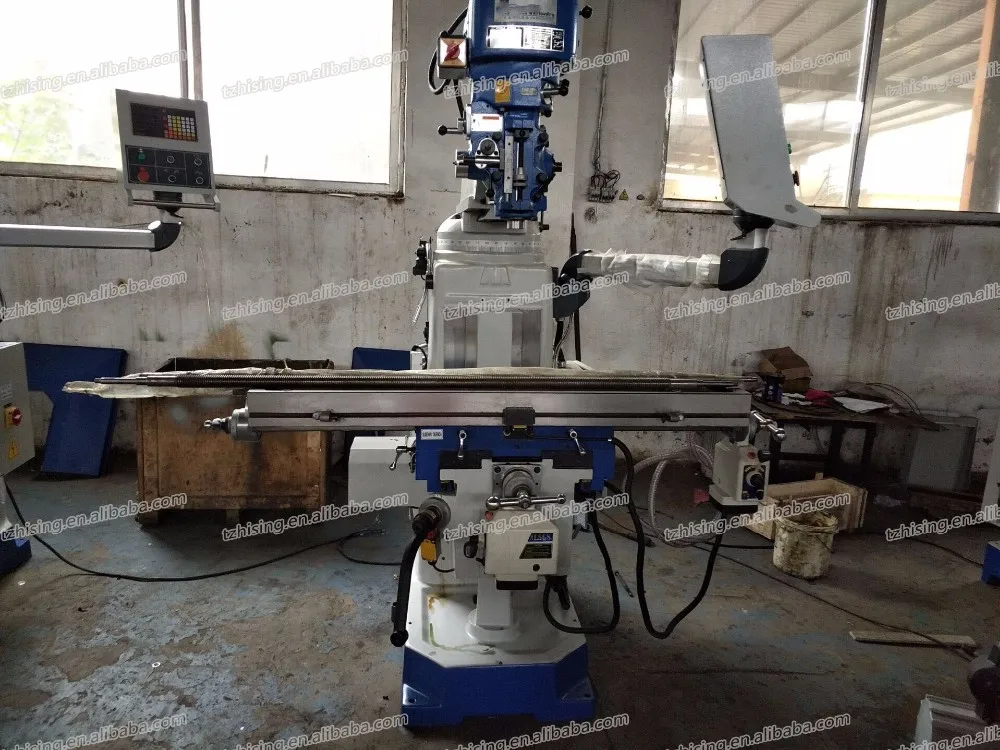

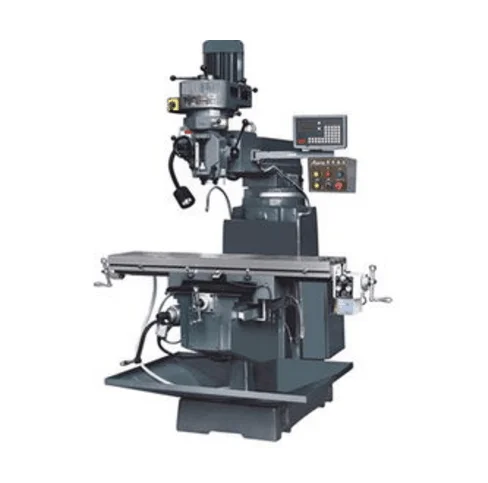

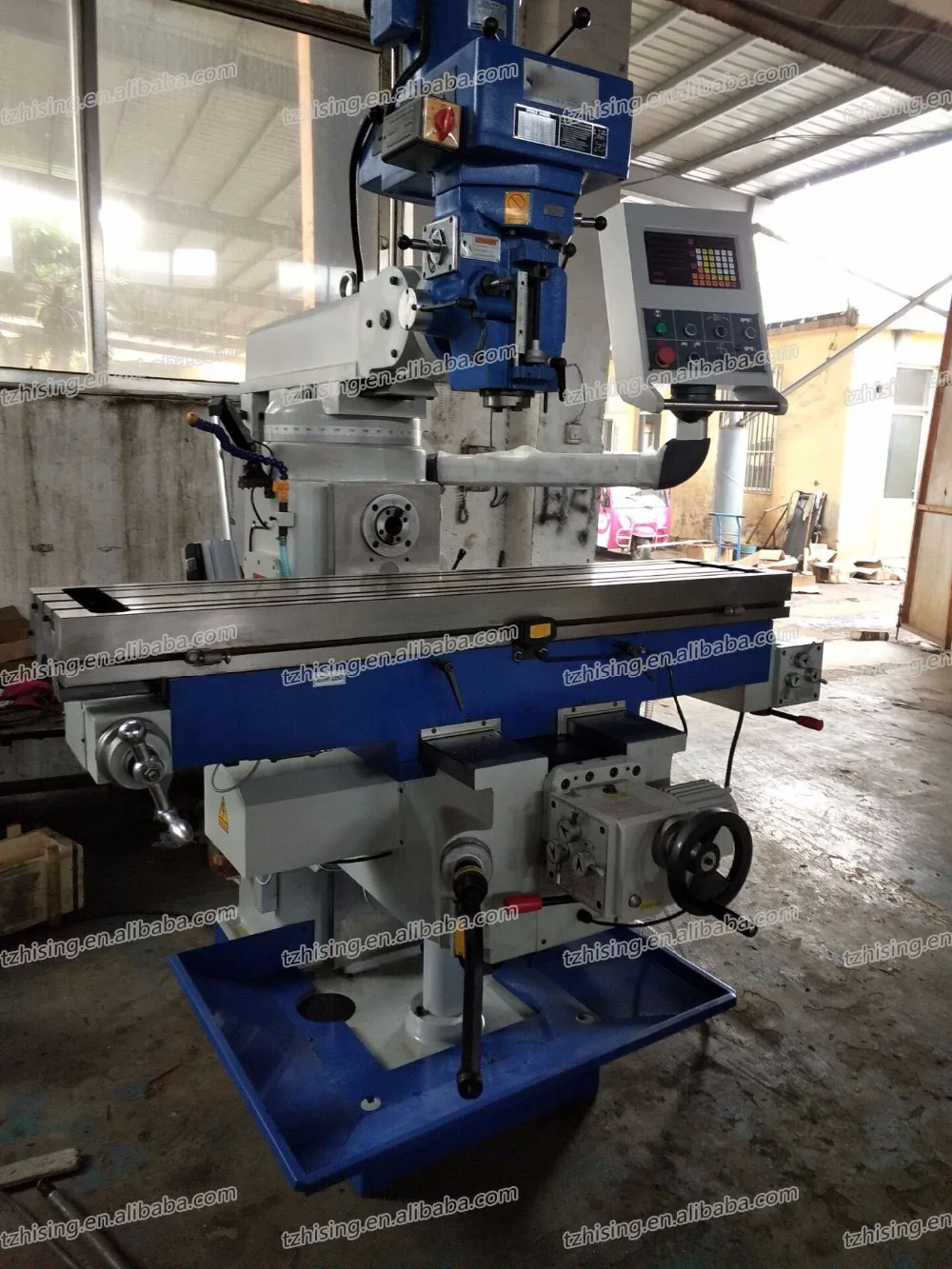

Detailed Images
