Product Overview
Description

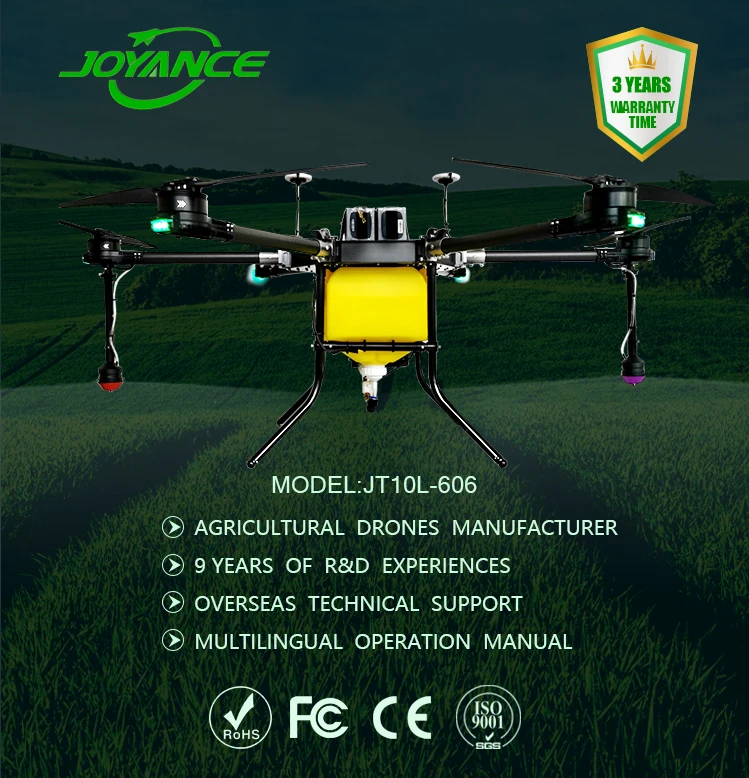

10kg capacity Agricultural drone crop spray uav quadcopter precision pesticides spraying agriculture sprayer drone for sale
Specification
Item/Model | JT10L-606 | JT15L-606 | JT16L-606QC | JT20L-606 |
Pesticide load | 10 Liters | 15 Liters | 16 liters | 20 liters |
Self weight | 10.5 KG | 13.5 KG | 17 kg | 18.5 kg |
Take-off weight | 22 KG | 31 KG | 40 kg | 44 kg |
Fly time | 10-15 Min | 10-15 Min | 10~15 min | 10~15 min |
Spray efficiency | 5-6 Hectares/hour | 7-8 Hectares/hour | 8~10 hectares/hour | 9~11 hectares/hour |
Spray width | 4-6 m | 6-7 m | 6~7 m | 7~8 m |
Spray speed | 0~8 m/s | 0~8 m/s | 0~8 m/s | 0~8 m/s |
Nozzle | 2 centrifugal nozzles | 2 centrifugal nozzles | 4 High pressure nozzles | 4 centrifugal nozzles |
Battery | 2 pcs 6S 17000 mAh | 2 pcs 6S 17000 mAh | 1 pc 12S 22000 mAh | 2 pcs 6S 23000 mAh |
Flying radius | 1000 m | 1000 m | 1000 m | 1000 m |
Spray flow | 1~1.5 L/Min | 2~2.5 L/Min | 2~ 2.5 L/min | 2.5~ 3 L/min |
Flying height | 0~30 M | 0~30 M | 0~30 m | 0~30 m |
Work temperature | –10~70 ℃ | –10~70 ℃ | –10~70 ℃ | –10~70 ℃ |
Work humidity conditions | 0-90% | 0-90% | 0-90% | 0-90% |
Wind resistance | 10 m/s | 10 m/s | 10 m/s | 10 m/s |
Spread size (m) | W1.3 *L1.3 * H0.45 | W1.8 *L1.8 * H0.48 | 1.8 *1.8 * 0.7 m | 1.95 *1.95 * 0.57 m |
Folded size (m) | W0.6 * L0.6 *H0.51 | W0.7 * L0.7 *H0.63 | 0.95 * 1.05 *0.7 m | 0.7 * 0.7 *0.8 m |
Package size/ weight | 73*67*65 cm / 50 kg | 75*75*81 cm / 70kg | 120*100*79 cm / 70 kg | 75*85*95 cm / 80 kg |
Product Description
10kg capacity Agricultural drone crop sprayer uav quadcopter precision agriculture sprayer drone
Agriculture Drone Applications.
JOYANCE agriculture sprayer drones have been widely used for crop protection, mosquito control, and public disinfection. Plantations: rice, corn, sugar cane, soybean, flower, coffee, vegetables, fruit trees.
Chemical/fertilizer use: liquid pesticide, herbicide, solid fertilizer/granule fertilizer, fungicide, insecticides,seed, etc.
Chemical/fertilizer use: liquid pesticide, herbicide, solid fertilizer/granule fertilizer, fungicide, insecticides,seed, etc.
Product Feature
Brushless Motor
Waterproof & Dustproof
Waterproof level IP67
Heavy-duty
With self-cooling system
Work continuously for 12 hours/day
Waterproof & Dustproof
Waterproof level IP67
Heavy-duty
With self-cooling system
Work continuously for 12 hours/day
Centrifugal nozzle
Droplet diameter of 50~200um
Better atomization effect
Better penetration
Spray more evenly
Not easy to be blocked
Aviation aluminum folding joint
Light and durable
Carbon fiber drone arm with diameter 40mm, thickness 2.0mm
Suitable for heavy duty work
Long service life
Long service life
Carbon fiber propeller
Foldable during transport
FOC integrated power system
Granular spreader can be installed Spreading seed/solid fertilizer/granule
Carbon fiber main board
Strong and stable

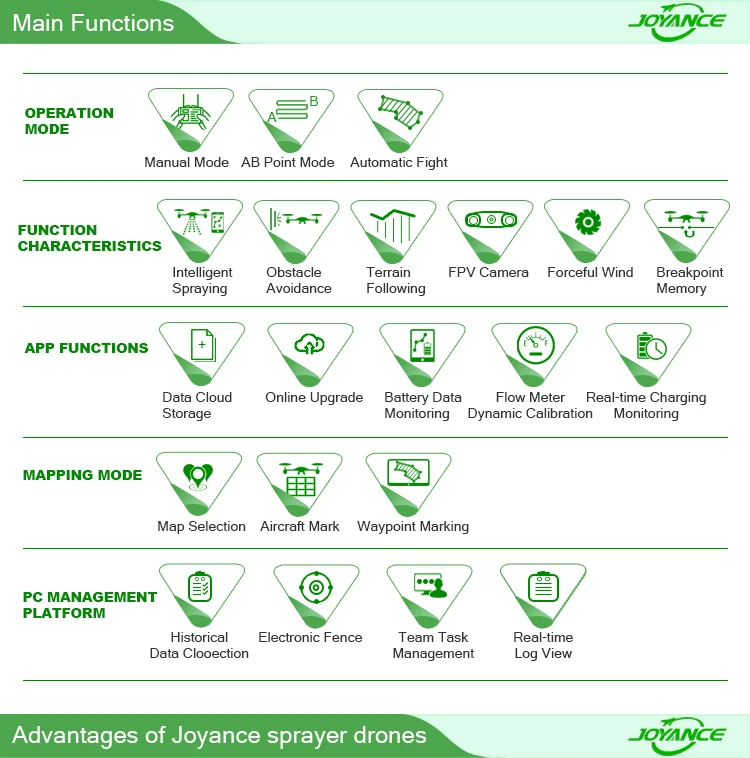

Operation Modes
Manual Operation.
1. GPS Mode
2. Attitude Mode
3. AB Line Mode
It is semi-automatic mode. Just mark A point and B point on the map, the drone will fly automatically.
Autonomous Flight.
App for Android phone or tablet
Google map
Add obstacles
Program flight routes with waypoints
Low voltage warning
Break medicine protection
Intelligent spraying control
Terrain following sensor
Company Profile
Shandong Joyance Intelligence Technology Co., Ltd. is the professional & leading manufacturer of agriculture sprayer drone in China, with 9 years of R&D experience, obtained the CE & FCC & RoHS certification & 12 national patents on 7 models, having 73 different countries users. We have various models of 10L, 15L, 16L and 20L,32L.. drone sprayer,spreader drone, thermal fogger drones,biological control drones.
Packing & Delivery
FAQ
Q1. Are you sprayer drone factory?
A1: Yes, we are a professional agricultural sprayer drone R & D and production: agricultural sprayer drones, spreader drones. thermal fogger drones,biological control drones.
Q2. Is uav sprayer drone ready to fly?
A2: Yes.Before dispatch, JOYANCE assembled all the parts and set all the parameters. every drone is 100% tested and confirm it meets the highest standards in performance and durability.
Q3. What's your best price for the UAV?
A3: We will quote our best price according to your order quantity, so when you make an inquiry, please let us know the quantity you need.
Q4. What's your MOQ of agricultural drone?
A4: 1 piece is our MOQ, Well we don't have quantity limitation, any quantity is ok for trial order.
Q5. What's the delivery time of sprayer drone?
A5: 3-7 days for trial order, 7-15 days for mass order.
Q6. What's your payment term?
A6: quantity order: T/T, 50% deposit before production, 50% balance payment before delivery.
