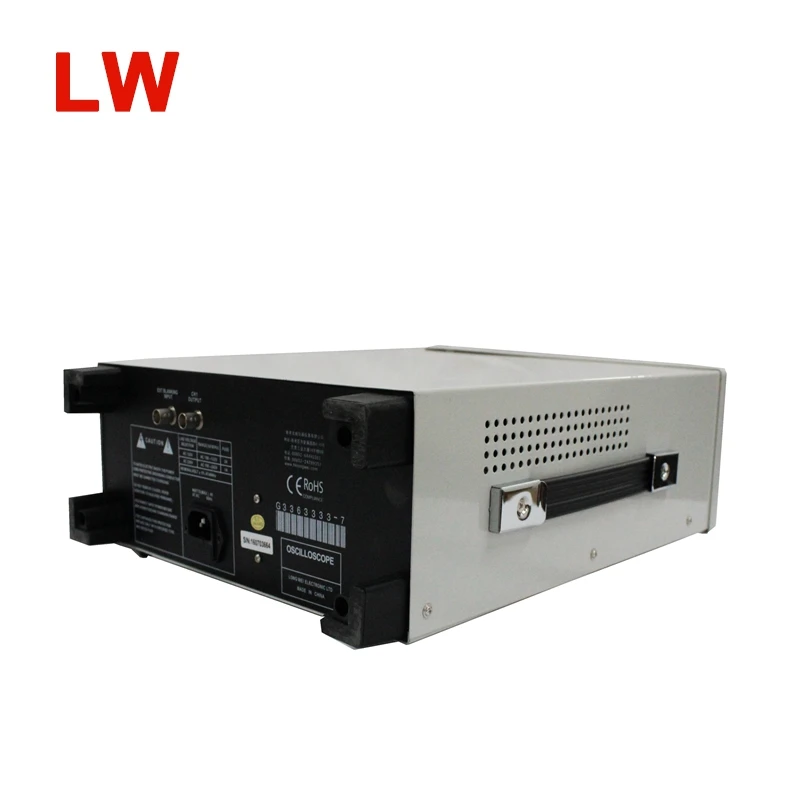

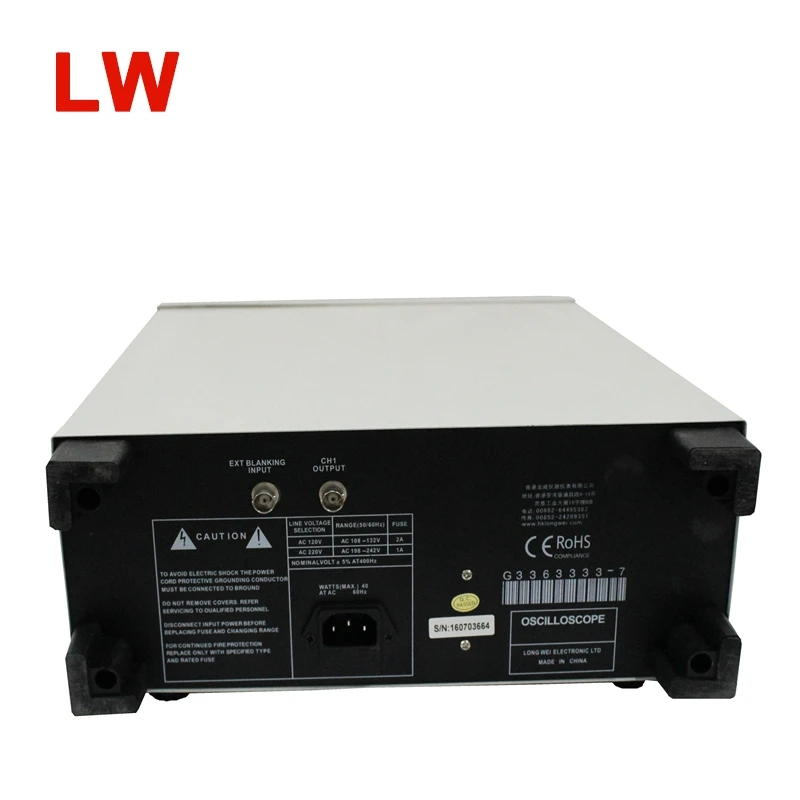

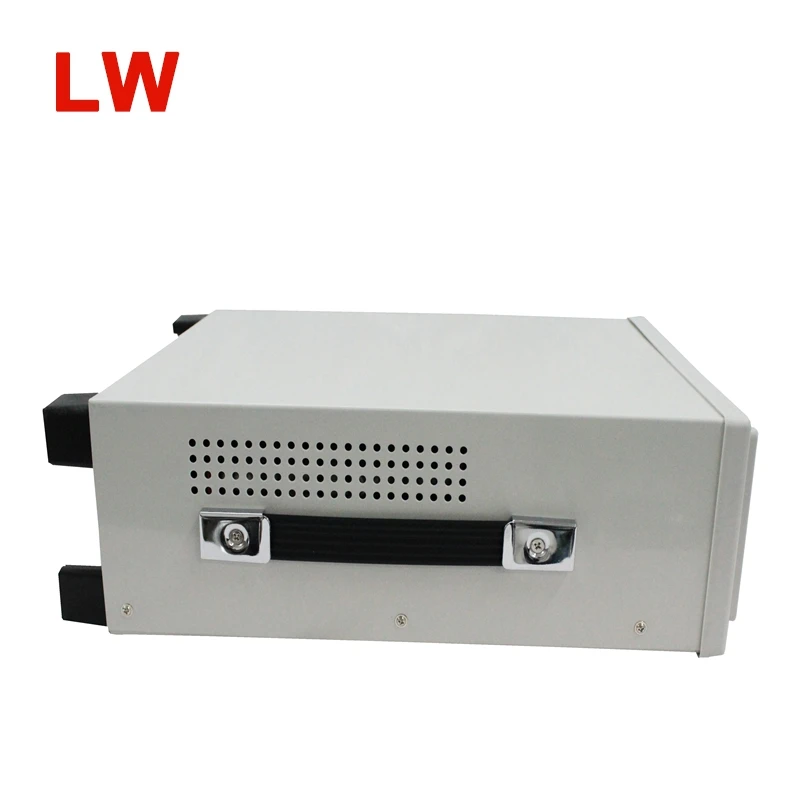

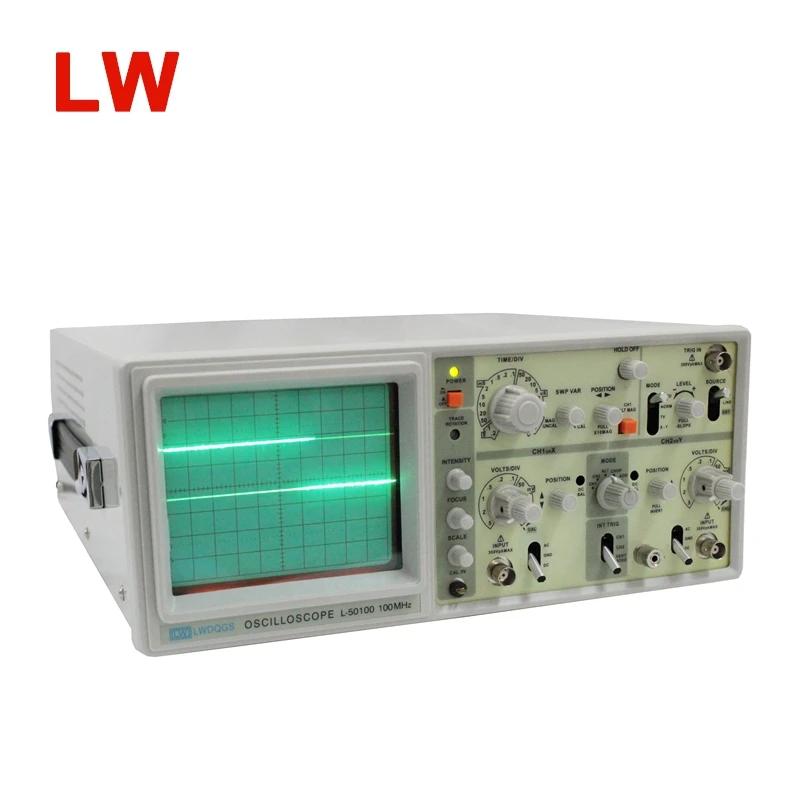

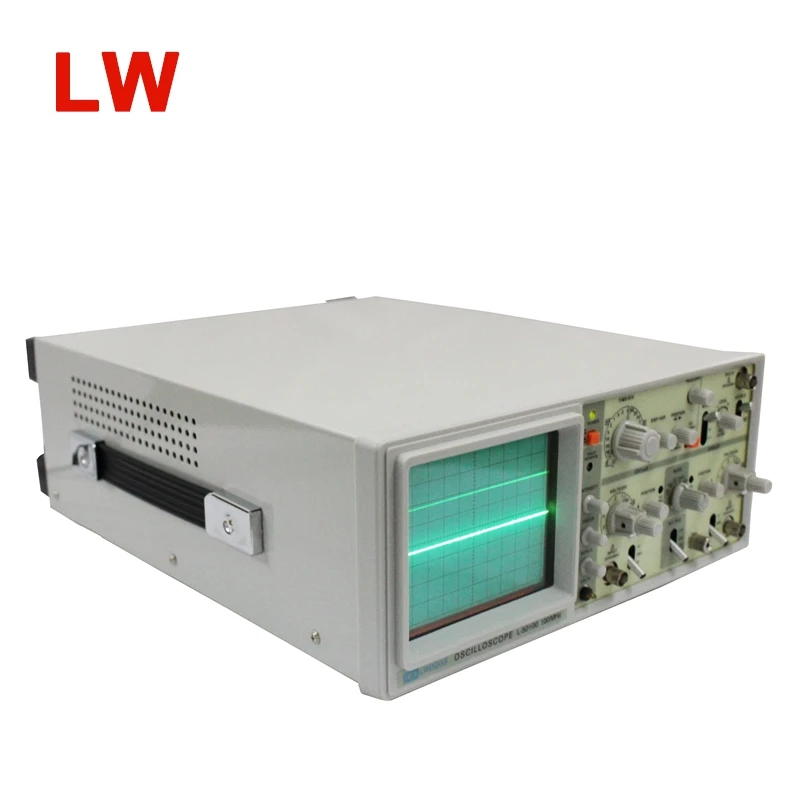

L50100 dual channels 100mhz oscilloscope lap equipment oscilloscope handheld

100MHz dual channels analog Oscilloscope

Features:
Model:L-212: DC-20MHz  / L-5040: DC-40MHz/  L-5060: DC-60MHz / L-50100:DC-100MHz
1. Dual channels/dual traces, X-Y mode
2. 6" display, high brightness oscilloscope tube
3. High sensitivity triggering, up to 1mV/division clearer display than ordinary oscilloscope
4. TV synchronous separation circuit to observe stable TV signal
5. Triggering mode: AUTO/NORM/AV-V/AV-H
6. Vertical: ALT/CHOP/ADD
7. X-x10/Y-x5
8. Polarity reversal
9. CH1 Sync output
10. Power supply: AC 220V ADN (110V optional)

Specifications:
CRT: 6 inches rectangular screen with internal graticule, 8*10div (1 div=1cm).

Vertical deflection
1. Display mode: CH1, CH2, CH3, ADD, ALT, and CHOP
2. Deflection factor: 5mV/div to 5V/div±3 %,( 1mV/div to 1V/div±5% at*5), 10steps.
3. Rise time: ≤17.5ns
4. Max. Input voltage: 40v (DC+AC peak value) when≤1KHz
5. Input coupling: AC, DC, Grounding
6. Polarity selection :±( CH2 only)

Horizontal deflection
1. Display mode: 1, 10, X-Y
2. Time Base: 0.2us/div to 0.5s/div, 20 range
3. Sweep expansion width:*10
4. Accuracy: ±3%

Triggering System:
1. Triggering mode: NORM, AUTO, TV-V, TV-H
2. Triggering sourde: CH1, CH2, LINE, EXT
3. Sensitivity and Frequency: Auto: 20Hz---100MHz (VERT)
4. Norm: 0.5div int, 0.8Vp—p EXT
5. 0.5div INT, 0.5vp---PEXT
6. TV-H: At least 1 div or 1V p-p,
7. input impedance: 1MΩ

X-Y Operation
X-Y Phase difference: ≤3o,DC--50KHz

Others:
1. Calibration waveform: Frequency: 1KH 20%, Voltage: 0.5v1%
2. Power supply: AC 220V/110V±10%, 50/60Hz
3. Dimensions: 370*310*130mm

LW(LONGWEI) Our company build up in 1996s,and we have 20years history in China .Our own Research&development -Production-Sales together.And our workshop located in Dongguan City,Guangdong Province,China.We are specialized in power supply,oscilloscope,signal generator,Hi-pot tester,Soldering station and so on .Our products has about 2000kinds (instruments and tools).Our workshops more than 80000 square meters.Our productivity is 1000000pcs/year.

Q:what about the products warranty?
A:Usually 12months.

Q:How about the delivery time?
A:Usually we have goods in stock.If some models out off stock or not enough,we will contact you and discuss with you the delivery time.

Q:Could you OEM for our LOGO?and how about the OEM fee?
A:Yes,we can OEM for your LOGO.The OEM fee we will according your customized details and quantities then discuss with you.

Q:What’s kind of payment you accept?
A:We can accept TT,Western Union, Money Gram.We also accept pay online on alibaba.

Q:What is your MOQ?
A:In our LW brand,MOQ is 1pcs.If OEM products,the MOQ according the models.

QHow many output voltage and current can you supply?
A:We can supply different voltage and current ,and can customized for your want.

Q:Which way for the shipping?
A:We usually shipping small packages by express by air door to door:such as DHL FEDEX UPS TNT and so on.For the large goods,we will discuss with you and suggest that shipping by sea.

Q:Could i get one sample for test?
A:Yes,we can send sample to you.But the sample fee need to pay by yourself.When the first order reach MOQ 200pcs,we will send back all the sample fee to you.
