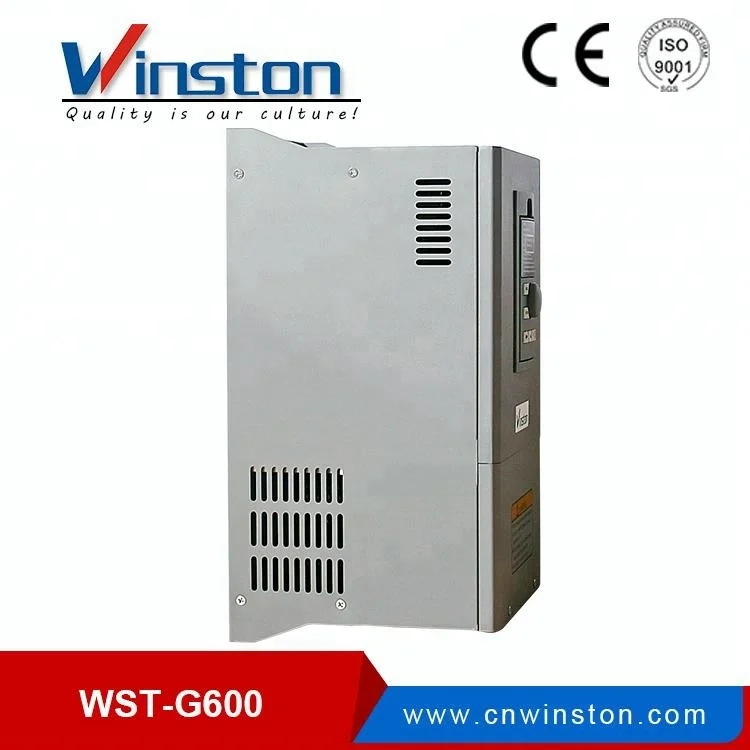

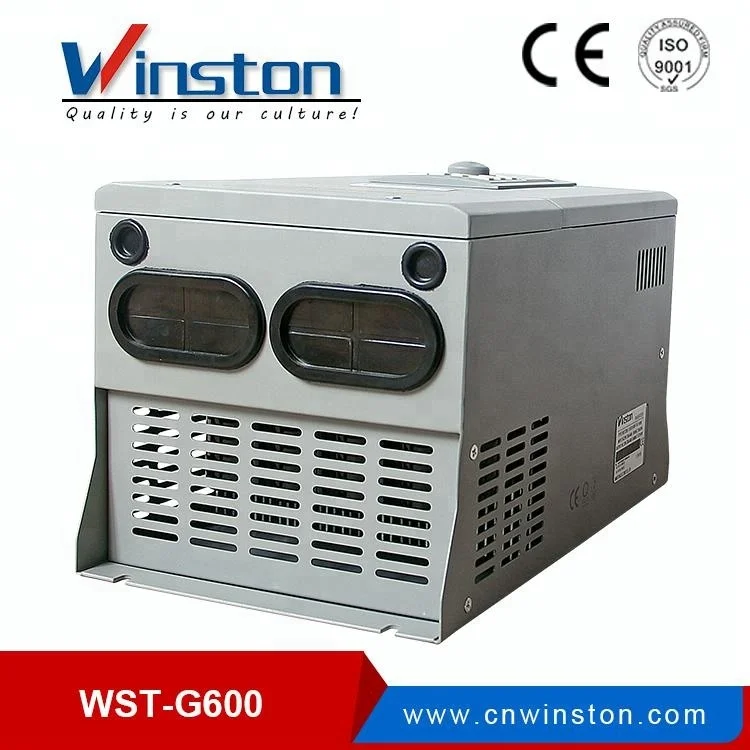

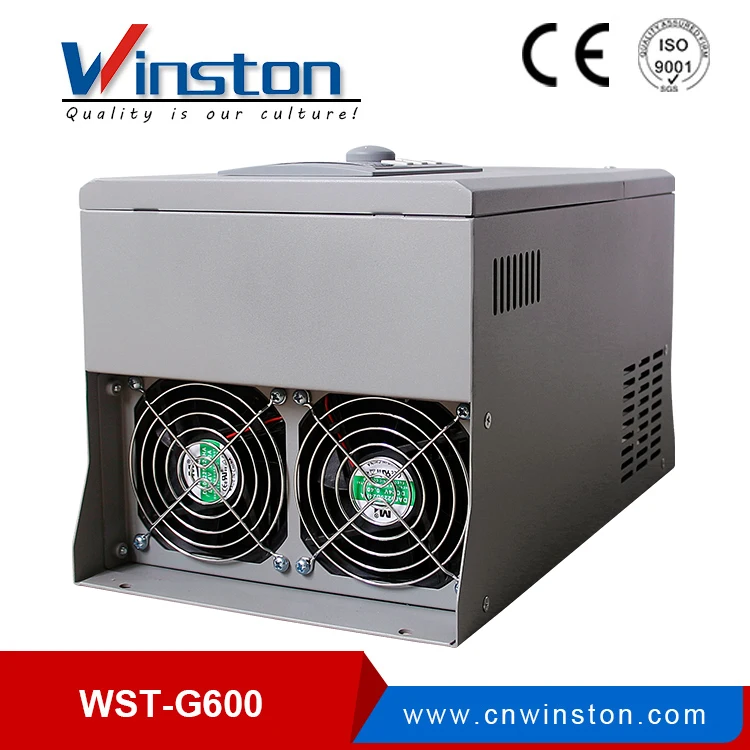

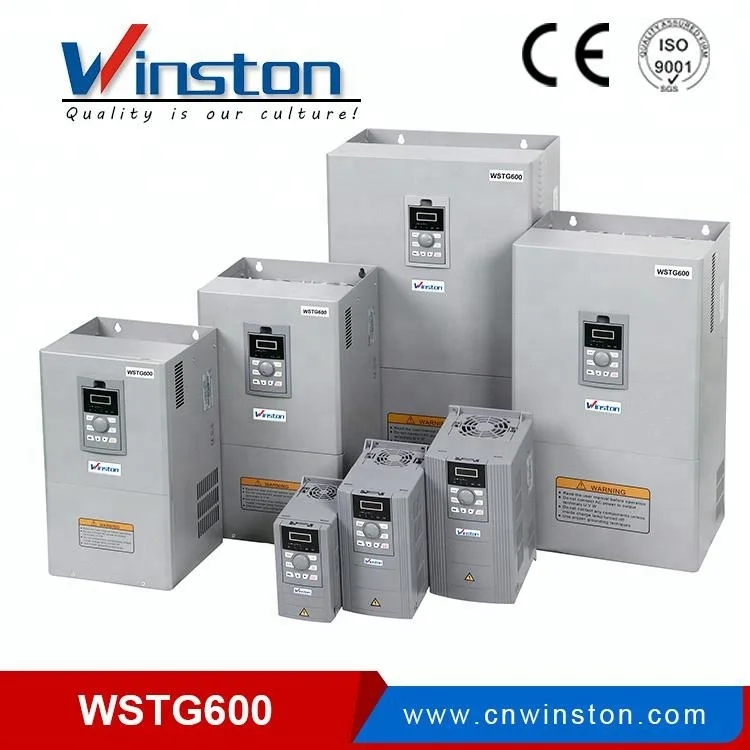

Manufacturer WSTG600 Series 0.4KW to 400KW VFD AC Frequency Inverter Converter
- Category: Inverters & Converters >>>
- Supplier: Yueqing Winston Electric Co. Ltd.
Share on (60710313136):
Product Overview
Description
WSTG600 series Motor VFD High Performance AC Frequency Inverter

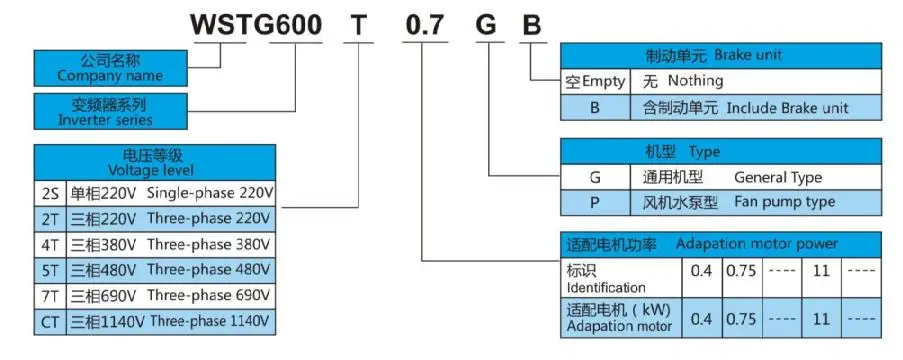

Model Explanation
Single phase power supply:220VAC 50/60HZ
| Model | Power Capacity (KVA) | Input current (A) | Output current(A) | Applicable motor | |
| kW | HP | ||||
| WSTWSTG600-2S 0.4GB | 1 | 5.4 | 2.3 | 0.4 | 0.5 |
| WSTG600-2S 0.7GB | 1.5 | 8.2 | 4 | 0.75 | 1 |
| WSTG600-2S 1.5GB | 3 | 14 | 7 | 1.5 | 2 |
| WSTG600-2S 2.2GB | 4 | 23 | 9.6 | 2.2 | 3 |
| WSTG600-2S 4.0GB | 5.9 | 18 | 19.2 | 4 | 5 |
| Three-Phase power supply : 380V 50/60Hz | |||||
| Model | Power Capacity KVA | Input current | output current | Adapation Notor | |
| KW | HP | ||||
| WSTG600-4T0.7GB | 1.5 | 3.4 | 2.1 | 0.75 | 1 |
| WSTG600-4T1.5GB | 3.0 | 5.0 | 3.8 | 1.5 | 2 |
| WSTG600-4T2.2GB | 4.0 | 5.8 | 5.1 | 2.2 | 3 |
| WSTG600-4T4.0GB | 5.9 | 10.5 | 9.0 | 4 | 5 |
| WSTG600-4T5.5GB WSTG600-4T5.5P-B | 8.9 | 14.6 | 13.0 | 5.5 | 7.5 |
| WSTG600-4T7.5GB WSTG600-4T7.5P-B | 11.0 | 20.5 | 17.0 | 7.5 | 10 |
| WSTG600-4T11GB WSTG600-4T11P-B | 17.0 | 26.0 | 25.0 | 11 | 15 |
| WSTG600-4T15GB WSTG600-4T15P-B | 21.0 | 35.0 | 32.0 | 15 | 20 |
| WSTG600-4T18.5G WSTG600-4T18.5P-B | 24.0 | 38.5 | 37.0 | 18.5 | 25 |
| WSTG600-4T22G WSTG600-4T22P | 30.0 | 46.5 | 45.0 | 22 | 30 |
| WSTG600-4T30G WSTG600-4T30P | 40.0 | 62.0 | 60.0 | 30 | 40 |
| WSTG600-4T37G WSTG600-4T37P | 57.0 | 76.0 | 75.0 | 37 | 50 |
| WSTG600-4T45G WSTG600-4T45P | 69.0 | 92.0 | 91.0 | 45 | 60 |
| WSTG600-4T55G WSTG600-4T55P | 85.0 | 113.0 | 112.0 | 55 | 70 |
| WSTG600-4T75G WSTG600-4T75P | 114.0 | 157.0 | 150.0 | 75 | 100 |
| WSTG600-4T90G WSTG600-4T90P | 134.0 | 180.0 | 176.0 | 90 | 125 |
| WSTG600-4T110G WSTG600-4T110P | 160.0 | 214.0 | 210.0 | 110 | 150 |
| WSTG600-4T132G WSTG600-4T132P | 192.0 | 256.0 | 253.0 | 132 | 175 |
| WSTG600-4T160G WSTG600-4T160P | 231.0 | 307.0 | 304.0 | 160 | 210 |
| WSTG600-4T185G WSTG600-4T185P | 234.0 | 326.0 | 350.0 | 185 | 250 |
| WSTG600-4T200G WSTG600-4T200P | 250.0 | 385.0 | 377.0 | 200 | 260 |
| WSTG600-4T220G WSTG600-4T220P | 280.0 | 430.0 | 426.0 | 220 | 300 |
| WSTG600-4T250G WSTG600-4T250P | 355.0 | 468.0 | 465.0 | 250 | 350 |
| WSTG600-4T280G WSTG600-4T280P | 396.0 | 525.0 | 520.0 | 280 | 370 |
| WSTG600-4T315G WSTG600-4T315P | 445.0 | 590.0 | 585.0 | 315 | 500 |
| WSTG600-4T355G WSTG600-4T355P | 500.0 | 665.0 | 650.0 | 355 | 420 |
| WSTG600-4T400G WSTG600-4T400P | 565.0 | 785.0 | 725.0 | 400 | 530 |
| WSTG600-4T450P | 630.0 | 883.0 | 820.0 | 450 | 600 |

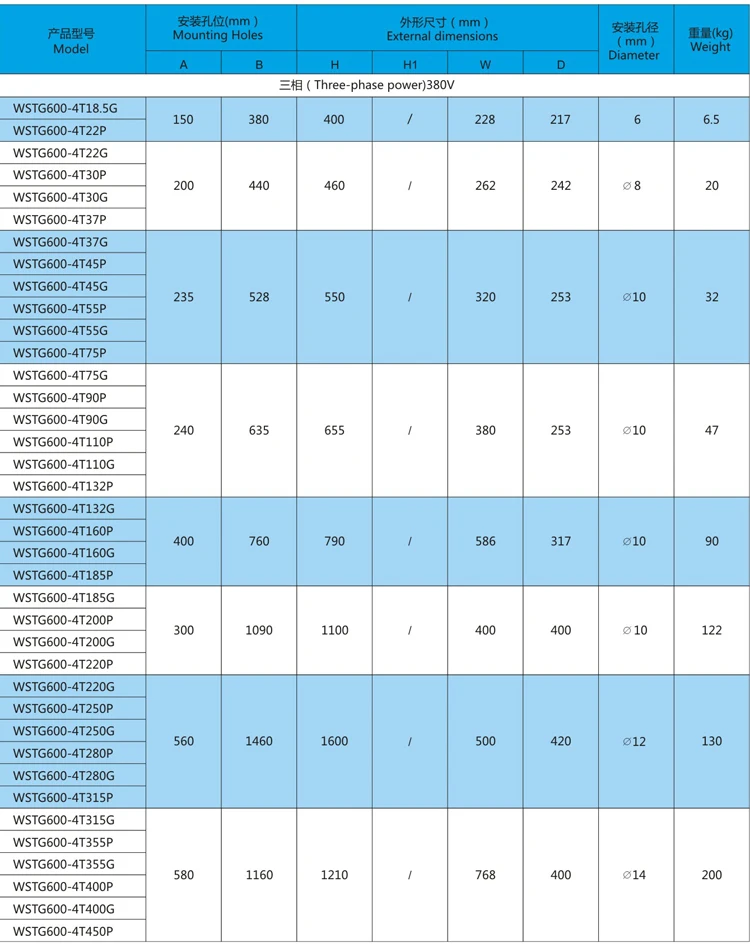

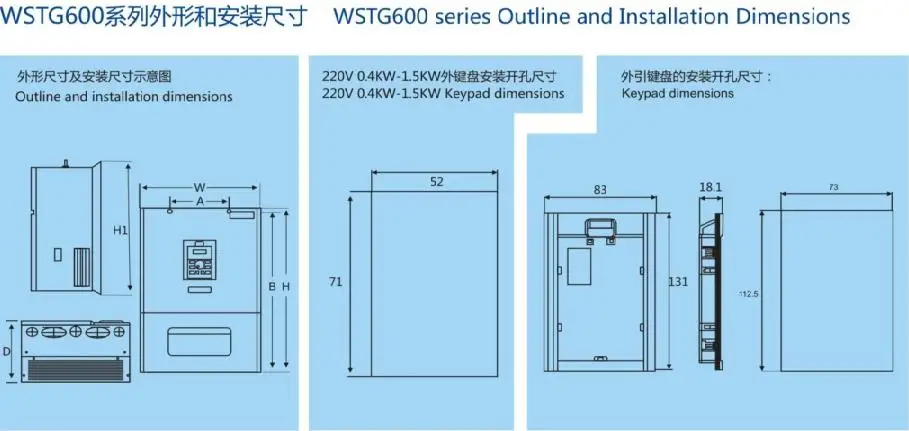

Overall dimensions
Product Description

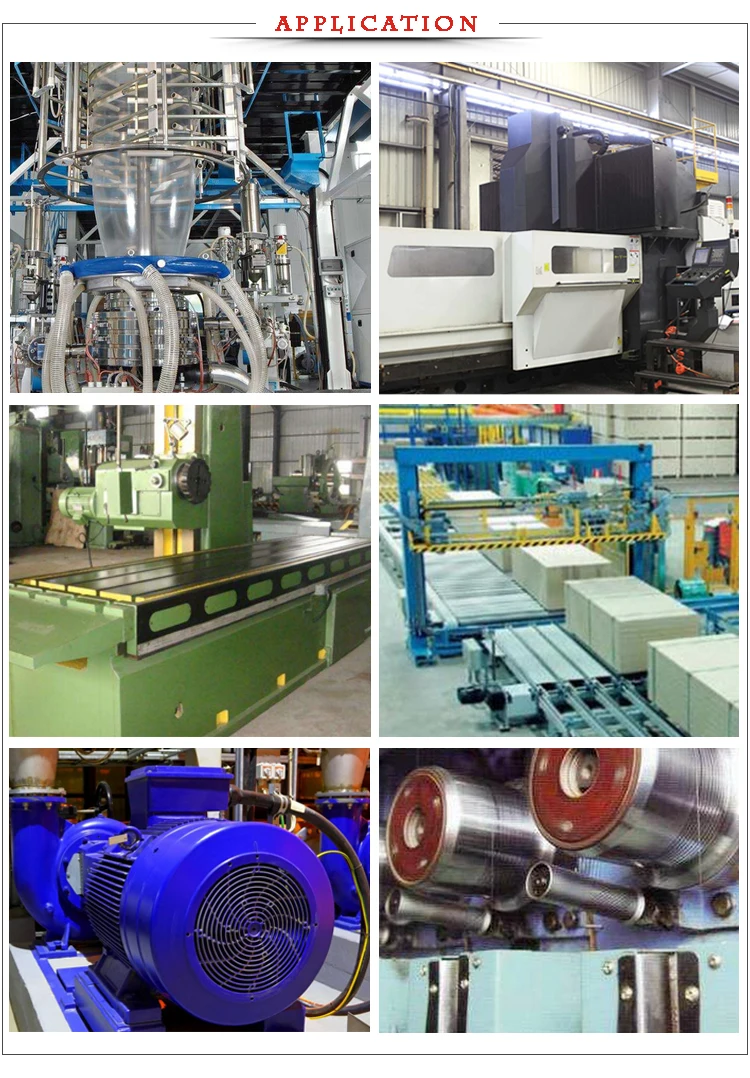

Application

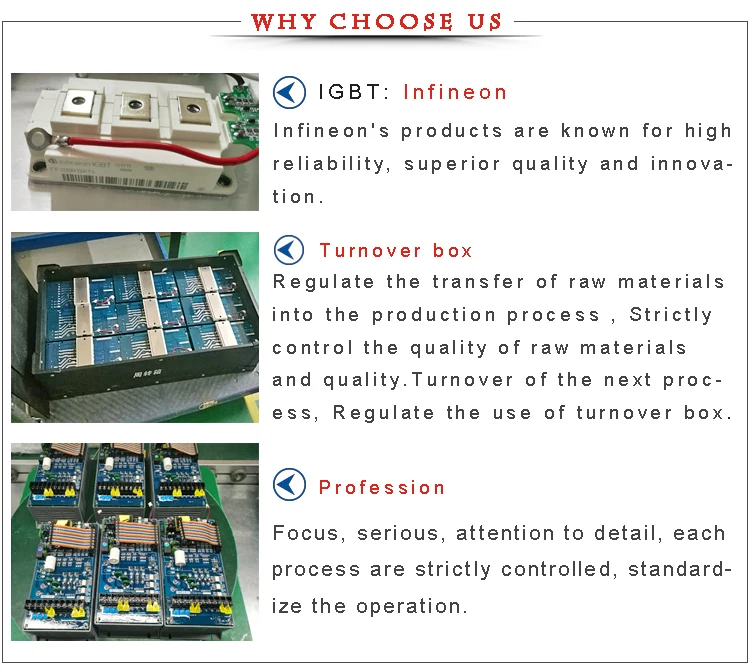

Why Choose Us
Packaging & Shipping
Main Products

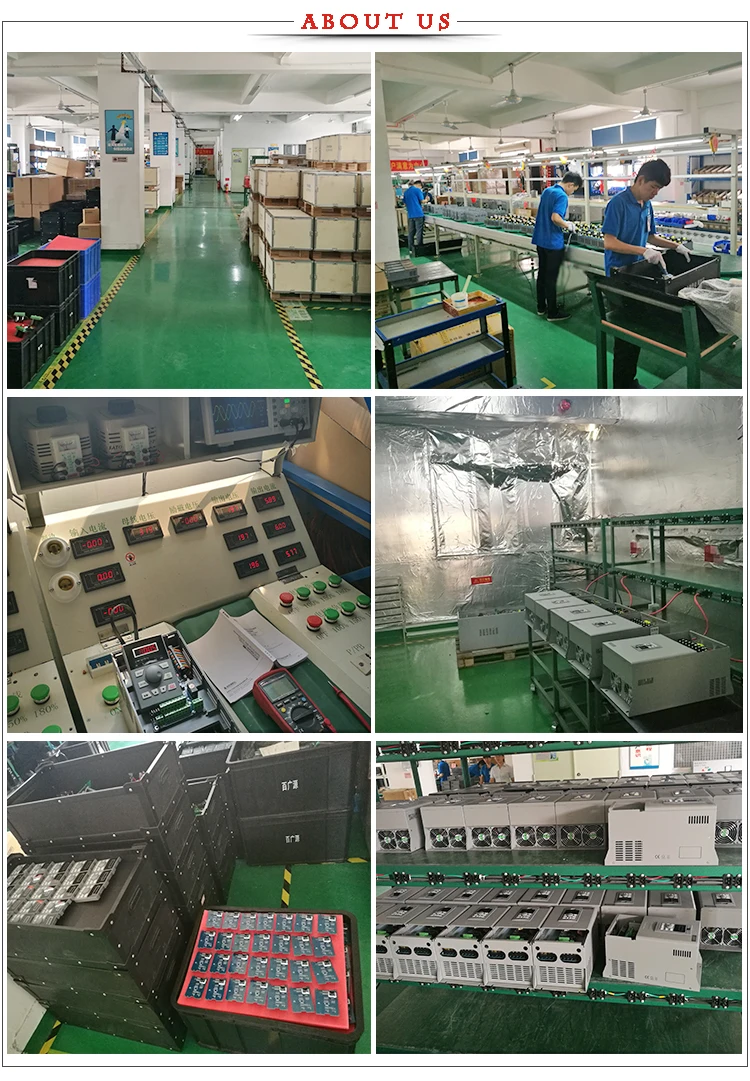

About us
