MC 360Y Metal tube semi automatic circular saw machine for heavy cutting

Product Overview

Description

MC-360Y Metal tube semi automatic circular saw machine for heavy cutting



Main Feature:

1. European-style high-strength machine head, high-efficiency worm provided, turbo drive, reaching high cutting efficiency, no noise or burrs.

2. The machine head can turn for 45° on the left and right, angle is made clearly, which makes adjustment easier. Manual feeding, automatic clamping and cutting by hydraulic control. Automatic cooling system and hand regulated retaining ruler are provided.

3. The bilateral and bi-directional clamps at both sides fix parts and ensure smooth cutting face without burrs. The saw cutting causes low noise and pollution.

4. Accurate-quick-bright and clean

5. Cutting prevision and speed are superior to that of band saw and bow saw. Meanwhile, the cutting face is bright and clean without heat generation, avoiding secondary processing.

6. The circulating cooling system has a large-capacity water tank to ensure service life of saw web and smooth cutting face.

Technical parameter

Specification	MC-360Y
Main Drive Motor	3.3/4KW/380V/50HZ
Blade Speeds	18/36RPM
Head Swivel	90°/45°
Clamping Vise	Single
Coolant Pump Motor	40W
Diameter	HSSΦ315-Φ400mm(11"-16")
Saw Blade Size                  Bore	Φ32mm
Pin Holes	2×Φ11×PCD63mm
Air Pressure(Consumption)	6~8kg/cm²(120L/Min)
Hydraulic Pump Motor	1.5kw
Operation Pressure	45-70kg
Measurement size of machine	0.85*1.1*1.85mm
Weight of machine	600kg

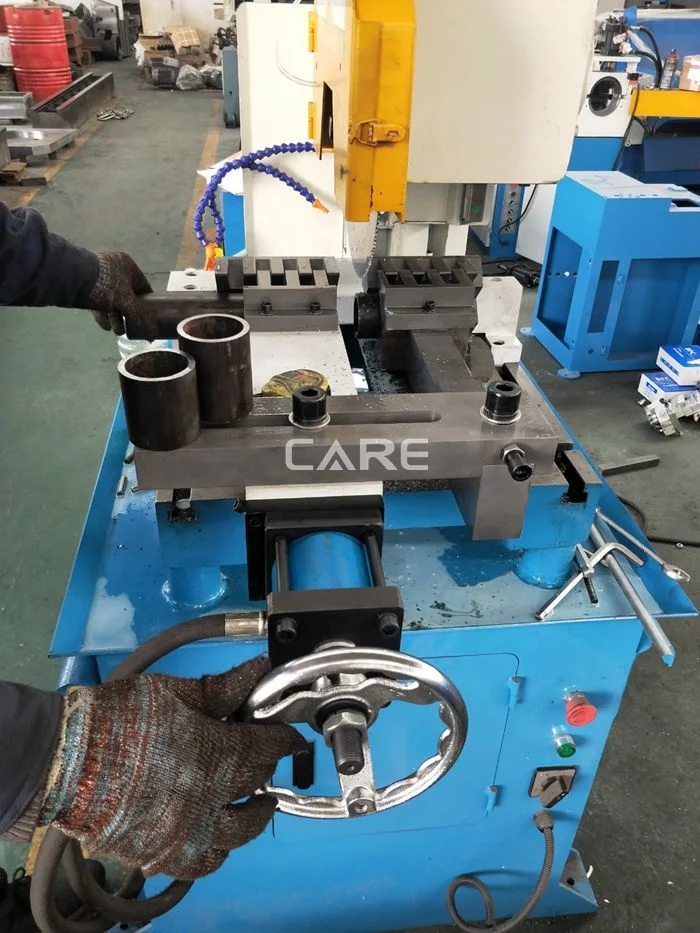

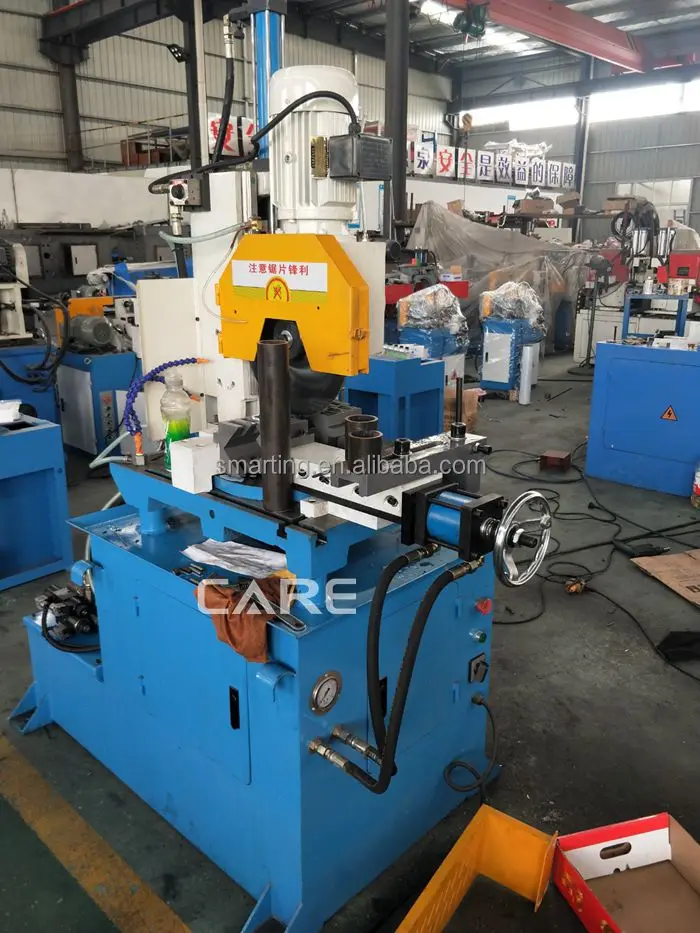

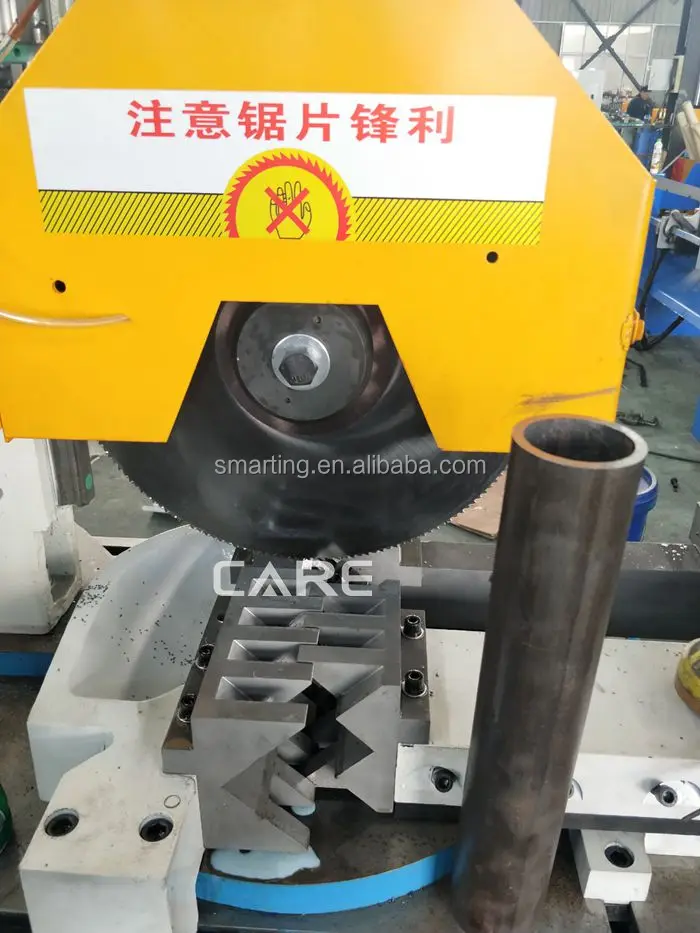

Machine photo

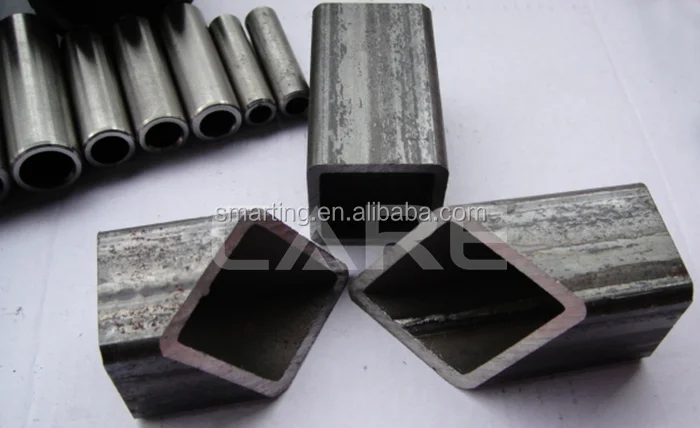

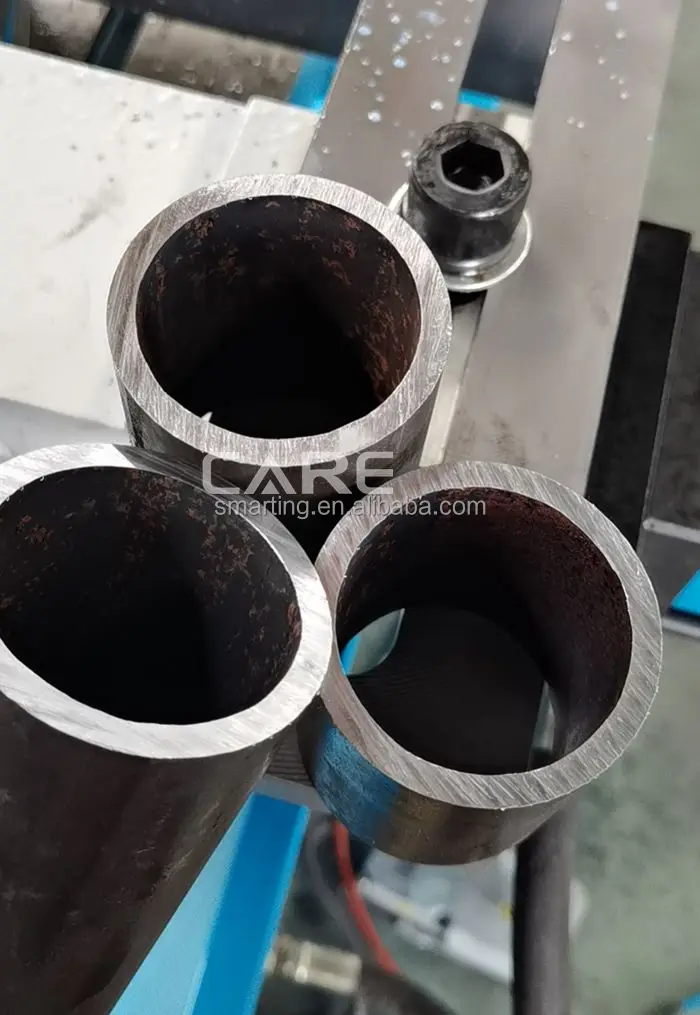

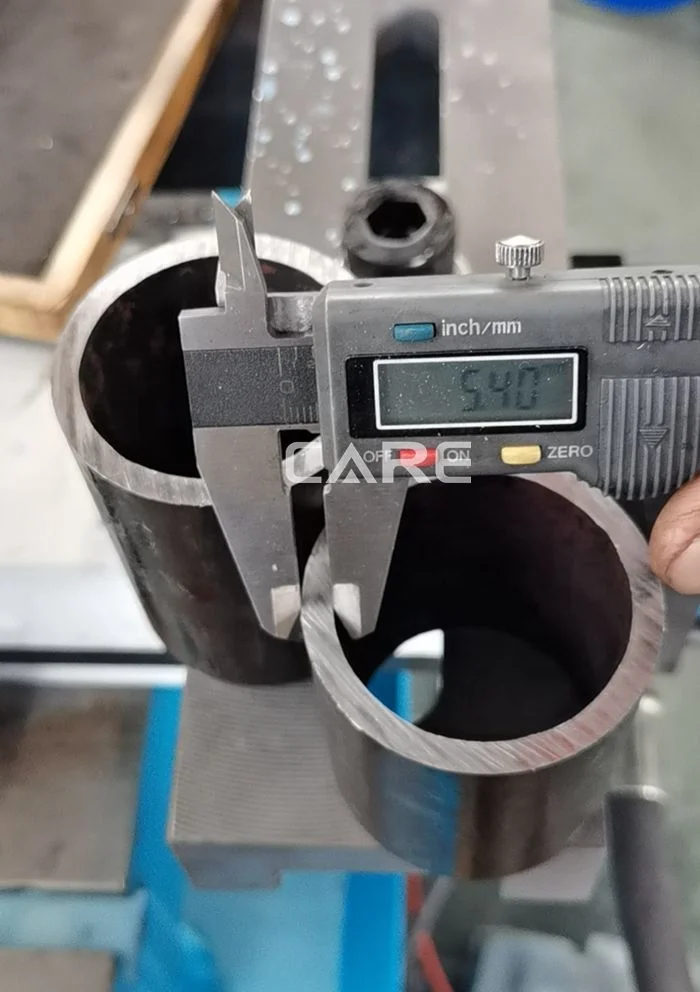

Cutting sample

To know more information, please contact us at any time.
