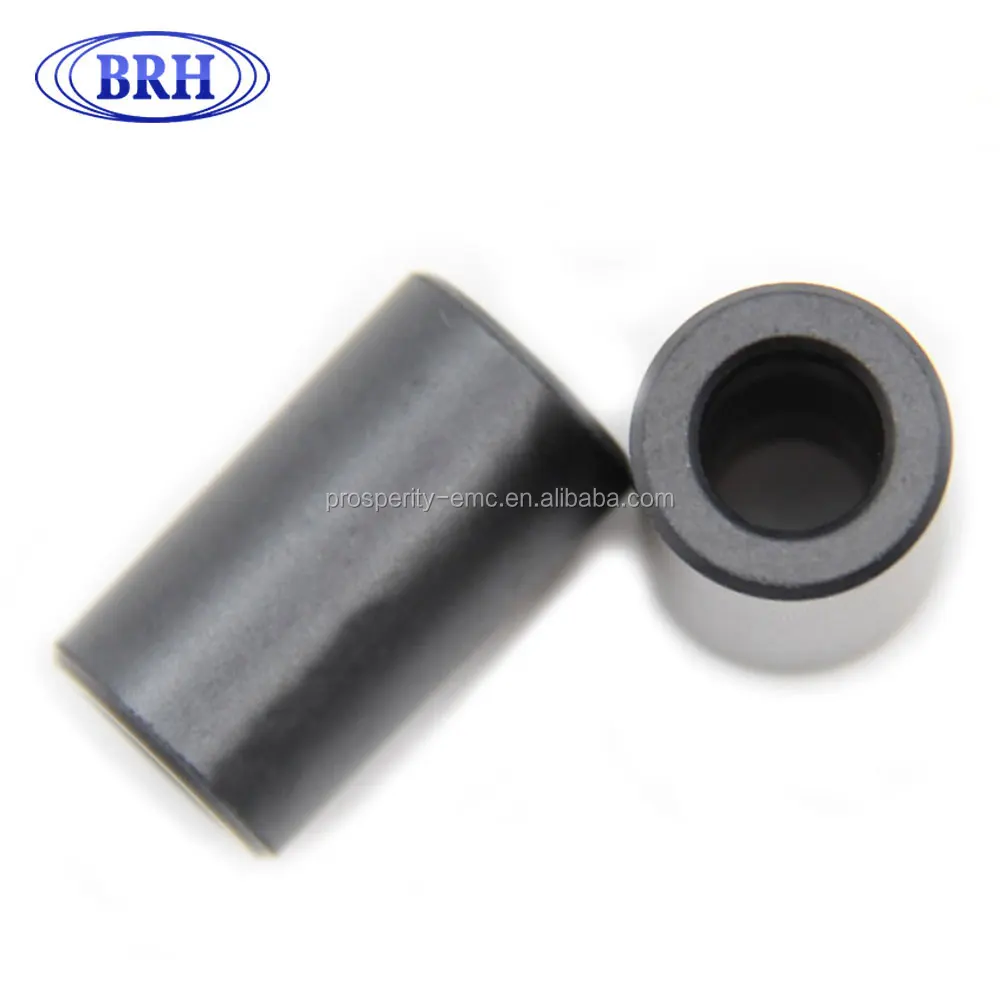

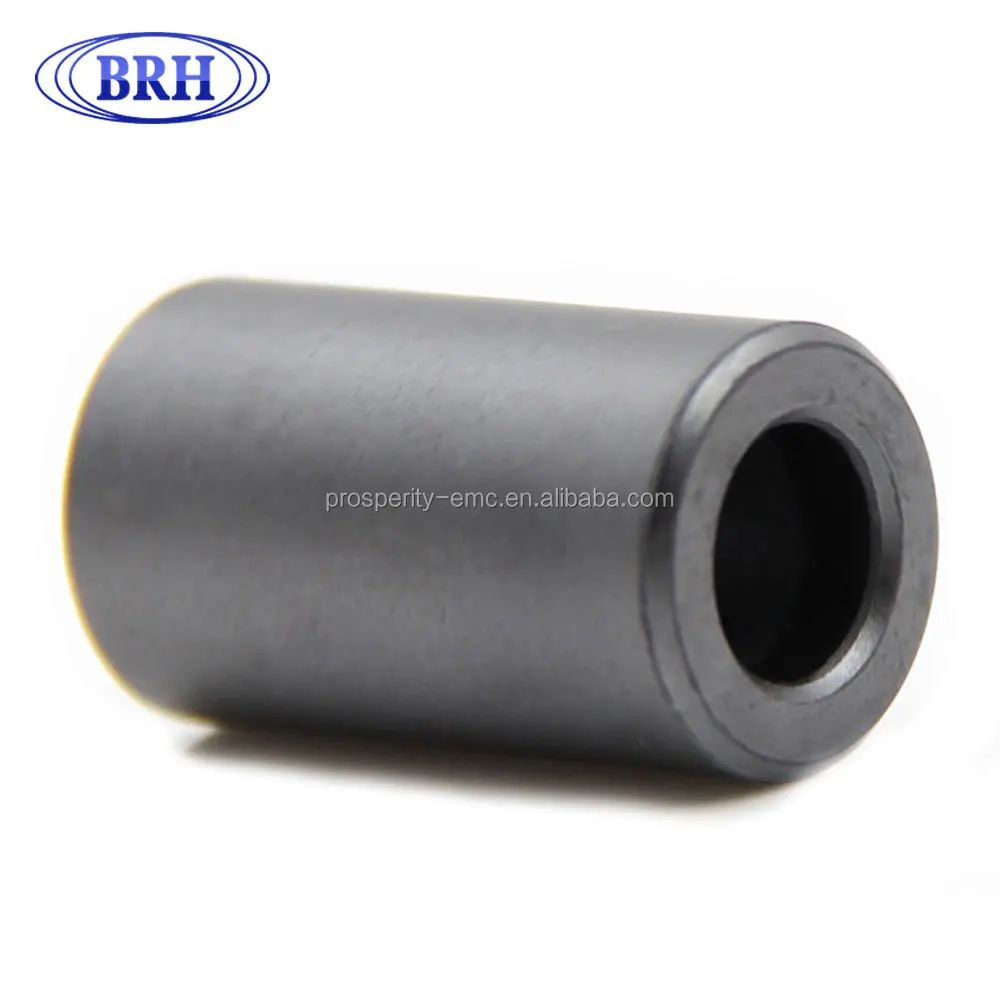

Best price high frequency large size toroidal ferrite core for round cable

\t

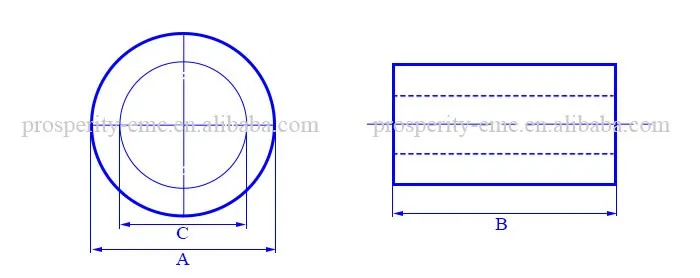

SIZE CODE (mm)
\t
A
\t
B
\t
C
\t
A2 RH 16*28*9
\t
16.0±0.5
\t
28.0±0.7
\t
9.0±0.5

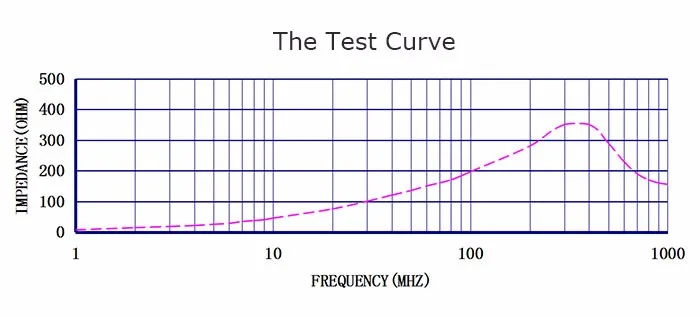

Parameter
\t
Electrical Requirements
\t
SIZE CODE (mm)
\t
A2 RH 16*28*9
\t
at 25 MHz
\t
70 Ω MIN
\t
at 100 MHz
\t
150 Ω MIN
\t
TEST INSTRUMENTS
\t
HP 4191A
\t
LCR METER
\t
HP 4286
\t
WIRE
\t
0.65T.C.W*100m/m 1/2Ts
\t
TEMPERATURE
\t
15℃ to 35℃
\t
HUMIDITY
\t
25% to 85% RH
\t
Test Data For Pre Production Samples
\t
MEAS. Item
\t
Ω
 AT 25MHz
\t
Ω
 AT 100MHz
\t
A
 m/m
\t
B
 m/m
\t
C
m/m
\t
Suggest
\t
70Ω MIN
\t
150Ω MIN
\t
16.0±0.5
\t
28.0±0.7
\t
9.0±0.5
\t
1
\t
87.40
\t
197.40
\t
15.97
\t
27.79
\t
9.06
\t
2
\t
89.60
\t
196.80
\t
15.99
\t
27.91
\t
9.14
\t
3
\t
88.40
\t
197.20
\t
15.99
\t
27.90
\t
9.12
\t
4
\t
89.60
\t
197.10
\t
15.87
\t
27.93
\t
9.15
\t
5
\t
89.80
\t
197.20
\t
15.86
\t
27.90
\t
9.20
\t
6
\t
87.40
\t
196.60
\t
16.03
\t
27.90
\t
9.22
\t
7
\t
87.60
\t
196.40
\t
16.00
\t
27.92
\t
9.10
\t
8
\t
87.60
\t
196.80
\t
15.97
\t
27.95
\t
9.04
\t
9
\t
88.10
\t
196.50
\t
15.92
\t
27.85
\t
9.05
\t
10
\t
89.90
\t
197.20
\t
15.80
\t
27.86
\t
9.12
\t

\t

\t

\t

\t

\t

\t
X-bar
\t
88.54
\t
196.92
\t
15.94
\t
27.89
\t
9.12
\t
R
\t
2.50
\t
1.00
\t
0.23
\t
0.16
\t
0.18
\t
The above test data for reference,Actual results may differ due to different production batches.
