PCIe /SATA Duplicator , Hard Disk Drive Duplicator 1 to 5 SATA 3.5" 2.5" External Hard Drive Copier

Product Overview

Description

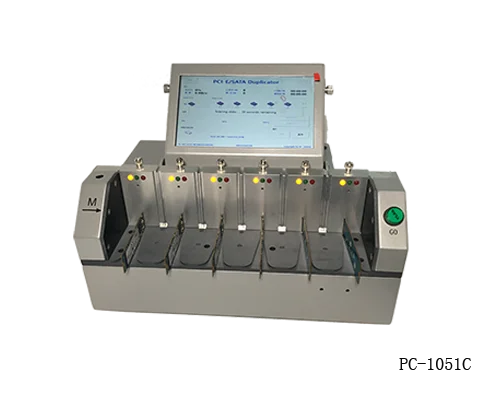

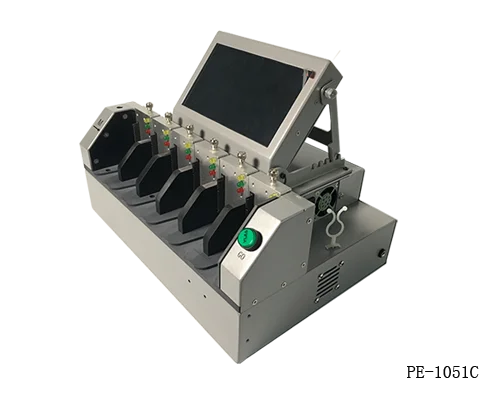

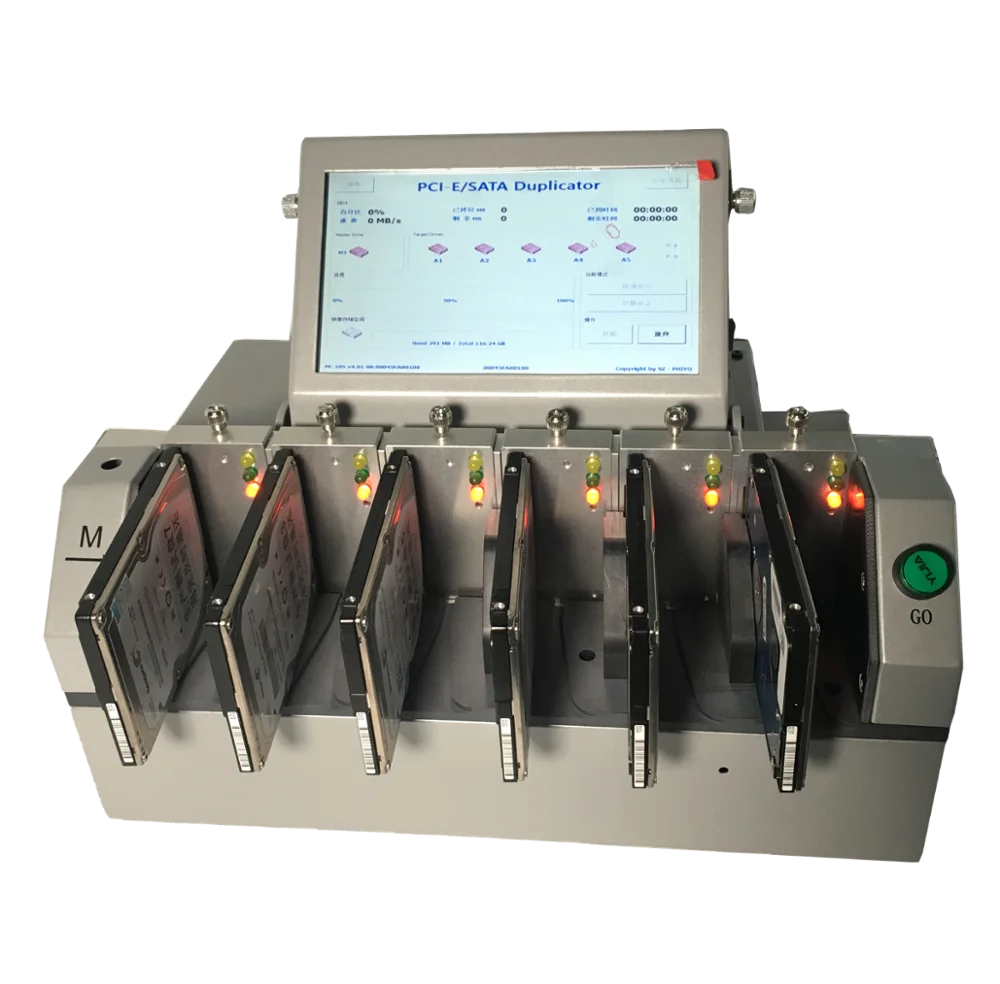

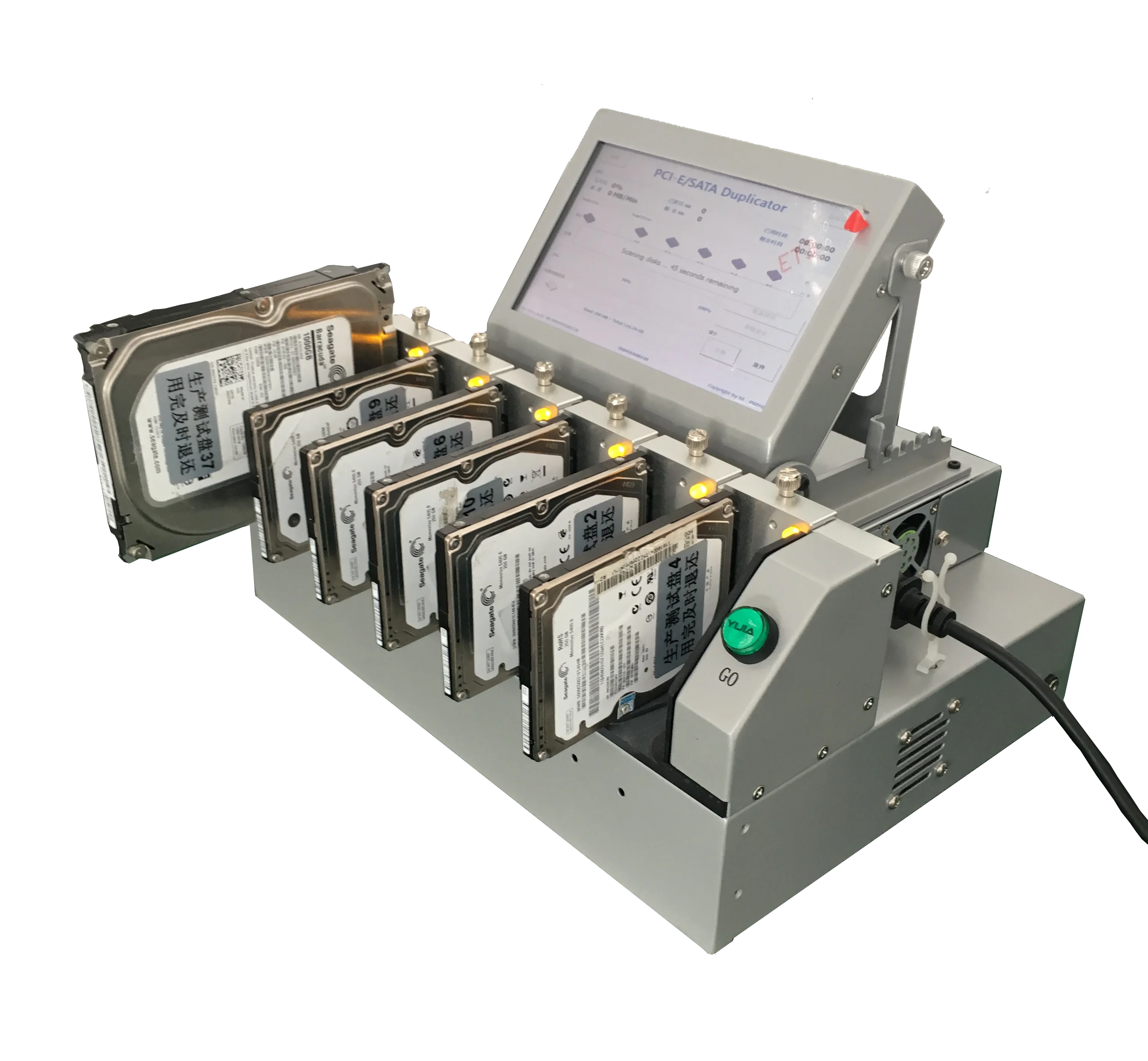

PCIe /SATA Duplicator









     PE-1051C duplicator is a new architecture design based on the Express PCI-E &SATA Interface of the multi-function duplicator. Using customizable convertor board can fully support universal SATA, SATA Express, NGFF (M.2) and other types of HDD&SSD. The device provides native interface supporting NGFF (M.2) M key and B+M key, SATA,mSATA,Micro SATA whose design transfer rates can reach up to 21GB/min.With one master and five targets, the duplicator also support downloads image file from remote server, making image and Sync image by connecting to server network.











Faster transfer speed Design	High  efficiency
The transfer speed can reach up 21GB/min.	Support M.2 ACHI and NVMe protocol SSD through one convert board, No need to change the interface to wait for any time or reboot.
Support multiple interface types SATA,mSATA,Micro SATA,BGA SSD,SFF(8639)/NGFF(M.2)B key,M key,B+M key and CFast.	Support Software Customization and quick update User can customize software as the actual application; Easily update the software by U-disk.
Flexible Network application PE-1051C can access networks for network production management and recovery of mother source disk image management & broadcast synchronization.

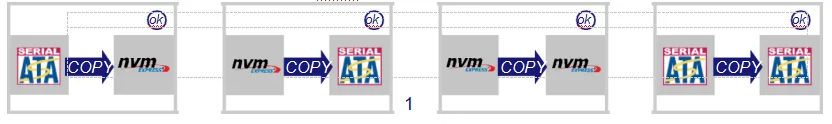

Intelligent detection across different copies

PE-1051C's intelligent detection technology, with the corresponding socket module, can copy data from NVMe SSD to SATA SSD, or copy SATA SSD data to NVMe SSD.

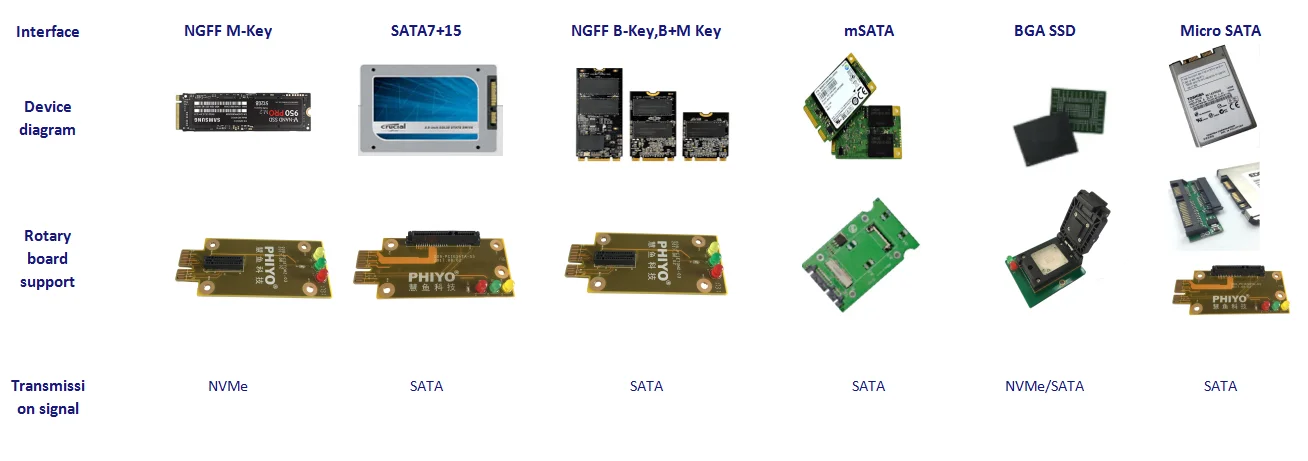

v An interface module design, supports M.2 (SATA&NVME) improve production efficiency.



v User can easily and quickly replace the interface module.



v The interface device and support:
