F3L912 Deutz 3 cylinder air cooled diesel engine
- Category: >>>
- Supplier: Shijiazhuang Houfeng Trading Co. Ltd.
Share on (60710522830):
Product Overview
Description
Product Description
In-line, 3Cylinder, 4 Cycle Diesel Engine | ||
Bore×Stroke | 100mm×120mm | |
Displacement | 2.827 Liters | |
Compression Ration | 17:1 | |
Cooling Way | Air cooled | |
Combustion system | Direct injection | |
Inspiration | Natural intake | |
Direction of rotation | Counterclockwise(face to flywheel end) | |
Fuel consumption ratio | 263.8g/kwh(limit value) | |
Oil consumption ratio | 2.04g/kwh(limit value) | |
Lubricant Capacity | 8Liters | |
Net Weight | 330kg | |
Overall Dimension(L×W×H) | 722mm*664mm*814mm | |
Useage | Power class | Power | Speed(rpm) | ||||||||||
1500 | 1800 | 2000 | 2150 | 2300 | 2500 | ||||||||
Construction equipment | ISO 3046/1(IFN) (Highly intermittent) | P(kW) | 26 | 31 | 34 | 36 | 38 | 40 | |||||
P(HP) | 35 | 42 | 46 | 49 | 52 | 54 | |||||||
ISO 3046/1(IFN) (Intermittent) | P(kW) | 25 | 29 | 32 | 35 | 36 | 38 | ||||||
P(HP) | 34 | 39 | 44 | 48 | 49 | 52 | |||||||
ICFN (Continuous) | P(kW) | 24 | 28 | 30 | 32 | 35 | |||||||
P(HP) | 33 | 38 | 41 | 44 | 48 | ||||||||
Genset | ICXN (Continuous) | P(kW) | 24 | 28 | |||||||||
P(HP) | 33 | 38 | |||||||||||

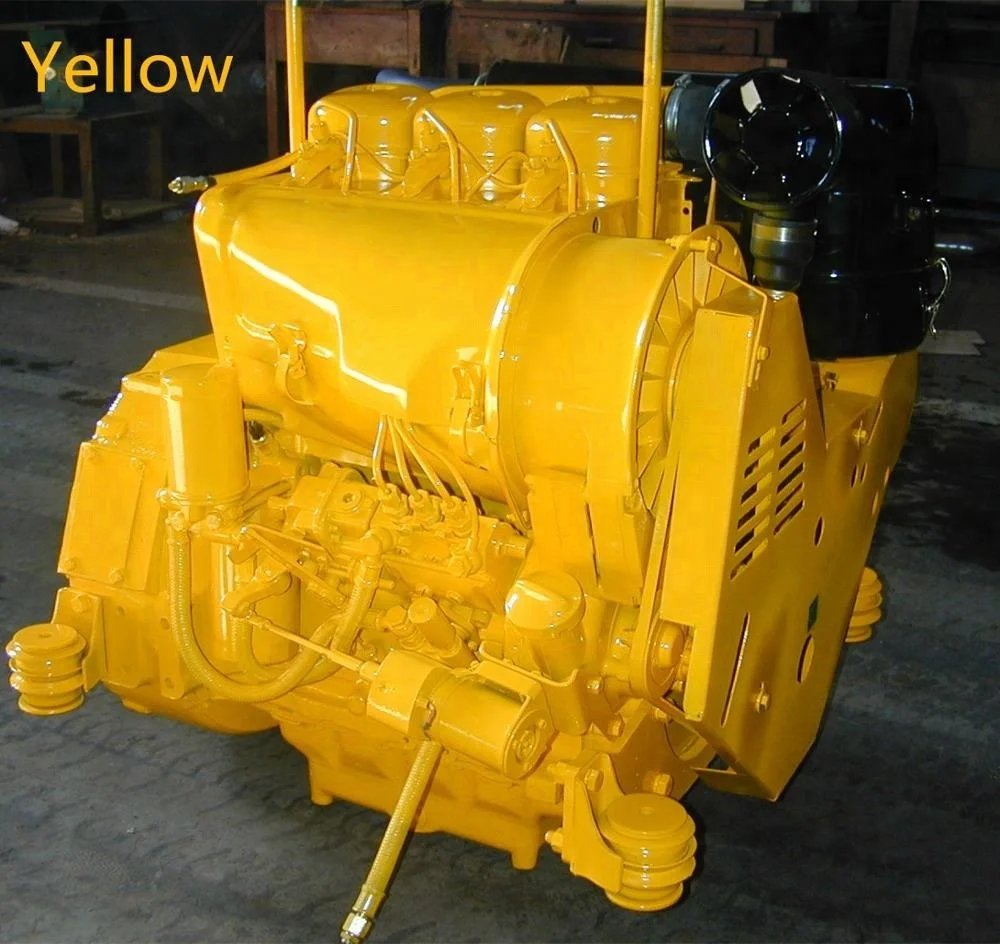

Color can be customized as your requirements
Outline Dimension
\t\t\t\t\t\t\t\t\tTypical Projects \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tCustomer Feedback \t\t\t\t\t\t\t

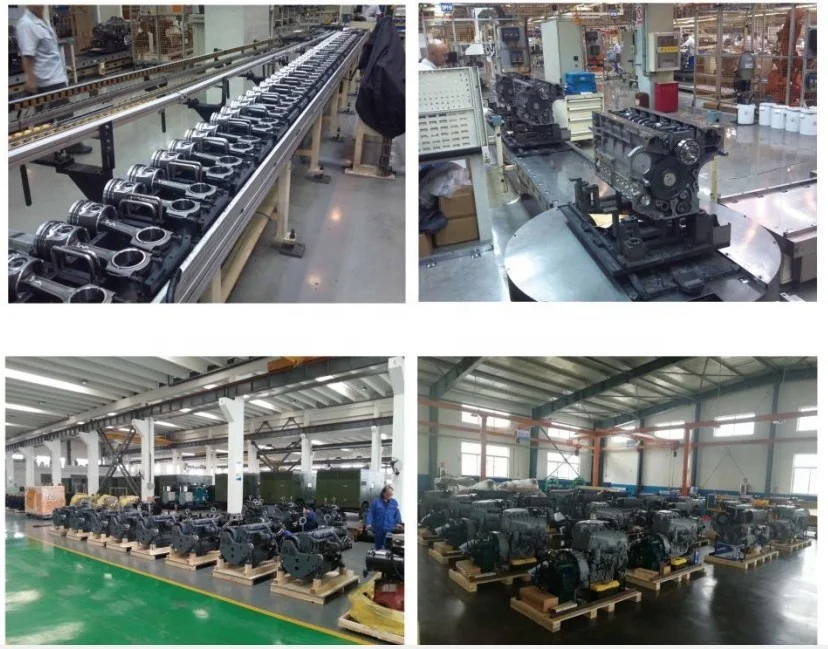

Factory
1. A total area of more than 124 thousands squre meters
2. About 280 technical employees in the factory
3. More than 30 years experience in diesel engine field
4. High quality and competitive price
5. Professional service and prompt reply
Packing & Delivery
\t\t\t\t\t\t\t\t\tWhy Choose Us \t\t\t\t\t\t\t
Contact Information
Juccy Tan
WHATSAPP:\t+86 13333017875 | WECHAT\t13333017875 |
QQ:\t709484500 | Email\tadmin at houfeng.net.cn |
