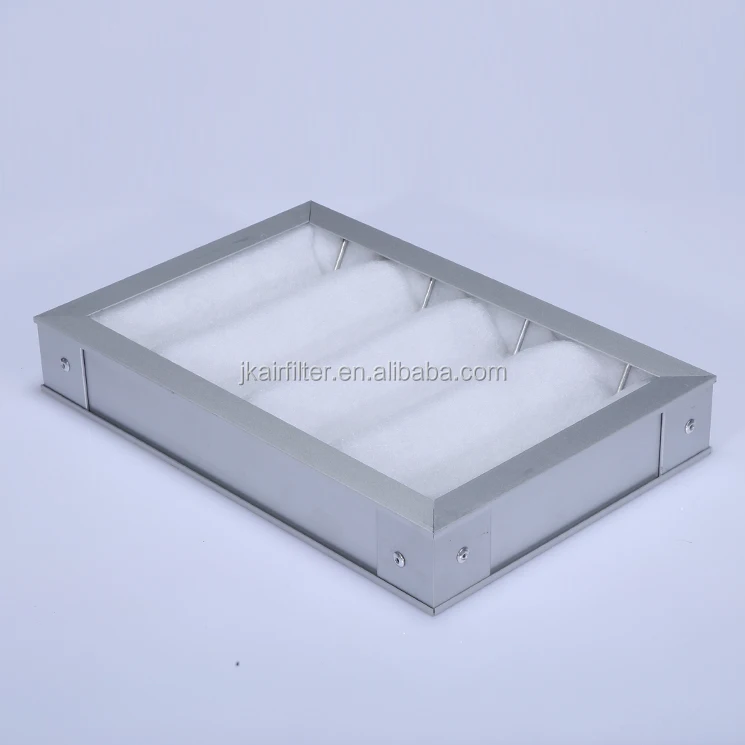

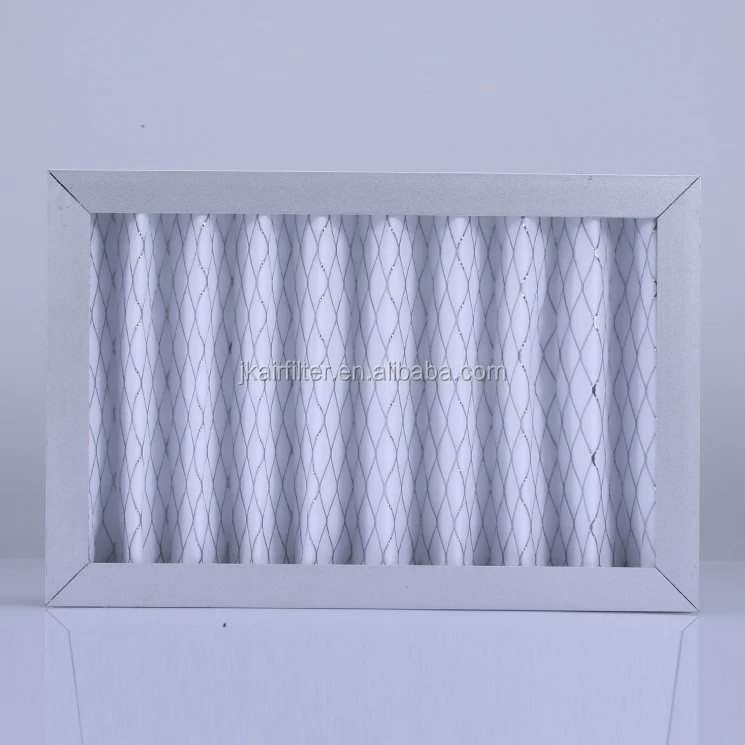

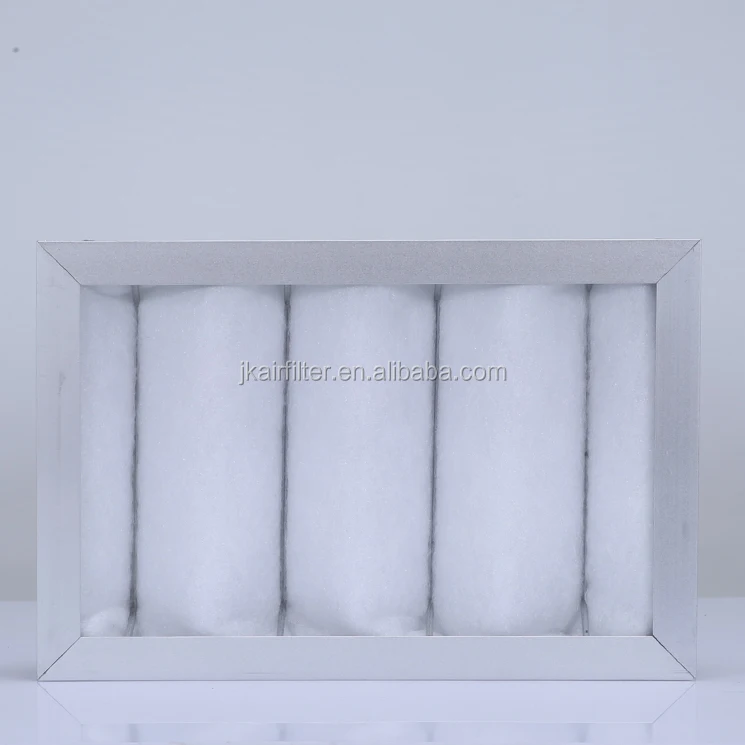

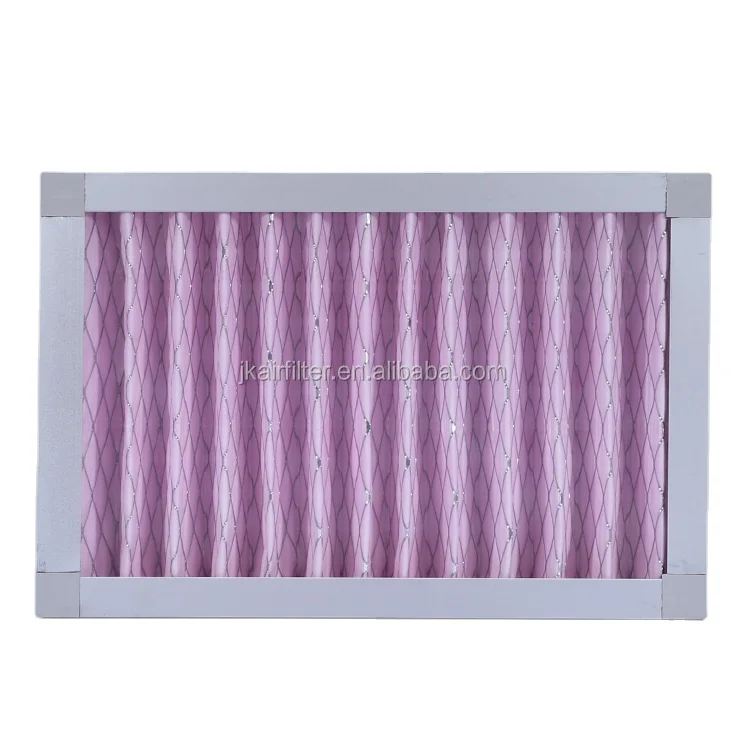

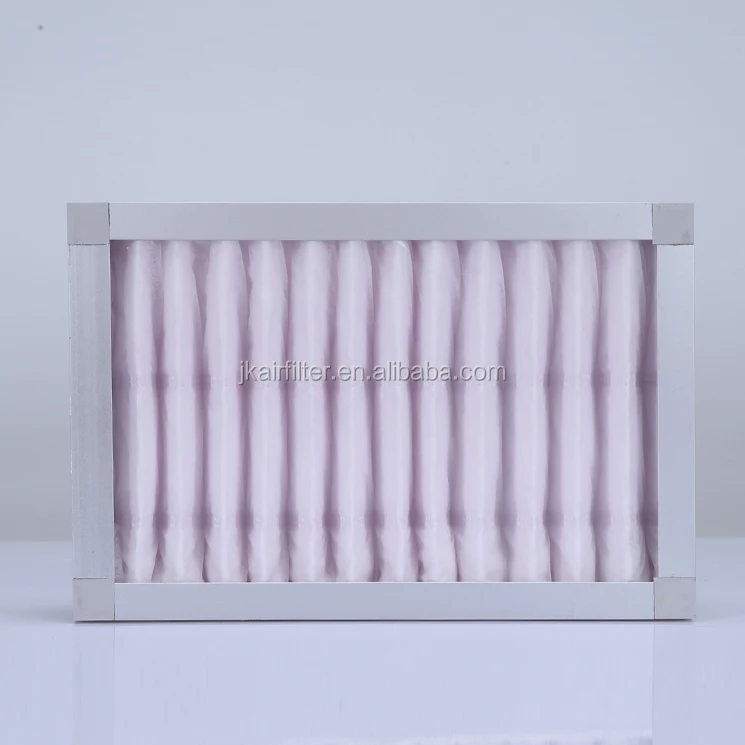

Cheap Price G3 G5 Pre Filtration Non Woven Washable Pre Industrial Filters Cleaner Filter

Product Overview

Description

The performance characteristics of

Outer frame: can be supplied by whole roll or cutting piece, can also add galvanized frame or aluminium alloy frame.

Filter material: the high performance of synthetic fiber filter material fracture, increasing structure, large amount of dust, high efficiency, including silicon, using economy, can be cleaned and reused

Efficiency: (EN779:2002 filter class) G3, G4, F5

(ASHRAE 52.2:2007 filter class) MERV7, MERV10.

Resistant temperature: 100

Fire prevention level: DIN 53438 F1.



application

Commercial and industrial ventilation air conditioning system pre-filtration

G3, G4 initial filter cotton is applied to the spray paint system and spray shop front channel filtration

According to customer's requirement, it can be processed into the original panel type or the first effect bag filter.

Nonwoven filter



Features

Frame: supply of the entire volume or plus galvanized border or aluminum alloy frame.

Media: the filter mats are made of high performance polyester fibers with durable thermal bonding, increment structure, large dust capacity, not silicon.

 Efficiency: (EN779:2002)G3,G4,F5

(ASHRAE 52.2:2007) MERV6, MERV7, MERV10

Resistant temperature:100

Flame retardant level: DIN 53438 F1



Application

The ceiling filter is especially designed for the final intake air filtration in paint-spray systems and booths.

The mats are also suitable in any kind of kind of fine filtration of ventilation systems and units.

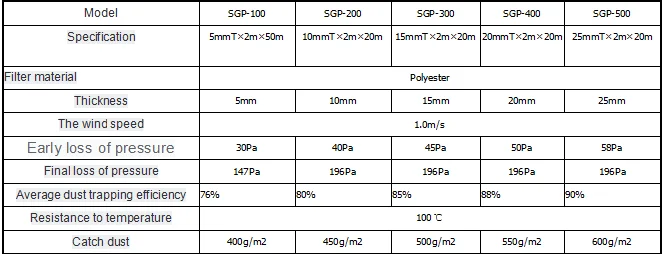

Common specifications
