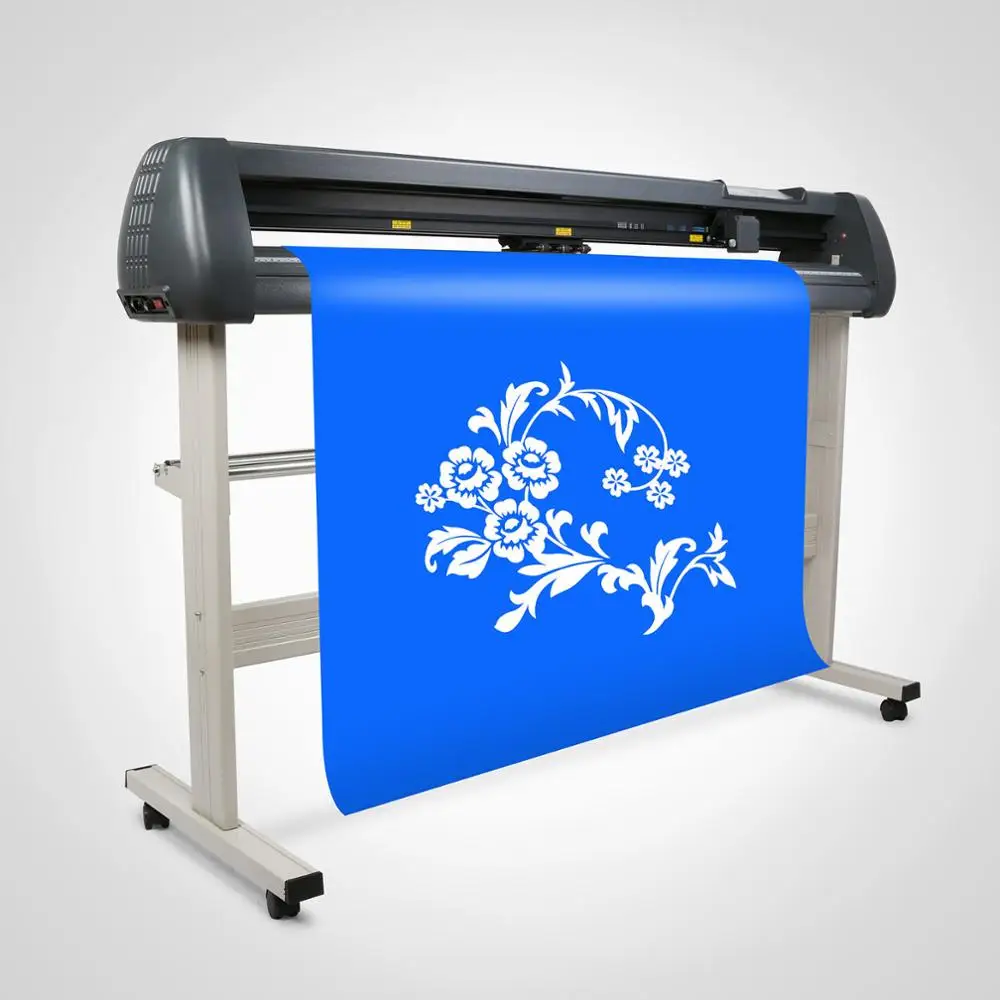

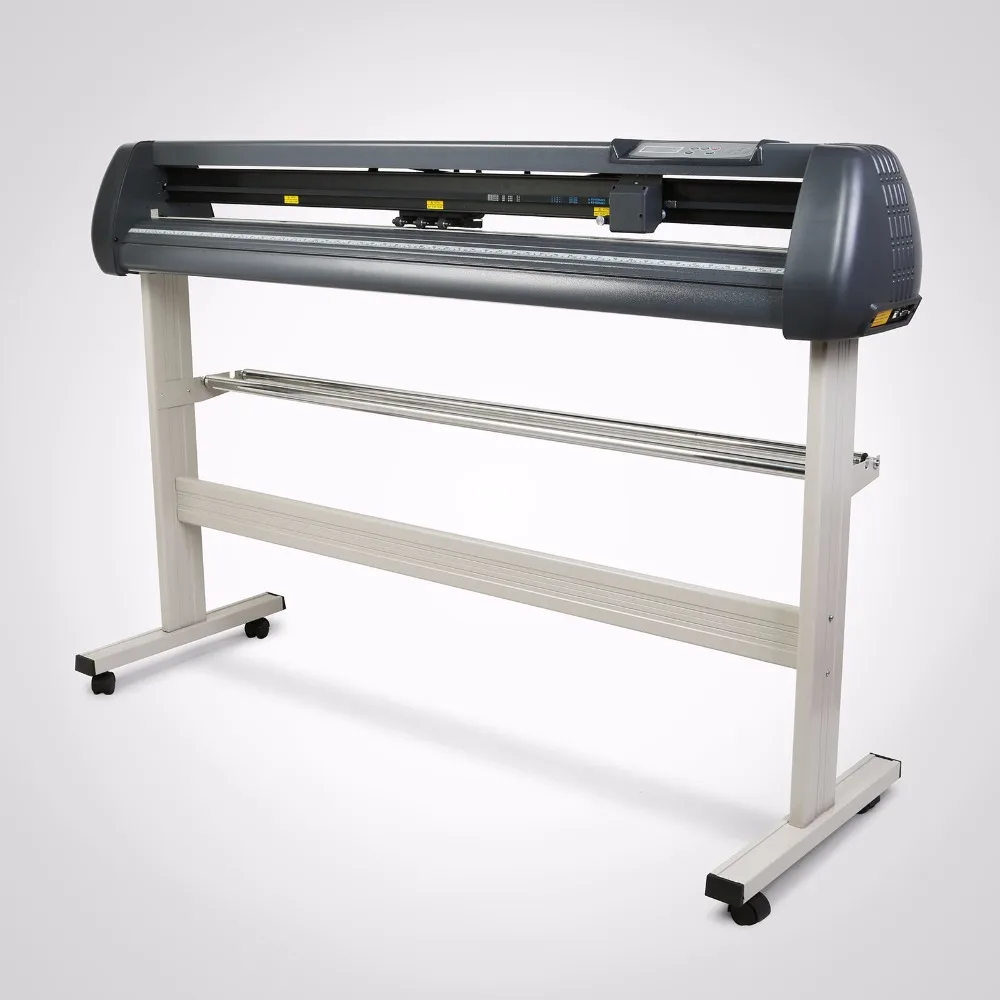

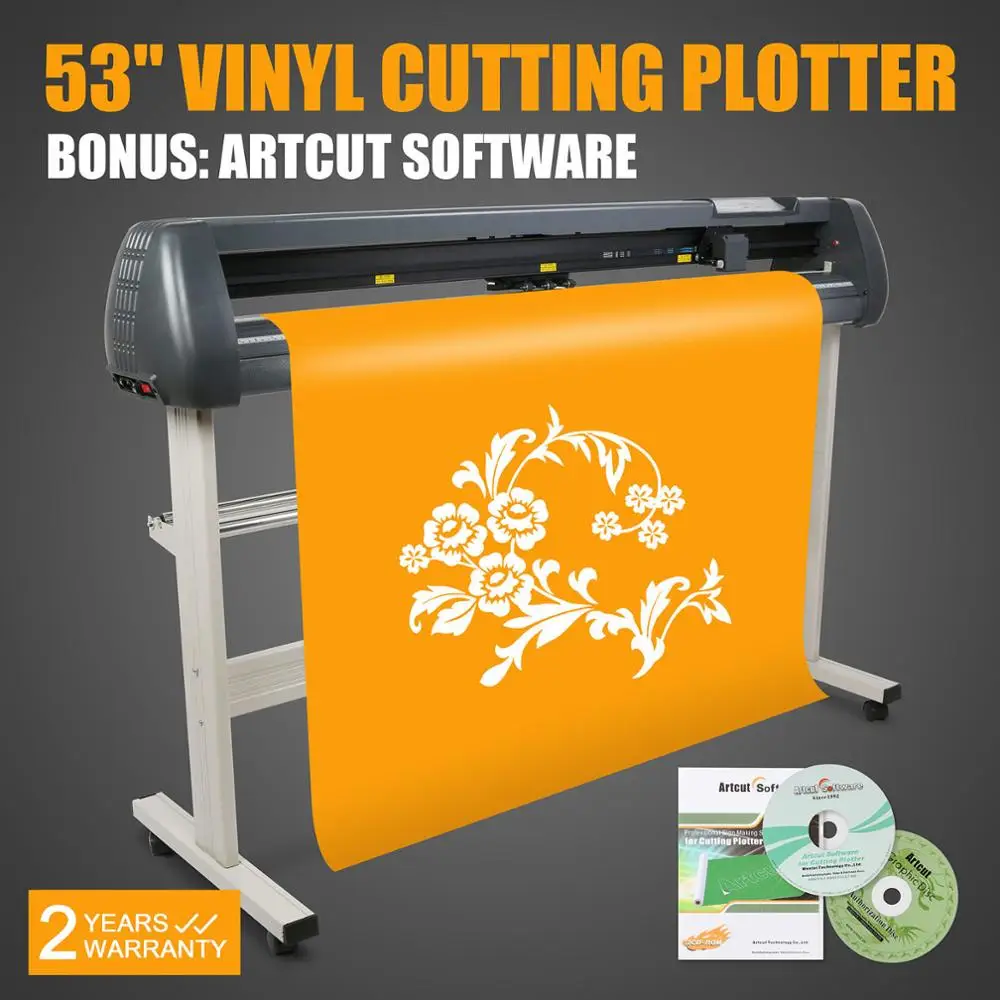

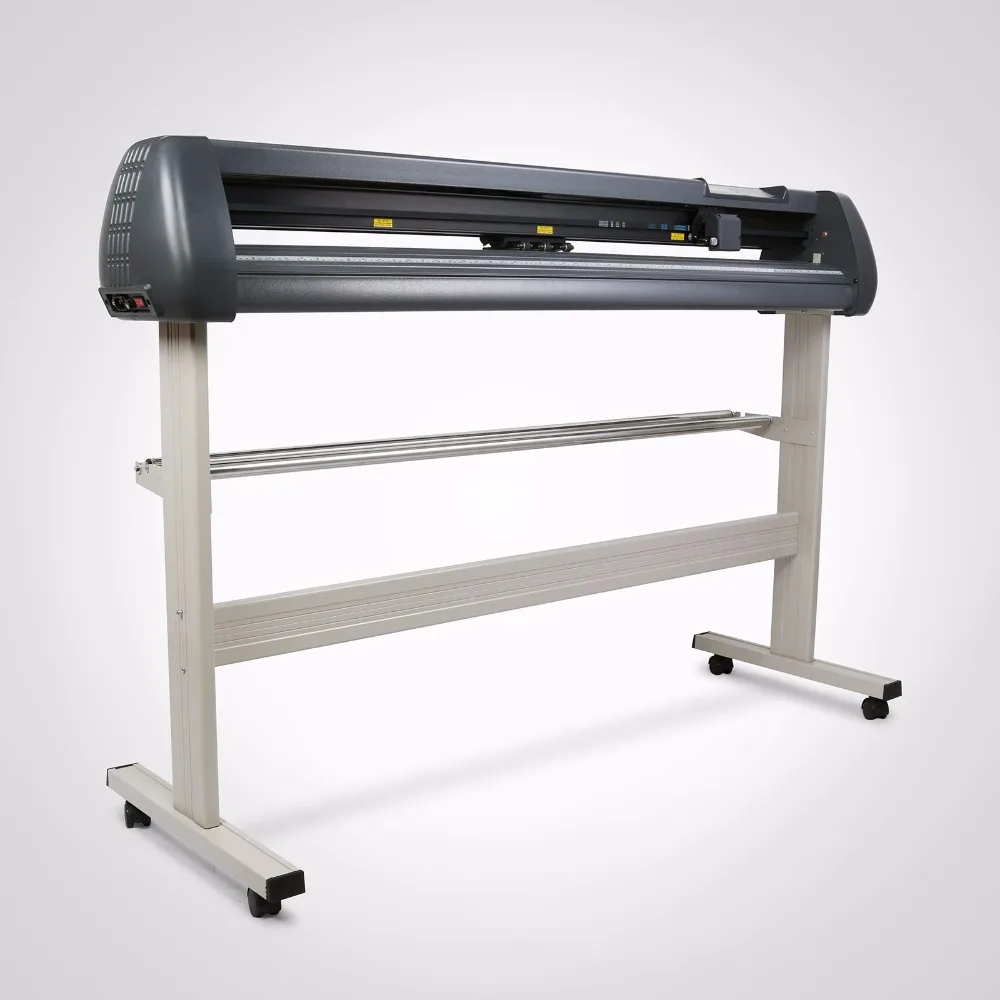

This Latest 53" Vinyl Cutting Plotter Machine comes with easy-to-use Design and Artcut Software, which allows you to cut professional customized designs and signs with your cutting machines, giving you the ability to use your fonts, import custom artwork, and draw your own shapes! It Works great for advertising industry, car beauty industry, fashion design, etc.
NOTE: there is another software named Signmaster-not for free. If you need it, please contact our customer sevice.
In this version, if you have an image that has many colors in it, you can easily isolate each color and cut them separately
Print and cut capability (contour cutting) for this new 53"Vinyl Cutting Plotter
3D-shadow (drop-shadow feature)
Works with your installed TrueType and OpenType fonts
Works with thousands of free TrueType Fonts including Dingbat/Wingding Fonts
Import various file formats, including SVG and PDF
Drawing tools to draw and edit shapes
Weld overlapping letters and shapes together
Select styles, including shadow and blackout, to change the look of your letters and shapes with just a few clicks
Auto-tracing feature to automatically convert images for cutting
Cut & Simple Print
Free technical support and access to professionally made video training series
Pentium processor-based PC or compatible computer (Windows)
Windows XP/Vista/Windows 10
NOT compatible with Mac when used with this cutter.
Features:
There pinch-rollers can be adjustable on the guide rail according to different paper width
Professional blade holder gives you access to the most economical blades available
Adjustable digital force and speed to handle the cutting process
Inertial rotating blade holder enables more accurate and high quality cutting
Emergency stop/start feature allows you to stop cutting and restart
Updated design allows adjustment of cutting force and speed while working
Auto memory of blade force and speed adjustable at any time

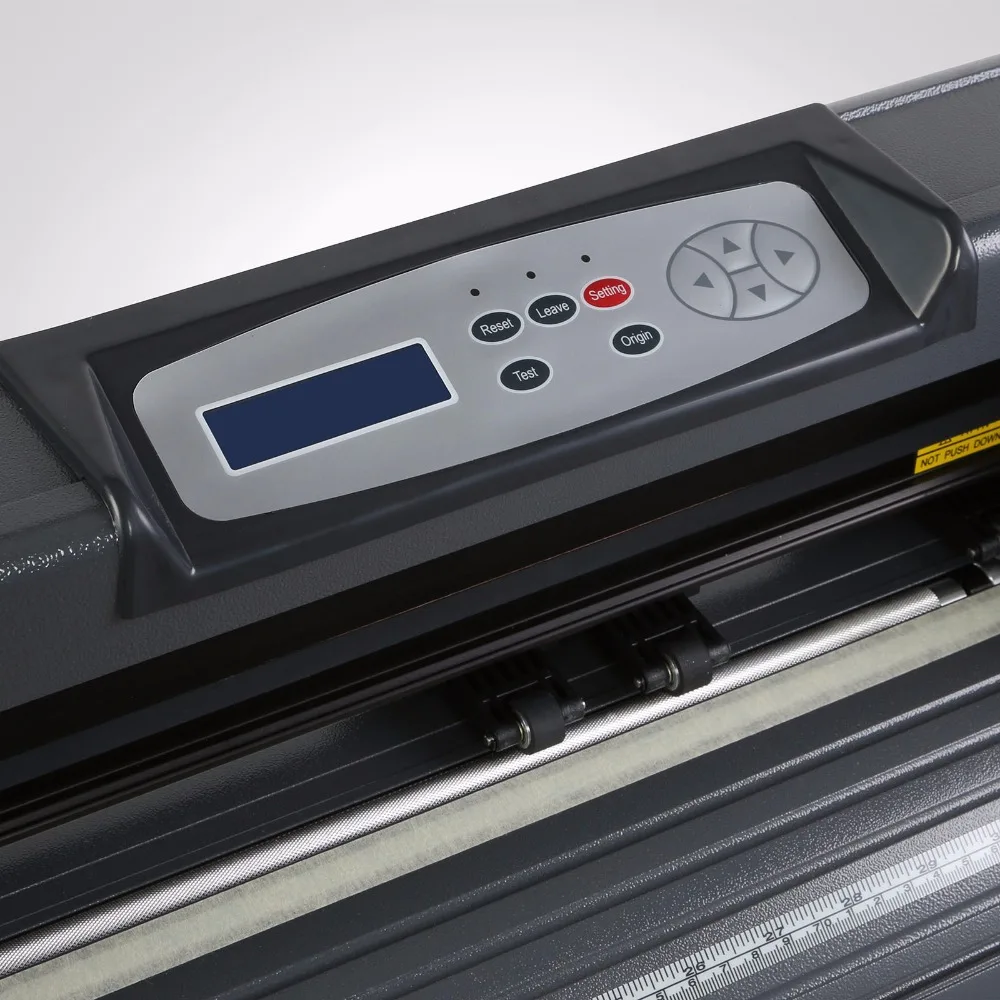

Backlight LCD display for easier handling the working process
Comes with Artcut Software
Superior ball-bearing dual roller media system allows you to place material on top of rollers rather than putting roller material each time
USB connection is accomplished through serial conversation to support the long-distance data transmission
Technical:
Size:53" (1350mm)
Blade Types:Standard Roland blades and compatible blades
Comparison - Notes:Higher quality than MH Series.
Driving Method:Stepper Motor
Cables included:Serial cable, USB cable, power cable
Interface:Serial Port & USB2.0
Max Cutting Width:49.56"(1258.824mm)
Max Pressure:500 grams
Max Speed:39 in/sec
Memory:1MB - Recyclable
Number of Pinch Rollers: Three (3)
Power Requirements:110-220V AC 50/60Hz Auto-switching (worldwide)
Repetition Accuracy:0.005IN (0.127 MM)
Resolution:0.001Inch/step (0.0254mm/step)
Contour Cutting:Yes/No
Two Years Manufacturer Warranty
FREE Lifetime Phone Support
Package contents:
1 x Cutting Plotter
1 x User's Manual
1 x Artcut Software
1 x Power Cord
1 x Serial Cable
1 x Blades Holder
1 x Pen Holder
1 x 3" Driver CD
1 x Stand
3 x Blades
Product details:
Packaging & Shipping
Our Services
Company Information
Welcome ! Shanghai SiShun Machinery Equipment Co., LTD. was founded in 2007, mainly engaged in cross-border business for many years. At present, the company operates more than 10000 kinds of products with more than 100 employees. We are dedicated to offering you an unrivalled choice of products with lowest price and best quality. More important, we own ten more warehouses in the world, which located in 4 continents. We cut lead time, distribution time and shipping cost at largest extent. Happy cooperation!
