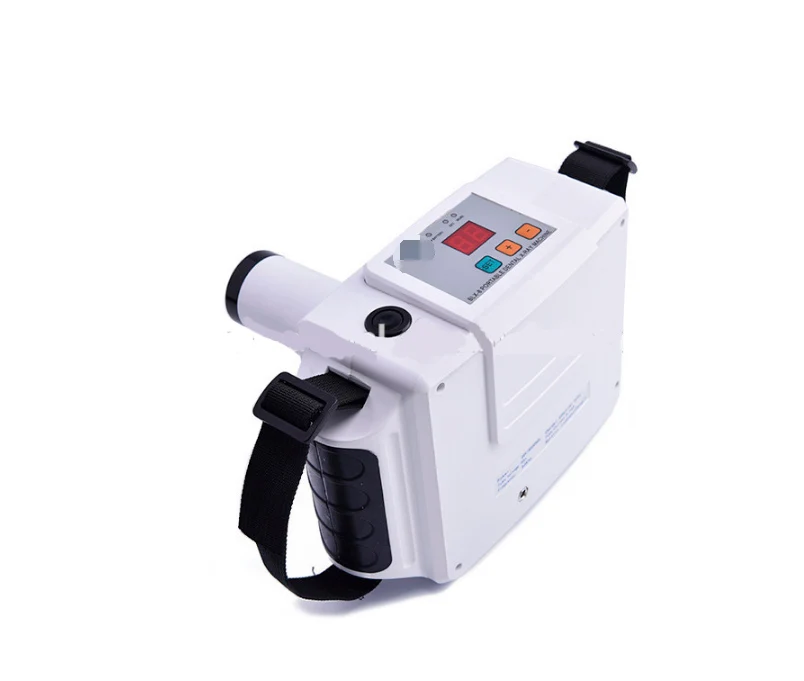

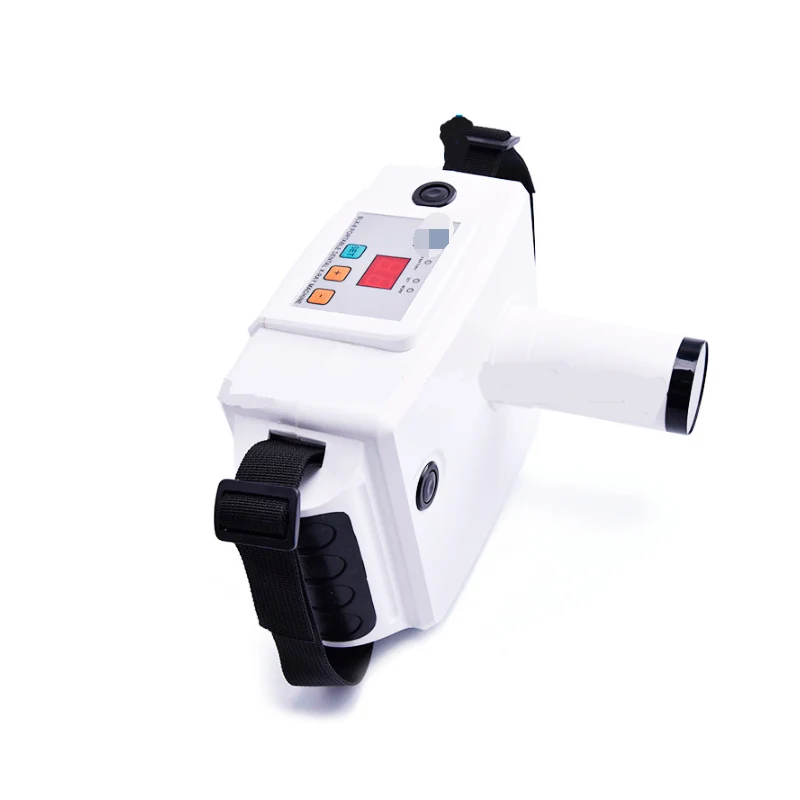

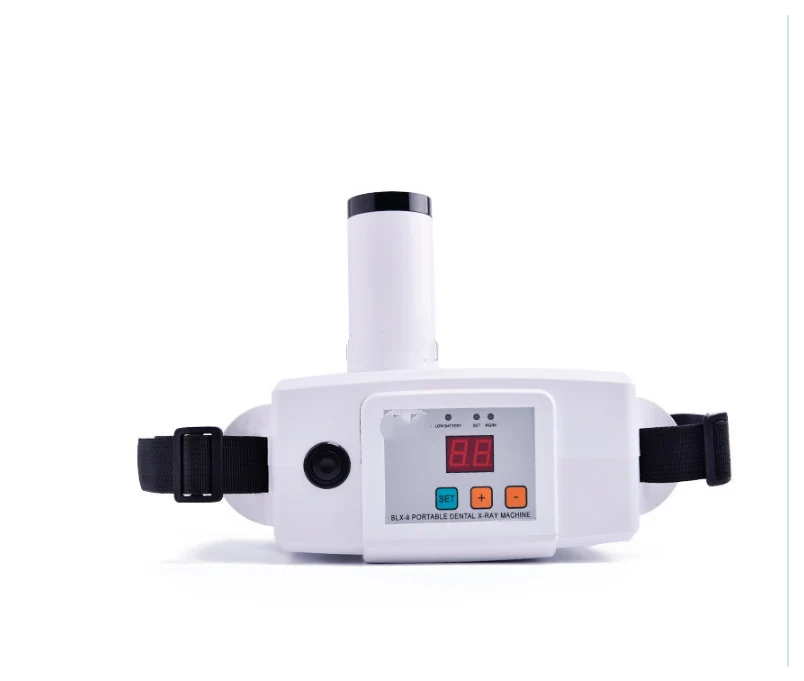

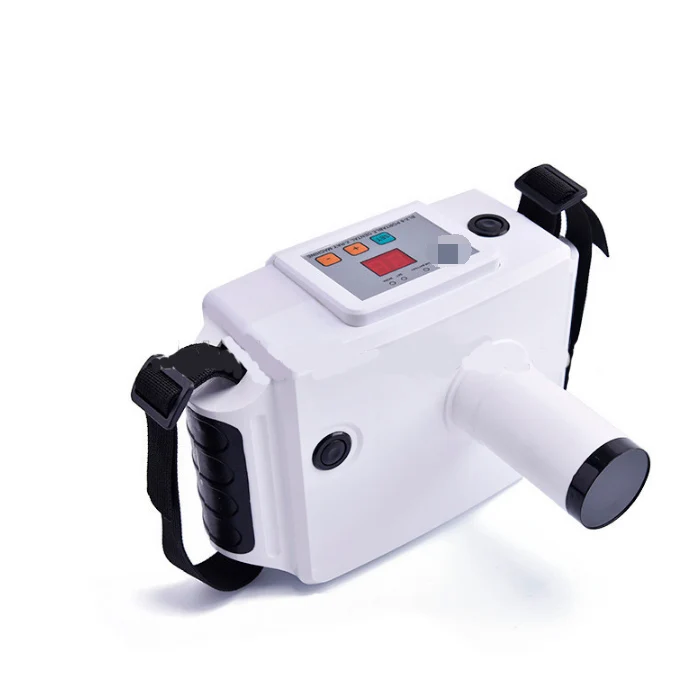

Newest Dental wireless digital portable x ray unit x ray camera machine with best prices from china

Product Overview

Description

The machine is mainly used in dental clinics,to check out before treatment,and to be used for comparison and confirmation during and after treatment. It is an indispensable piece of equipment for daily work within a clinic. Some examples of its use include checking tissue structure,the depth of the root,the degree of inflammation,and for the inner inspection of broken teeth.

While using a small amount of radiation there is no need for protection. Hospitals have purchased this machine to take films of fingers and toes by the side of a patient's bed.



This model combines the advantages of similar products found at home and abroad; it eliminates the shortcomings of the on-frequency X-ray machine (high current intensity and excess amounts of scrap x-rays).The tube voltage frequency of this machine is 30 KHz,and the tube current is 0.1 MA. The radiation scope is at an angle of 24 degrees, located within a distance of 1.2 meters ahead. This is an innovative Chinese design named the "Green X-ray Machine."

All the components of this product were originally imported to achieve an acceptable tolerance required for the digital controls and the machine. By doing this, product performance is more stable and reliable.

Using a Toshiba 0.3  micro-focus tube, the image is clearer and more delicate. This machine uses components from well established suppliers, allowing us to deliver to our customers a product of high quality.

There are films included for testing purpose and all the consumables can be replaced by other similar products.

There are vacuum components and high-pressure parts inside of the machine,so for your safety and the maintenance of the machine,please do not open the machine. Service and maintenance should only be performed by a trained professional.

The tube head is equipped with excellent radiation-shield protection (except the radial mouth,and tests have shown that the radial index is zero. Safety is guaranteed.

Non-film inspection and storage can be realized when corresponding to a sensor.



 Features:
1. No protective operation room is needed when installing the complete machine
2. Flexible adjustment the position and angle of hand piece, simple and easy to handle
3. Develop dental film in daylight, no darkroom needed
4. Compact in volume, light in weight, convenient for carrying
5. Time is adjustable, high contrast of picture, imaging in focus
6. Can be used with sensor
7. Radiation leakage is in accordance with international standard(IEC601-1-3.1993)

Specifications:
1. Power: 24V 8000MA Charger 220V/110V 50Hz
2.Tube voltage: 70Kv
3.Tube current: 0.1MA
4. Frequency: 30Khz
5. Time of Exposure: 1-95
6. Radiation leakage: 20ngy/h
7. Rated power: 60W
8. Net Weight 2.2kg
9. Package Weight: 7.0kg (15.43lb.)
10.Package Size: 45cm x 45cm x 35cm



Packaging list:

1. Main Unit*1
2. Charger*1
3. Dental Film Position Indicator*1
4. Dental Films for Commissioning*5
5. Packing Instruction*1
6. Warranty Card*1

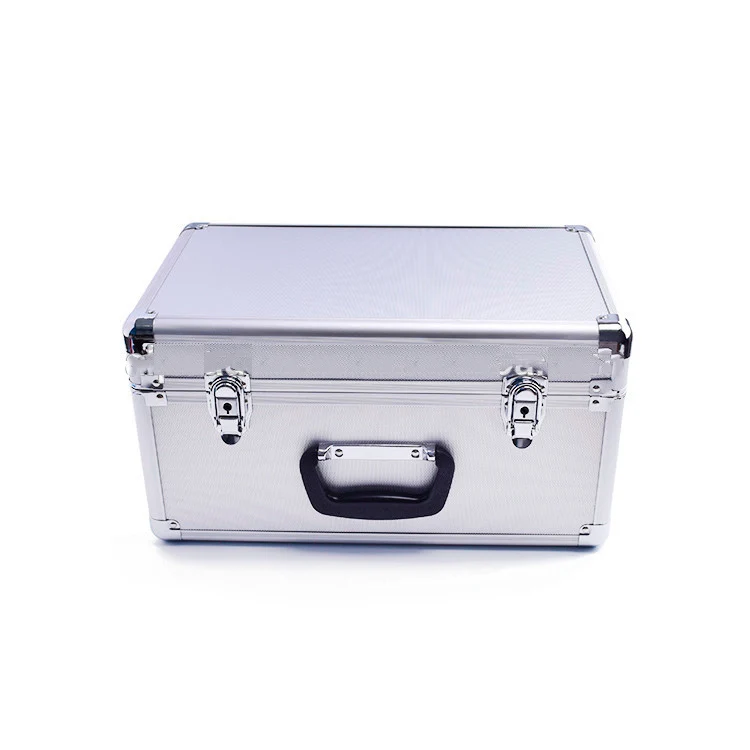

7. Large Packing Box*1



Warranty

We offer one 1 year warranty as follows.

(Note: When warranty expires,we charge for the replacement and repairs of the machine and components.)
