M5 carbon steel Anchor for Plasteboard Hollow Wall Fixing

Share on (60710629794):


Price:$0.05 - $0.10

Quantity:


Product Overview

Description



Product Description


product descrition


Des: Hollow Wall Anchor

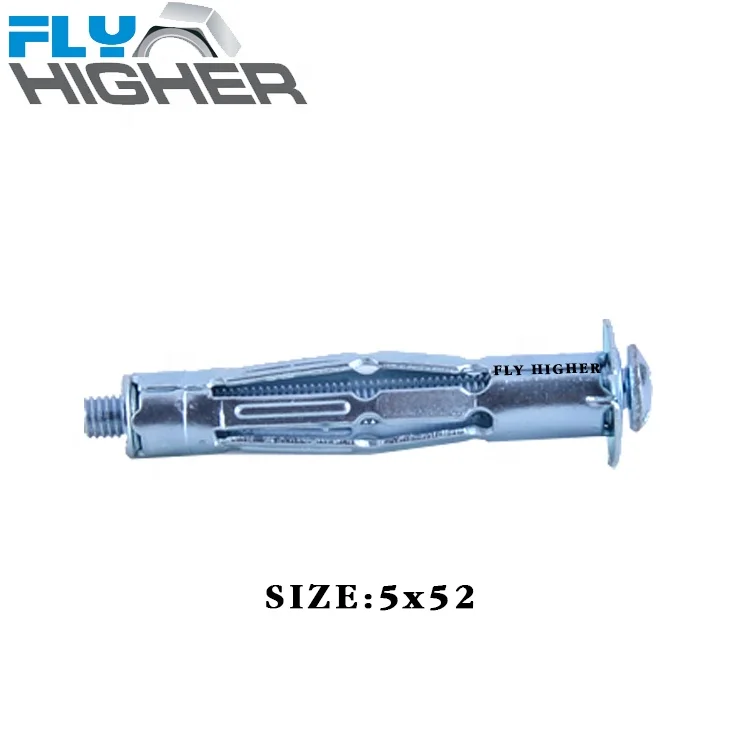

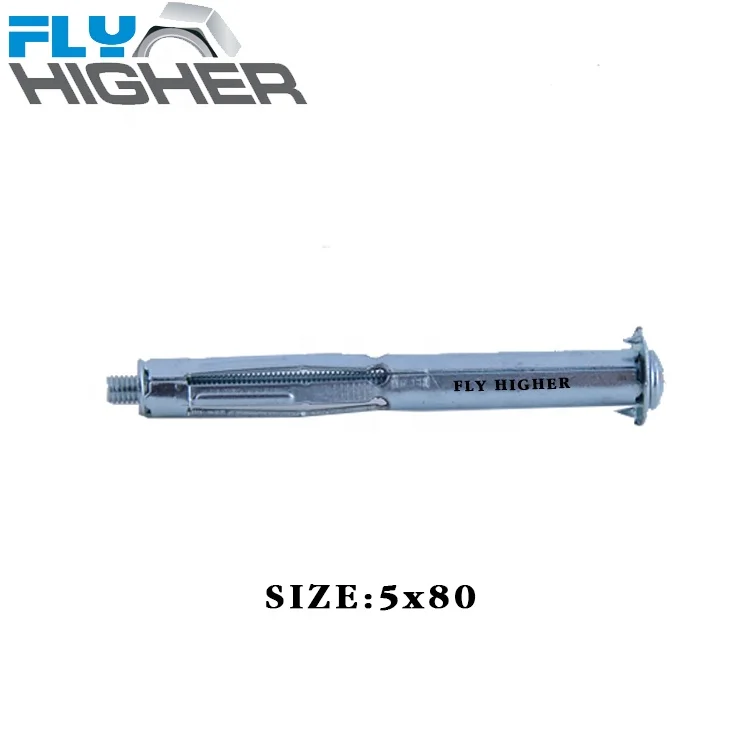

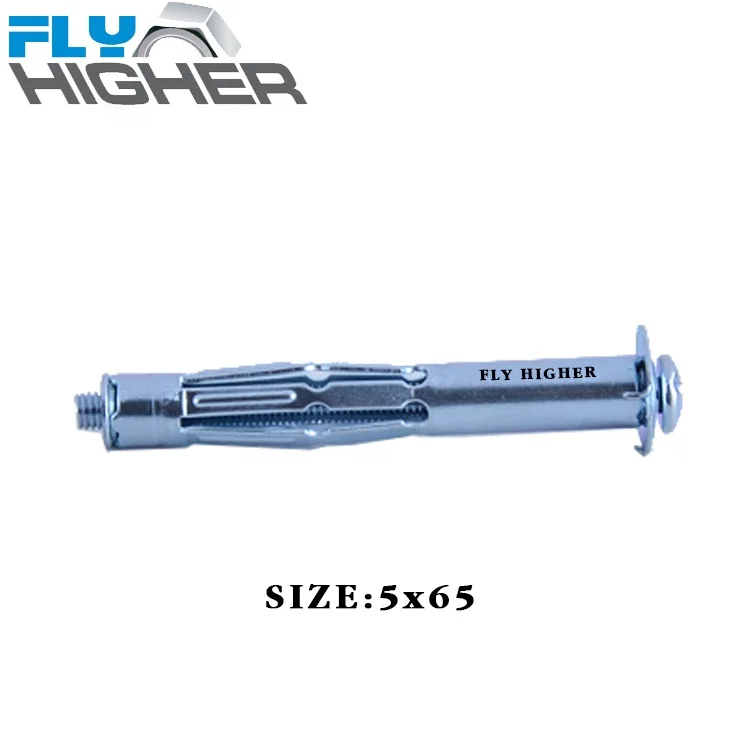

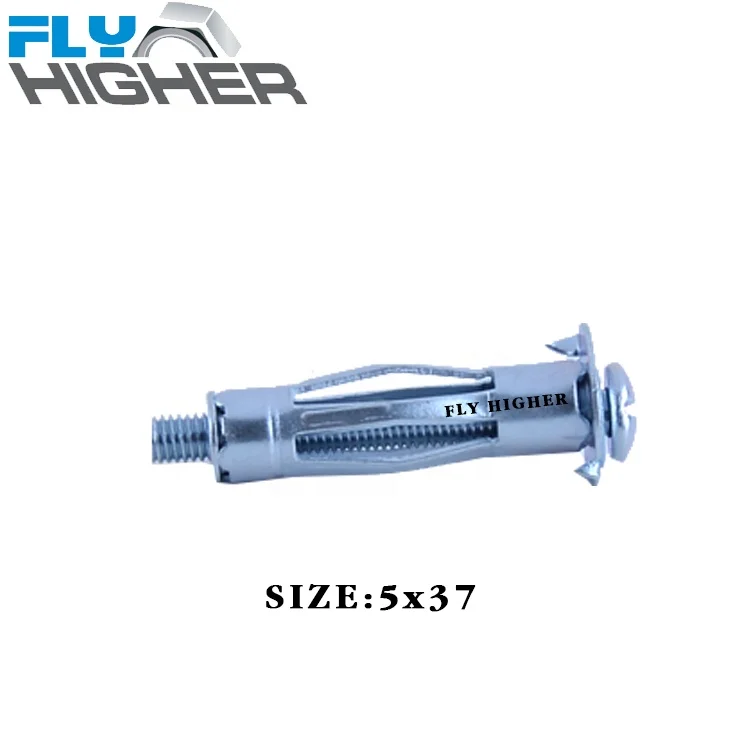

Size:  5X37/5X52/5X65/5X80





Material: Steel





Packing: 100pcs/box  OR  50 100pcs/box





Hollow Wall Anchor

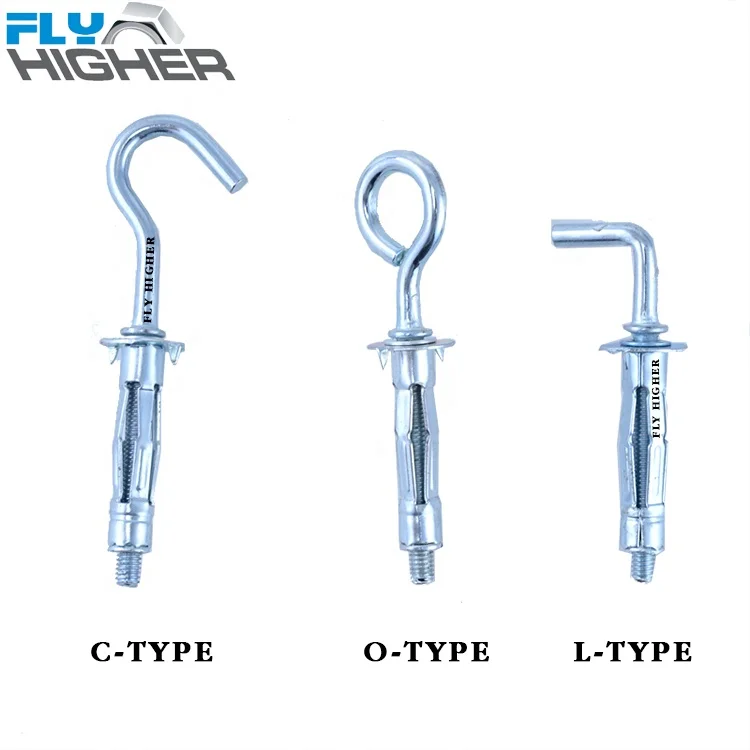

1. Different type of head: Closed eye, open eye, medium hook, and etc.


2. Hollow wall anchors securely fasten mirrors, pictures, cabinets, curtain-drapes-shelf brackets, bathroom fixtures to hollow walls of plaster over wood lath or metal lath, wallboard, gypsum or cinder block, hollow tile, and etc.


3. Fixtures can be removed or replaced for redecorating without disturbing the hollow wall anchors.





















































































































Item Code



Anchor Size(mm)



Body Length(mm)



Screw Length(mm)



HW-405



4x20



20



M4x27



HW-409



4x32



32



M4x39



HW-416



4x38



38



M4x45



HW-423



4x46



46



M4x52



HW-427



4x60



60



M4x67



HW-510



5x37



37



M5x45



HW-514



5x52



52



M5x60



HW-527



5x65



65



M5x75



HW-545



5x80



80



M5x88



HW-610



6x37



37



M6x45



HW-614



6x52



52



M6x60



HW-627



6x65



65



M6x72



HW-645



6x80



80



M6x88



HW-810



8x37



37



M8x45



HW-814



8x52



52



M8x60



HW-827



8x65



65



M8x72



HW-845



8x80



80



M8x88

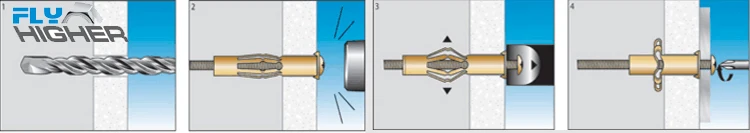

Installation method


installation method


1.Drill a hole to the recommended diameter. (HW10M4P may be hammered into plasterboard)


2.Tap the anchor into the hole until it is flush with the surface of the substrate.


3.Attach the setting tool to the head of the screw. Squeeze the trigger to expand the anchor. (Small sizes may be set using a screwdriver)


4.Remove the screw and place it through the fixture then back into the anchor. Tighten the screw until the fixture is fixed.





product photo


product show


PT-5-size


CLO-1





MORE PRODUCT

























WHY CHOOSE US


WHY CHOOSE US.jpg





FAQ




1. How long is your delivery time?


   If the quantity is less than 10000 pieces, delivery within 2 days!


   If the quantity are more, Our delivery time is generally 30 to 45 days.





2. What is the your minimum quantity of products?


   Our MOQ is 100 pieces.





3. Do you provide samples?


    Yes.





4. Where is the port of shipment?


    FOB: NINGBO or SHANGHAI.





5. What are your terms of payment?


    For small orders, you can choose T/T / Alipay/.


    For large orders , the Payment by 30% T/T in advance, balance after copy of BL.





6. Do you accept our design on boxes?


    Yes. We accept custom design boxes.
