By the use of crystal water in the material, the powder is made directly into the particles. Highly stable granules can be obtained .It is a new and popular equipment in pharmacy, food, chemical and other industries. Especially when the material is not suitable for wet granulation. The final product can be made of tablet, filling capsules and so on.
Clean type: Feeding, tabletting and granulating systems are external overhang structure. Either vertical or horizontal feeding system is available.Optional: a vibration feeder, a sifter or a dust collector.
Technical Parameter
Model
GK-30
GK-60
GK-100
GK-200
Output of sheet(kg/h)
3~10
20~100
120~200
250-500
Output of granule(kg/h)
0.5~2
5~40
40~100
100-300
Granules diameter(mm)
0.5~3
0.5~2.5
0.5~4
1-5
Total power(kw)
2.5
4.5
12.5
24
Feed Screw Speed(r/min)
6~33
6~65
6~60
5-50
Roll speed(r/min)
4~25
4~25
4~25
5-22
Overall size(mm)
880*550*1300
1085*650*1600
1800*900*2300
2500*2150*2750
Approx. weight(kg)
750
950
2000
6500

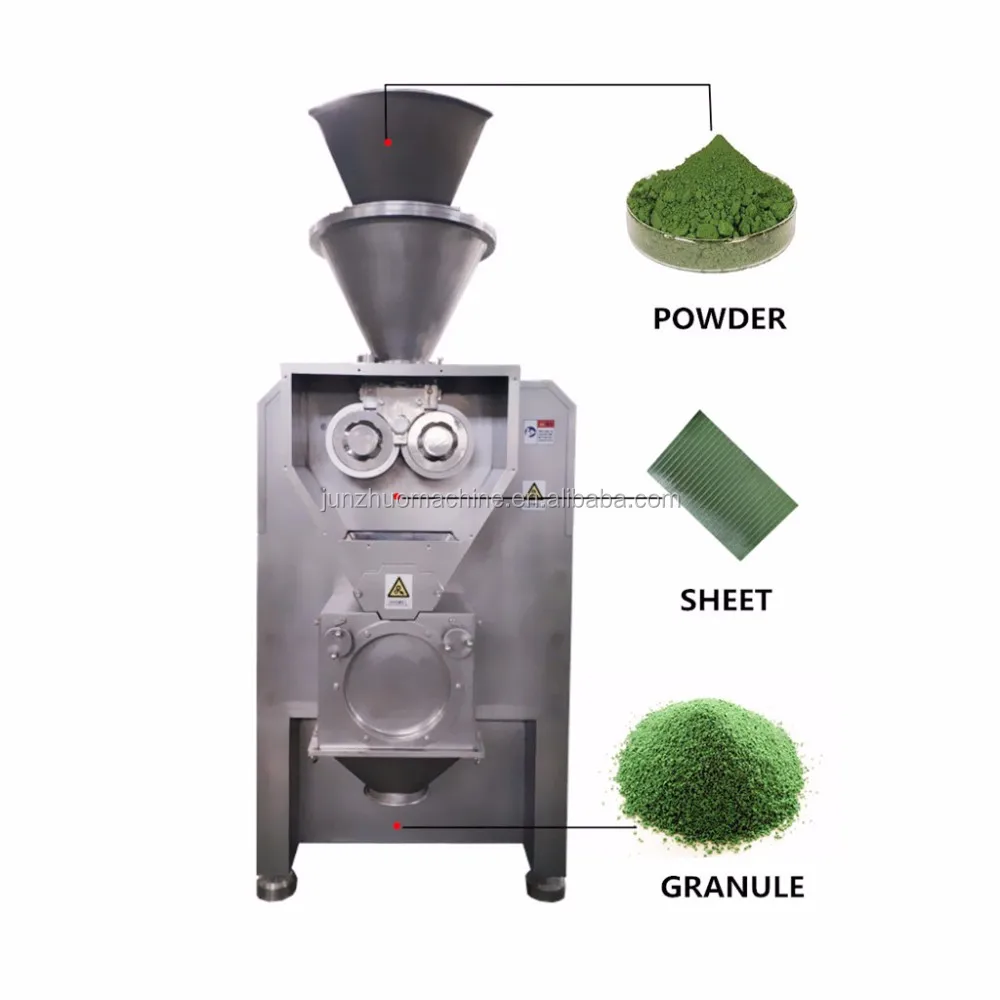

Working Principle

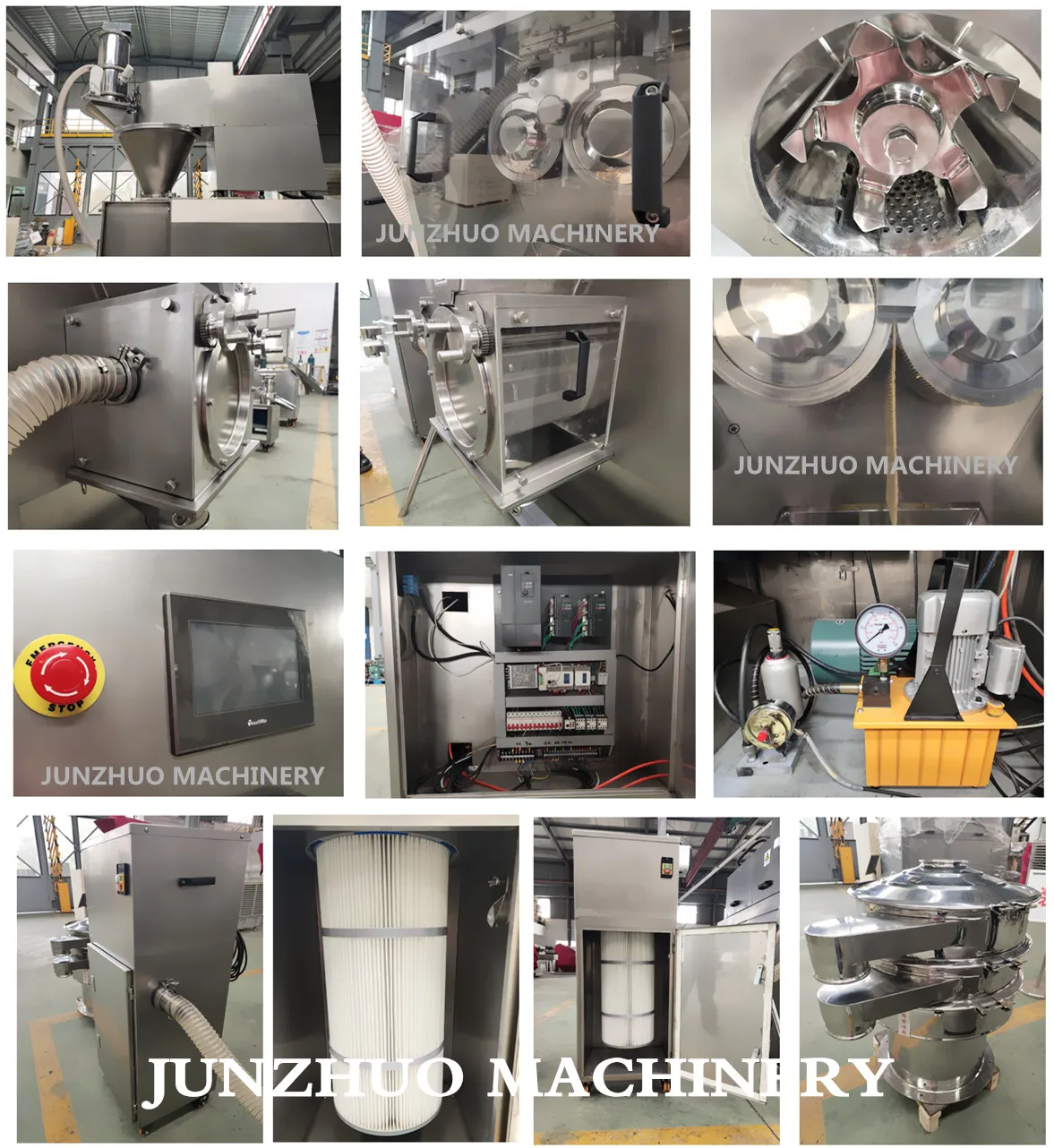

5.Other part

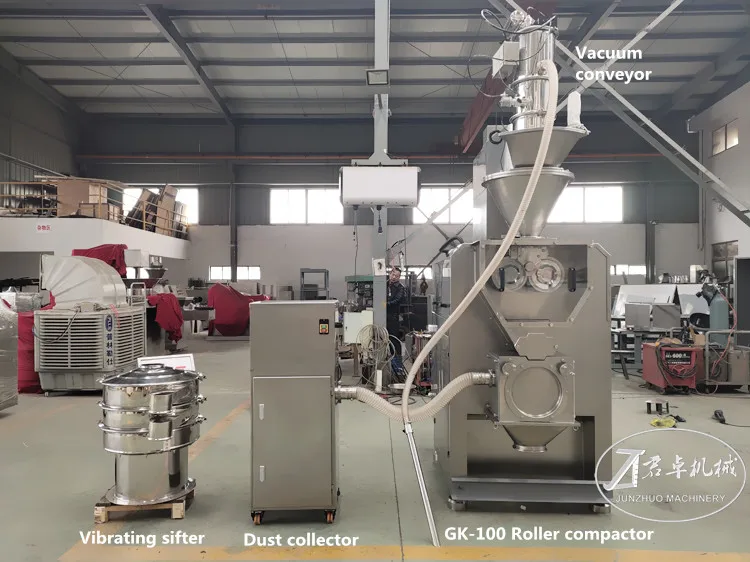

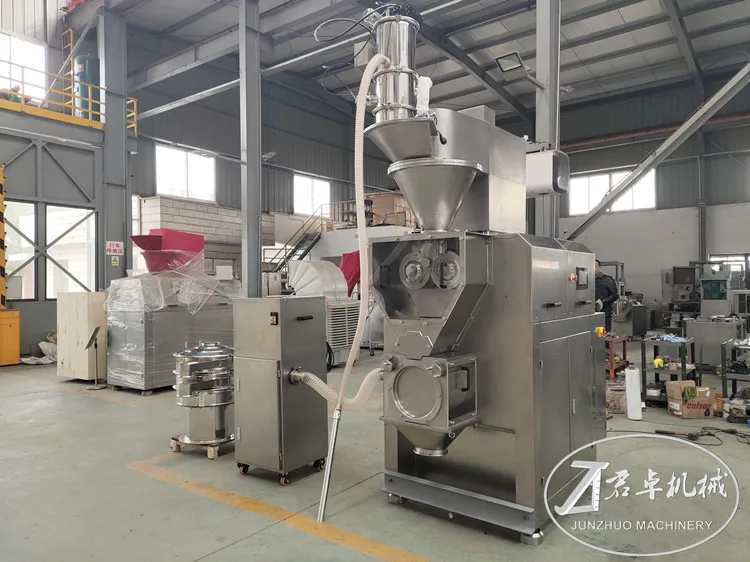

Optional:Dust collector & vibrating sifter
Gear Reducer:SEW
Stainless Steel:SS304 or 316L
Bearings optional:NSK or SKF
Motor optional:ABB or SIEMENS
Electric Device:SIEMENS or Schneider
Company Profile
Since 2008
JUNZHUO MACHINERY was set up to 2008 with the objective to develop & provide process technology offering of international standards. We keep the mission of staying committed to innovation and by consistently exceeding customer expectations, helping companies do business more efficiently and profitably. Our customers range from small family run operations to famous companies. Regardless of customer size, our philosophy for each is the same, to achieve a creative process solution that efficiently and economically meets the requirements of the application with a smiling service.
Our dry granulation system comprising of roll compactor and cone mill, wet granulation system including of oscillating granulator,basket extruder and screw granulator. All of the products have scale up capability from lab to production equipment, we make over 90% of our machine parts in-house, ensuring stringent quality control. JUNZHUO MACHINERY also provide mixing machine, crushing machine, grinding machine, sifting machine and other machines. The main motto of the company is to deliver best quality products at most economic price & excellent customer service after delivery.
Product packaging
Spare Parts
It will be packed into a wodden case, such as motor, screen sieves, O-ring and so on.
