Good Design Concentrated Photovoltaic1kw 2kw 3kw Off Grid Solar Power System Complete Solar System
- Category: >>>
- Supplier: Ningbo Cinco Solar Co. Ltd.
Share on (60710783837):
Product Overview
Description
Products Description

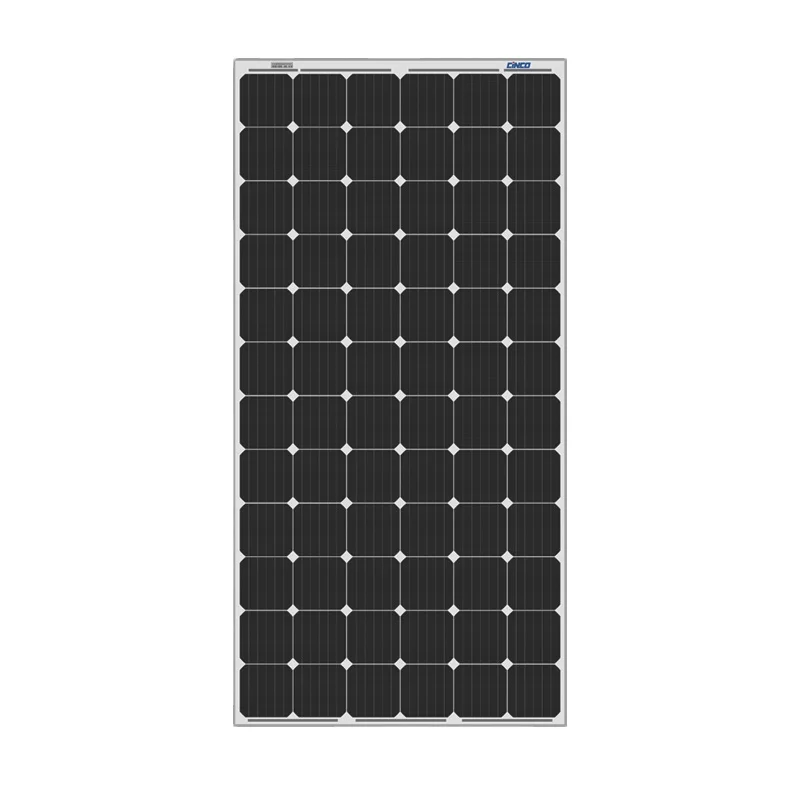

High Quality Solar Panel
Mono crystalline
Poly crystalline
1. Rigorous quality control meeting the highest international standards
2. High-transmissivity low-iron tempered glass, strong aluminium frame Using UV-resistant silicon3. Aesthetic appearance with excellent efficiency based on innovative photovoltalic technologies
4. High quality,strong aluminium frame,passing mechanical load testing 5400 Pa and wind pressure 2400Pa

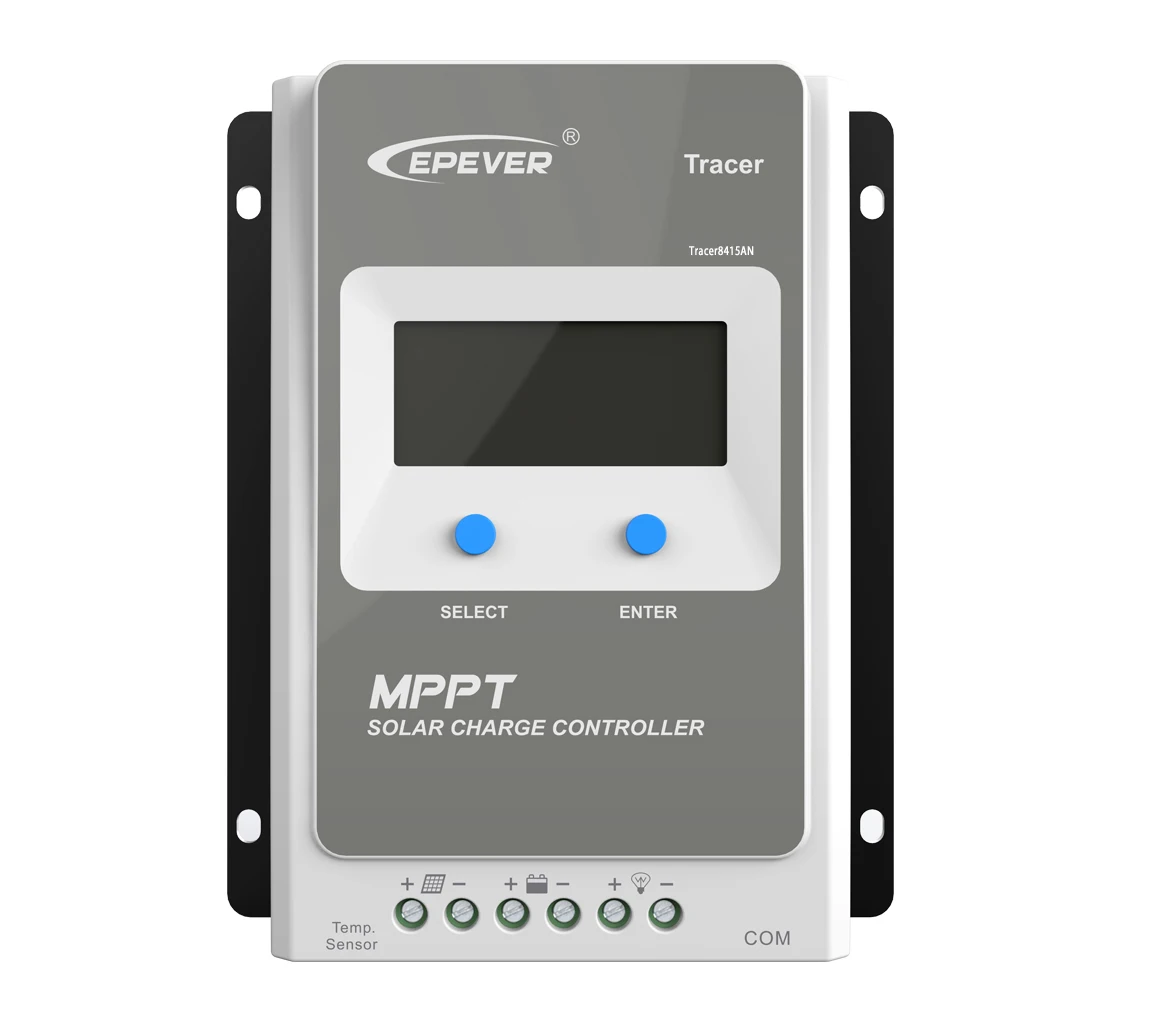

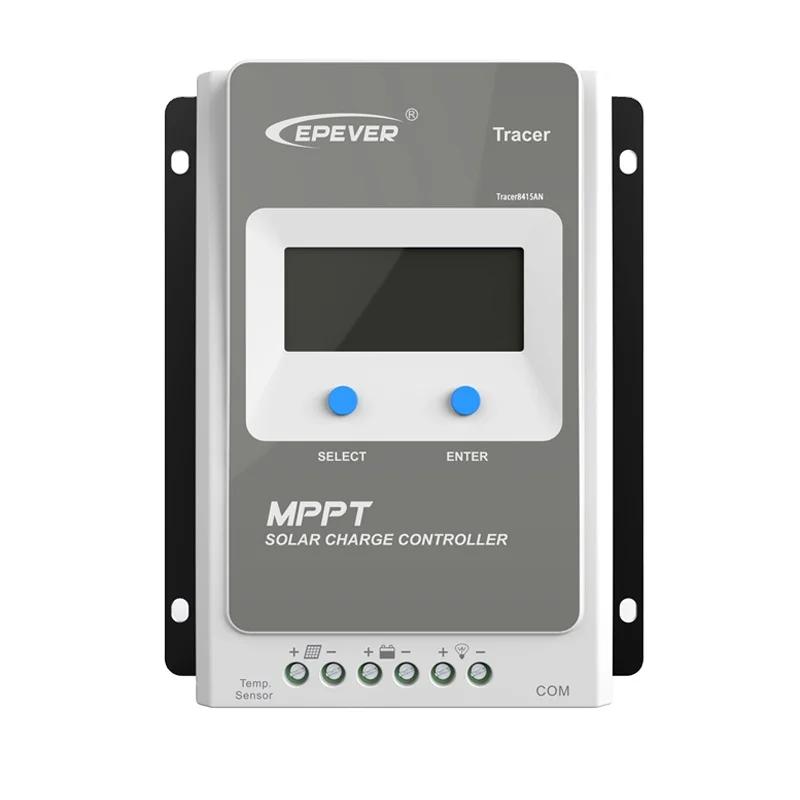

Tracer-AN series MPPT solar controller
1. MPPT tracking efficiency above 99.5%
2. Maximum charge conversion efficiency as high as 98%
3. Support lead-acid and lithium-ion batteries
4. Multiple load work modes
5. Charging power and current limitation function
6. High-temperature charging power derating function
7. Standard Modbus communication protocol with RS485 interface
8. Real-time energy statistics function
2. Maximum charge conversion efficiency as high as 98%
3. Support lead-acid and lithium-ion batteries
4. Multiple load work modes
5. Charging power and current limitation function
6. High-temperature charging power derating function
7. Standard Modbus communication protocol with RS485 interface
8. Real-time energy statistics function

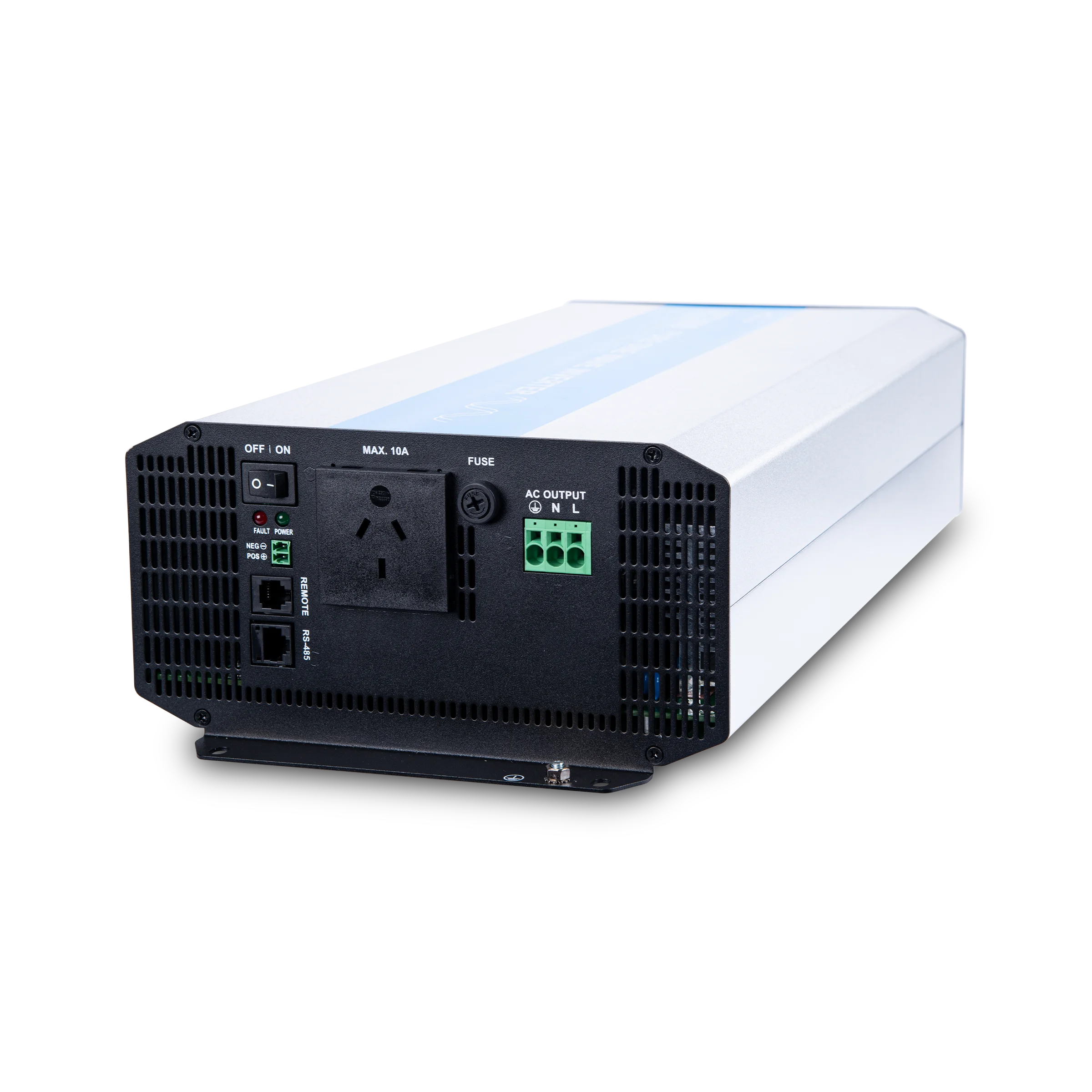

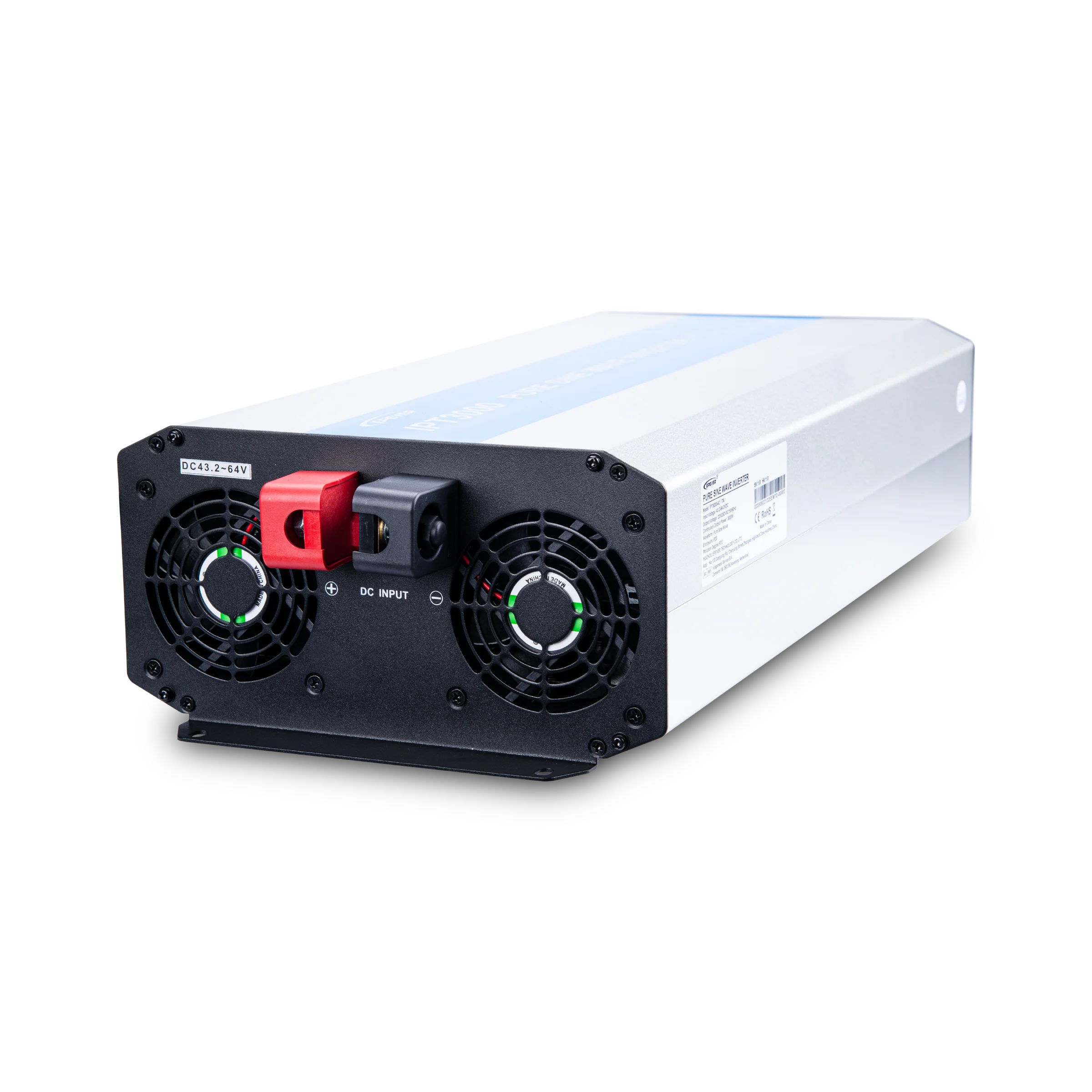

High Frequency
Pure Sine Wave Inverter
1. Pure sine wave output
2. Input to output electrical isolation
3. Output power factor up to 1
4. Input Protection: Low-voltage, Over-voltage
5. Output Protection: Overload, Short circuit, Overheating
6. RS485 com. port to realize remote monitoring
7. External switch design, matched with EPEVER products, to expand inverter control function and reduce power consumption
8. Diversified AC output sockets
9. EN/IEC62109-1/2, EN61000-6-2/4, and FCC approved
2. Input to output electrical isolation
3. Output power factor up to 1
4. Input Protection: Low-voltage, Over-voltage
5. Output Protection: Overload, Short circuit, Overheating
6. RS485 com. port to realize remote monitoring
7. External switch design, matched with EPEVER products, to expand inverter control function and reduce power consumption
8. Diversified AC output sockets
9. EN/IEC62109-1/2, EN61000-6-2/4, and FCC approved
1. High corrosion resistant performance: Pb-Ca multi-alloy grid
2. High energy density and power density
3. Optimized Capability of instant High-current Discharging
4. Excellent charge acceptance ability
5. Excellent deep cycle discharge capability
6. Strong high and low temperature performance
7. Precision sealing technology
8. Long life
2. High energy density and power density
3. Optimized Capability of instant High-current Discharging
4. Excellent charge acceptance ability
5. Excellent deep cycle discharge capability
6. Strong high and low temperature performance
7. Precision sealing technology
8. Long life

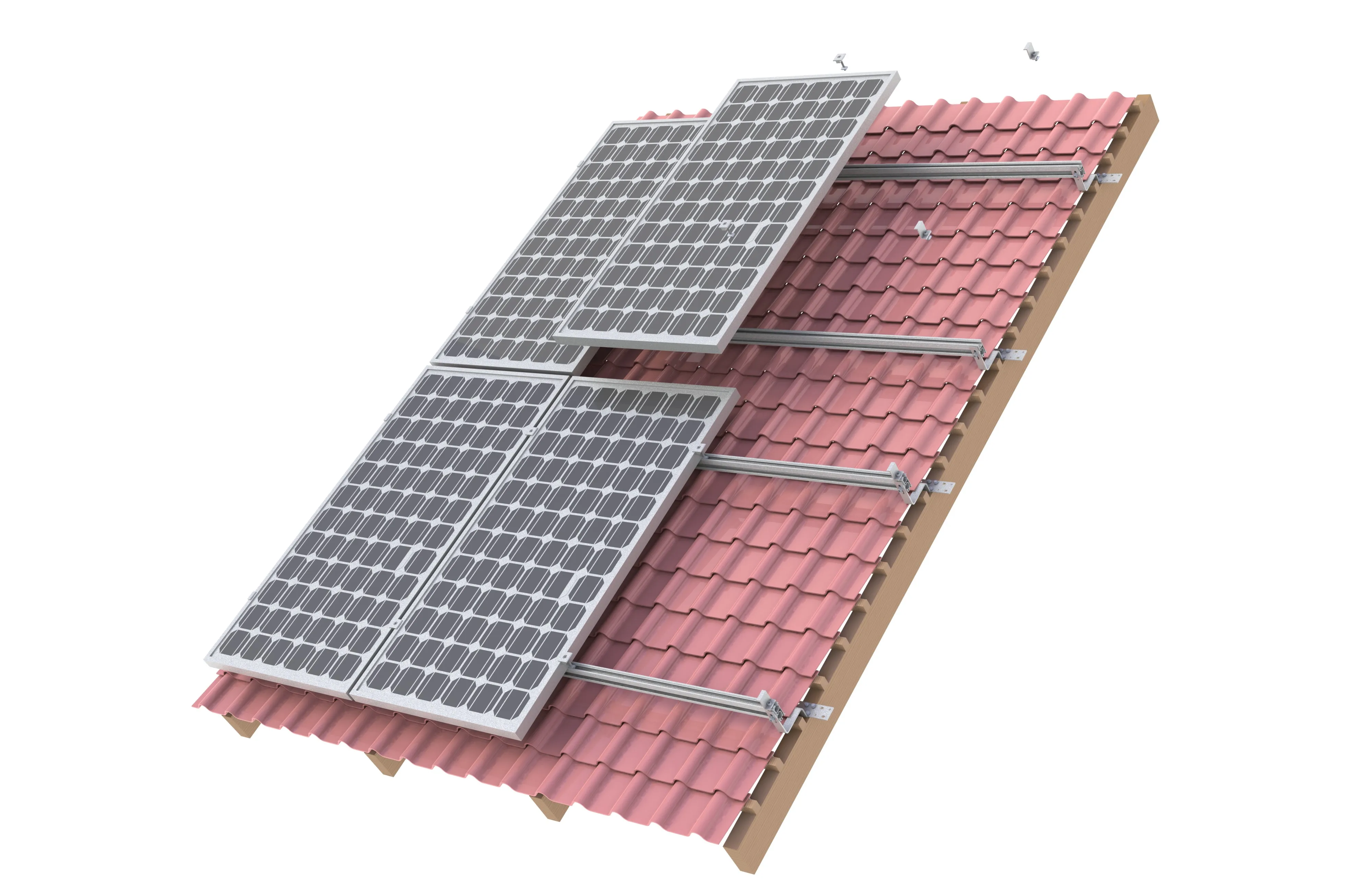

Mounting System
1. Quick assembly numerous pre-assembled parts to reduce assembly times
2. Alternate foundation options include welded plate, concrete pour, ballast, and ground screw.
3. Ultimate flexibility system allows for easy installation of framed and frameless solar modules.
4. The vertical post system vertical adjustability with no cutting or welding.
5. Systems are scalable and repeatable.
6. Solar module orientation portrait or landscape
7. Aluminum alloy frame and stainless steel accessories
2. Alternate foundation options include welded plate, concrete pour, ballast, and ground screw.
3. Ultimate flexibility system allows for easy installation of framed and frameless solar modules.
4. The vertical post system vertical adjustability with no cutting or welding.
5. Systems are scalable and repeatable.
6. Solar module orientation portrait or landscape
7. Aluminum alloy frame and stainless steel accessories
Design Solution
Item | 500W | 1KW | 2KW | 3KW | ||||
150-200W*1units 36cell Mono | 200W*2units 36cell Mono | 200W*4units 36cell Mono | 450W*4units 36cell Mono | |||||
MPPT Solar Controller | 12V24V 20A MPPT solar controller | 12V24V 20A MPPT solar controller | 12V24V 30A MPPT solar controller | 48V 30A MPPT solar controller | ||||
Power Inverter | 12Vac-120/230Vac 500W Power inverter | 24Vac-120/230Vac 1000W Power inverter | 24Vac-120/230Vac 2000W Power inverter | 48Vac-120/230Vac 3000W Power inverter | ||||
12V 55AH*1units GEL or Lithium Battery | 12V 100AH*2units GEL or Lithium Battery | 12V 200AH*2units GEL or Lithium Battery | 12V 200AH*4units GEL Battery | |||||
*1sets Ground or Roof type | *1sets Ground or Roof type | *1sets Ground or Roof type | *1sets Ground or Roof type | |||||
1. Optional accessories: Combiner box, photovoltaic cable, battery connection cable, battery bracket ect. 2. According to user needs that can be flexibly use 60cell or 72cell monocrystalline polycrystalline solar panels. | ||||||||
Product packaging
Customer Photos
Norway--Solar Tracking System
Saudi Arabia-Wind Solar Hybrid System
Hungary-Off Grid Solar System
Panama-Off Grid Solar System
South Africa-Energy Storage System
China-On Grid Solar System
USA-Grid Tied Solar System
Indonesia-Rooftop Solar Power Station
Ukraine-On Grid Solar System
UK-Ground Solar Power Station
