ACME Popular 100W Fiber Laser Marker Equipment Laser Marking Machine

Product Overview

Description

20W Fiber Laser Marking Machine



I.        Advantage of Acme Fiber Laser Marker

Whether you're looking to mark metal with barcodes, logos, and serial numbers, or you're personalizing metal items such as watches, jewelry, and medals, an Acme Fiber Laser system has the features to help you accomplish your goals. They are ideal when your laser marking requires depth (etching or engraving) onto harder metals or when you need higher powered systems with a smaller spot size for the highest resolution. The high beam quality and small spot sizes with larger lenses allows it to be used for smaller component batch marking applications or the cutting of very thin metals. The Fiber Laser Marking Laser Series is virtually maintenance free, comes with an industry leading warranty, and Acme Laser’s world class support.



II.       details

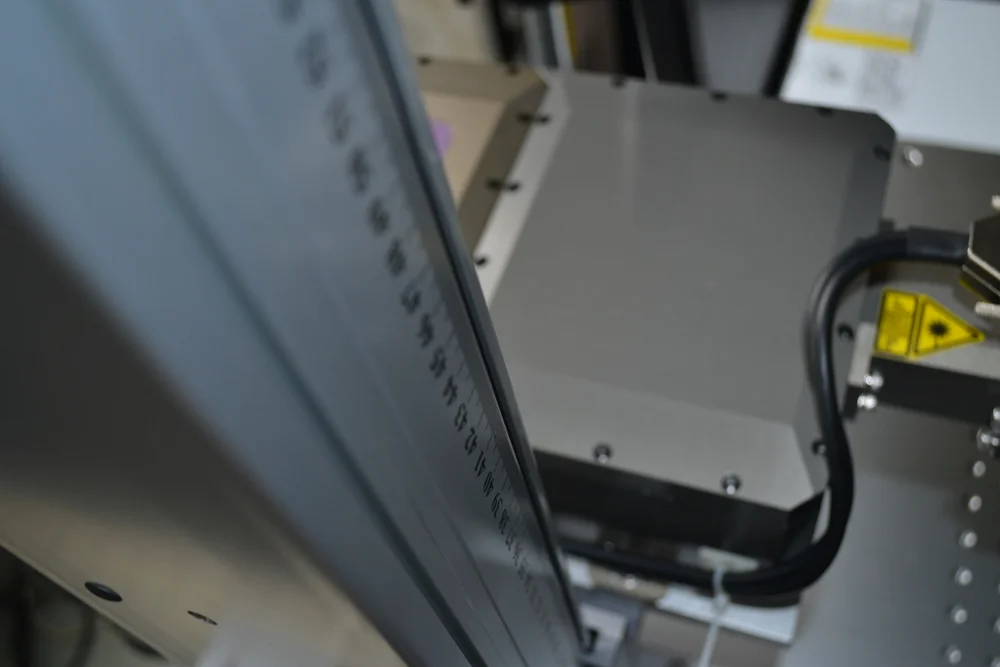

			Lift Switch with marking ruler

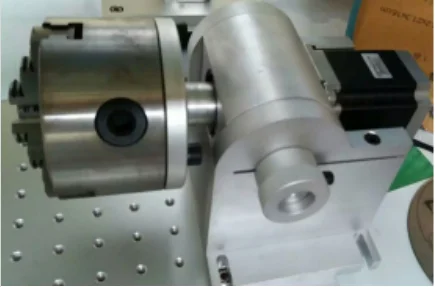

Rotary attachment available

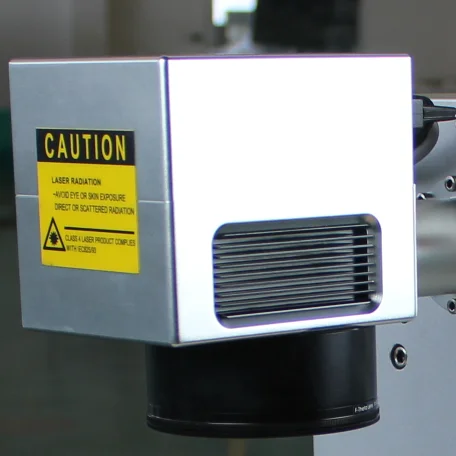

		High speed galvo head with T-theta Lens







III.     Specifications

Machine Type	Fiber Laser Marker
Laser Source	IPG, Germany brand
	Raycus, best in China
Output Power	10w/20w/30w/50w
Wavelength	1064nm
Beam Quality	<2
Repeat Frequency	10khz— 100khz
Pulse Energy	2mJ
Beam Divergence	-0.3 to +0.3mrad
Laser Class	IV
Marking Scope	110mmx 110mm
Linear Speed	800 character/ s
Marking Linear Speed	≤12,000mm/s
Marking Depth	Max. 1.0- 1.5mm (hard steel)
Min. Line Width	0.01mm
Min. Character Size	0.15mm
Repeat Accuracy	±0.003mm
Cooling system	Air cooling
Packing Size	860*750*1180mm

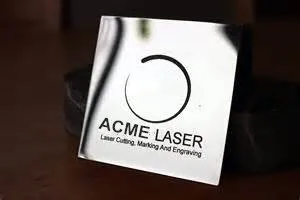

IV.    samples
