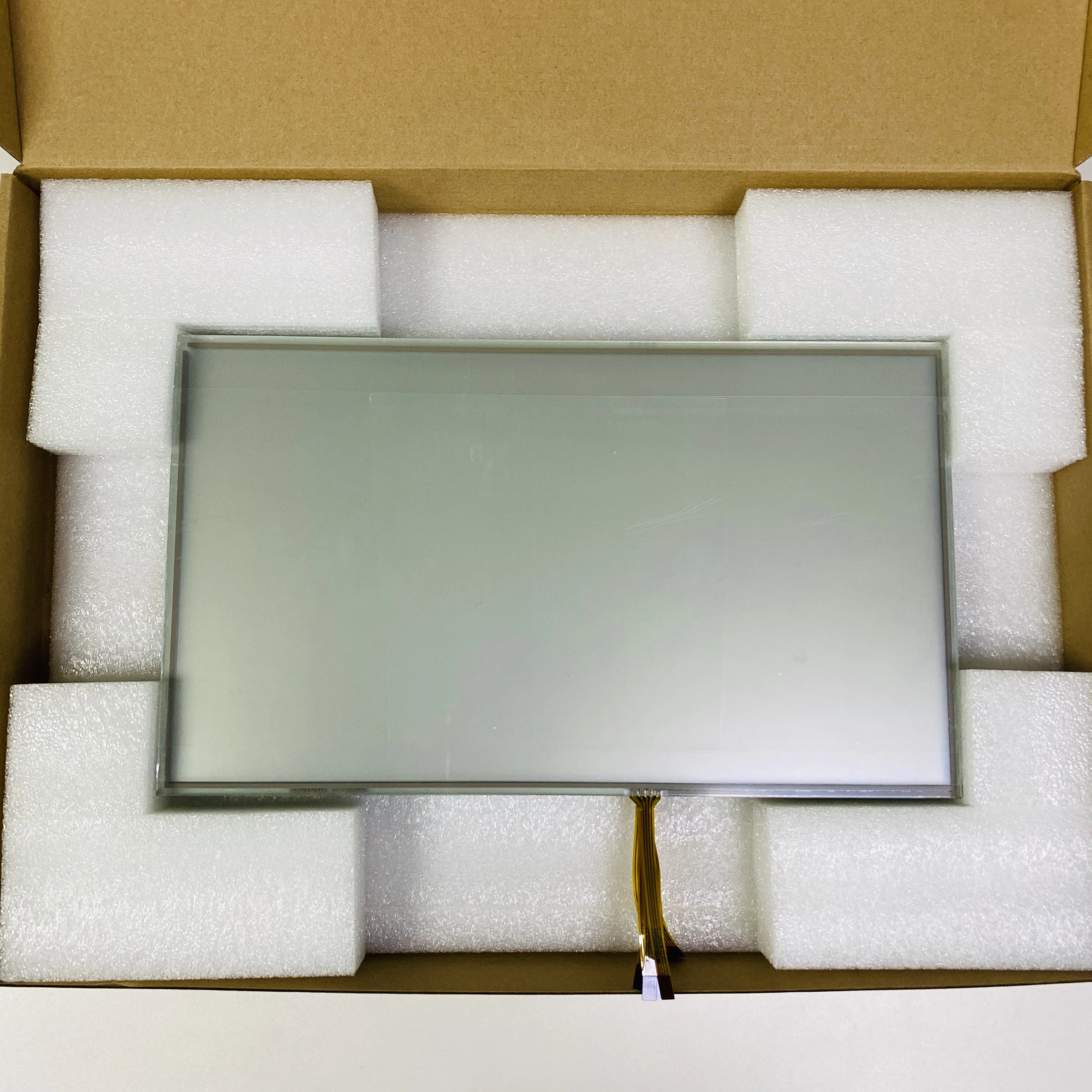

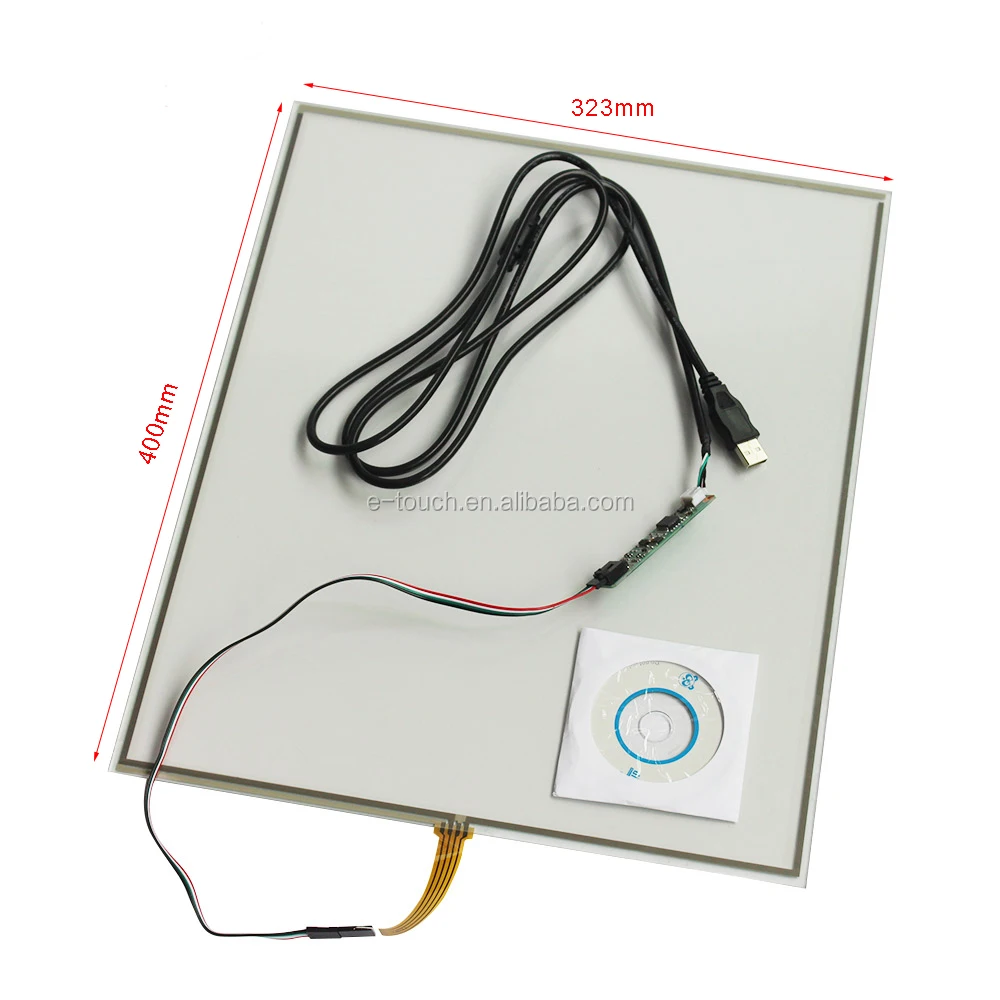

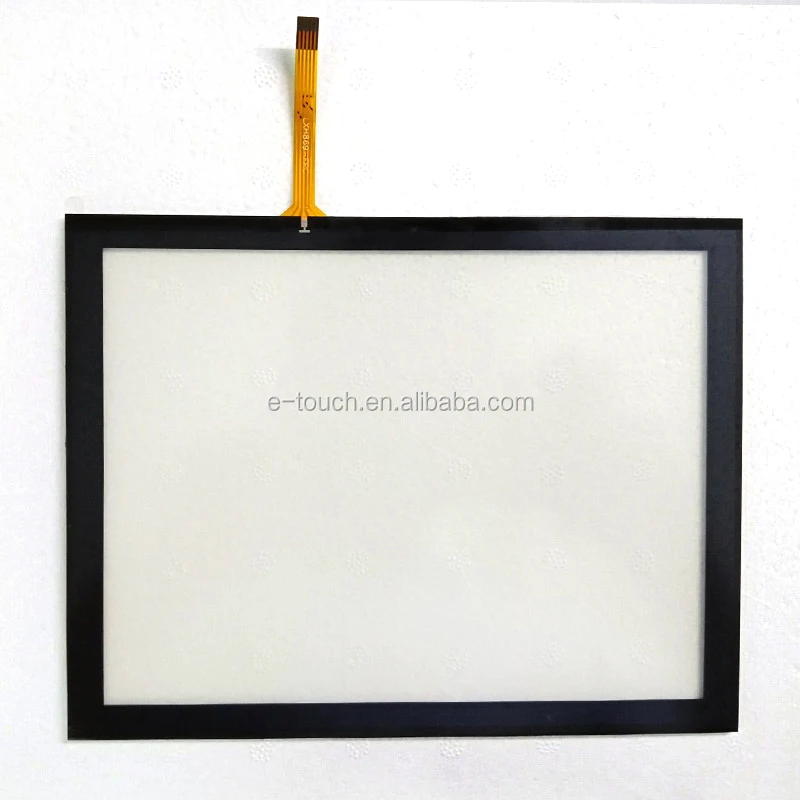

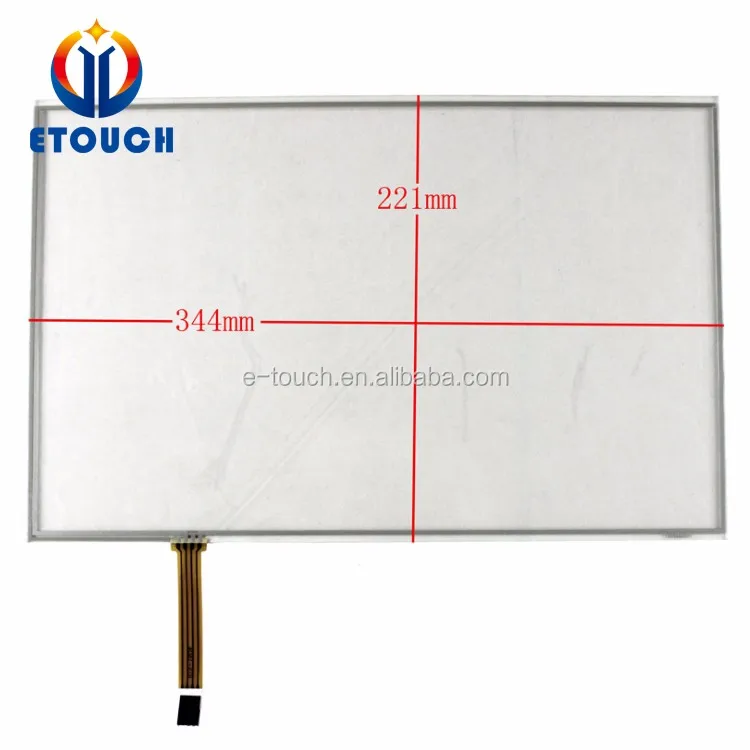

custom made 4 wire Resistive industrial touch screen panel
- Category: Touch Screen Monitors >>>
- Supplier: Etouch Technology Co. Limited
Share on (60710812683):
Product Overview
Description
Product Description
Specification: | ||
Item | Resistive Touch Screen | |
Dimensions | From 2'' to 24'' | |
Thickness | 1.8mm or customize | |
Conductive Glass Thickness | ITO 0.7mm, 1.1mm or 1.8mm, 2.0mm | |
Conductive Film | 188 μm | |
Structure | Conductive film, ITO film | |
Insulation Distance | 3 * 3mm | |
Connector | FPC, flexible printed circuit | |
Electrical Performance | ||
Loop Resistance | 50~300Ω | |
Linearity | ≤1.5% | |
Insulation Resistance | ≥10MΩ, @25V (DC) | |
Maximum Operation Voltage | 5V (DC), 1mA | |
Chattering Time | ≤15ms | |
Response Time | ≤20ms (from the touch moment to response) | |
Mechanical Behavior | ||
Input Method | Pen or Finger | |
Operation Force | OD 2mm pen within 60g~150g pressure | |
Surface Hardness | 3H | |
Transparency | 83 ± 3% @550nm wave length | |
Environmental | ||
Operation Temp | -10~60°C | |
Storage Temp | -20~70°C | |
Resistive Lifetime for Single Point | > 1,000,000 times | |
4 wire resistive touch panel product advantages
1) high precision, fast response
2) HD resolution
3) USB port, touch a correction, high stability, and never drift
4) Touch intensity, high sensitivity, touch-free drift
5) can withstand more than 1 million times touch Click
6) You can use a pen, finger, gloved hand, and many other media touch touch
7) can be adapted to harsh environments, such as splashing drops of water flow down, etc.
8) supports single touch point, one-time calibration
Our Company
ETouch Technology Co., Ltd (ETouch) was established in 2008, is a professional manufacturer on design, production and sales of capacitive and resistive touch screen , LCD lamination, membrane switch, PCB keypad, rubber keypad, FPC keypad, acrylic lens, overlays and other technology products . We mainly for industrial control, car navigation, household appliances, medical equipment , human-machine-Interface system, POS , bank system, gaming, etc . Our factory is near by the beautiful scenery of the Songshan Lake, and the existing plant area is more over 7000 square meters.
We have two factories, have office in Shenzhen and HK , because of the business growing, we are ready to build a new big factory in Yunnan province, it is about 17000 square meters for touch screens. ETouch make determined efforts to improve quality by developing new products and technologies , so that to win the domestic and foreign customer’s trust and praise.
We have two factories, have office in Shenzhen and HK , because of the business growing, we are ready to build a new big factory in Yunnan province, it is about 17000 square meters for touch screens. ETouch make determined efforts to improve quality by developing new products and technologies , so that to win the domestic and foreign customer’s trust and praise.
Main Products
LCD&LCM Display: Design, Manufacturing LCD&LCM (TN, STN, CSTN, TFT); OEM Service for COG, TAB & COB LCD Modules.
Electronic & Mechanical Design : MCU Software & Hardware Design and Manufacturing ; Mechanical Parts Design & Manufacturing , Molding, Plastic Injection; FPC/PCB Design & Manufacturing , Product Development
IC Stocking : Supply Brand Name IC; Specialized on Supply Obsolete, Hard to find, Shortage, Military, Industrial, Commercial IC; Connectors and Various Electronic Components.
