Best price small 500ml PP PE plastic drum automatic extrusion blowing machine
Best price small 500ml PP PE plastic drum automatic extrusion blowing machine
Best price small 500ml PP PE plastic drum automatic extrusion blowing machine
Best price small 500ml PP PE plastic drum automatic extrusion blowing machine
Best price small 500ml PP PE plastic drum automatic extrusion blowing machine

Best price small 500ml PP PE plastic drum automatic extrusion blowing machine

Share on (60710817277):


Price:

Quantity:


Product Overview

Description

Product Description

Product Application

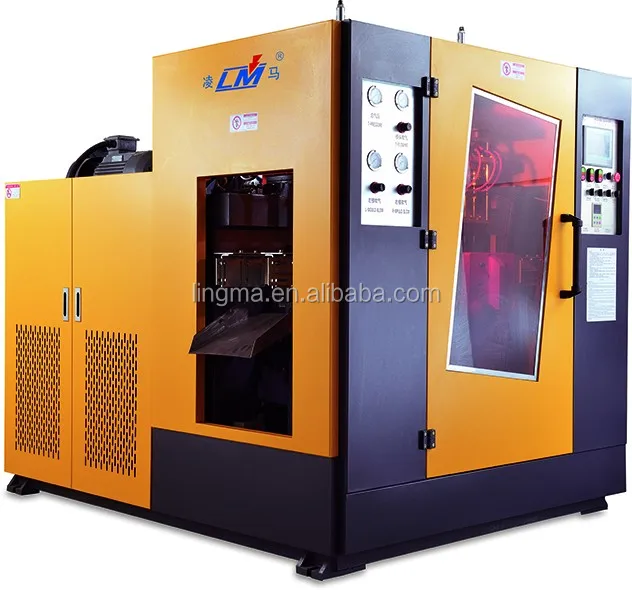

QCM-50 series machine adapt the three guide liner axis, powerful mould locking system, make sure that the product good finfishing under pressure. SEIMENS interface touch screen including: craftwork seting, adjusting, monitor, and warming system and so on, SEIMENS editable PLC programme for different kind of product, famous brand electric components which have CE ,CCC certificate, Japan YUKEN flow and pressure proportional control system, make sure that action stablely, orientation exactly, frequency transducer keep the material pipe equal and stable.

1.Usage:
The machine is single station with single die head, which is specially designed for 2L as maximum volume,suitable for HDPE,PE,PP,PVC,PETG and other materials for blow moulding.

2.Application:

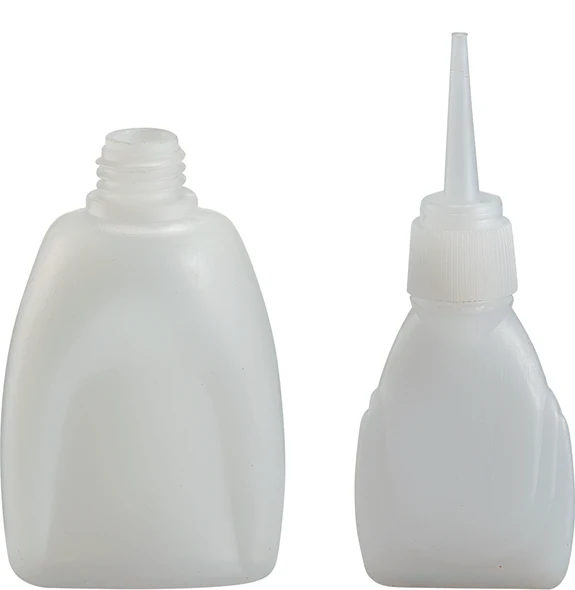

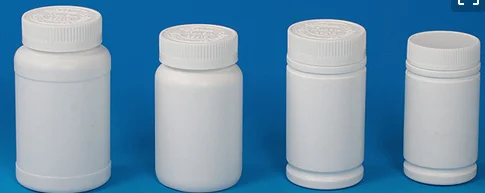

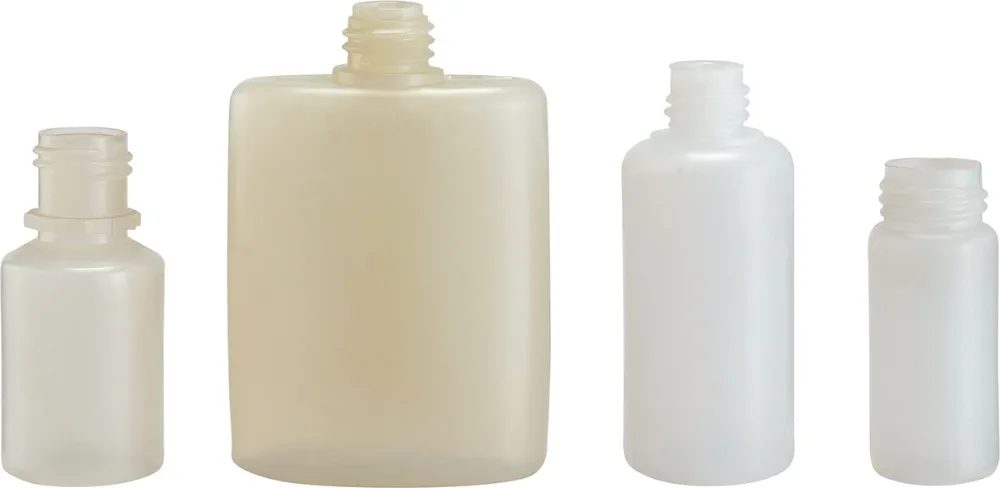

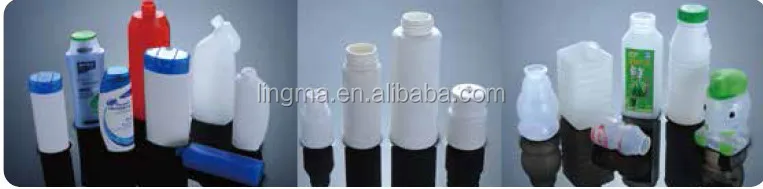

It is widely used for producing toys,bottles,jerry cans,kettles,milk tanks,etc.


Specifications For QCM-50



Specifications
Material
PE/PP/PVC/PA
Number of die
1.2,3,4
Max. container capacity
0.5L
Machine dimension
2.24*1.58*2m
Total weight
2.7Ton



Clamping Unit
Clamping force
30KN
Platen opening storke
120~270mm
Stroke of mould board
150mm
Max. mould size
320*180mm
Mould thickness
120~160mm




EXtruder UNit
Screw diameter
50mm
Screw L/D ratio
24
Plasticizing capacity
30kg/h
Number of heating zone
3
Screw heating power
4.5Kw
Power of screw-bar machine
0.21Kw
Extruder driving power
7.5Kw


Machine Head
Number of heating zone
2
Power of die heating
1.8~2.5Kw
Max. die-pin diameter
60mm


Energy-consumption
General power
18~20Kw
Power of die heating
1.8~2.5Kw
Air pressure
0.6~0.8Mpa
Average energy consumpation
12.5Kw
Certifications
Detailed Images

Machine feature:

High speed

High efficiency

High energy-saving

High precision

High stability

1. More than 20 years’ professional experience in plastic machine industry.

2. Fast delivery: Reply the mail and take action in 24 hour. Strict quality control system and after-sales service. 1 year warranty .During warranty, we provide free of charge for repairing cost. Lifetime maintenance. After-sales department can provide life time maintenance service.

3. Our price is competitive factory price.


4. Our products are sold to South America/North America/Mid-east etc.

5. We have our own design department and can OEM as your requirement.
We can help you to design the product line , workshop and provide turn-key project.

6. We will offer our technician for overseas bottle making machine installation and training service.
We can also provide our Sales as translator to your site help the installation and Training.
Only to provide the local transportation, accommodation, air tickets (round trip) for Sales will be fine.

Our Company

Zhejiang Lingma Plastic Machine Co.Ltd is one of the earliestly-established company specializing in production and researching of plastic molding machine and plastic molds with the strength of CE and ISO.

Founded in 1994, the company has all kinds of advanced automatic mechanical processing equipment and has a group pf team-spirit and experienced service technicians providing high quality and satisfactory services for customers at any time.Meanwhile,the company long-term cooperated and communicated with famous research institutes at home and abroad and imported the most advanced technologies Europe and America to keep product technology at the same pace with the world level.

Lingma produces the QCM series fully automatic hollow molding machines and QCL series two stage reheat stretch blow molding machine for PET bottle have not only been sold all over China, but sold to overseas markets in southeast Asia, Middle East, Africa,Europe, South America,etc.Accordingly, Lingma brand has enjoyed the good reputation in and out of China.

Our company will constantly adhere to business philosophy to create maximum profits for customers and to seek maximum welfare for working staff, with great potential to grow and with business objectives to achieve.Finally,Lingma hopes to create a brilliant future with you.

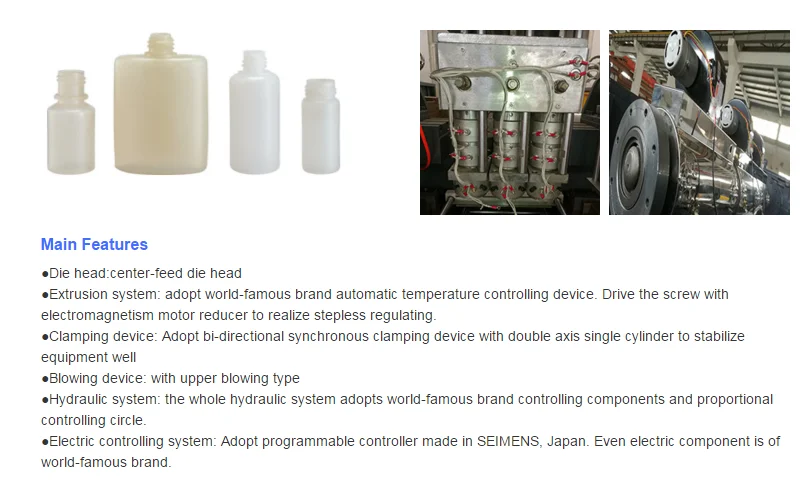

Machine Features
Our Service

Installation service
When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.


The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our factory,and see the machine running.

Customized service
1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly

2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.

3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

4.We provide one year warranty

5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese

6 .24 hours for engineer response (all services part 5days in customer hand by Intl' courier).

7 .12 Months guarantee and life-long technical support.

8.Your business relationship with us will be confidential to any third party.

9. Good after-sale service offered, please get back to us if you got any questions.

Quality Control

We have the single quality department,that make sure the material of the raw materials is good,and ensure the machine running smoothly.

1.Any inquires will be replied in the first time.

2.High quality products, competitive price, fast lead time.

3.Our sales staff will be have a good communication with you ,let you fully understand the situation of our enterprises and products.

4.We will provide high quality overseas service ,our technical staff will be able to provide you with technical support ,for you personally to overseas assembly and test equipment.

5.Our customer service staff will put your feedback to the technical staff in the first time, timely solve your problem.

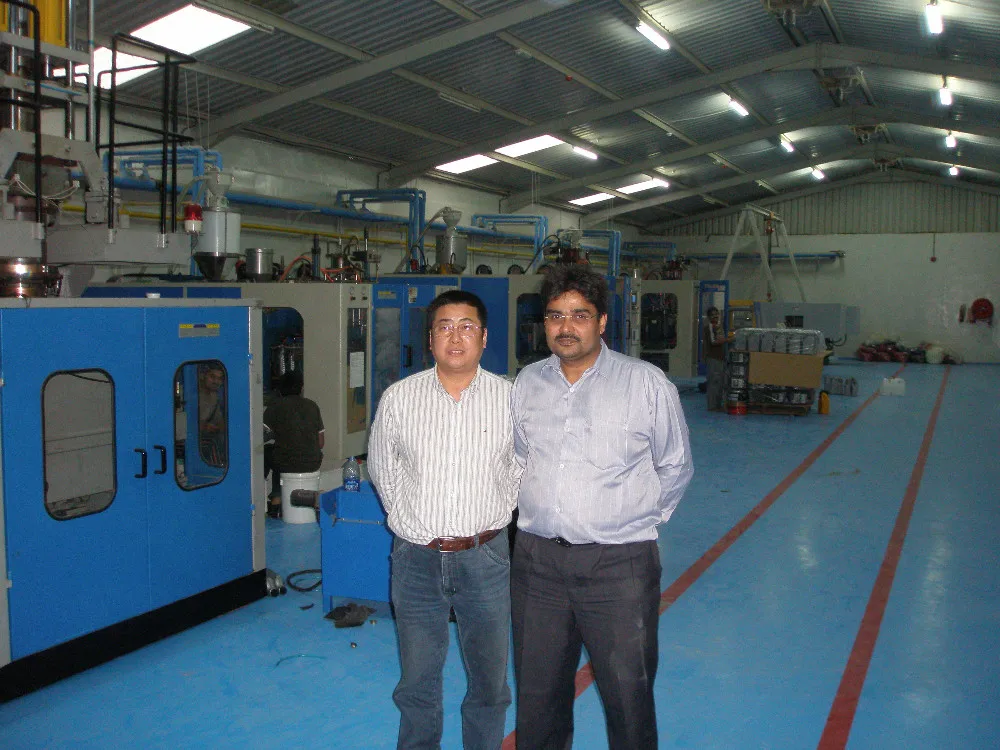

Our Customers

Dearest customers,

In order to save your time and make our business easier. pls write the follows question's anwser in the inqury, or just chat with me online, thanks a lot !

1.what's your ideal bottle shape? (sample picture would be very helpful!)

2.How many kinds of bottle you have? (different bottle size and shape need change the mould.)

3.What's the weight of pe bottle? (we need know it to calculate the capacity for you)
