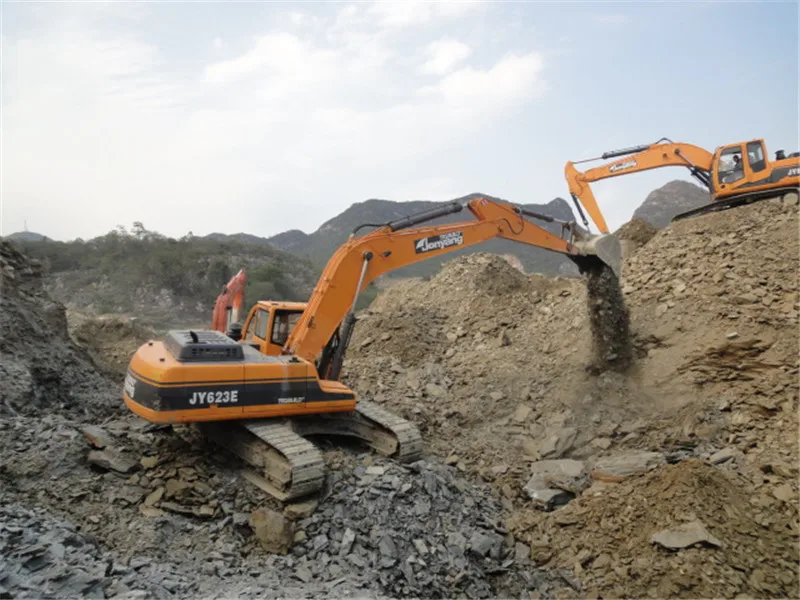

construction equipment 20t excavator factory supply JY623E long boom/long arm/long reach hydraulic digger machine for sale
Product Description

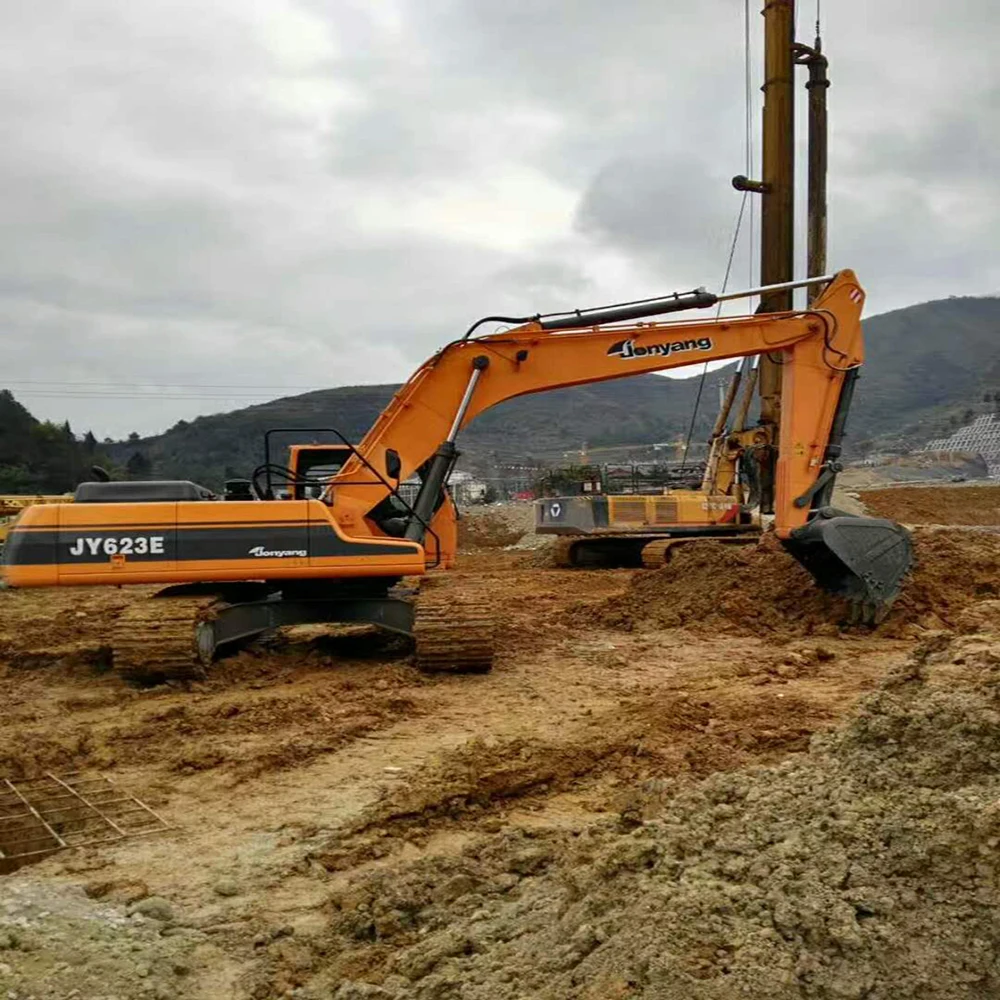

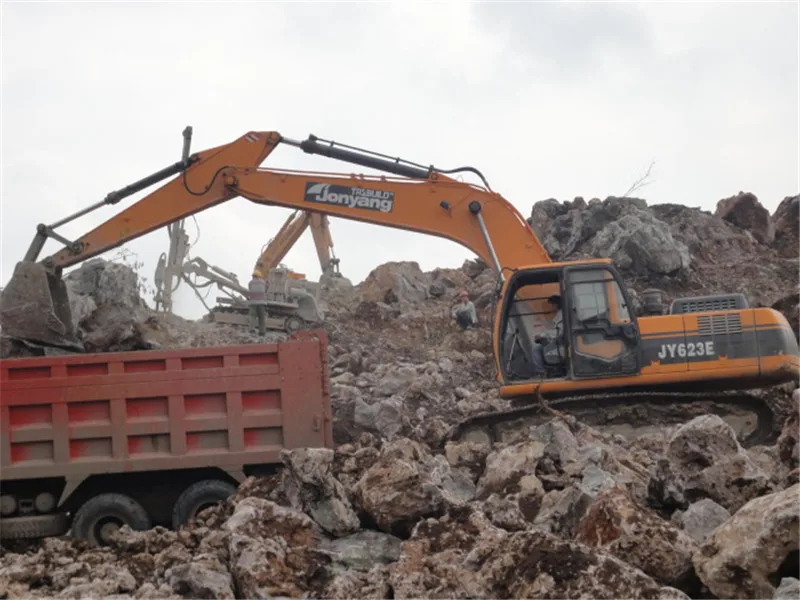

JY623E crawler hydraulic digger machine,with key components from famous international manufactures,combined with high-level hydraulic technology,machine technology,Mechanical and electrical integration technology. It provides the most efficient and reliable performance.The machine can be used for hydro-electric projects, mining, road construction, airport and port construction, urban construction, pipeline laying,etc.
 |
1.Jonyang, the father of Chinese wheeled hydraulic excavator. 2.Jonyang is the birthplace of the first Chinese wheeled hydraulic excavator. 3.Jonyang obtained the quality management system cetificate of ISO9001:2008. |
 |

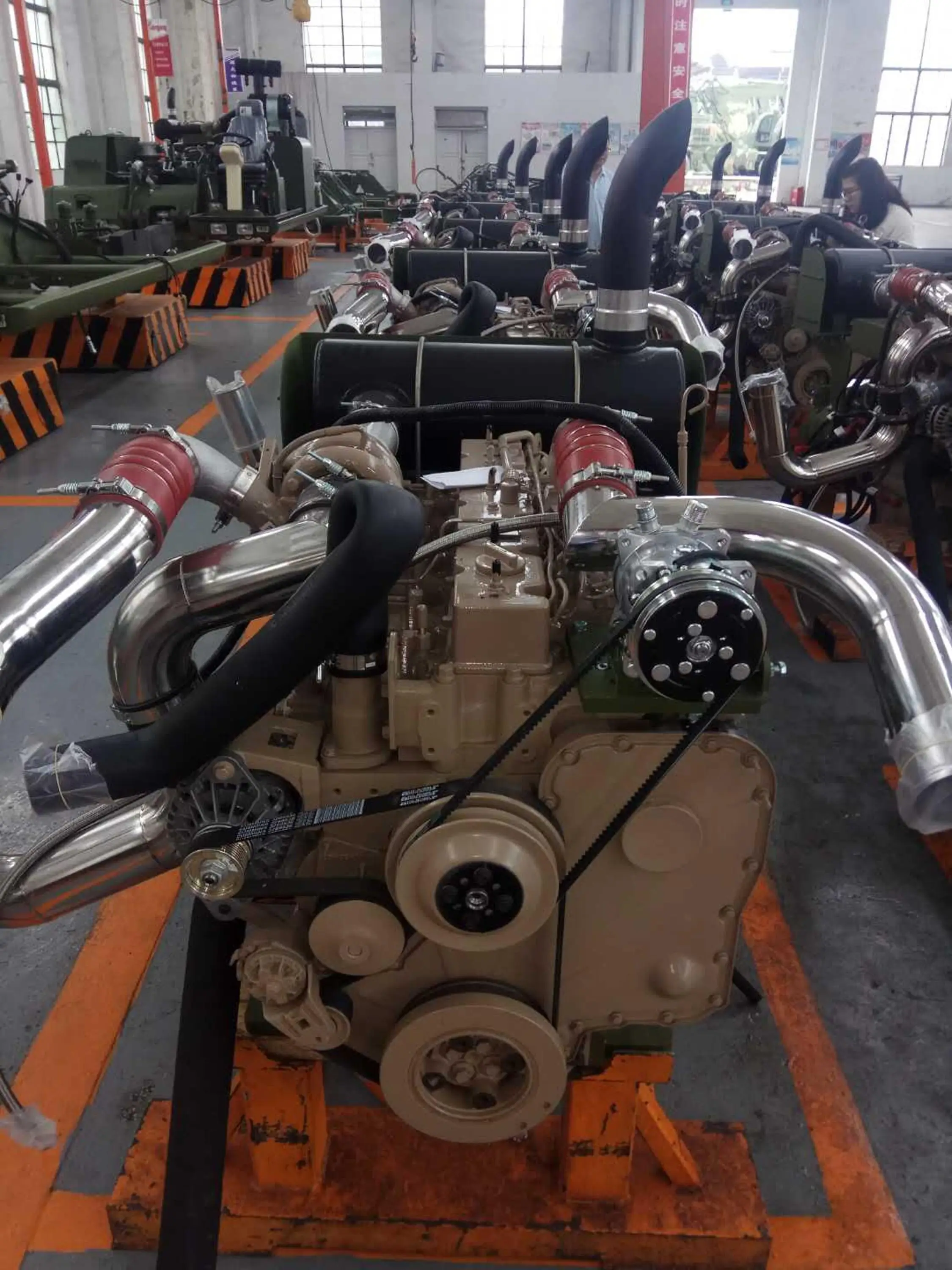

1.Jonyang use imported Cummins engine. High torque,133kw engine power ,provide enough power and the best torque output. |
 |
1.The slewing speed is 13r/min, which helps improve your work efficiency. 2.65% grade climbing capacity, and the 4.6km/h travling speed make sure high efficiency work. 3.you can decide the colorexcavator`s color, we can provide you the best service.
|
 |  |

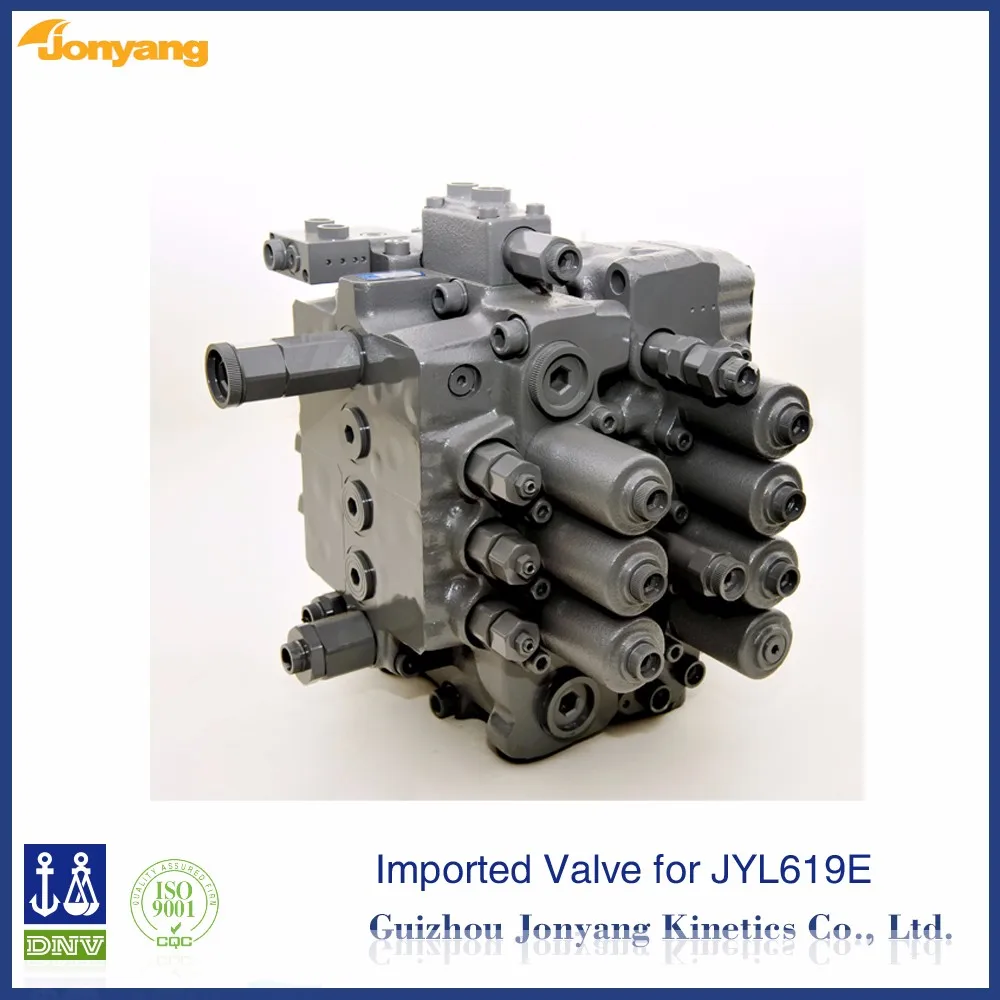

| Jonyang uses impoerted Kawasaki original hydraulic component provide the driver the comfortable operation and precise operability. | Superior stability,rational machine structure, solid working device ensure long-term stable operation of Jonyang excavator. |
 |  |

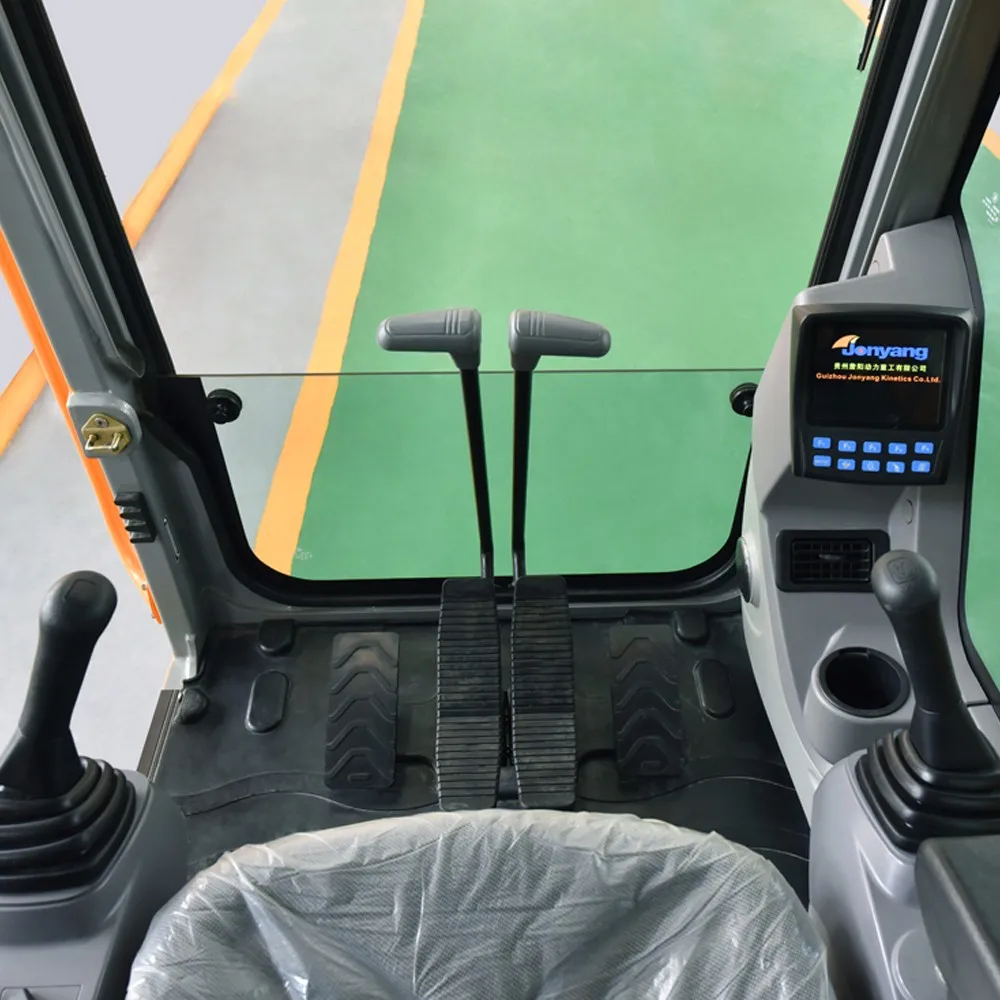

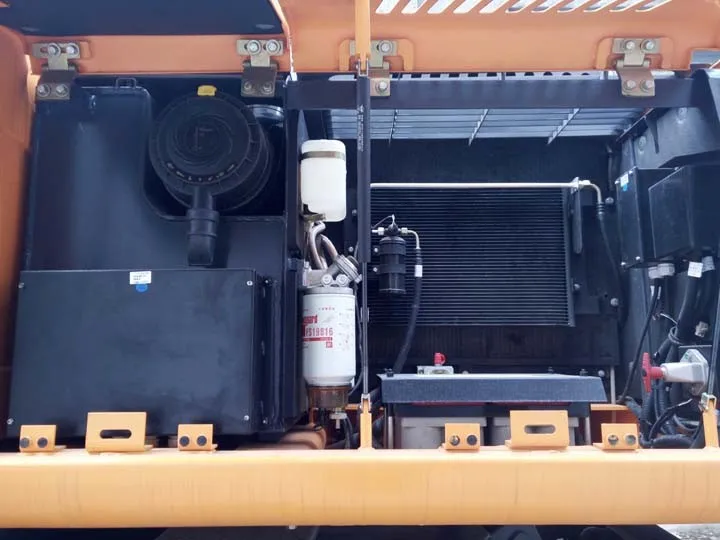

1. Steering rack is adjustable. 2.The seat is adjustable. 3.front windshield is adjustable. | Humanized maintenance, rational design, easy to maintain. |
Specifications
Main specification
| Operating weight | 23t |
| Standard capacity | 0.55m3 |
| Diesel engine manufacturer | Cummins |
| Engine model | B-5.9C |
| Engine power | 133/2000kw/r/min |
| Hydraulic flow rate | 2*260L/min |
| Hydraulic pressure | 32Mpa |
| Travelling speed | 4.6km/h |
| Slewing speed | 13r/min |
| Stick digging force | 50kN |
| Bucket digging force | 64kN |
| Grade climbing capacity | 65% |
Operating scope
| Stick length | 5200mm |
| Maximum cutting height | 12200mm |
| Maximum dumping height | 9670mm |
| Maximum digging depth | 11600mm |
| Maximum reach | 15000mm |
Dimensions
| Overall length | 12920mm |
| Overall width | 3000mm |
| Overall height of boom | 3830mm |
| Overall height of cab | 2930mm |
| Engine cover height | 2350mm |
| Counterweight clearance | 1090mm |
| Ground clearance | 465mm |
| Upperstructure width | 2710mm |
| Swing radius | 2990mm |
| Overall track length | 4530mm |
| Track length on ground | 3740mm |
| Gauge width | 2400mm |
| Track width | 600mm |
| Ground pressure | 0.48Mpa |
Company Information
 |  |  |

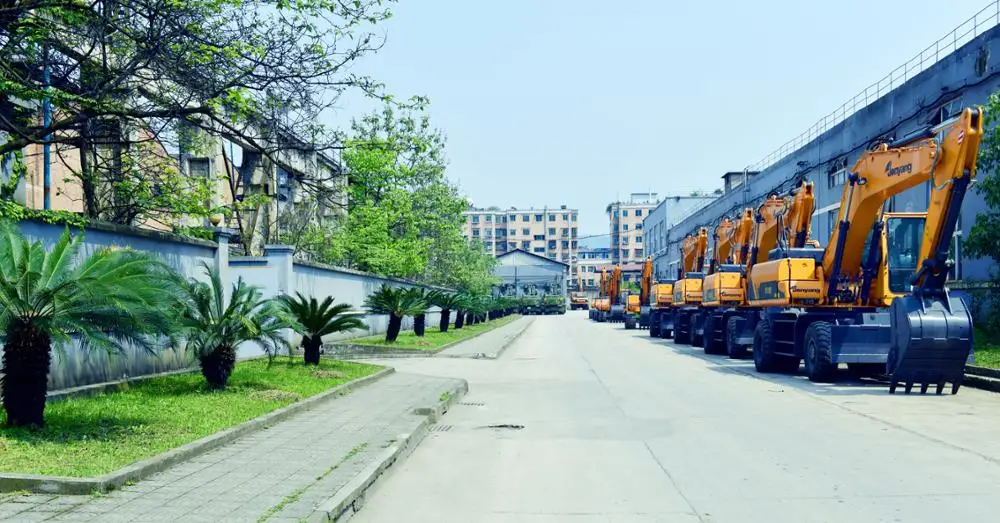

| Guizhou Jonyang Kinetics Co., Ltd. is a world leading company with more than 40 years’ experience in designing and manufacturing hydraulic excavators and special vehicles. For China, Jonyang is the birthplace of the first wheeled hydraulic excavator; Jonyang is the maker of the first scientific expedition machine landed on the South Pole; It is a supplier with high ability in research &development, manufacturing, sales and service for advanced special engineering vehicles. | ||
Certification
 |  |  |
Our Services
| Pre-Sales Service | After-Sales Service |
| *Inquiry and consulting support | *Training how to instal the machine,training how to use the machine |
| *View our Factory | *Engineers available to service machinery overseas |
FAQ
1: What kind terms of payment can be accepted?
For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2:What are we advantages compared with other factories?
-Competitive price
-Quick response
-Fast delivery
3:Which incoterms can we work?
We normally work on FOB,CFR,CIF,EXW.
4:What logistics ways we can work for shippment?
We can ship the machine by various transportation tools:by sea by road or railway.
