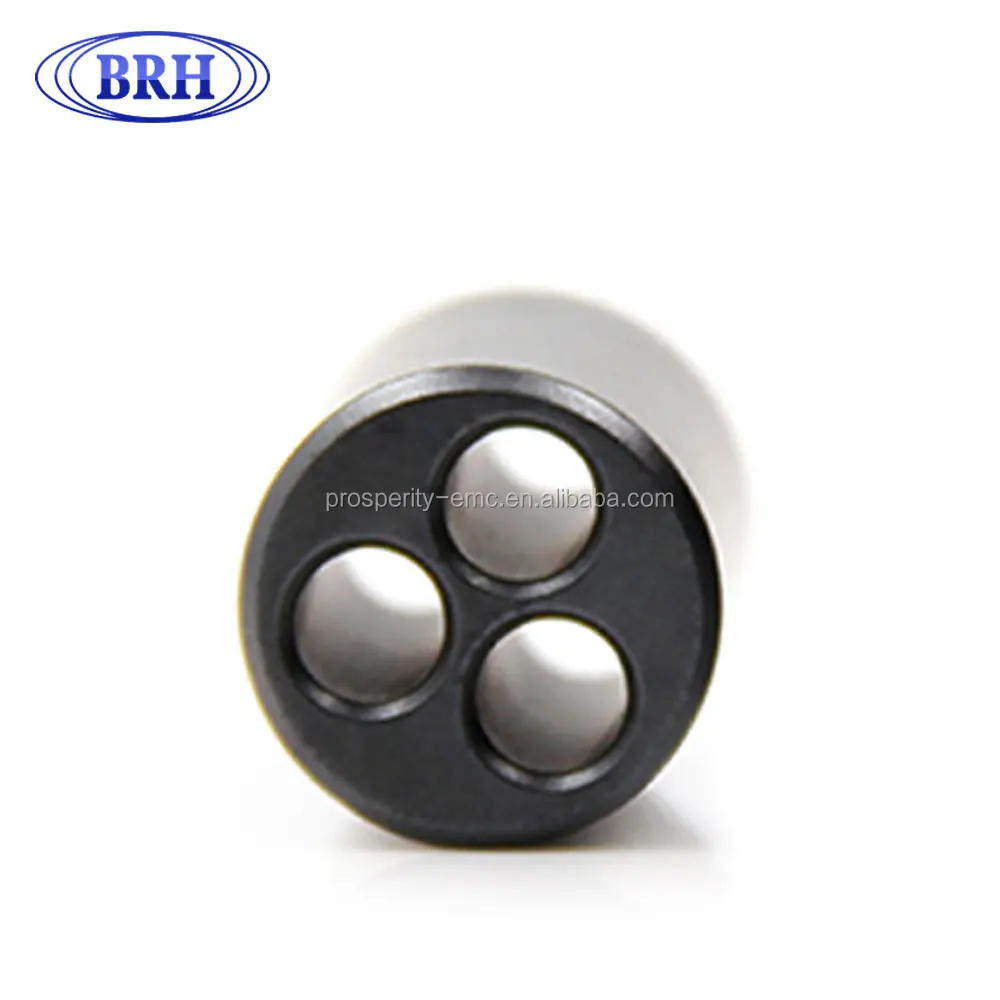

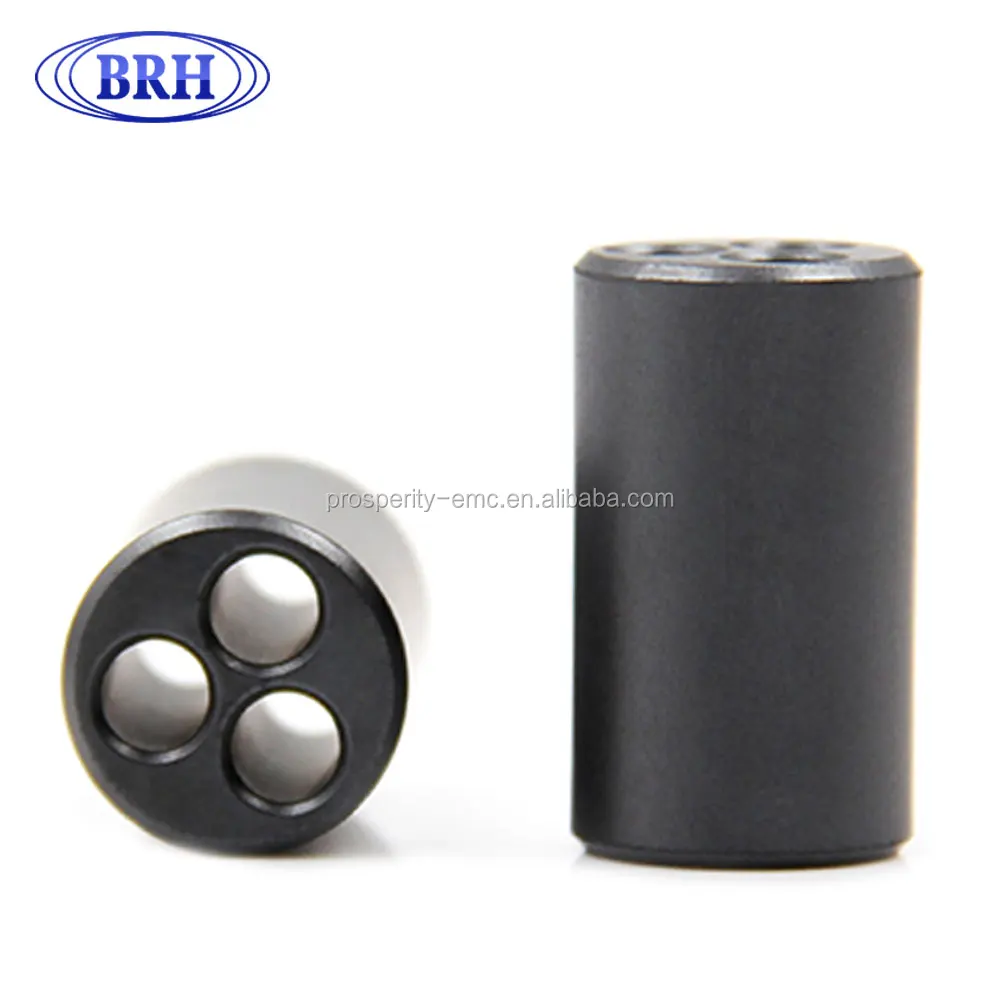

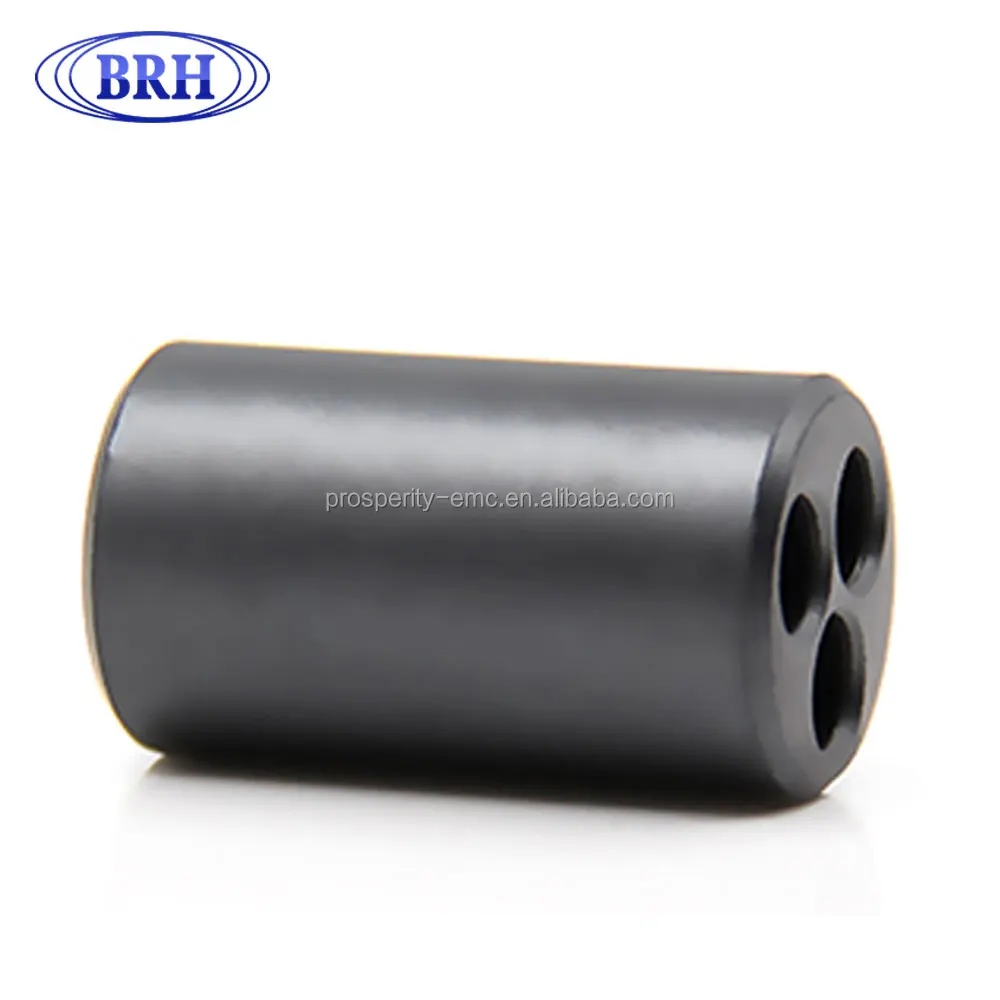

High permeability ferrite toroid core for round cable
High permeability ferrite toroid core for round cable
High permeability ferrite toroid core for round cable
High permeability ferrite toroid core for round cable
High permeability ferrite toroid core for round cable

High permeability ferrite toroid core for round cable

Share on (60710846447):


Price:

Quantity:


Product Overview

Description


Description
\t

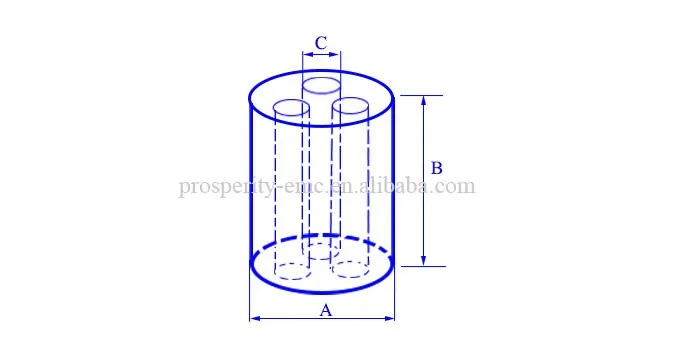

SIZE CODE (mm)
\t
A
\t
B
\t
C
\t

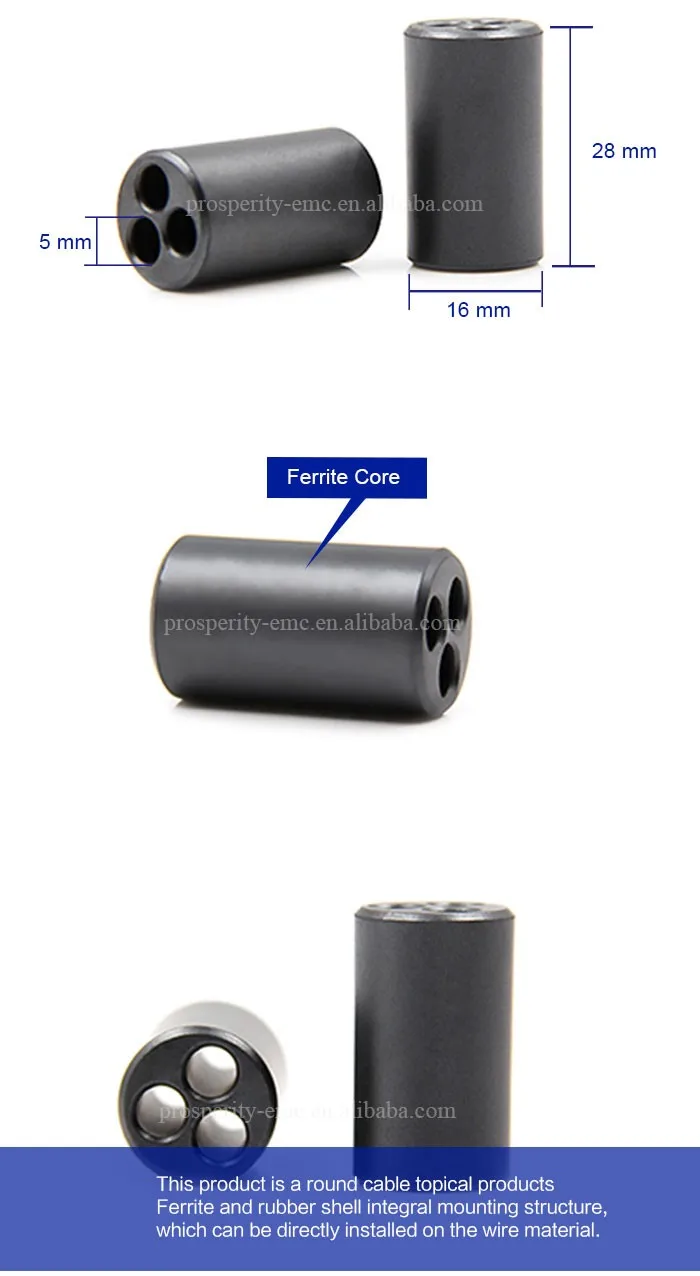

A2 R3H 16*28*5
\t
16.0±0.6
\t
28.0±0.8
\t
5.0±0.4
Parameter
\t

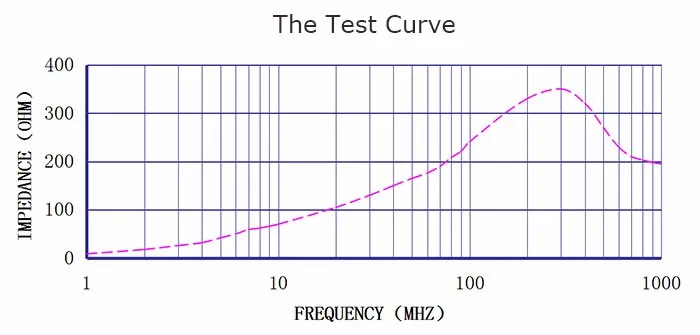

Electrical Requirements
\t
SIZE CODE (mm)
\t
A2 R3H 16*28*5
\t
at 25 MHz
\t
105Ω MIN
\t
at 100 MHz
\t
210Ω MIN
\t
TEST INSTRUMENTS
\t
HP 4191A
\t
LCR METER
\t
HP 4286
\t
WIRE
\t
0.65T.C.W*100m/m 1/2Ts
\t
TEMPERATURE
\t
15℃ to 35℃
\t
HUMIDITY
\t
25% to 85% RH
\t
Test Data For Pre Production Samples
\t
MEAS.
 Item
\t
Ω
 AT 25MHz
\t
Ω
 AT 100MHz
\t
A
 m/m
\t
B
 m/m
\t
C
 m/m
\t
Suggest
\t
105Ω MIN
\t
210Ω MIN
\t
16.0±0.6
\t
28.0±0.8
\t
5.0±0.4
\t
1
\t
115.15
\t
241.45
\t
16.02
\t
28.10
\t
5.03
\t
2
\t
116.45
\t
242.15
\t
16.10
\t
28.16
\t
4.99
\t
3
\t
116.25
\t
240.65
\t
16.12
\t
28.23
\t
5.10
\t
4
\t
115.04
\t
243.25
\t
16.06
\t
28.31
\t
4.95
\t
5
\t
116.05
\t
242.15
\t
16.11
\t
28.20
\t
5.03
\t
6
\t
115.01
\t
242.13
\t
16.06
\t
28.23
\t
5.05
\t
7
\t
116.51
\t
241.05
\t
16.00
\t
28.10
\t
5.06
\t
8
\t
117.40
\t
243.01
\t
16.02
\t
28.20
\t
4.96
\t
9
\t
115.20
\t
240.16
\t
16.06
\t
27.98
\t
4.99
\t
10
\t
115.48
\t
242.01
\t
16.08
\t
27.93
\t
5.03
\t

\t

\t

\t

\t

\t

\t
X-bar
\t
115.85
\t
241.80
\t
16.06
\t
28.14
\t
5.02
\t
R
\t
2.39
\t
3.09
\t
0.12
\t
0.38
\t
0.15
\t
The above test data for reference,Actual results may differ due to different production batches.
