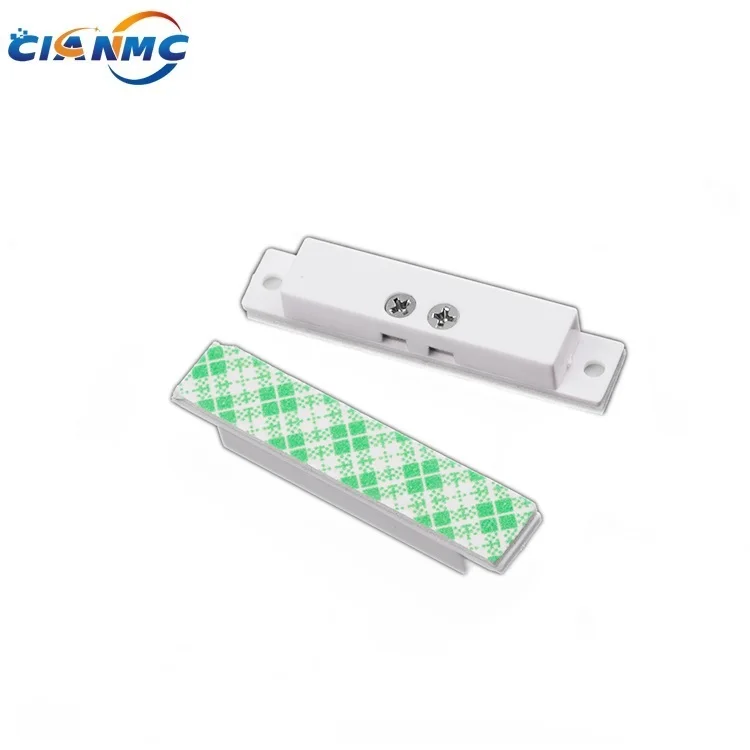

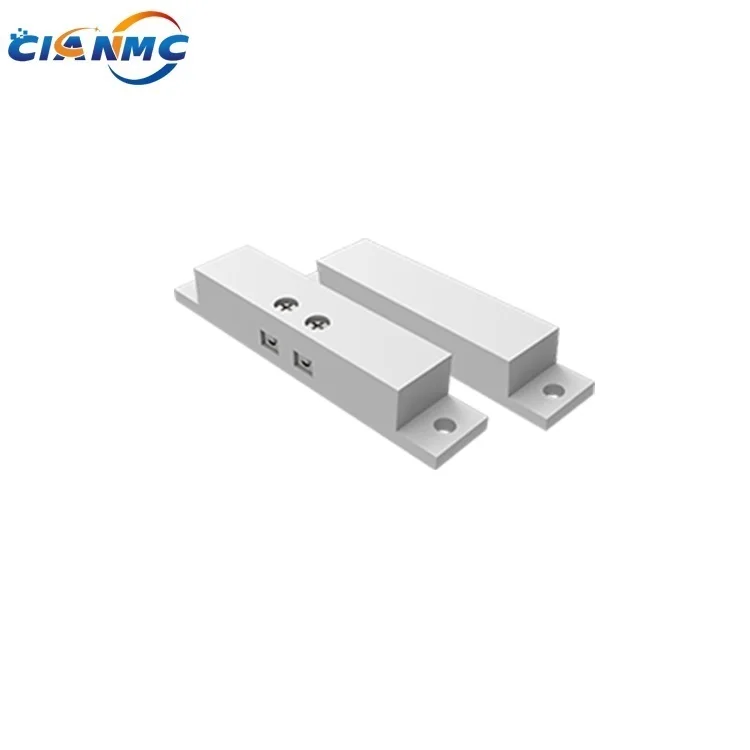

Factory Price Surface Mount NO/NC Output Door Or Window Magnetic Contact Induction Switch
- Category: >>>
- Supplier: Shenzhen Cian Electronics Co. Ltd.
Share on (60710846488):
Product Overview
Description
Product Description

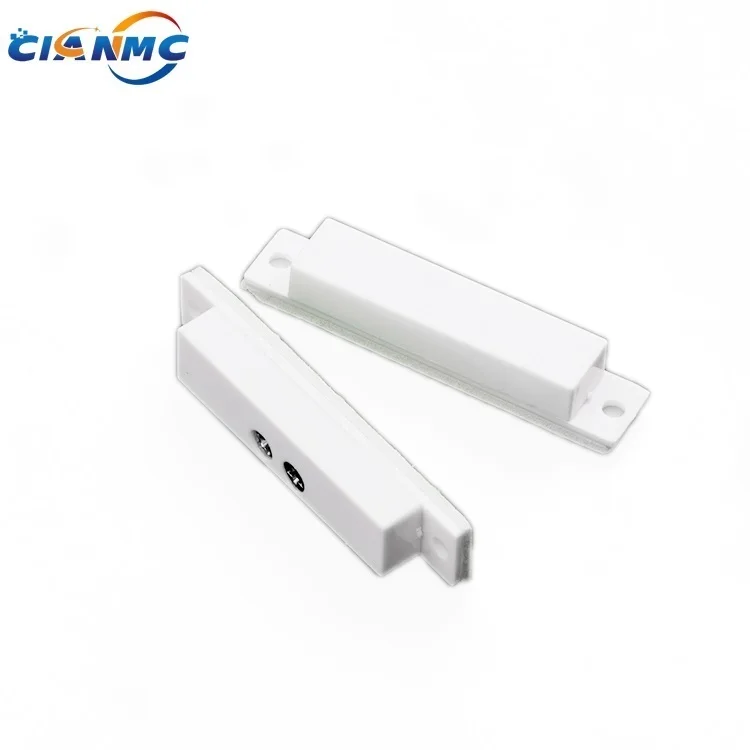

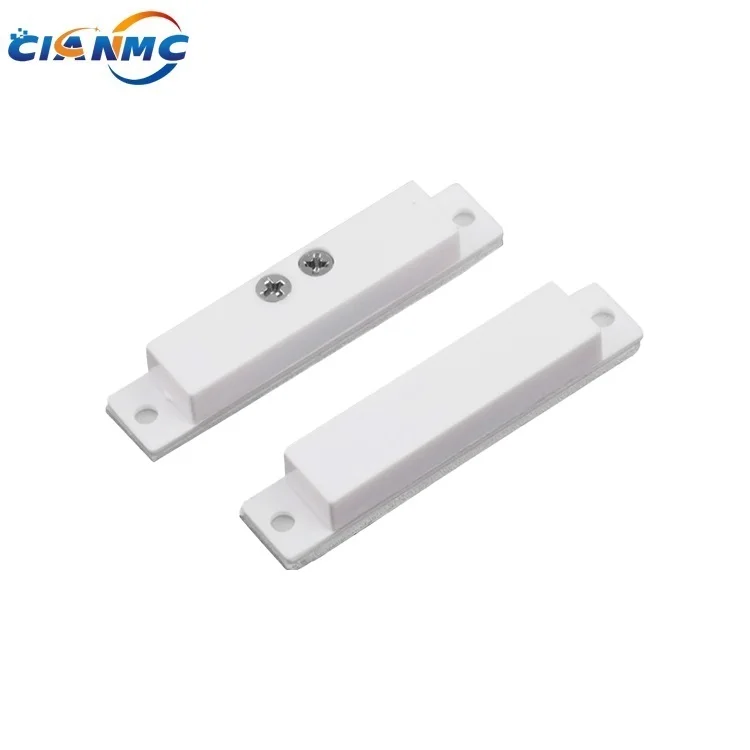

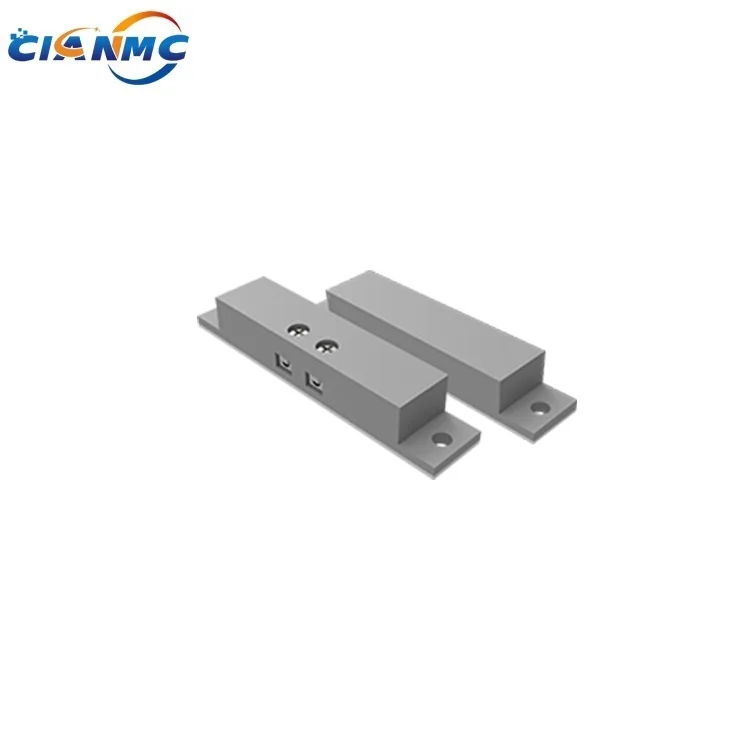

Factory Price Surface Mount NO/NC Output Door Or Window Magnetic Contact Induction Switch
The principle of Magnetic proximity switch is producing a magnetic field around the sensor through changed the position and polarity of trigger so as to have the sensor worked. Hermetically sealed, lifespan exceed 1 million times at least, easy installation.

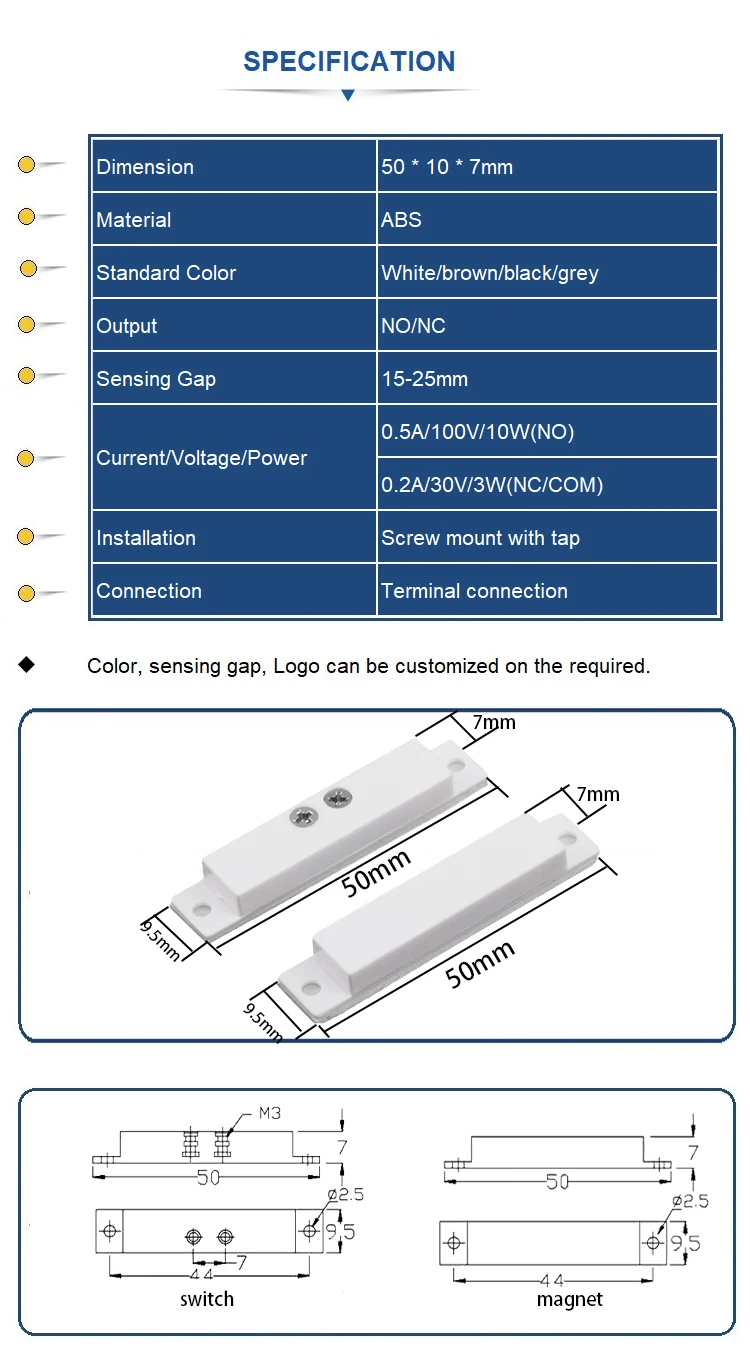

Product name | Magnetic door switch |
Size | 50 * 10 * 7mm |
Color/Material | White/brown/black/grey |

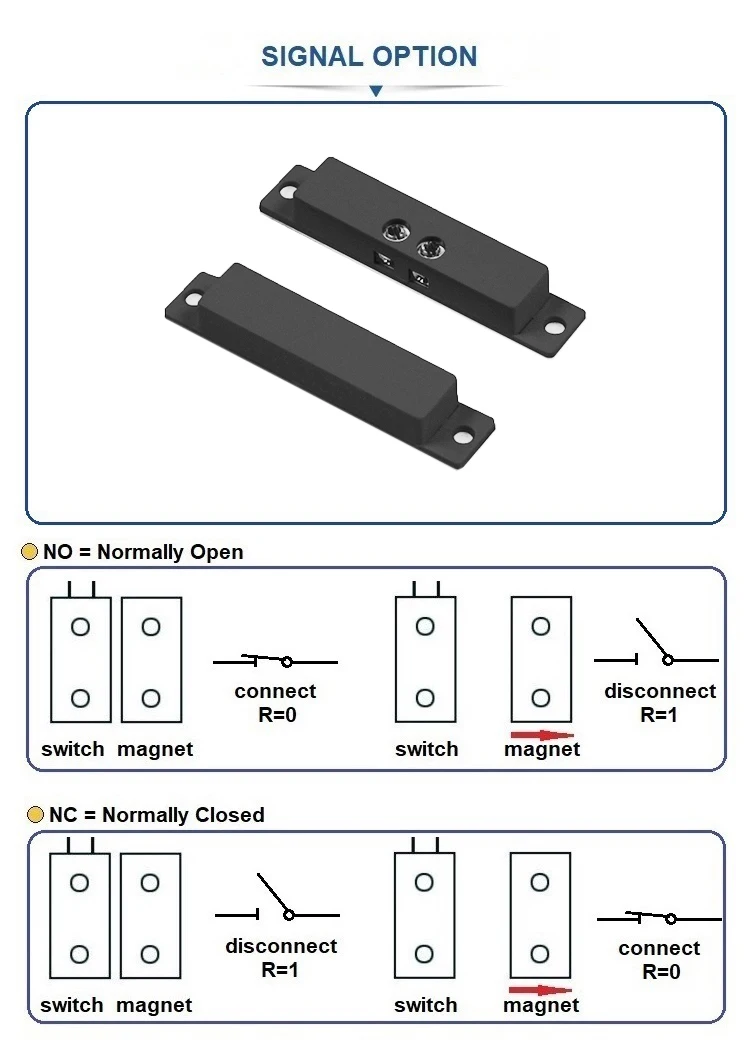

Alarm output | NO/NC |
Sensing gap | 15-25mm |
Current/Voltage/Power | 0.5A/100V/10W9(NO); 0.2A/30V/3W(NC) |
Connection | Terminal connection |
Installation | Screw mount with tap |
Usage/Application | Door or windows/Security alarm system |
Certificates | CE,ROHS |
Product Paramenters
Product Image
Application
This magnetic contact switch aplly for the kinds of door or window at the place such as below shops, supermarket, factory, warehouse, villa, family, hotel, school, KTV entertainment place, hospital, government bodies etc to control the swtich ON or OFF signal to the third devices of home security alarm system.
Manufacturing Technique
Company Profile

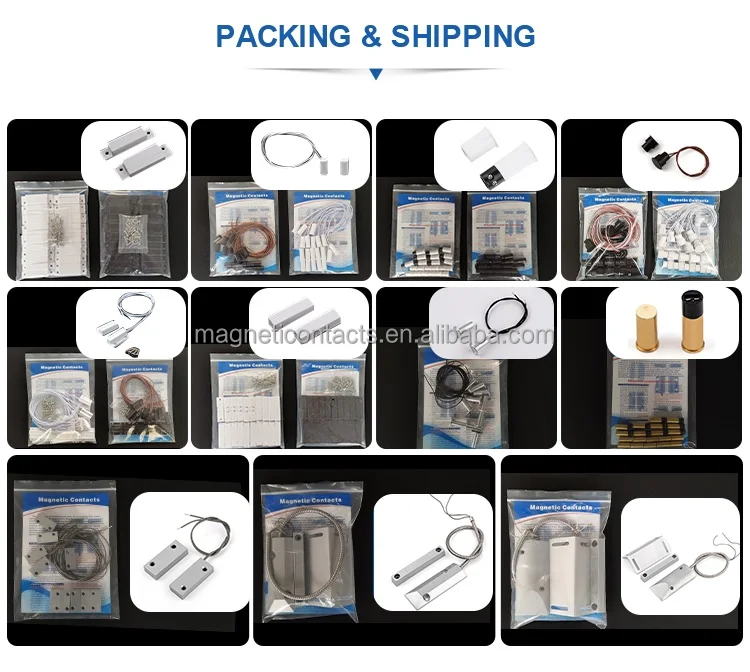

Packaging & Delivery
