large format Phaeton 3.2m/10ft wide format solvent printer 12 pcs heads Phaeton UD 32712X 720dpi
Product Description
Details
Tips :The price of the machine is EXW, and the price of FOB needs to be decided according to the destination port. Please contact customer service for any problem. Thank you.

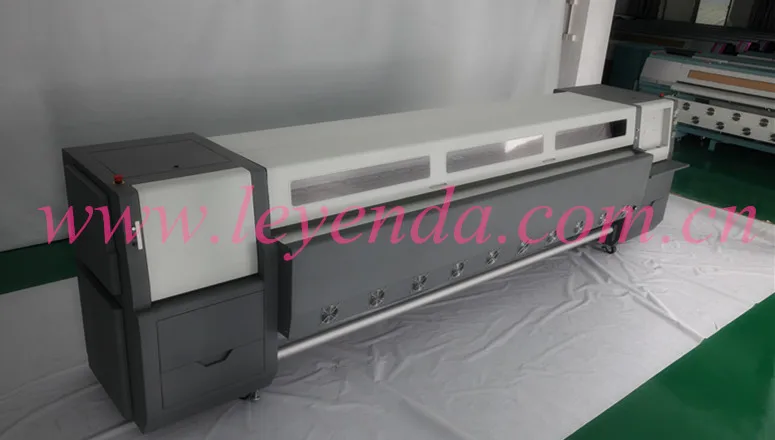

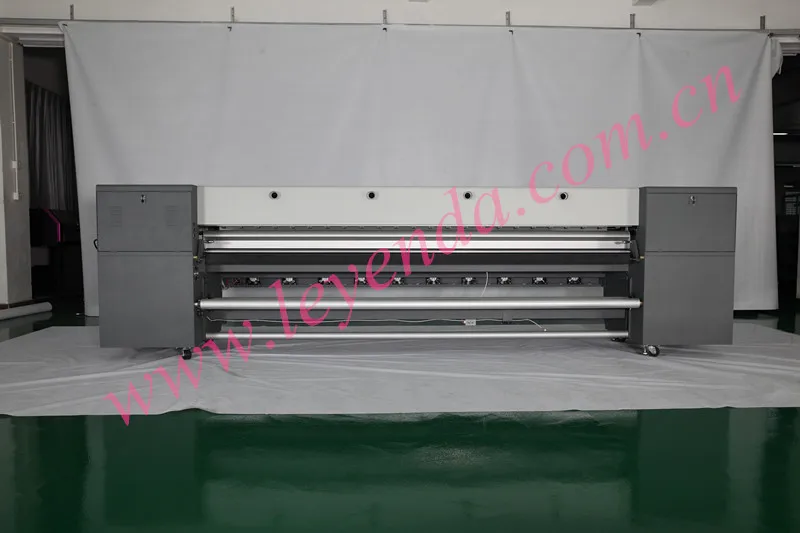

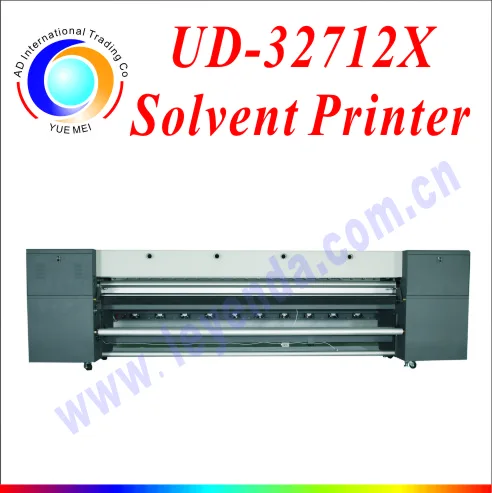

Phaeton UD-32712X

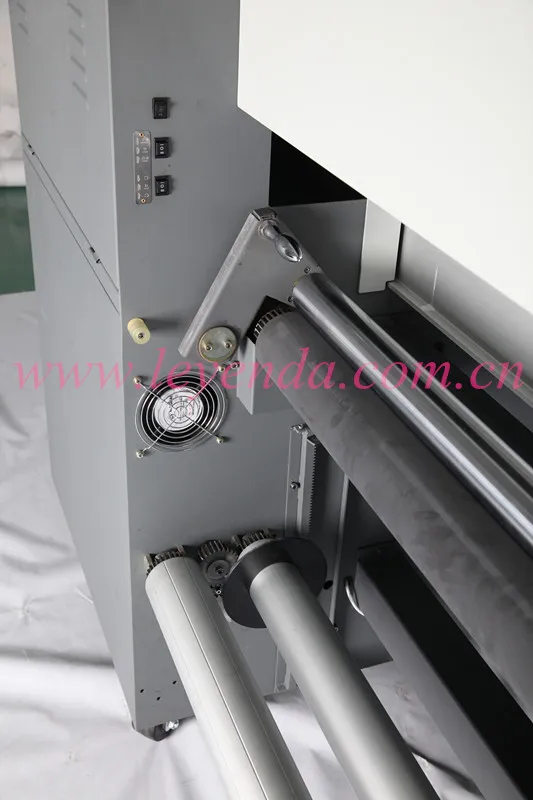

1. Leading Material by rubber bar aviods the material from tangling up.
2. Equips WIth infrared heater with cooling fans system to dry the printout effectively
3. Position for monitor and key board is reserved for convenient operation station
4. Equips with innovation electrial pinch roller system which is controlled by a button. Thoughtful consideration for operator.
5.Capping conver make the daily maintenance with effcient and convenient.
6. A balanced bar is equipped at the takeup tp make the material neater.
7. The LED lamp on the printing platform helps to observe the printout clearly.
8. USB interface is equipped at the opearating station for more convenient operation.
9. The luxury machine boby enhances the image of your enteriprise.
MODEL
UD-32712X
Printhead
SPT510-50PL
Number of printhead
12 Heads
Maximum print width
3,200mm
Print Speed (m2/h)
Print mode
Output(m2/h)
Draft
2Pass
282
Standard
3Pass
200
Quality
4Pass
153
High Quality
4Pass
120
Compensatory
6Pass
105
Back-lit
8Pass
61
Ink
Type:
ECO Solvent Ink/Solvent Ink
Color :
4 Color (C,M,Y,K)
Capacity:
5L per Main Tank of Each Color
Ink Supply System
Low Ink Detector, Auto or Manual Ink Supply System
Media Width
Maximum 3,300mm
MODEL
UD-32712X
Media Type
Vinyl, Window Flim, Polyester, Flex, Back-lit Film, etc.
Auto Media Feeding System
Equipped (Max. Media Weight 80kg)
Auto Cleaning System
Individual Positive Pressure Cleaning, Anti-clogged Flash Function & capping System
Pre-heating & Drying System
Equipped
Clamp
Equipped
Print Interface
USB 2.0
Printhead Height
2 to 6 mm from Media
RIP Software
Ultraprint, Maintop, Photoprint
Input Power
AC 200V, 50Hz/60Hz
Operating Environment
Humidity: 20-80% (Recommend 40-60%)
Temperature: 15-35°C
Machine Dimension / N.W
L4,850 x W1,070 x H1,585mm / 710KG
Package Dimension / G.W
L4,950 x W1,190 x H1,875mm / 1053K
