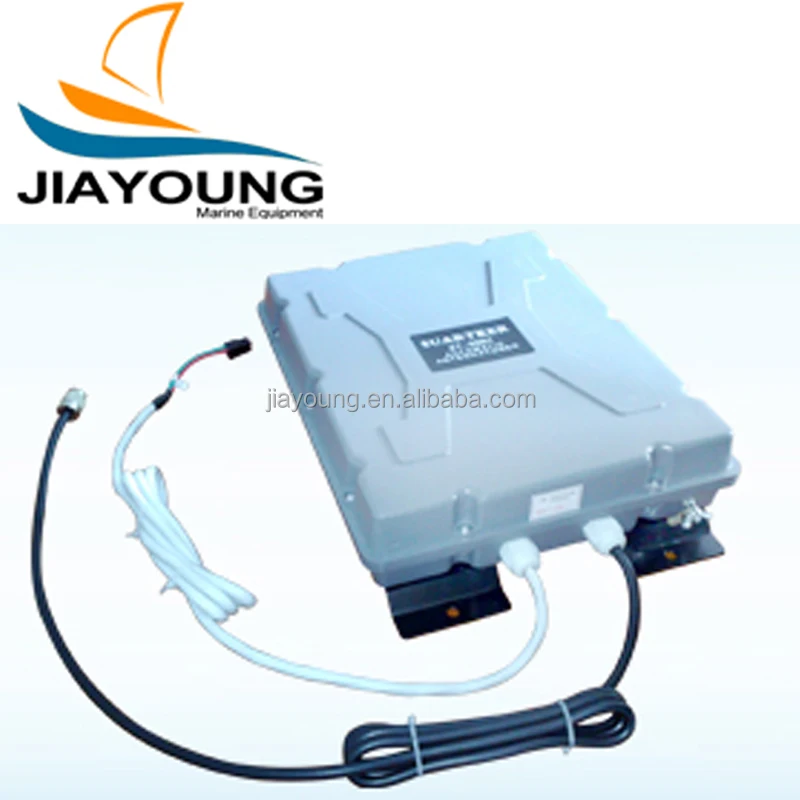

HF Antenna SSB Radio Tuner With High Quality

Tuner

The modelof Automatic Antenna Tuner can be used on land, vehicles, vessels, etc,
matching with HF radios less than 150W. It is capable to maximize radiation energy of the antenna.
In addition,it can automatically detect radio-frequency signals and select the appropriate coupling state.
The initial tuning needs to take a few seconds.
After completion of the tuning for a frequency to be used, the state is locked and stored. Up to 170 groups can be stored. As for the same frequency,
it can achieve automatic identification and finish the re-tuning within 10 milliseconds.
If the antenna and the radio-frequency are changed, the model will immediately perform the re-tuning according to the new condition and store the information.

Frequency Range:1.6—30MHz

Input Power:3—150WPEP

Standing-wave Ratio (SWR): less than 2:1

Operating Voltage: 13.8VDC, range of 12—15VDC

Tuning Power Supply:0.9A

Initial Tuning Speed:approximately 2 seconds

Storage Tuning Speed: less than 10 milliseconds

Storage Frequency: 170 groups

Allowed Length of the Antenna: 2.5—25 meters at 3.5—30MHz;25M

Operating Temperature:-25℃—+45℃

 Chongqing Jiayoung Marine Co., Ltd specialized in Marine Communication Equipment.

Including Marine VHF Radio, Marine VHF Radio with DSC, HF SSB Radio and Tuner.

etc.. We can supply CCS and CE certificate.
