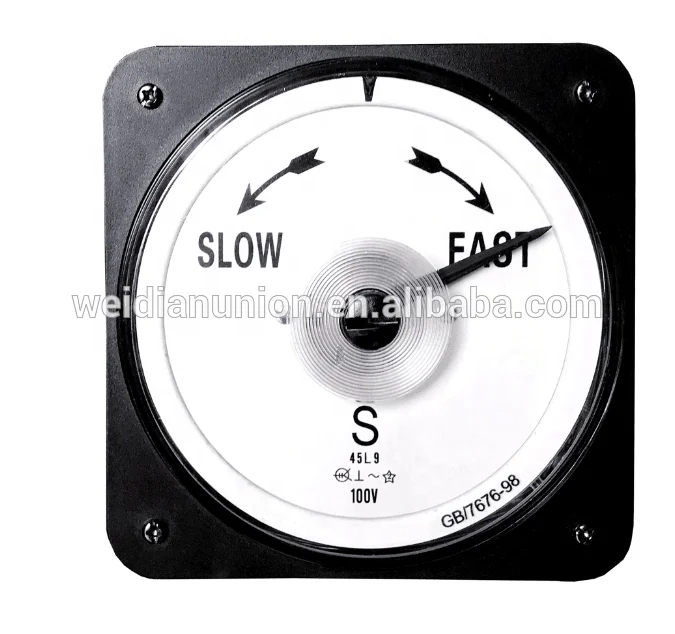

110mm Pointer Square Type Synchroscope Meter
110mm Pointer Square Type Synchroscope Meter
110mm Pointer Square Type Synchroscope Meter

110mm Pointer Square Type Synchroscope Meter

Share on (60710925246):


Price:

Quantity:


Product Overview

Description


Product Description

Using Instruction:


           Parallel signal is the meter which integrate synchronized indicating and pulse transmitting, once the moment of phase difference comes to "0" between generator and power system, Sync LED on,  to fulfill power generator & system synchronized automatically.



Technical Data

Data:

1. Fluctuation of voltage ±10%, frequency difference  less than 2Hz, meter starts to work.

2. Frequency difference close range: 0.05-0.5Hz;

3. Working voltage: Power system & generator: 100.50Hz;

4. Power consumption: Less than 3VA;

5. Contact output capacity:  AC380V.5A or DC280V.10A;

6. Environment: Temperature: 0-55℃;

                                  Relative humidity: 95%



Parameters
\t
Item
\t
Technical Data
\t
International Standard
\t
Technical Standard
\t
GB/T7676-1998
\t
IEC60092-50
\t
Environment Standard
\t
GB8355-1987
\t
IEC92-504-74
\t
Safety Standard
\t
GB4793-20
\t
IEC61010
\t
Working Temperature
\t
-40℃-65℃
\t
\t
Temperature Influence
\t
-13-33℃, 100% comply with accuracy class
\t
Indicating Angle
\t
240-270° (Synchroscope meter:360°)
\t
Color of Shell
\t
Black/white , board frame , terminal plate : Black
\t
Color of Dial Plate
\t
Black/white, other colors are available on requests
\t
Mounting
\t
Vertical mounting
\t
\t

Dimension
\t
110*110mm,  80*80mm
\t
\t
96*96mm, 72*72mm, 48*48mm
\t
\t
Overshoot
\t
Less than 20% when scale reaches to 2/3
\t
Insulation Withstand
\t
Circuit & shell: AC2600V/1 minute(Water area)
\t
Vibration Resistance
\t
24.5m/s2
\t
\t
Impact Resistance
\t
147m/s2
\t
\t
Material
\t
Shell/terminal board: ABS;  Cover: Transparent Glass
Using Instruction

Setting Instruction:


1. 36pcs  phase difference signal LED equally distributed in dial board, middle of 12 "O" clock represent phase difference -5°-5°, interval 10°;
2. "SYNC" green LED in middle of 12 "O" clock, in the range of frequency difference & preset time, LED will be on to send parallel signal before moment of phase difference "0";
3. Middle back board have lead time switch SW1(16 positions) & SW2(Frequency difference switch) and SA1(Testing button);
4. Meters need re-start after set  lead time & frequency difference close, otherwise, preset value can not be recognized.


Application


WDLYCH series meter are direct acting indicating and analogue electrical measuring instruments. Measuring AC/DC current, voltage, frequency, power, power factor, phase sequence,synchroscope, position indication, network insulation monitoring, hours run meter and other non-electric measurements.


Mainly used on various AC/DC transmission and distribution system, power control panel and electrical  equipment for various industries such as marine, rail, aviation, chemical and explosive-proof, nuclear power, high-mid voltage equipment, power generator set and control engineering. It is high end meter, and suitbale for complicated environment to measure electric/non-electric energy.

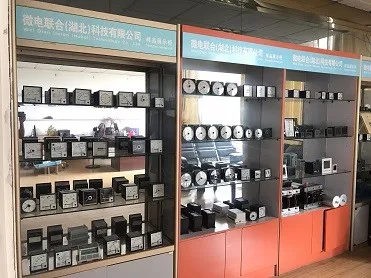

Our Company

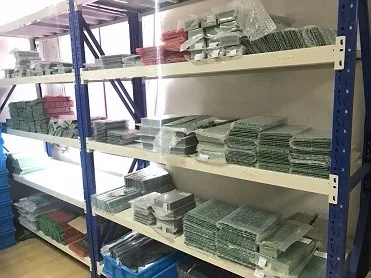

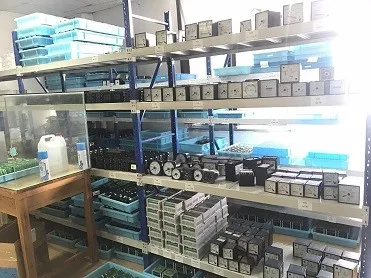

Materials
