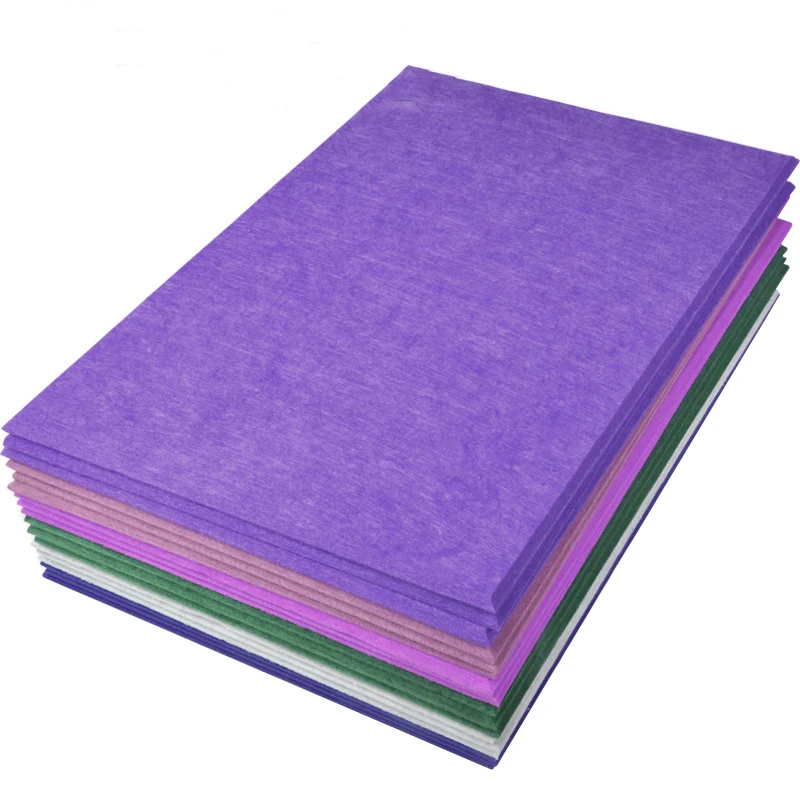

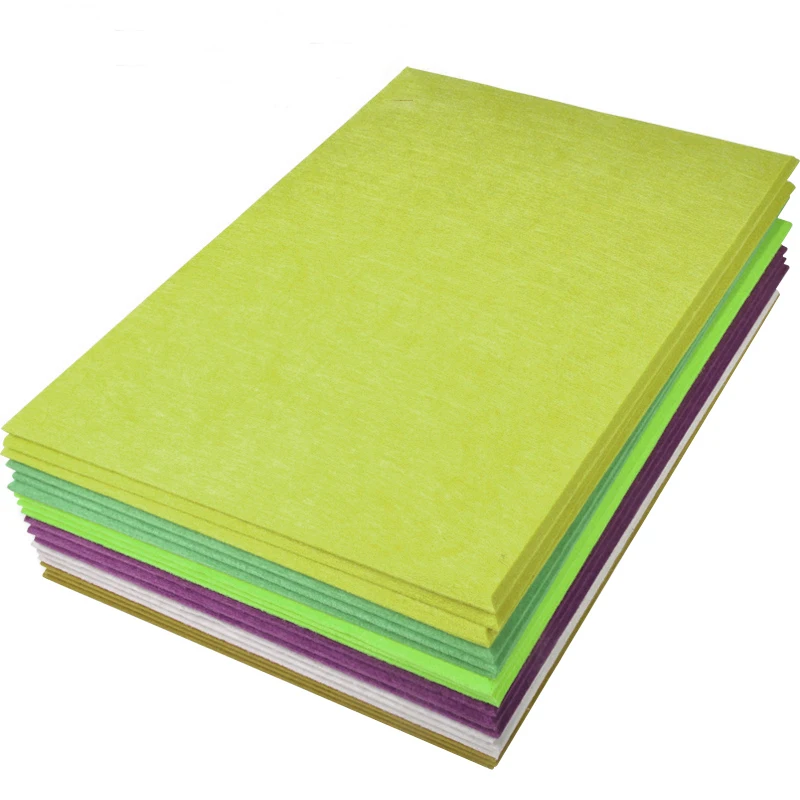

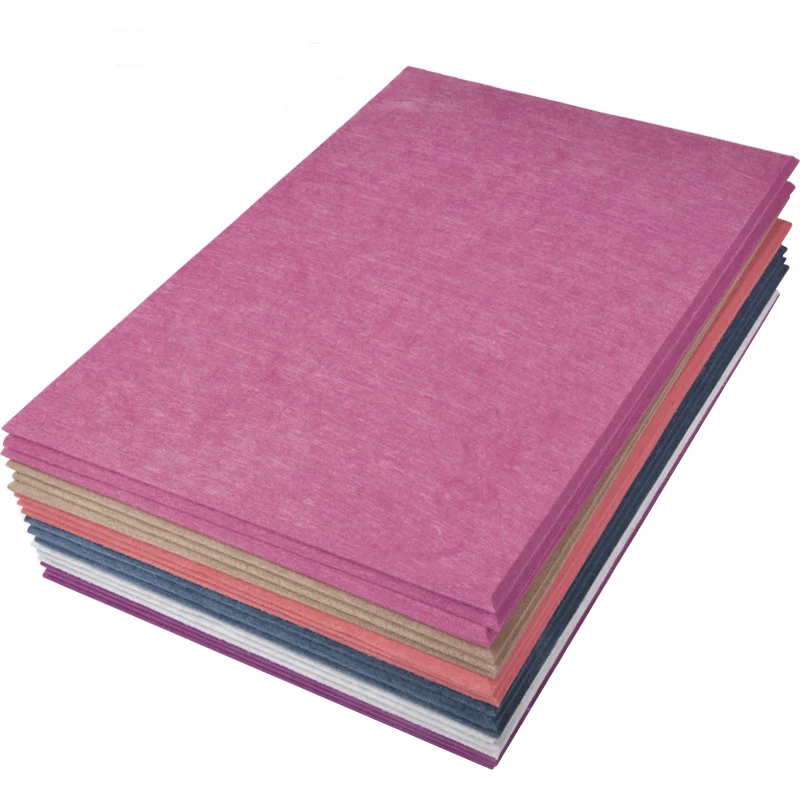

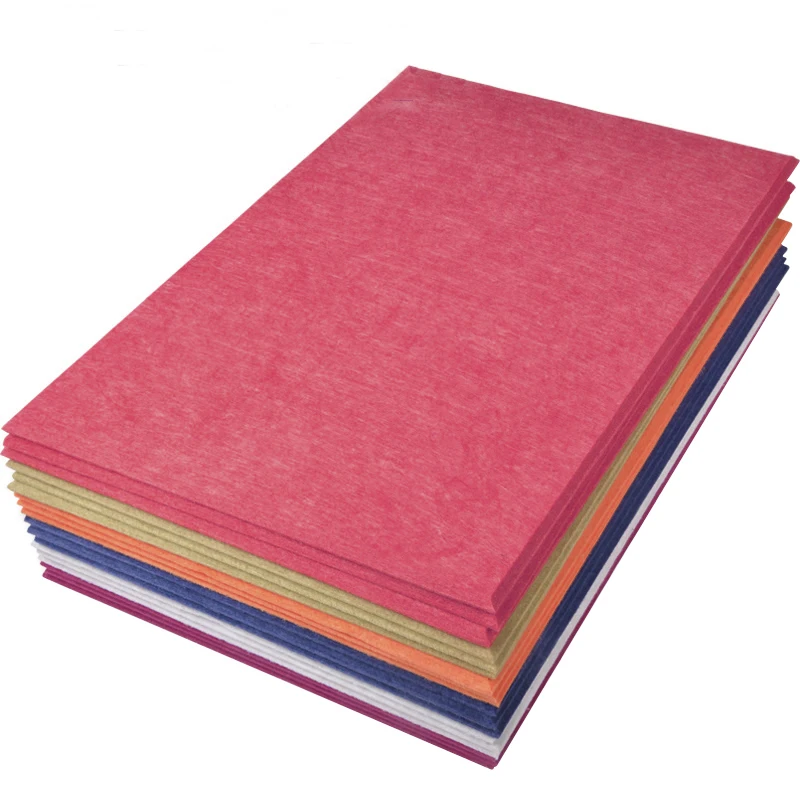

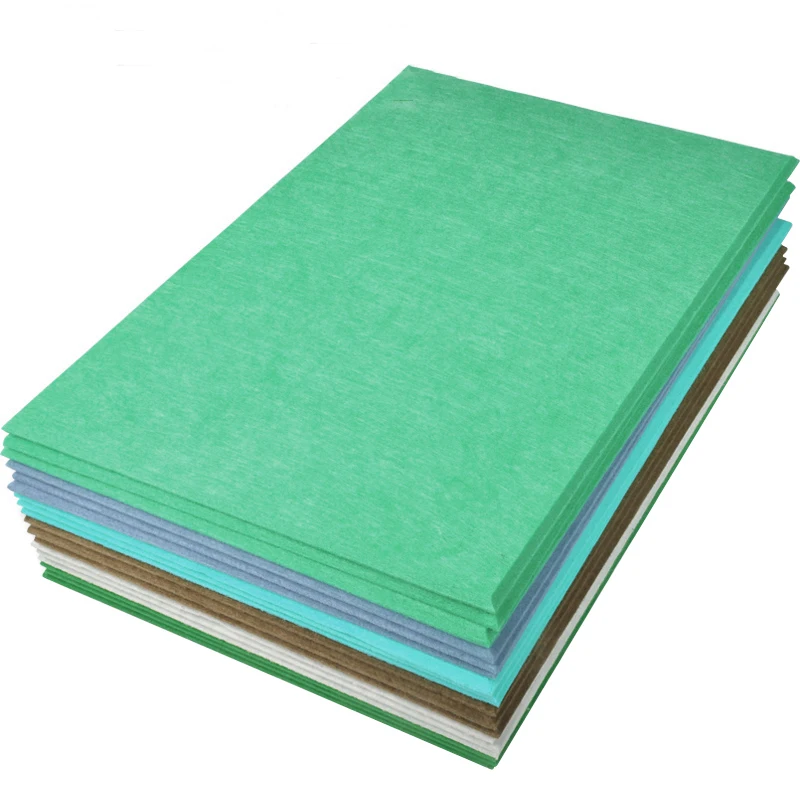

Studio E1 PET anti sound wall panel material auditorium polyester fiber acoustic wall panel

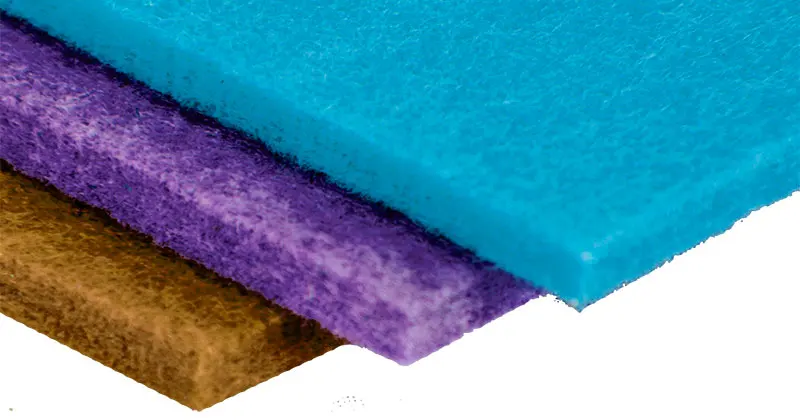

Polyester Fiber Acoustic Panel

1. 100% polyester fiber made through high-tech hot press.
2. Achieve diverse density to ensure the ventilation, becoming the outstanding materials for the sound absorption and thermal insulation.
3. Within the frequency of 125-4000Hz, the absorption coefficiency can reach more than 0.9.
4. Material has a good decoration, thermal insulation, fire retardant, eco-friendly, light weight and impact resistance etc. various advantages.
5. The various colors and finish choices can satisfy all the customer’s acoustic and decoration requirements.
6. The highest fire retardant grade can reach B1(GB) grade, and the best environmental protection can reach E1(GB) grade.
7. For the need of our customer, we have almost all the necessary documents for export and import, such as fire retardant report, environmental report, sound absorbing report and SGS testing report etc.
8. Specification of the polyester fiber acoustic panel
    Width: 1220mm
    Length: 2420mm
    Thickness: 3~20mm, 9 and 12mm are standard
    Basic material: Polyester Fiber
    Corner processing: chamfered
    Density: 160-229kg/m3
    Finish: Customized (Please refer to the color chart)
9. Application of polyester fiber acoustic panel

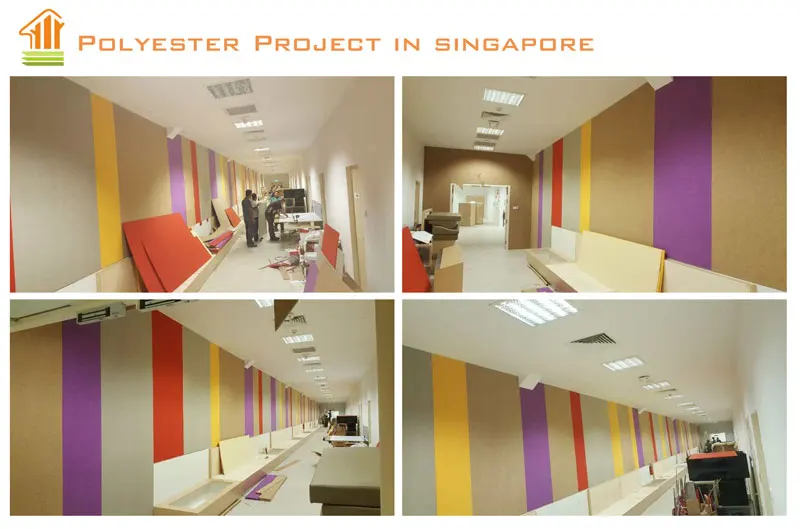

Stadium, Auditorium, Multifunction room, Meeting room and Studio etc.

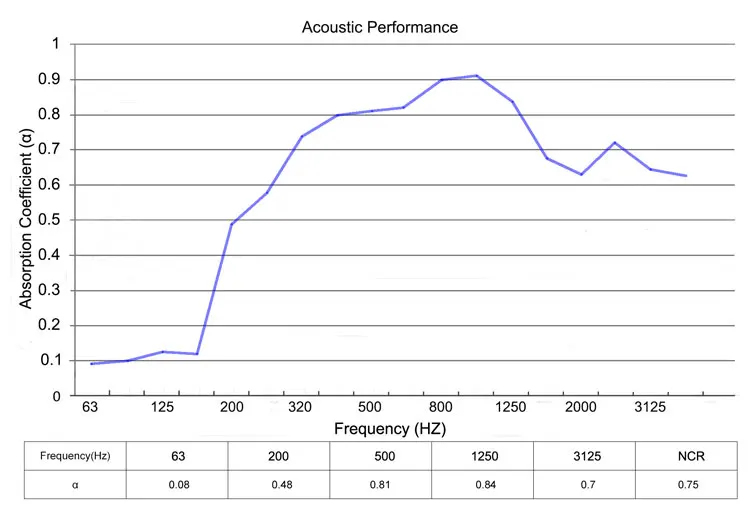

Acoustic Performance

TEST CONDITION
A. 9mm Polyester fiber acoustic panel
B. 100mm space

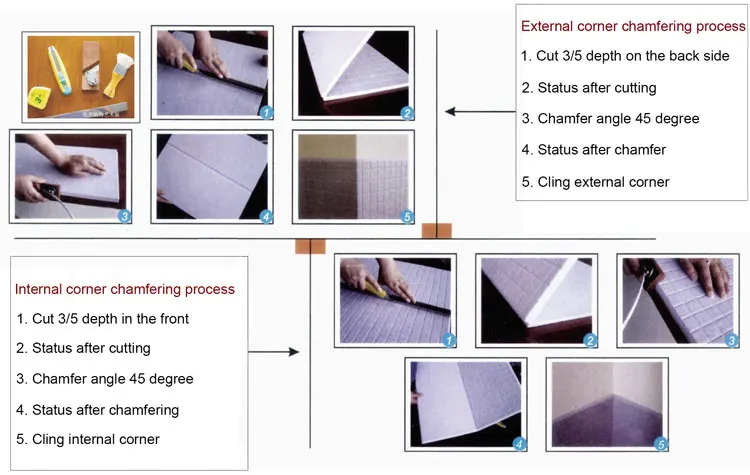

Installation of Polyester Fiber Acoustic Panel

1. Setting
Setting and adjust the polyester acoustic panel to certain shape on the workshop.
2. Chamfering
Both mechanical or hand-cut are alright, recommend to use steel ruler if you decide to cut by hand and it would be better to use imported art blade.
3. Cutting
We have special chamfering tool to chamfer various bevel edge.
4. Installation
We mainly use glue such as spray glue, hot melt adhesive, white glue, glass glue, etc. (according to different surface) to stick acoustic panels onto the wall. For flat cement wall, we may install the boards directly with white glue and gun nail, which is glue-saving and time-saving.

1. What are the steps to get quotation and to order?

Please inform the product details in order to get an accurate quotation, such as the density, thickness and cutting shape.

2. Can you offer sample?

Yes, we can offer standard samples for free, and customization is available.

3. Do you accept customization?

Yes, we can support our clients with OEM & ODM.

4. How long is the lead time.

Normally 20 days upon receiving the deposit, base on the quantity 400 SQM.

5. Can you assist for installation?

Yes, we can arrange to assist in installation if needed.

6. Do you have certificate?

Yes, we have ISO, fireproof and eco-friendly etc. certification.

7. What are the factors of influencing the NRC?

Perforation rate, gap between the wall and panel, the density and thickness of the glass wool, etc. All these factors will effect NRC.

8. What’s the difference between normal panel and acoustic panel?

Acoustic panel also called soundproof panel which is designed according to the law of soundproofing. There are mainly three functions of acoustic panel. Sound absorbing, sound diffusing and sound insulation, with respect to a specified sound source and receptor: increasing the distance between source and receiver, using acoustic panel to reflect or absorb the energy of the sound waves, using damping structures such as acoustic panel, or using active antinoise sound generators.

9. How about the capacity of your factory?

500000sqm per year.

10. How to pay?

You can pay by western union or T/T. Cash will be ok if we do business face to face .
