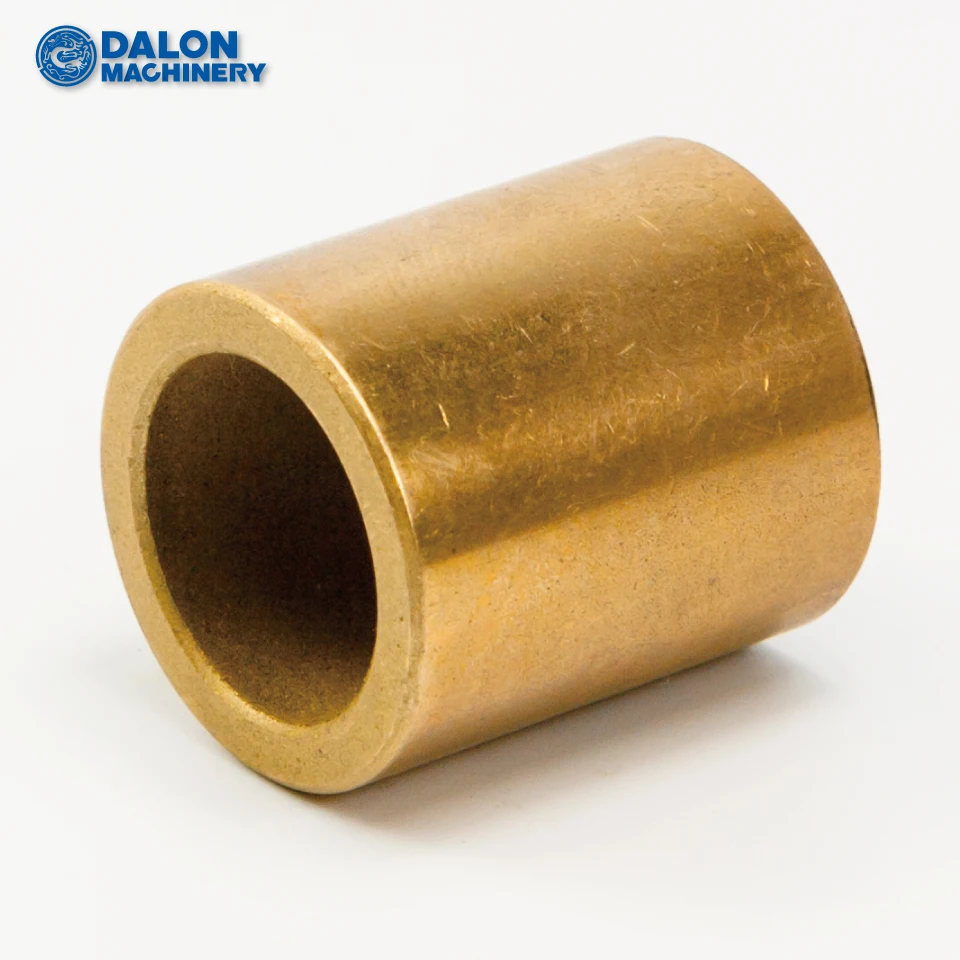

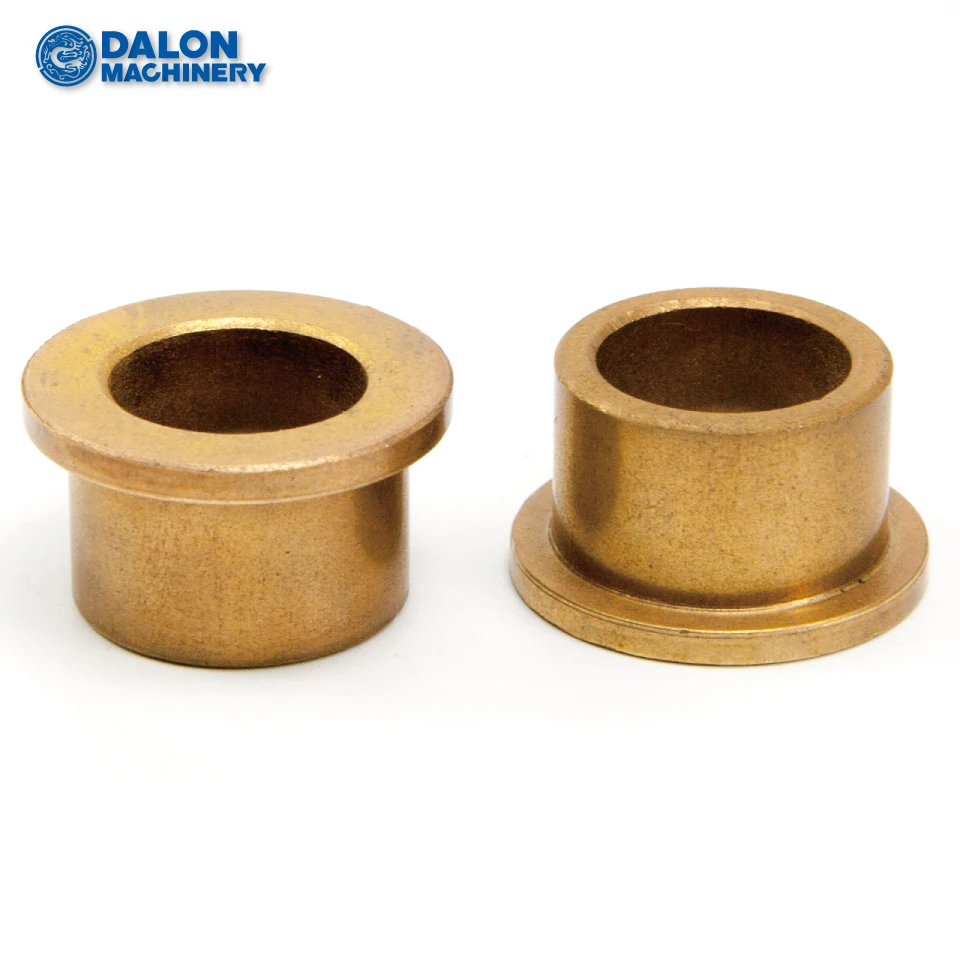

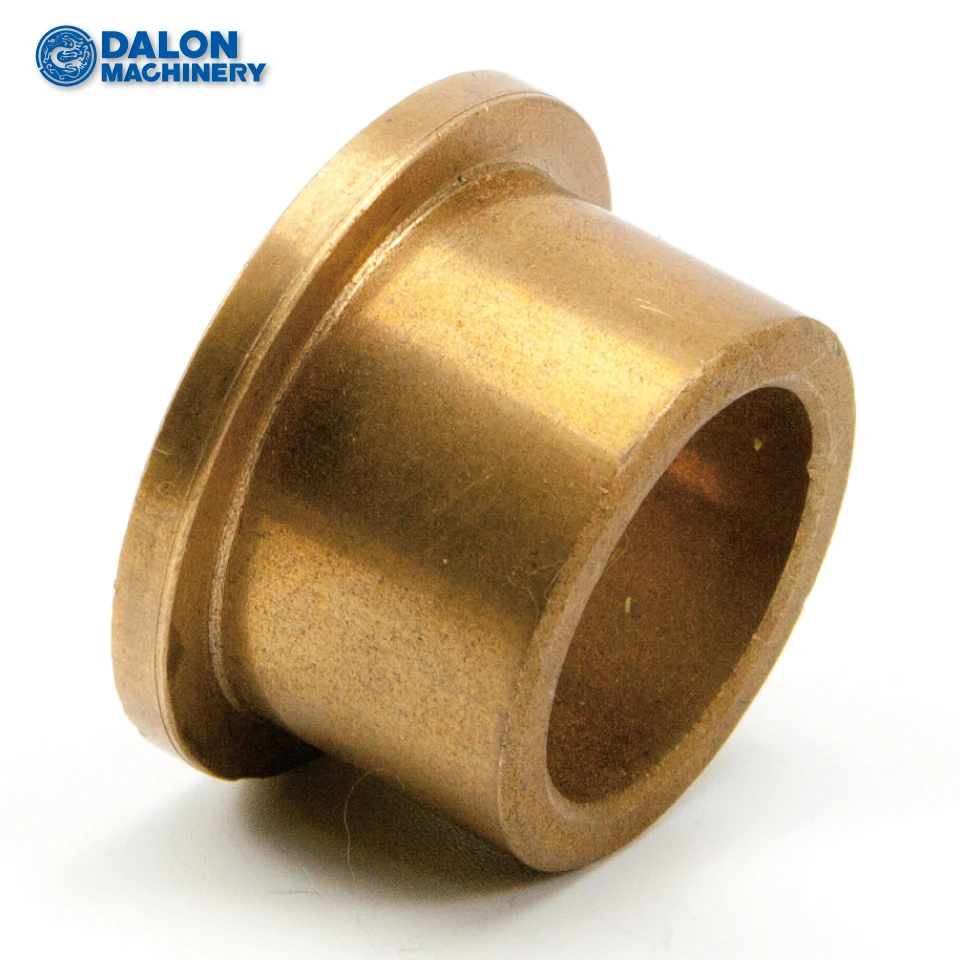

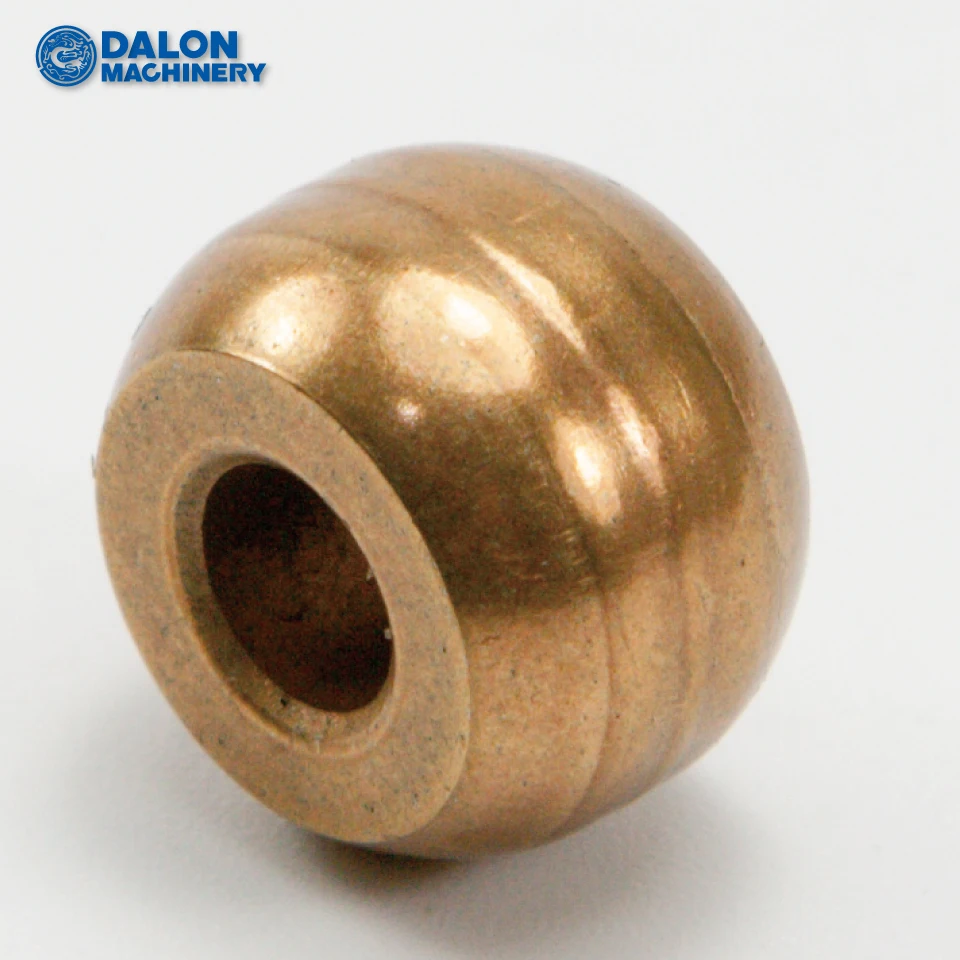

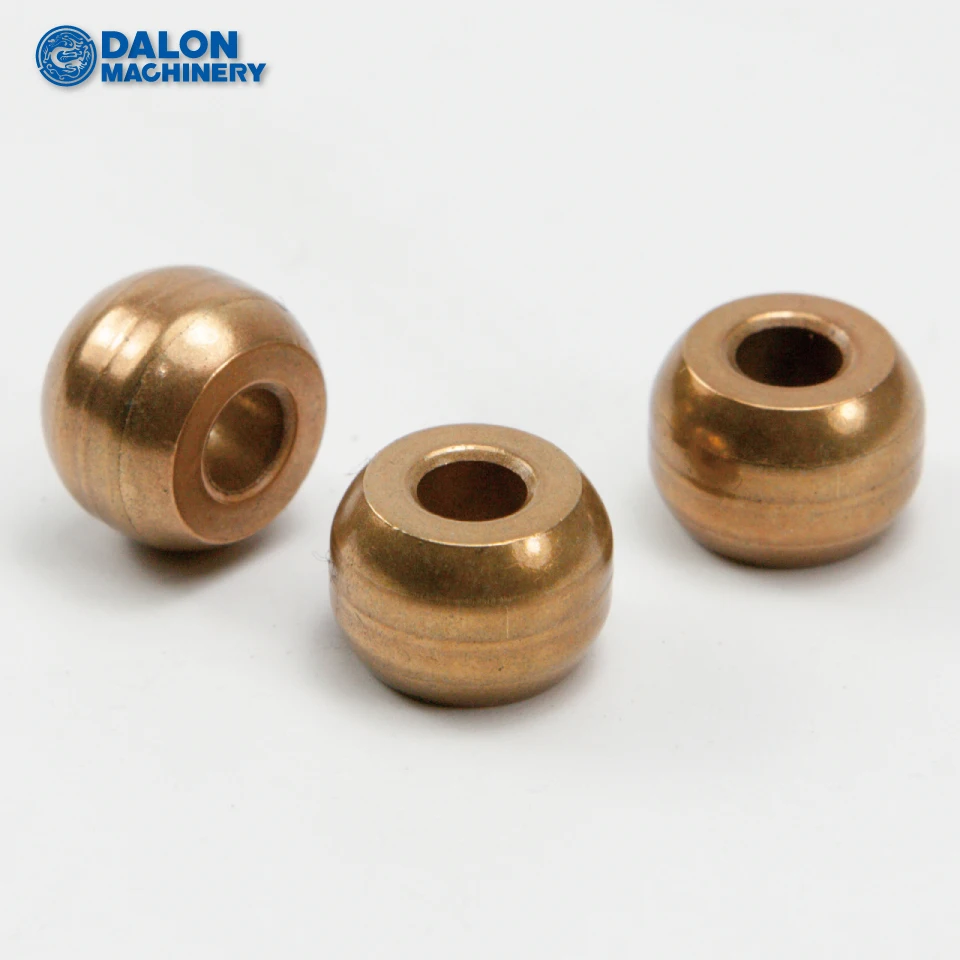

sintered copper bronze brass self lubricating sleeve sliding shaft bearing and bushing for 3D printer

Product Overview

Description



MATERIAL CODE	BASIC METAL	ALLOY COMPOSITION
Bronze based	SAE841 ASTM B438-70 GR1 Type II DIN30 910 PART3SintA50 Mil-B-5687C Type I CompA	Cu87.5~90.5,Fe1.0max,Sn9.5~10.5,P1.75,0.5
Iron based	SAE863 Type3 SATM B439-70 GR4 Mil-B-5687C Type II CompB	Fe ; Cu18.0~22.0,Fe2.0 ALLOWANCE



Startup friction causes these porous bronze bearings to release a thin layer of oil on the bearing’s surface. They are also known as Porous bearings.

Note: Dynamic load capacity is the maximum load a bearing can withstand at a given shaft speed. If the bearing’s load and speed are below the values listed, the bearing should work for your application.
