Industrial 200 Ton Cross Flow Cooling Tower china shuangyi

Product Overview

Description

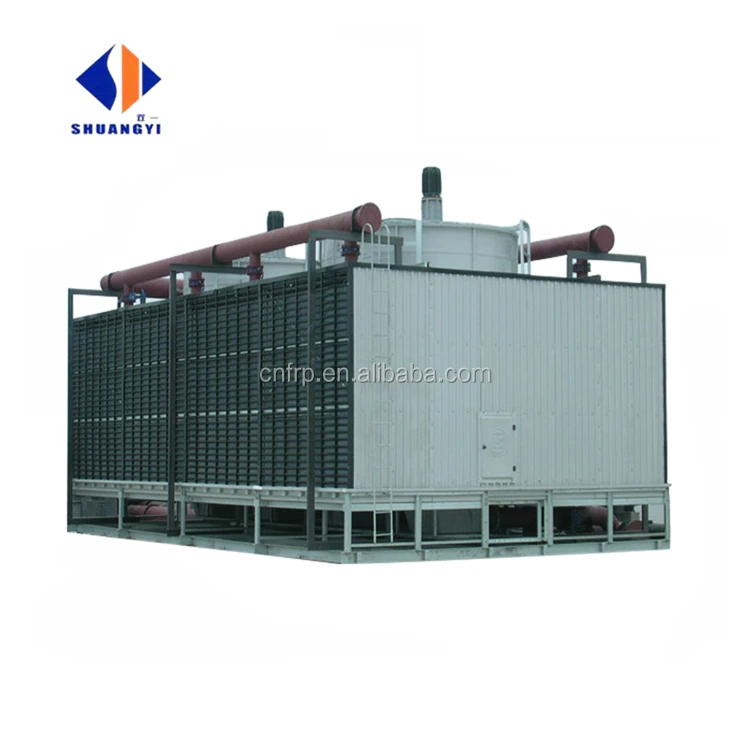

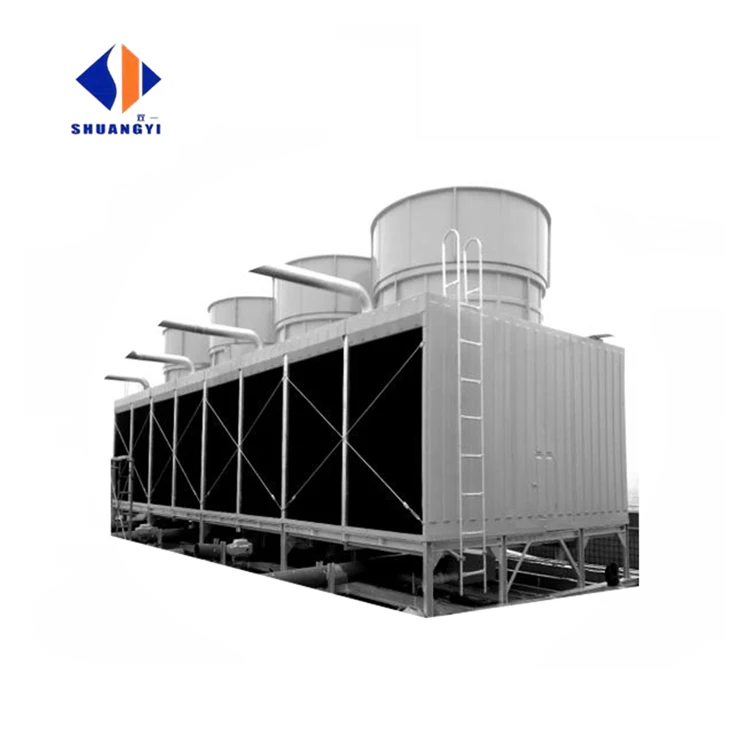

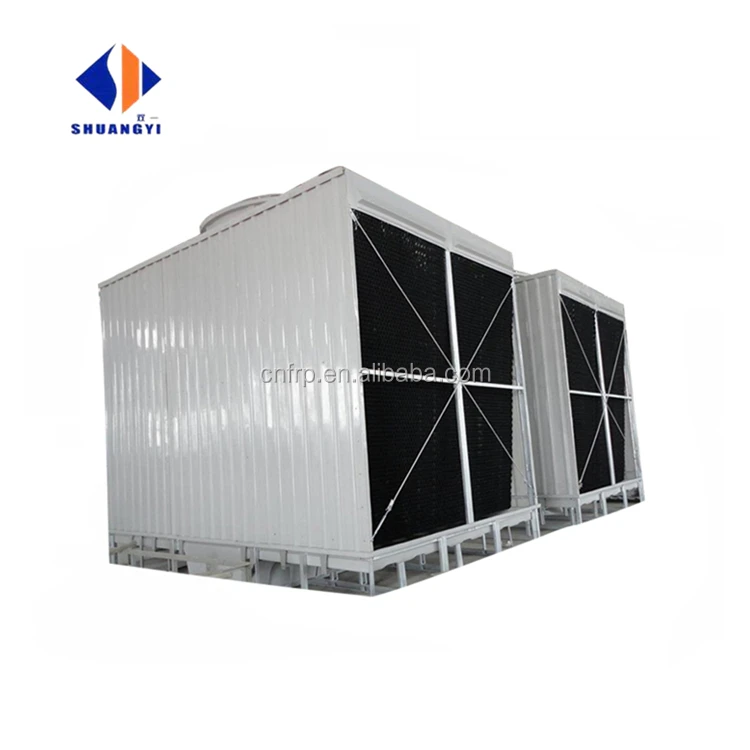

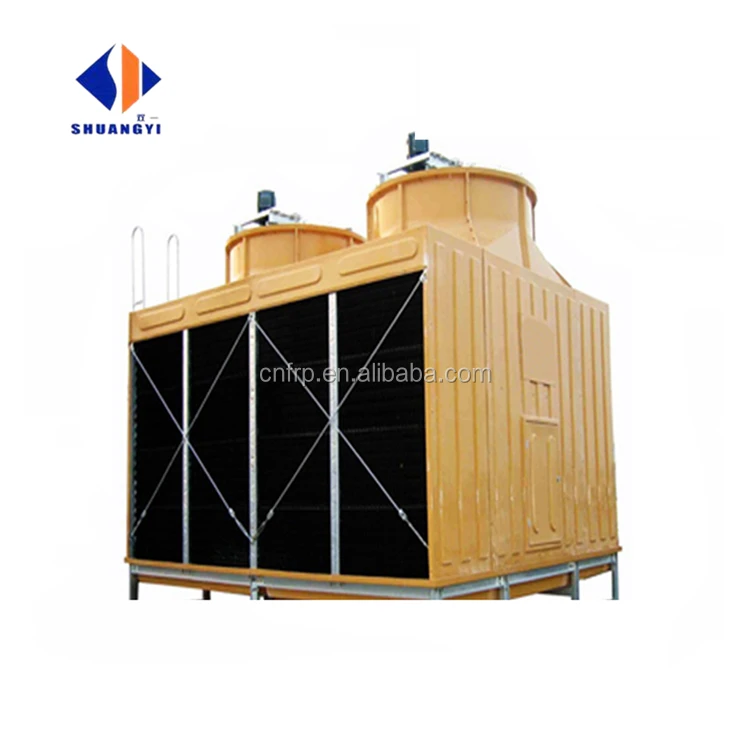

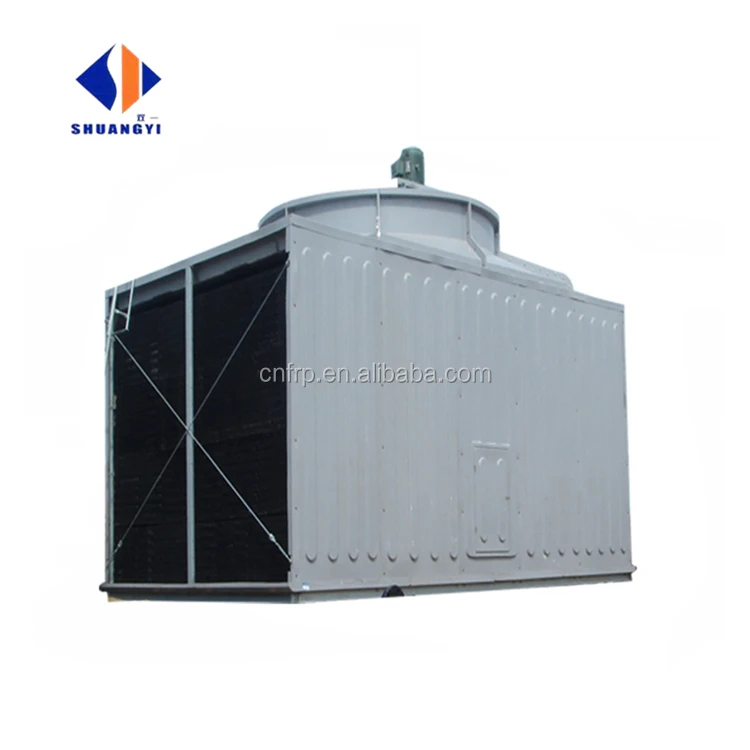

Industrial 200 Ton Cross Flow Cooling Tower



Introduction



Cooling tower is the equipment that use of air contact (directly or indirectly) water to cooling water. It take water as circulation coolant, absorb heat from the system and emissions into the atmosphere, so as to reduce the temperature of the circulating water in the tower, and can recycled manufacturing cooling water,



The main used area:



Cooling tower is mainly used in air conditioning cooling system, frozen series, injection molding, tanning, foaming, power generation, steam turbine, aluminum processing, air compressor, industrial water cooling, and other fields, used for air conditioning cooling, refrigeration, plastic chemical industry.



Specific division, is as follows:



A, air temperature adjusting categories: air conditioning, refrigerator, freezer, refrigeration, air conditioning, etc.



B,Manufacturing and machining, the food industry, pharmaceutical industry, metal casting, plastic industry, rubber industry, textile industry, steel mills, chemical industry, petrochemical products, etc.;



C, cooling types: mechanical operation of the generator, steam turbine, air compressor, hydraulic press, engine, etc.;



 The function of the cooling tower is make a heat exchange of the water which take the waste heat and the air in the body of the cooling tower, take the waste heat into the atmosphere.



Main features

 Excellent performance

The comprehensive optimization design causes the YDFH cooling tower to allocate the water, the air flow field to be even, the overall performance achieves best.



Quality Excellence

Selects the high quality patented filler, the target type sprayer to allocate water, the cooling tower special-purpose use all seal up electrical motor, the width leaf blade special-purpose air blower and the optimization design belt transmission system; The shell uses the FRP compound materials, the color is bright, surface bright and clean, anti-aging, non-fading, causes the cooling tower service long time keep new.



Environmental protection and energy conservation

Used the pour water filler with water collector, will drift control water loss in 0.1 percent below, the distribute water sink with cover to prevent contamination of the water cycle; it select wide blades, low-speed fan, to reduce the outlet of the dynamic pressure Loss of energy conservation effectively and environmental protection.



Ultra low noise

The speed reducer uses imported bearing, the air blower with wide leaf blade, low wind speed, enables the air blower noise to be under the active control; Uses the noise elimination flow divider, the sprayer distribute water and the unique design filler, will reduce the noise of spray waterfall lowly.



Small size, light weight

After Solid Edge the CAD optimization design, the cooling tower maximum limit reduces the area; the tower body structure uses the hot dipping zinc steel skeleton and the FRP compound materials, reduced the tower body weight quantity.



No	Main parts	Description
		Character
1	Fan	Diameter
		No of blade
		Blade Material: aluminum/FRP
2	Gear Box	Type of gears: spiral bevel
3	Drive Shaft	Shaft Material HDG
4	Motor	Enclosure TEFC weather proof (IP-55)
5	Tower support	HDG material support frame
6	Tower body/shell	FRP material
7	Louver	FRP material
8	water collector,	FRP material
9	water tank/pan,	FRP material
10	Air funnel	FRP material
11	Sprinkler system	ABS material Sprayer/nozzle
12	Ladder	HDG steel
13	Fillings	PVC material
14	Tower support frame	HDG Steel
15	Tower support leg	HDG Steel
16	Inlet water pipe	HDG Steel
