60w 80w 100w 150w 180w 9060 1290 1390 1610 Co2 Laser Cutting Machines For Nonmetal Laser Engraver System
Product Description
Technical Parameters:
Model | XM-1390 |
Laser Power | 60w, 80W, 100W 130w 150w (Optional) Reci brand is optional |
Laser Type | Hermetic CO2 glass tube |

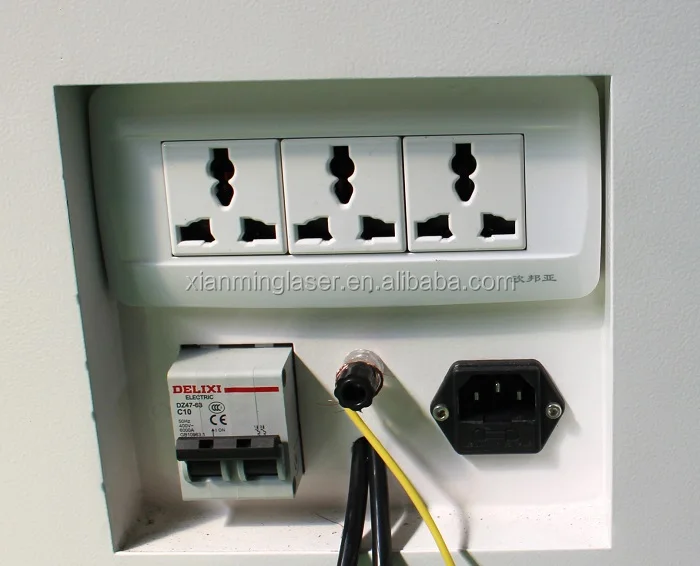

Power Supply | AC220±10% 50HZ/AC110±10% 60HZ |
Working Area | 1300x900mm |
Max Moving Speed | 0-40000mm/min |

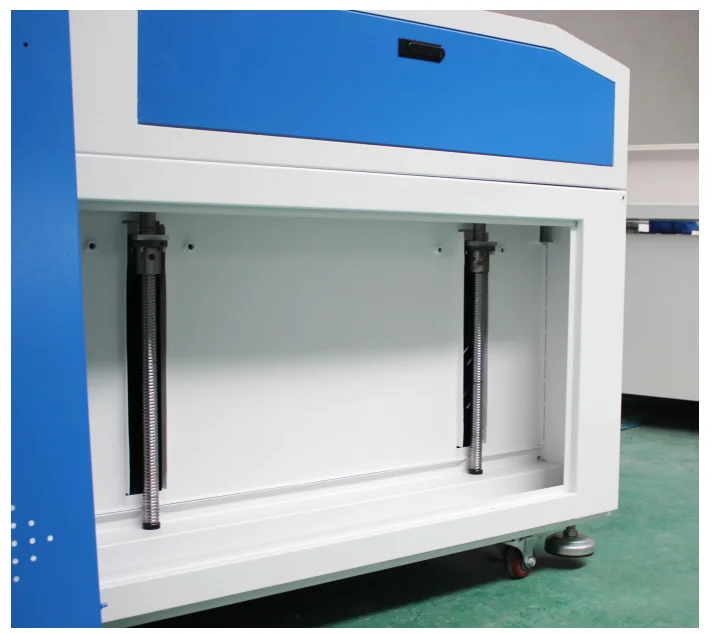

Worktable | Worktable:manual / motorized up / down |
Locating Precision | <0.01 mm |
Min Shaping Character | Character:3*3mm,letter:2*2mm |
Operating Temperature | 5°C-35°C |
Resolution Ratio | <4500 dpi |

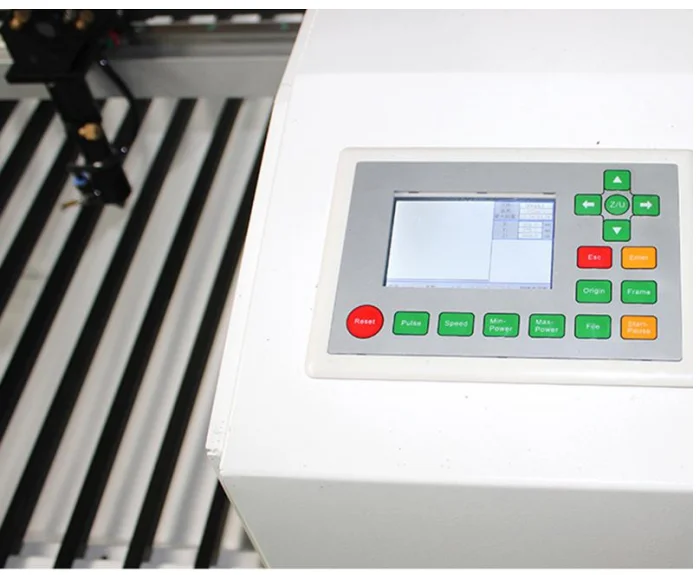

Control Configuration | DSP |
Data Transfer Interface | USB (offline) |
System Environment | WINDOWS 2000/ XP/ Vista/ Win7 |
Cooling Way | Water cooling |
Graphic Format Supported | Files which coreldraw,Photoshop, AutoCAD can identify (BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DMG,DXF,PAT,CDT, CLK,DEX,CSL,CMX,AI,WPG,WMF,CGM,SVG,SVGZ,PCT,FMV, GEM,CMX) |
Compatible Software | CoreIDraw, |

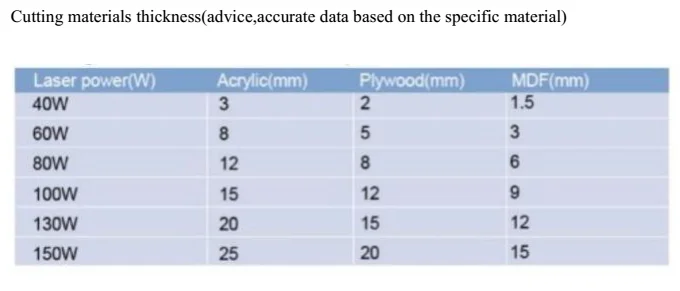

Cutting Thickness | 0-20 mm (Depends on different materials) |
Color Separation | Separation of cutting up to 256 colors |
Sloping Engraving | Yes, sloping can be designed discretionarily |
Cuts off the Water Supply the Protection | Yes |
Machine Dimension | 1570*1000*1170mm |
Package Dimension | 1700*1180*1350mm |
Net Weight | 220kg |
Gross Weight | 380kg |

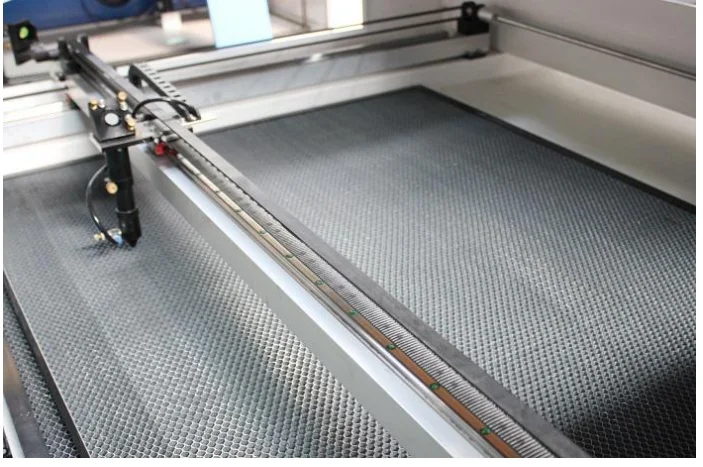

Optional Parts | Chiller / Cylinder rotary attachment / Irregular rotary attachment / Auto focus / Aluminium knife / Honey comb |
Product Description
FAQ
1. Does your laser run from a laptop or Desktop PC?
A: both are OK, as long as your operation system is window 2000/XP/vista/win7
2. Does your laser work from printer in coreldraw/autocad?
A: our laser machine can work in CorelDraw and AutoCAD directly.
and it connects to PC by using a USB cable.
3. What files is the software compatible with?
A: JPG,PNG,BMP, PLT, DST, DXF,CDR,AI,DSB,GIF,MNG,TIF,TGA,
PCX,JP2,JPC,PGX,RAS,PNM,SKA,RAW
4. What's the difference between the different laser tubes?
A: usually,the power of the tube is decided by two parameters:
1) the length of the tube,the longer the tube is, the more powerful.
2) the diameter of the tube,the bigger the tube is, the more powerful.
5. What other models does your company have ?
A: There are 7 main models in our factory, like small laser 300*200mm, 300*400mm, large laser 400*600mm, 600*900mm, 900*1300mm, 1000*400mm, 1000*600mm,1300*2500mm etc. please contact our sales for the proper model.
