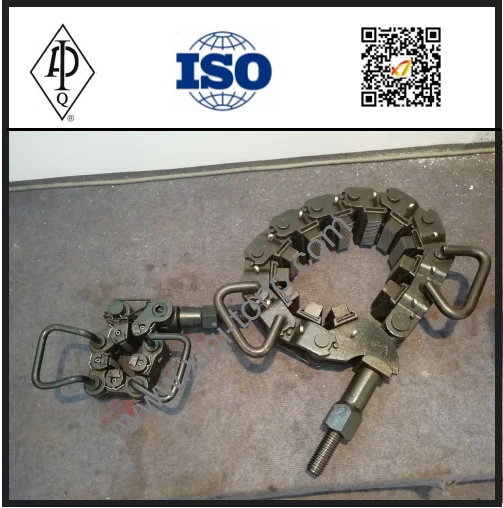

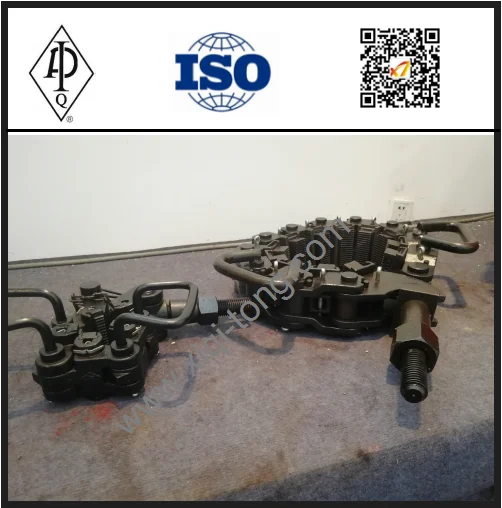

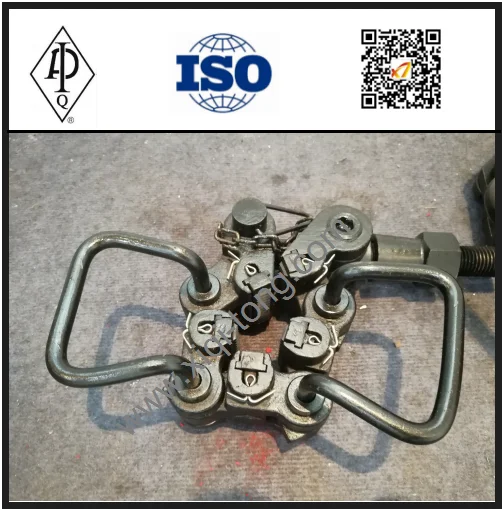

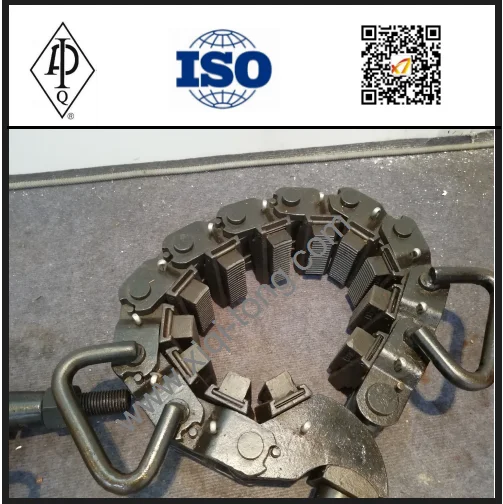

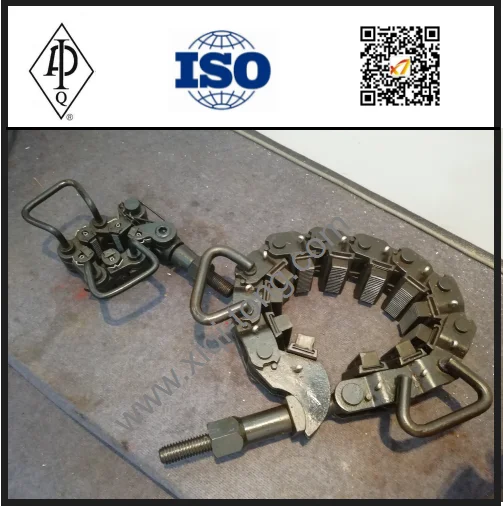

Well drilling tools slips series Type WA safety clamps/ Type MP safety clamps for oilfield in wellhead tool

Type

Hand Pipe Size

mm(in)

Qty. of Chain Links

Weight

kg

1b

WA- C

88.9-117.5(3^1/2-4^5/8)

7

20.9

46

114.3-142.9(4^1/2-5^5/8)

8

25

55

139.7-168.3(5^1/2-6^5/8)

9

27.7

61

165.1-193.7(6^1/2-7^5/8)

10

29.1

64

190.5-219.1(7^1/2-8^5/8)

11

31.3

69

215.9-244.5(8^1/2-9^5/8)

12

32.7

72

241.3-269.9(9^1/2-10^5/8)

13

40

88

266.7-295.3(10^1/2-11^5/8)

14

41.8

92

292.1-320.7(11^1/2-12^5/8)

15

44

97

317.5-346.1(12^1/2-13^5/8)

16

46.3

102

342.9-371.5(13^1/2-14^5/8)

17

48.6

107

368.3-396.9(14^1/2-15^5/8)

18

50.9

112

WA-T

28.6-50.8(1 1/8-2)

  4

16.3

36

54.0-82.6(2 1/8-3 1/4)

5

18.2

40

88.9-114.3(3 1/2-4 1/2)

6

20.0

44
