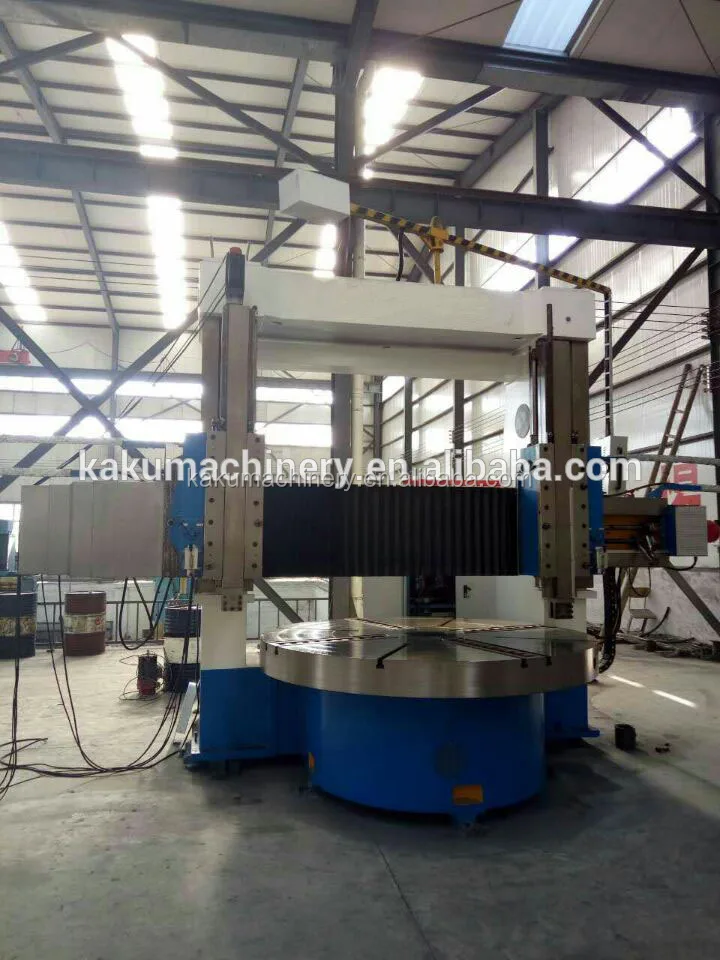

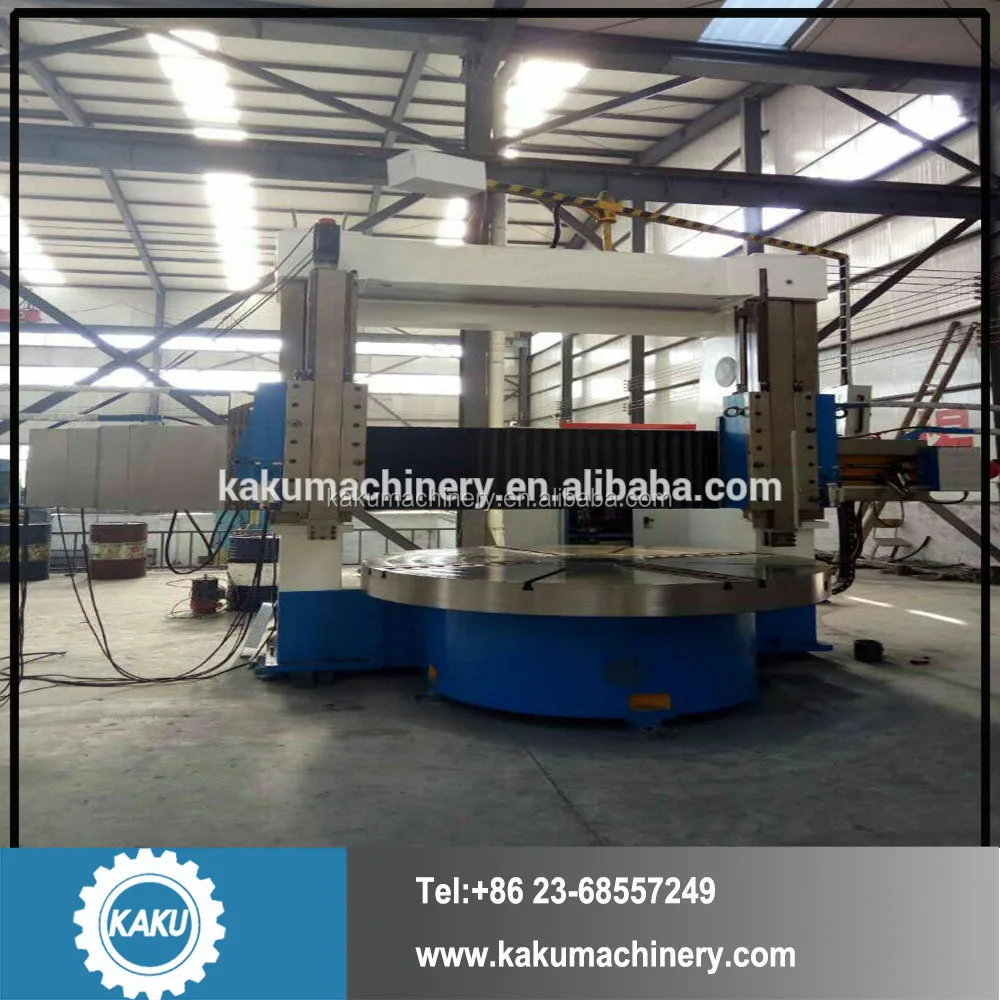

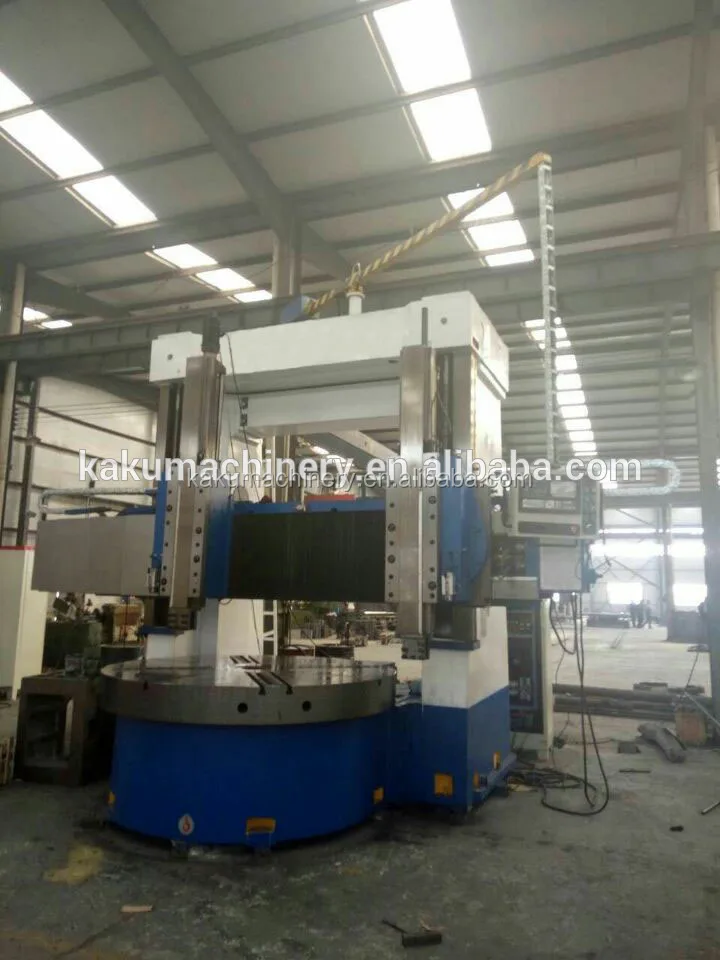

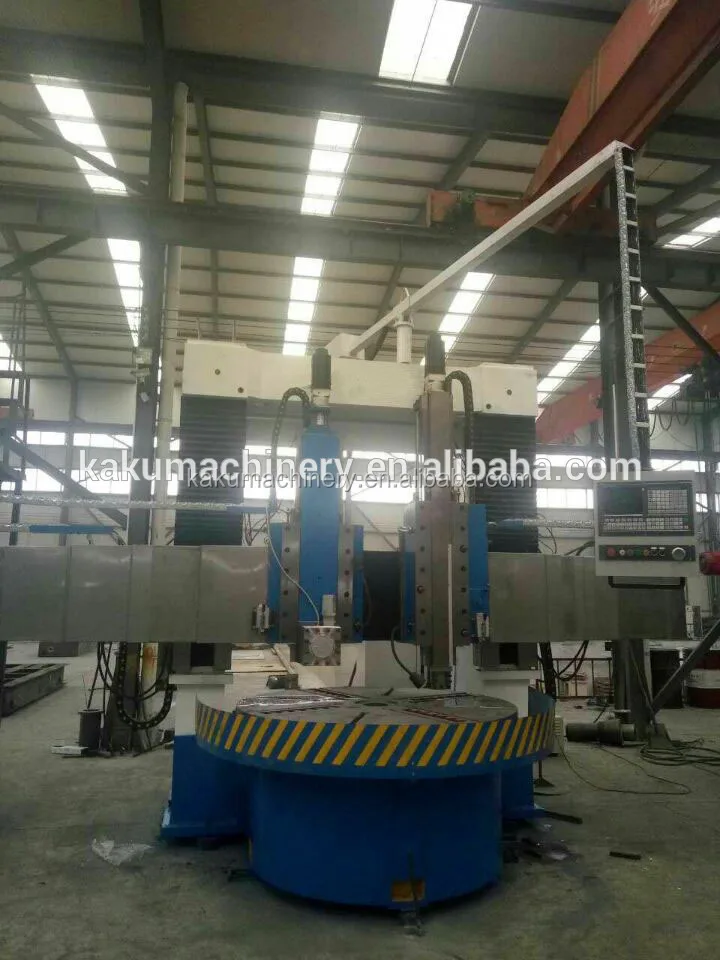

KS250*2500 15T CNC Vertical Turning Lathe Machine Price
KS250*2500-15T CNC Vertical Turning Lathe Machine Price
KS250*2500-15T CNC Vertical Turning Lathe Machine Price
KS250*2500-15T CNC Vertical Turning Lathe Machine Price
KS250*2500-15T CNC Vertical Turning Lathe Machine Price
KS250*2500-15T CNC Vertical Turning Lathe Machine Price
KS250*2500-15T CNC Vertical Turning Lathe Machine Price

KS250*2500 15T CNC Vertical Turning Lathe Machine Price

Share on (60711055707):


Price:

Quantity:


Product Overview

Description


Product Description
Structure of machine tools, precision testing standards and using the environment:
CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe
1, General layout
CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe
Machine consists of table, table bases, columns, beams, vertical turret form. The machine base parts are made of HT250 cast iron, resin sand process, cast after annealing, roughing after aging treatment (artificial aging and vibration). Reliable quality and no cracks, porosity and shrinkage of castings and white organizations, castings after annealing and aging treatment with stable structure in the guaranteed stability of machine tools, product quality certificate of pouring molten iron chemical composition analysis, report of heat treatment and annealing temperature-time curve.
CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe
2, Main drive
CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe
Main transmission is driven by AC motor, AC motor controlled by inverter, stepless speed regulation. Box gear by hardened and ground processing, ensuring the transmission accuracy and efficiency and reduce noise and vibration reduction.
CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe
3, Work desk
CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe
Table by table, table base, composed of spindle Assembly and transmission system, tables and table bases for the whole casting process. Table guideway set Zn-Al alloy rail and rail injection pressure oil to form a fixed guideway. Table load capacity, high Rotary precision.
CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe
4. And cross beams
CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe
Bar in the column for lifting and moving. Beam by the feed drive mechanism, beam clamp and its hydraulic devices. Beams fitted with an automatic oil pump, lubricate the track surface as needed.
CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe

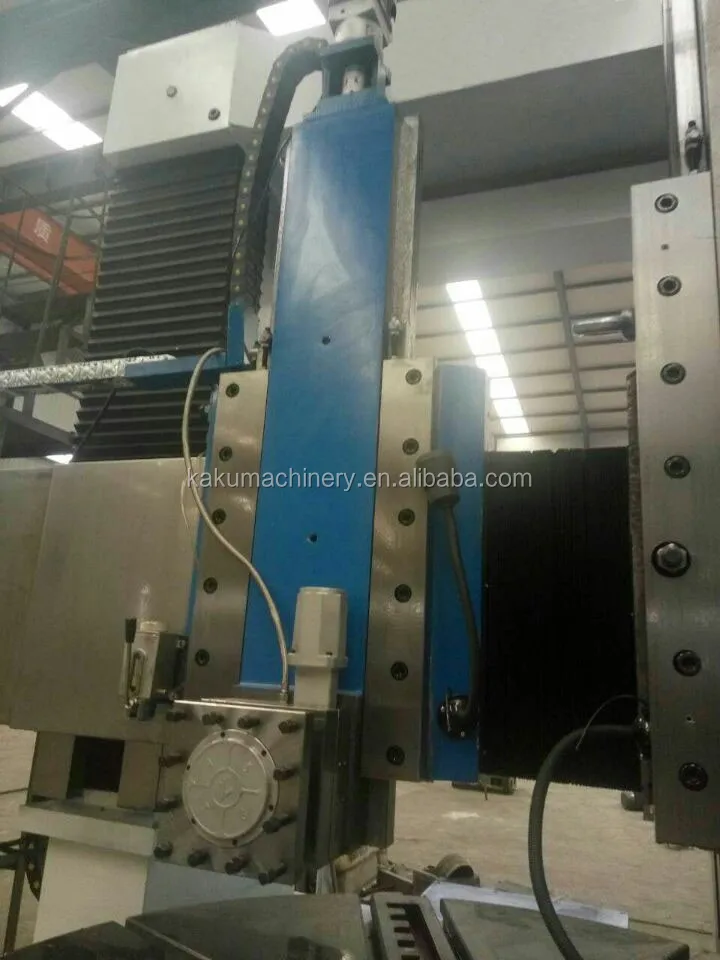

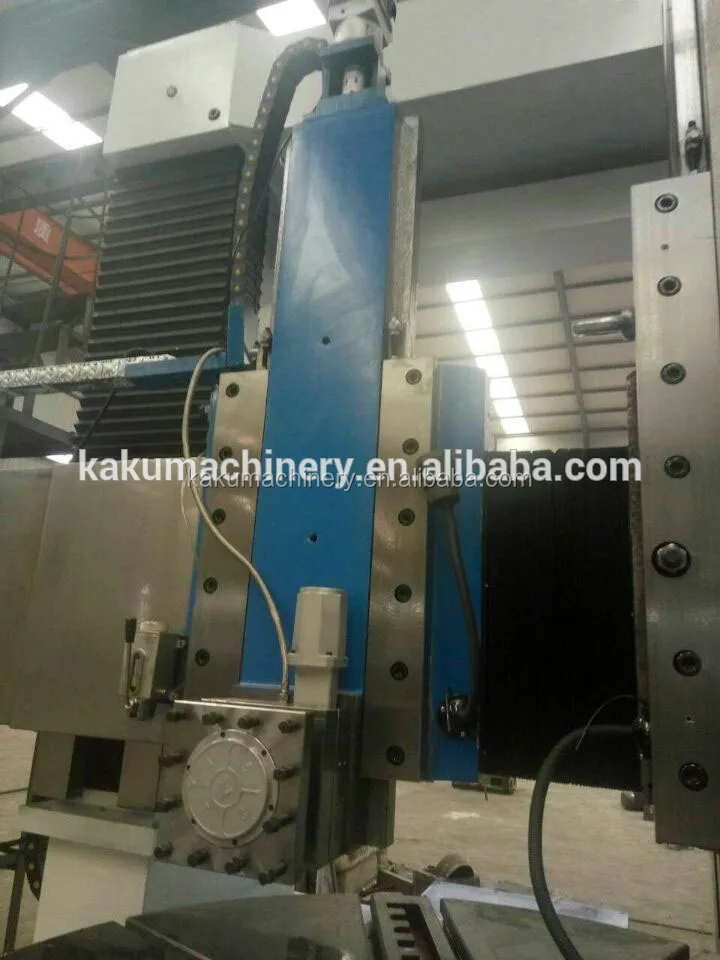

5\tAnd the tool holder
CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe
Right vertical turret x axis and thez axis servo motor drive, box through deceleration deceleration increases torque, controlled by an electromagnetic clutch switch between the two shafts and locking, realizes each kind of complex machining.
CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe
Left head to NC cutter holder,x axis and thez axis by driven by a servo motor controlled two-axis numerical control system, in order to achieve, Arc complex machining of complex surfaces.
CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe
6\tHydraulic system
CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe
Hydraulic system includes: table dynamic pressure system, main drive variable speed systems, beam clamps, vertical turret RAM hydraulic balance system of the hydraulic system. Hydraulic system is critical to the related hydraulic clamping, hydraulic gear, hydraulically balanced, dynamic pressure stability of the Rails, ensures the stability and compatibility of the hydraulic system.
CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe
Machine working conditions
CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe
1)\tMachine using three-phase AC: (380V±10%; 50HZ±1HZ) uniform supply.
CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe
2)\tWorkspace lighting (voltage, power):220V, and300W/500W
CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe
2) Machine running ambient temperature: 5ºC--40ºc 3) Environmental relative humidity85%
CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe/CNC vertical lathe
4) Harmful gases, liquids, dust-free workshop.
Parameter
\t
Project
\t
Unit
\t
KS250*2500/15T
\t
Table diameter
\t
mm
\t
2250
\t
Max turning diameter
\t
mm
\t
2500
\t
Max height
\t
mm
\t
1600
\t
Maximum workpiece weight
\t
kg
\t
15000
\t
Tool holder the maximum cutting force of right head
\t
KG/NM
\t
3500
\t
Left CNC head
\t
KG/NM
\t
3000
\t
Maximum total cutting force
\t
Kg/NM
\t
6300
\t
Max torque
\t
Kg/Nm
\t
6300
\t
Stage variable speed series
\t
Stepless
\t
Two gears stepless
\t
Workpiece speed range
\t
Go /min
\t
5-50
\t
Number of feeds
\t
Stepless
\t
Stepless
\t
Feed range
\t
mm/min
\t
0.25-90
\t
Crossbeam travel
\t
mm
\t
1250
\t
Tool stroke The level of
\t
mm
\t
1400
\t
Vertical
\t
mm
\t
1000
\t
Beam movement speed
\t
mm/min
\t
350
\t
Rapid traverse of tool holder
\t
mm/min
\t
1560
\t
Cutter maximum swivel angle
\t
Degrees
\t
± 30 °
\t
Knife dimension ( Wide x high)
\t
mm
\t
40x50
\t
Power of main motor
\t
kw
\t
Jun-55
\t
Machine overall dimensions ( Length*width*high)
\t
mm
\t
4200*4600*4050
\t
Weight of machine
\t
(About )kg
\t
32000

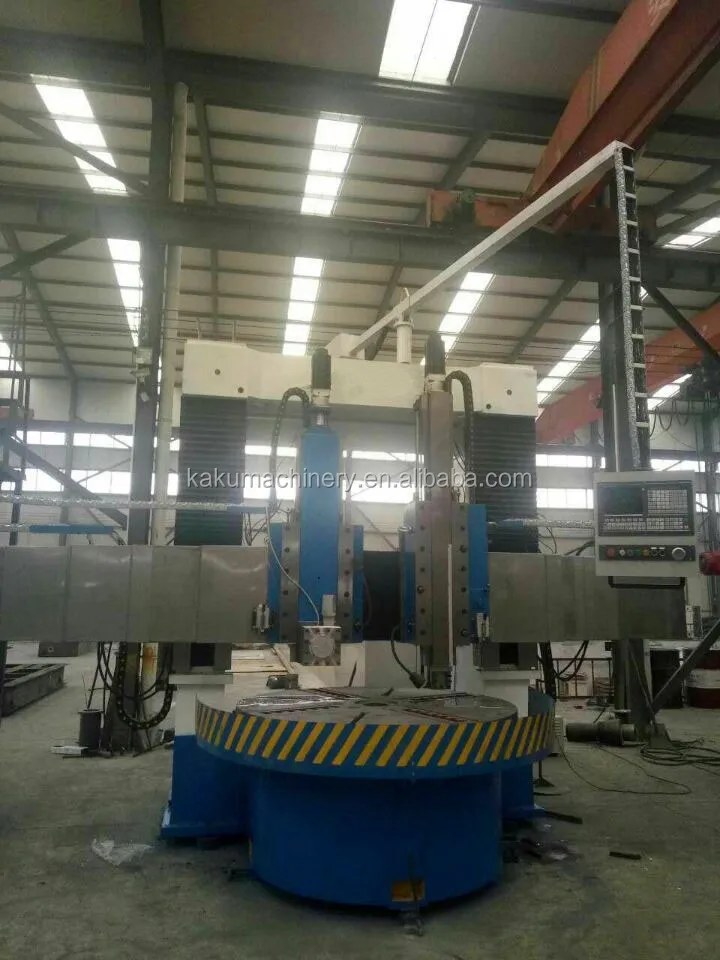

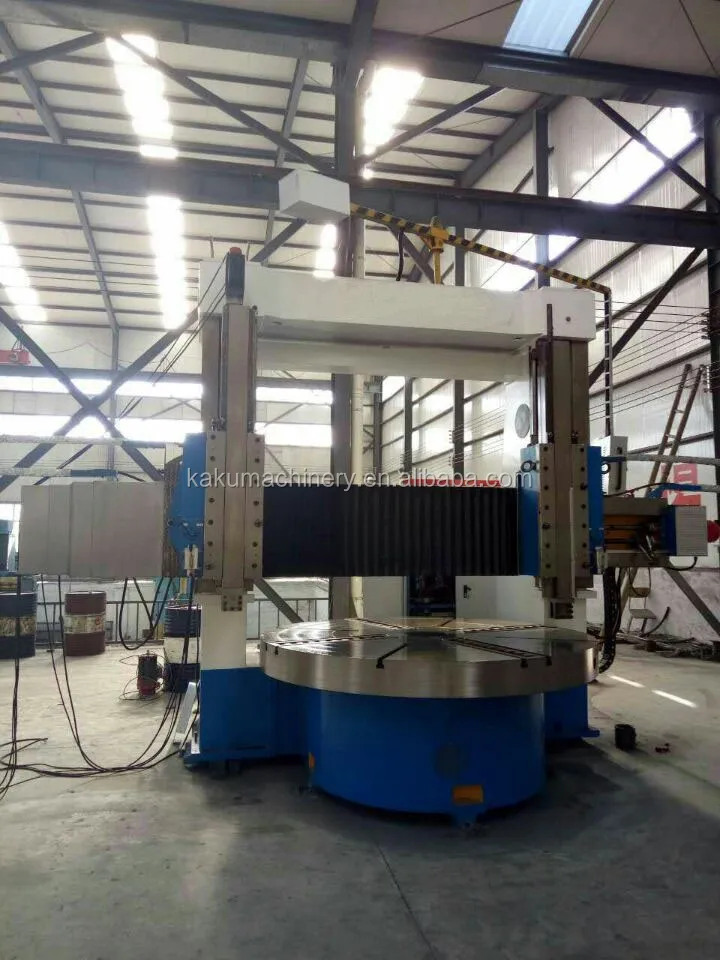

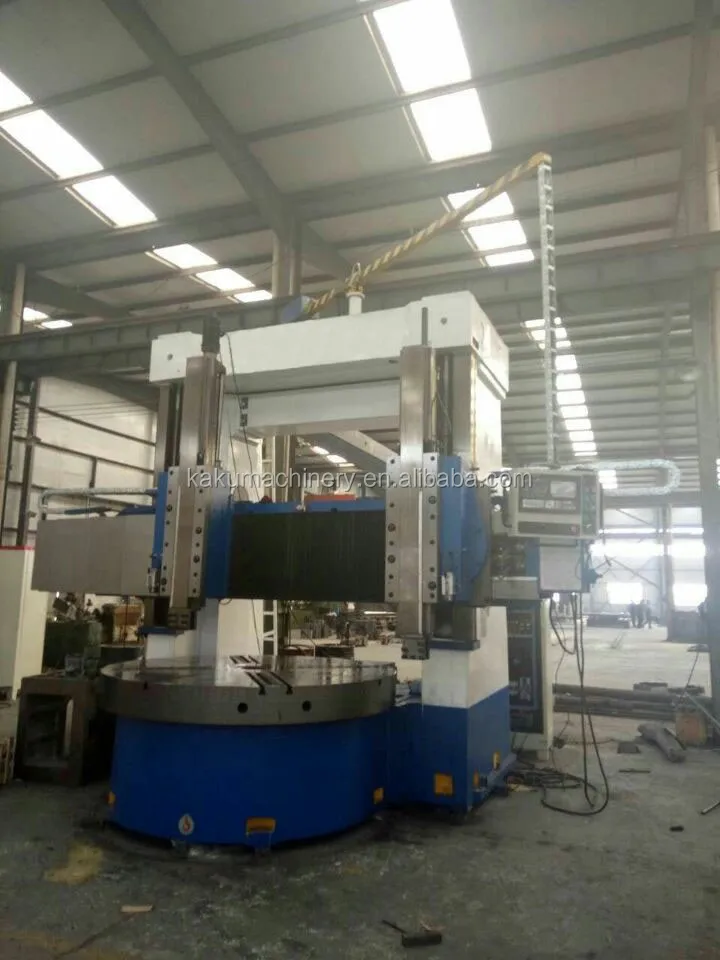

Detailed Images
More products

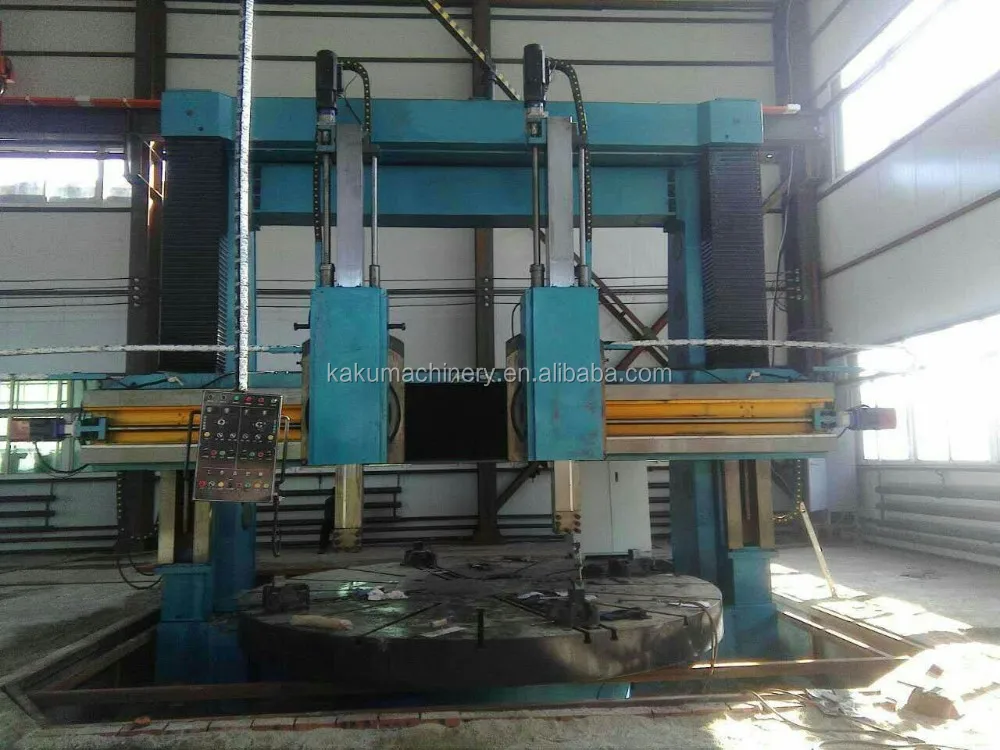

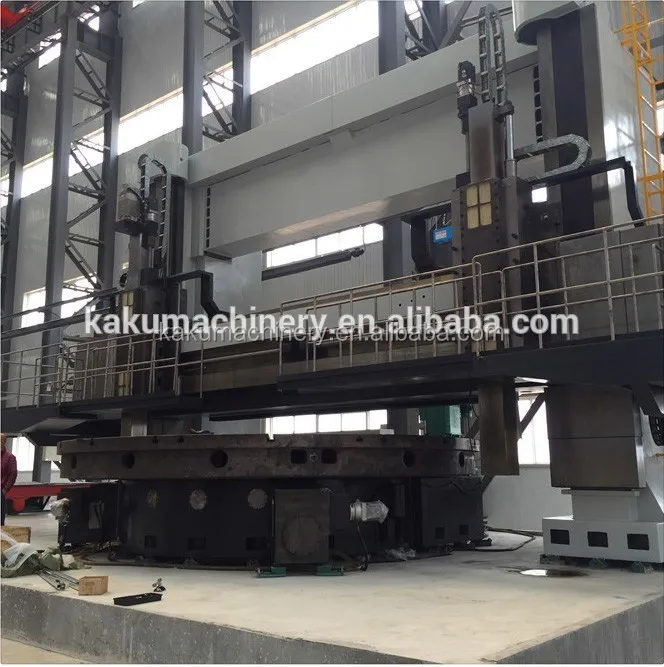

Vertical double column turret lathe machine with 100T workpiece

5240D double columns CNC vertical lathe

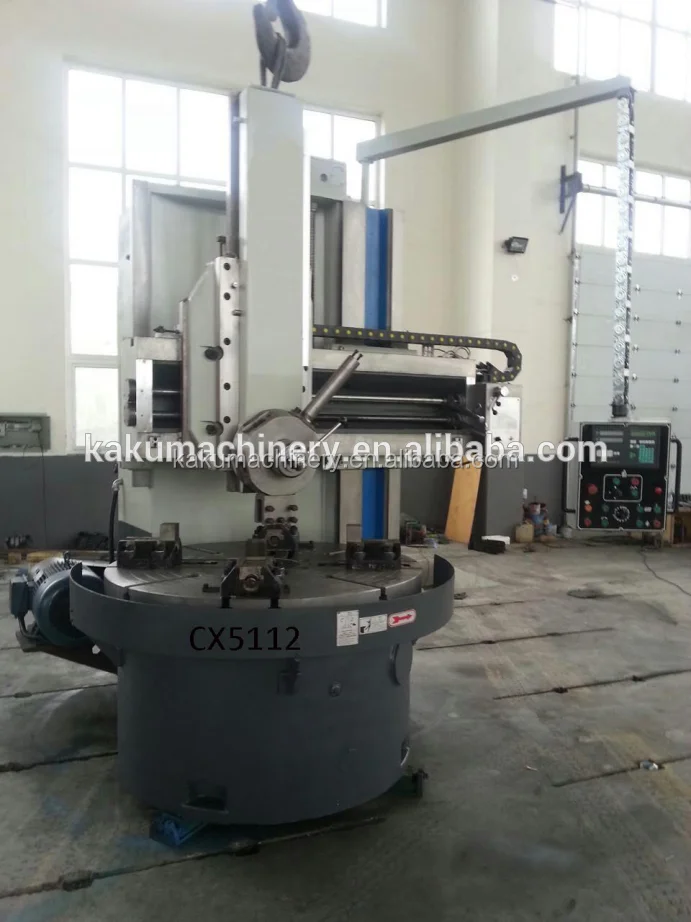

CX5112/ 5116/ 5123/ 5125/ 5131/ 5140 Single Columns vertical turning conventional lathe

CK5123 High Prision Single Column CNC Vertical Lathe Machine 2300mm turning dia.

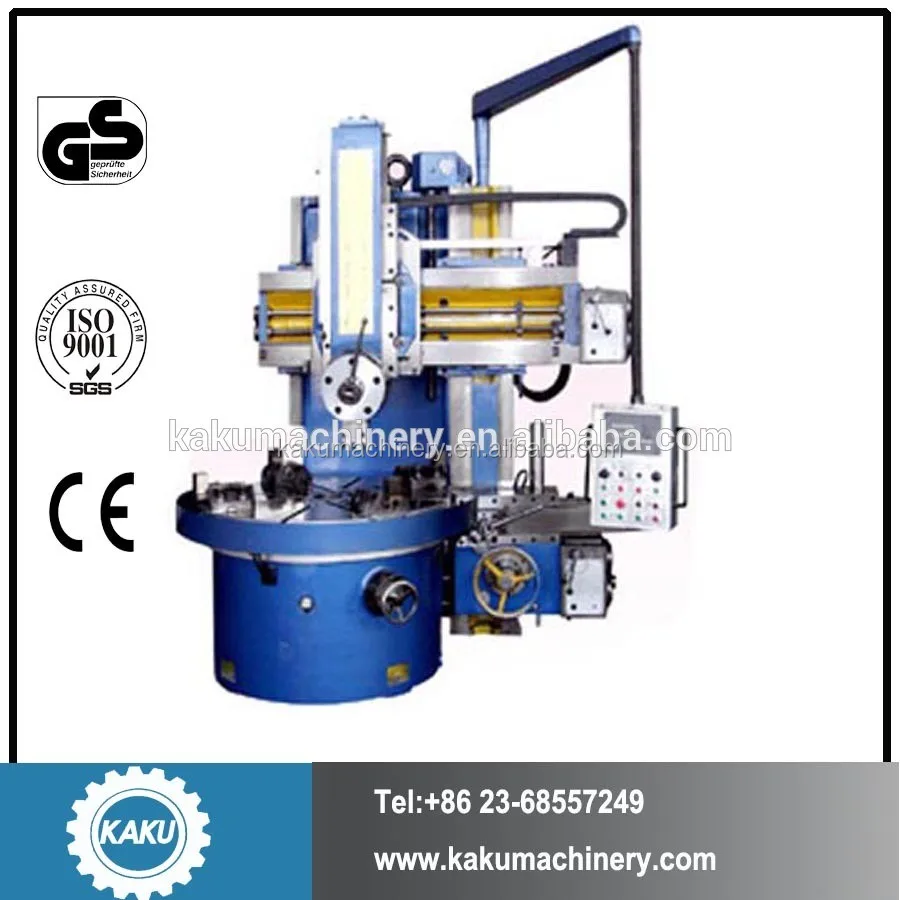

C5112 Conventional Single Column Vertical Lathe Turret lathe

Why choose us
Packing & Delivery
\t
Packaging Datails
\t
Size
\t
4200*4600*4050mm
\t
Weight
\t
32T
\t
Packing details
\t
Because the CNC vertical lathe is too big and it need to 20/40 container to put, so the normal package is PE film. But we can be according to customers special request and choose the Fumigation-free plywood. If export to european contries, the machine have CE certificate.
