15 Ton Bevel Gear Screw Jack

JACTON offers best quality 15 Ton Bevel Gear Screw Jack Price for domestic and foreign customers. Important Note: The original actual pictures, videos, designs and moulds came from the audited manufacturer and supplier - Jacton Industry Co.,Ltd. Don't copy the pictures, videos, models, designs and drawing dimensions without JACTON permission.

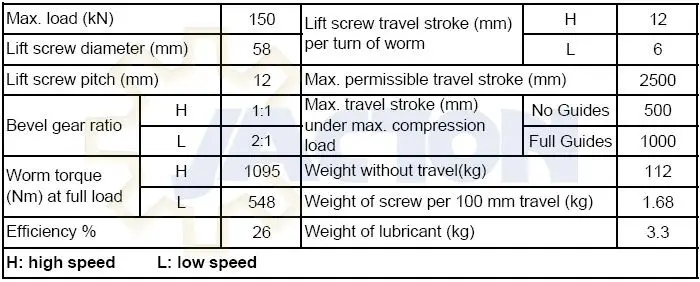

1. Maximum static load capacities 15 ton.

2. Lifting screw diameter 58 mm, pitch 12 mm.

3. Spiral bevel gear ratios 1:1, 2:1.

4. Gearbox sizes 290x290x330mm.

5. Input and output shaft diameter 50mm, center height 165mm.

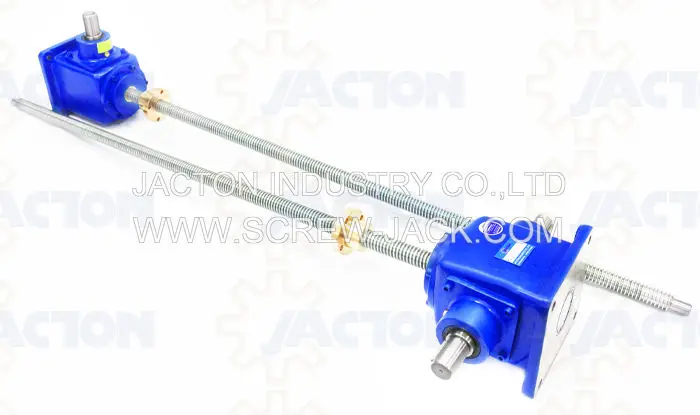

6. Single unit, Pair, or Multi-units JTS150 bevel gear screw jack system without right angle spiral bevel gearboxes.

* There are no "standard" travel lengths. Standard trapezoidal screw maximum length 6000 mm, custom longer stroke.
* Upright or Inverted mounting. Available in tension or compression loads.
* Translating, Keyed for non-rotating, and Rotating designs.
* Each size is available with two ratios, 1:1 and 2:1. Custom 2.5:1 ratio.
* Standard with 1-start trapezoidal screw, custom 2-starts trapezoidal screw which offers increased travel speed and require a brake or external locking device to hold position.
* Custom-made trapezoidal screw diameter and pitch, gear ratios, and worm shaft sizes.
* Trapezoidal Screw Ends: top plate, clevis end, plain end, threaded end, fork end, rod end.
* Can be operated by manually operated or by electrical motor driven.

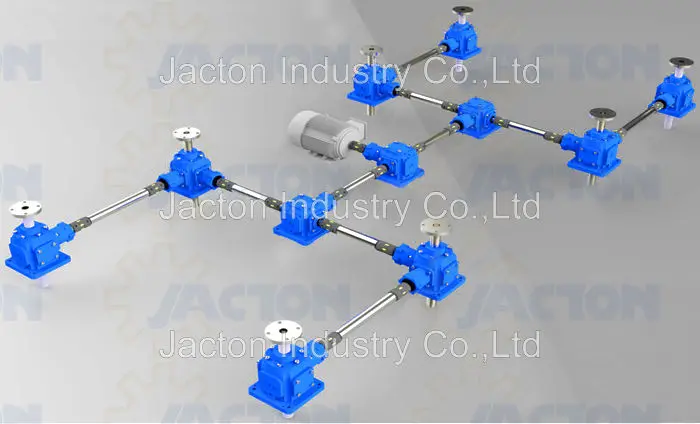

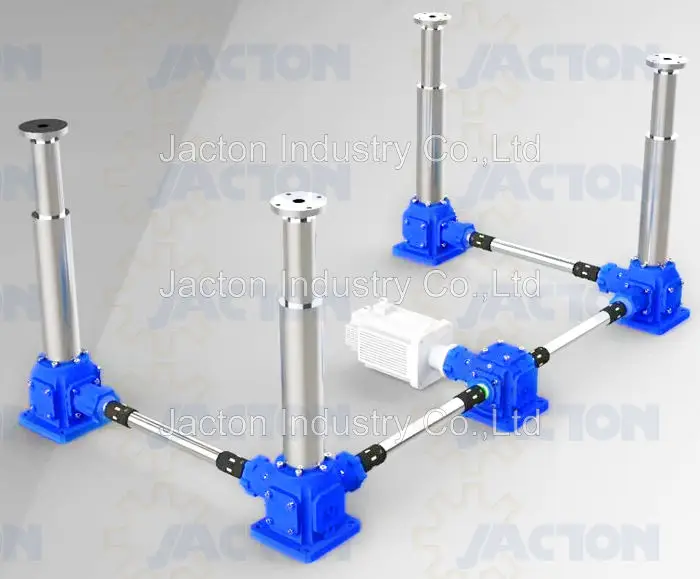

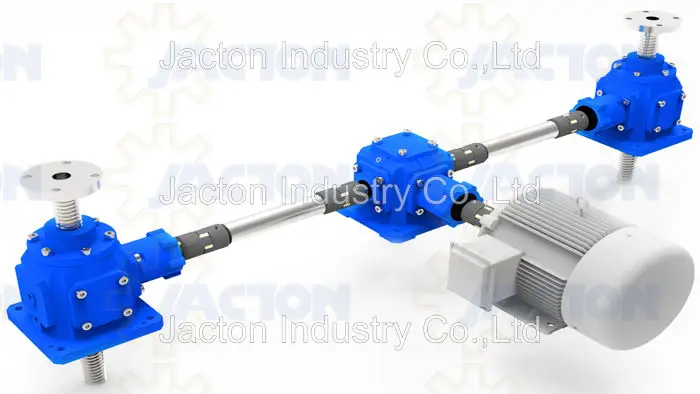

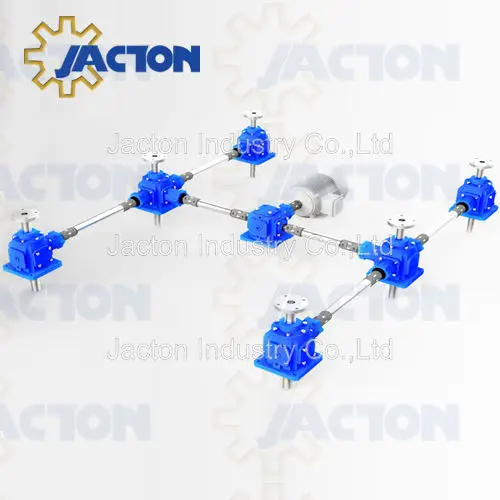

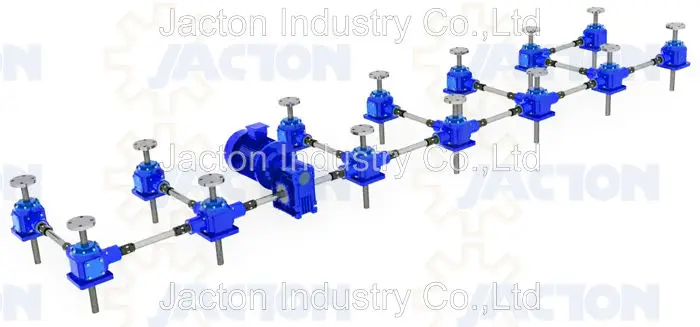

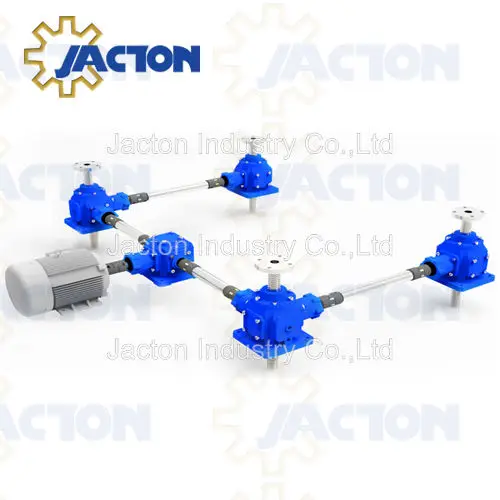

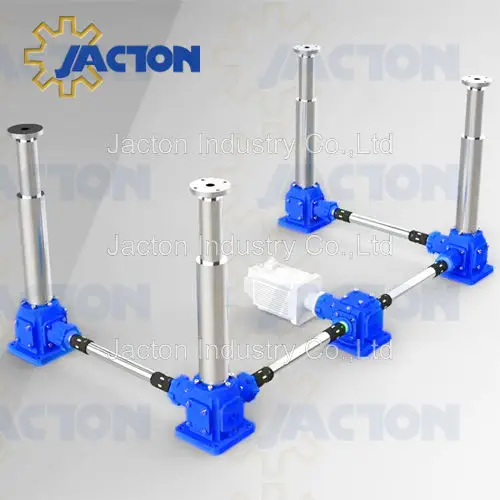

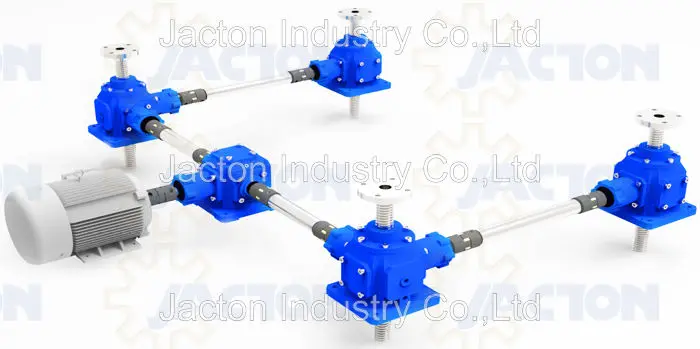

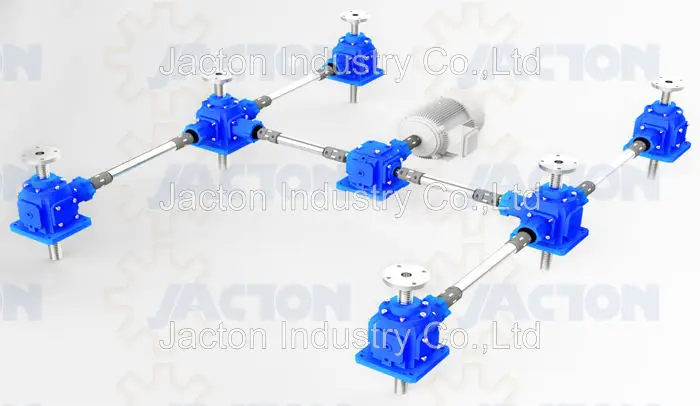

* Single unit use, or complete jacking system including gear motors, bevel gearboxes, connecting shafts and couplings for dual or multiple jack arrangements.
* Optimal for low-speed operation: The driving system has less noise because machinery can be driven at a lower input speed.
* Simple and effective solution in comparison with hydraulic and pneumatic systems.

Materials:
* Spiral Bevel Gears: Lapped together in pairs, high quality alloy steel, case hardened.
* Trapezoidal Screw: Carbon steel #45. Custom stainless steel.
* Input Shaft: Hardened, alloy steel. Custom stainless steel.
* Drive Sleeve: High strength bronze.
* Travelling Nut and Safety Nut: High strength bronze.
* Housing(Gearbox): Ductile Iron.

Accessories:
* Motorized driven (AC or DC) by asynchronous motors (normal, YEJ brake, YVP variable frequency, B explosion proof, D multi-speed), stepper motors, servo motors with encoders and controllers. IEC motor flange or NEMA C-Face motor adapter for connect with motors. Frequency inverters.
* Manually operated by Aluminum handwheels, or Cast iron handwheels.
* Connection Devices: Couplings. Universal joints. Telescopic universal joints. Connecting shafts.
* Screw Protective Devices: Bellows boot. Telescopic spring covers. Protective tubes.
* Safety Devices: Limit switches. Proximity switches. Safety nuts. Anti-backlash nut. Overload safety couplings. Stop nuts. Position Encoders. Overload clutch. Brake motor. Linear braking elements. Wear detection/monitors. Linear guides and rails. Potentiometer. Pressure sensor.
* Others Accessories: Travel nuts. Position indicators. Trunnion adapter plates. Trunnion mounting brackets. Pillow blocks. Flange blocks. Rod end bearings.

Shipping:
1. Ocean freight: seaport to seaport, price terms CIF, FOB, EXW, CFR etc.
2. Air freight: airport to airport, price terms EXW, CRF etc.
3. Air courier: DHL, FEDEX, UPS, TNT door to door shipment, price terms DDU, CPT etc.
Packing:
100% standard exporting plywood cases.

Note: International Exporting Standard Wooden Material with Free Fumigation.

* One of the biggest orders with 1750 units screw jacks.
* Standard products with 2D Drawings(DXF, DWG, PDF) and 3D CAD Model(STEP).
* 100% quality assured with double quality inspections. Original Inspection Reports, Operation Manual, and Book Catalogue are put into the packages.
* 100% safety transportation with strong standard export plywood cases materials (free fumigation).
* International standard materials for all standard products.
* Custom design available, OEM service available, Free engineering advice and Customer label available.
