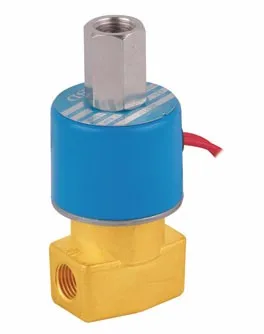

3/8' Polit Solenoid Valve FB2E V 10 FKM Compact Solenoid Valve KSD 2/2 Way Series Standard Voltages

Title goes here.

MODEL\tFB2E-V-08\tFB2E-V-10\tDC231Y-08\tDC231Y-10
\tKSD22-08\tKSD22-10\tKSD23-08\tKSD23-10
WAY TYPE\t2/2\t3/2
PORT SIZE\tG1/4''\tG3/8''\tG1/4''\tG3/8''
PORE(mm)\t4.0\tUp:2.3   Bottom:1.6
PRESSURE\tAC:0~9BAR  DC:0~6BAR\t0~7BAR
Voltage\tStandard
BODY MATERIAL\tBRASS
SEAL MATERIAL\tVITON(FKM)
MEDIUM\tAIR,WATER,NEUTRAL GAS

Title goes here.

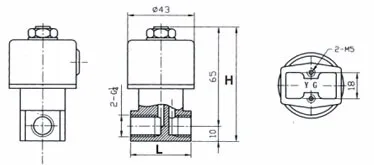

MODEL                            L   W
FB2E-V-08/KSD22-08   41\t75
FB2E-V-10/KSD22-10   41\t75
DC231Y-08/KSD23-08  41\t95
DC231Y-10/KSD23-10  41\t95
